Product Description

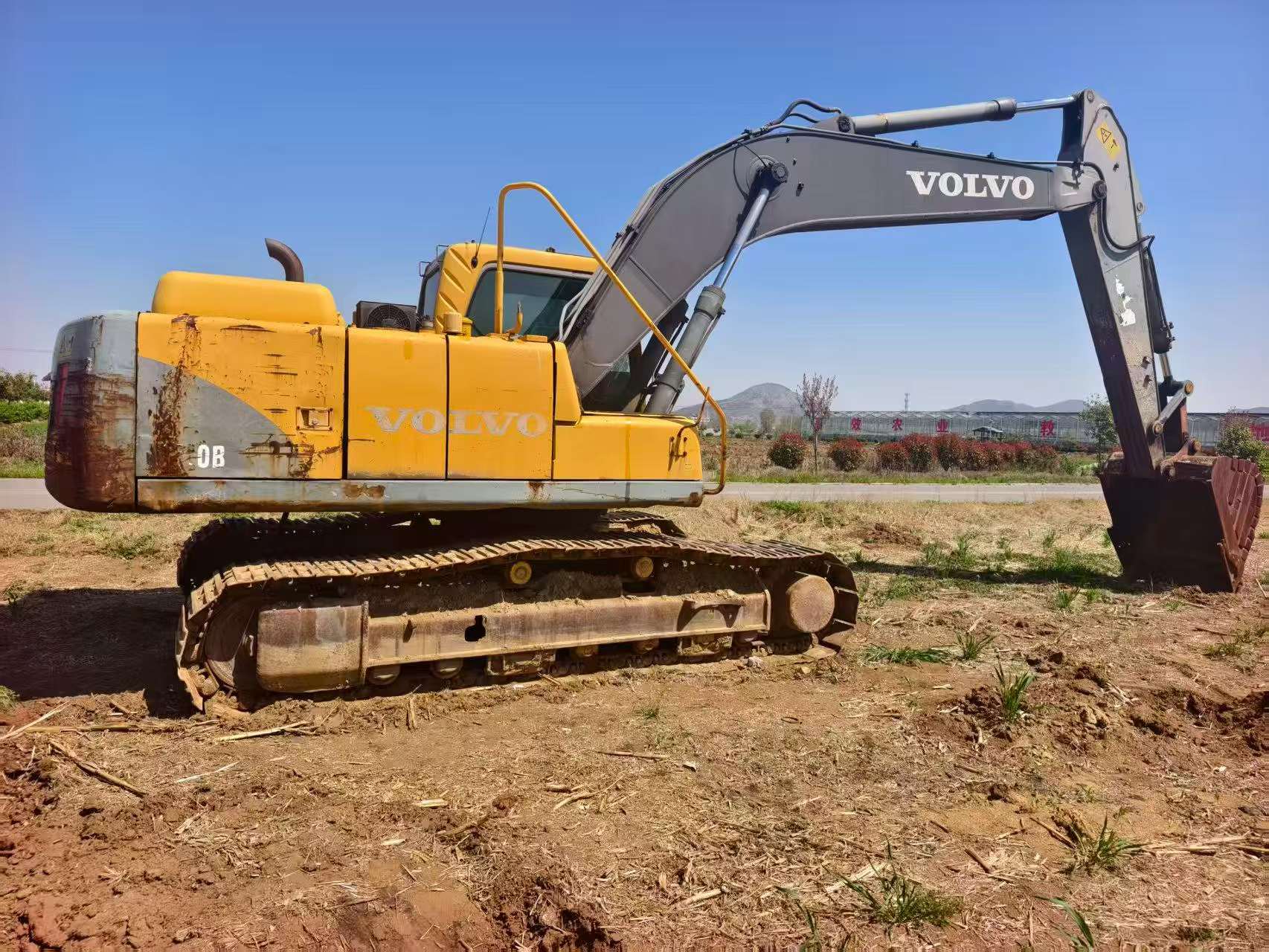

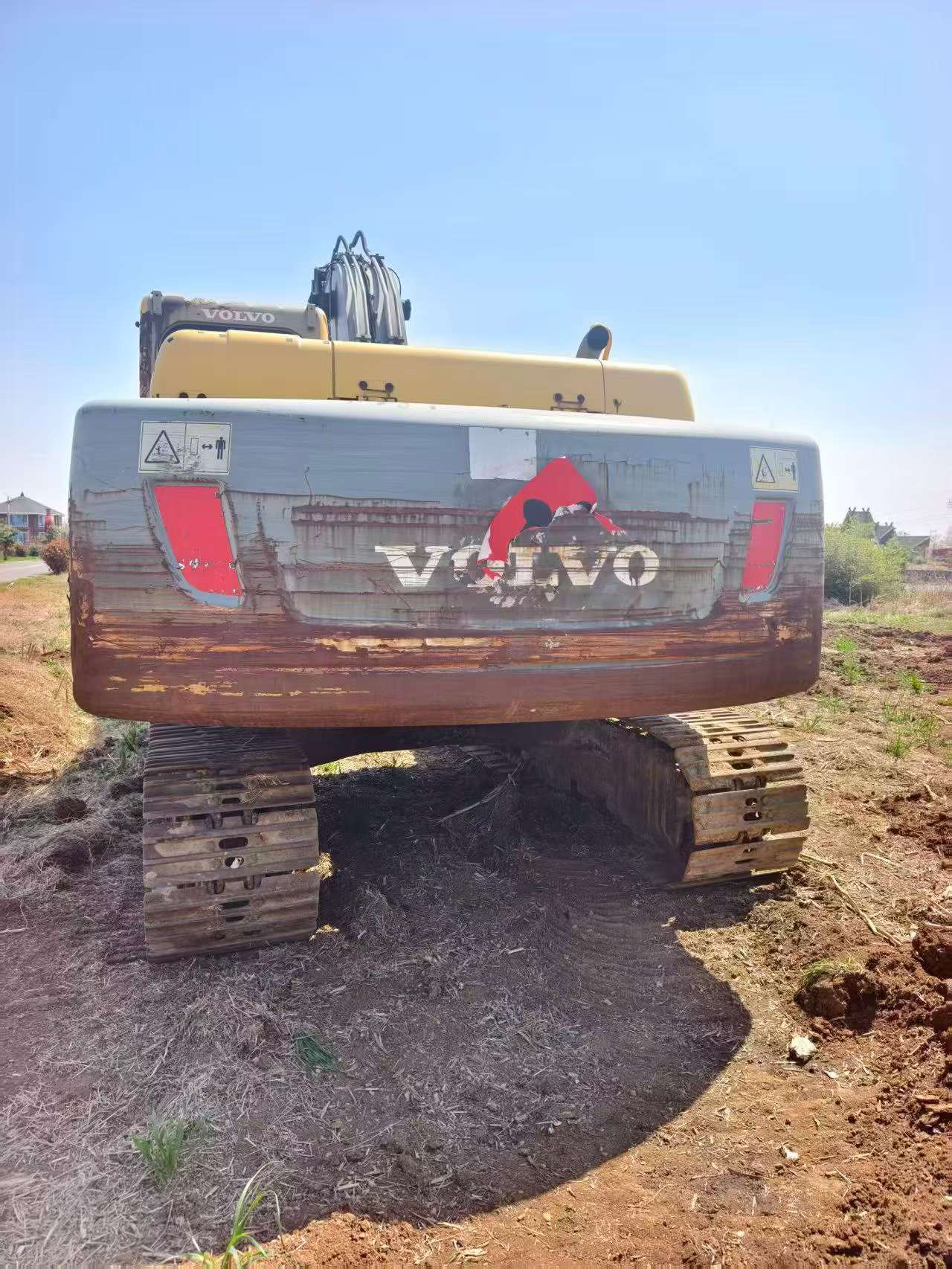

Located in 浙江杭州, this 2011 Volvo EC210B excavator is available now, ready for immediate deployment to your site. With a working weight of 20,500 kg and a bucket capacity of 0.9-0.92 m³, it ensures robust performance. Powered by a Volvo D6D engine, delivering 107 kW at 1900 rpm, this machine offers reliable and efficient operation. Skip the factory lead times and benefit from fast logistics, ensuring minimal downtime and quick integration into your operations.
- Boom length: 5700 mm, Rod length: 2900 mm
- Maximum travel speed: 3.2/5.5 km/h
- Maximum digging depth: 6730 mm
- Bucket digging force: 136.3 kN (Standard mode) / 147.1 kN (Extra mode)
- Fuel tank capacity: 350 L
| Specifications | Value |
|---|---|
| No. | 1050813 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20500 |
| Bucket capacity (m³) | 0.9-0.92 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Korea/Shanghai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

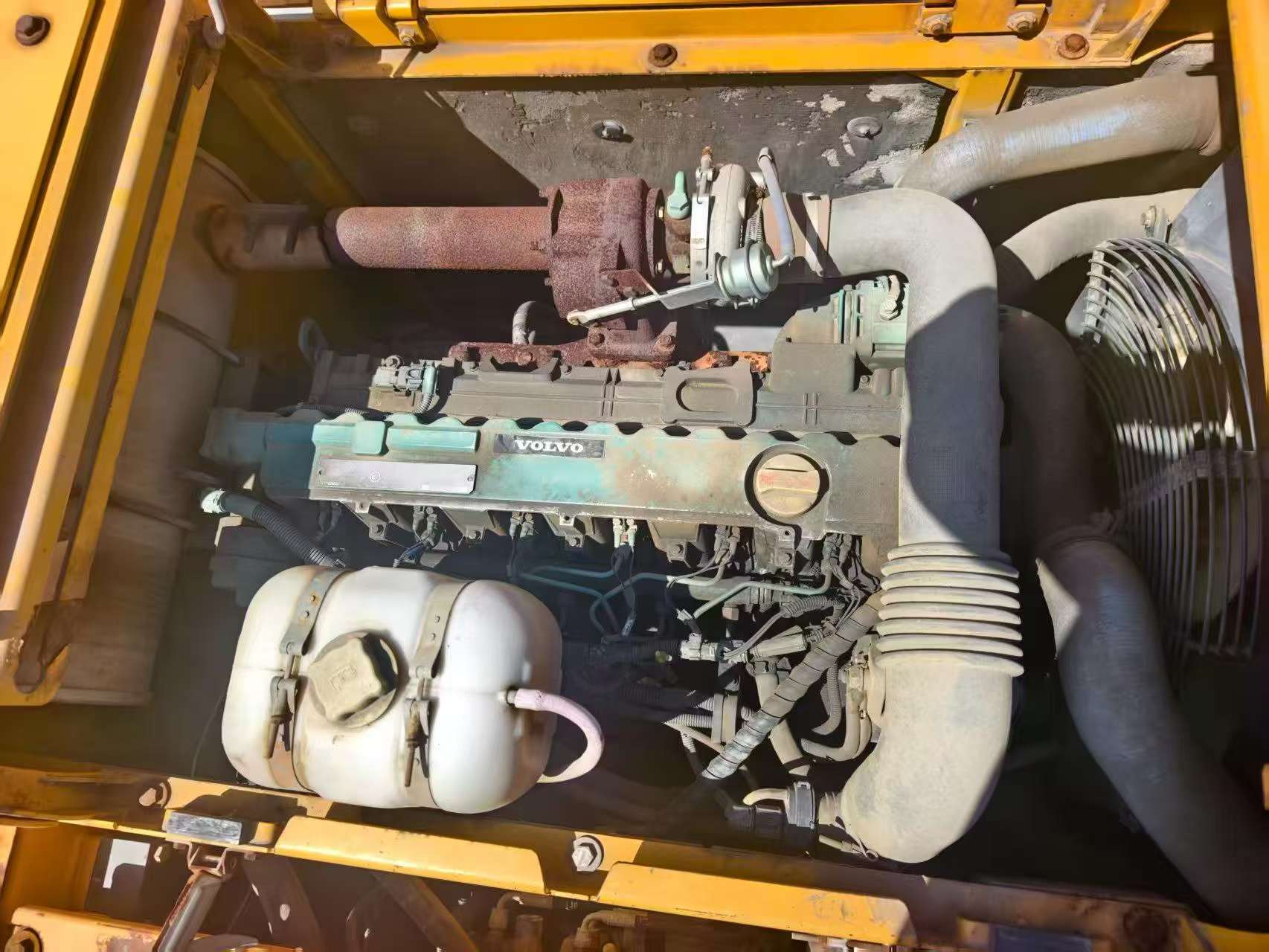

| Engine type | Volvo D6D |
| Rated power (kw/rpm) | 107/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 126 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.7 |
| Working form | Turbocharging; Electronically controlled direct injection |
| Ground specific pressure (Kpa) | 45.6 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 136.3 (Standard mode) /147.1 (Extra mode) |
| Rod digging force (kN) | 98.2 (Standard Mode) /104.9 (Extra mode) |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.2/5.5 |
| Rotary hydraulic motor type | Axial piston hydraulic motor (with mechanical brake) |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 200 * 2 + 19 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 32.4/34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1065 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1540 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 1235 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 27.5 |
| Hydraulic System (L) | 295 |
| Total transport length (mm) | 9690 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3000 (total height of big arm) |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1025 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3650 |
| Back end turning radius (mm) | 2850 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | Two teeth 700; Three teeth 600/700/800/900 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9450 |
| Maximum unloading height (mm) | 6650 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 9750 |
| Maximum effective digging depth (mm) | 6510 |
