Product Description

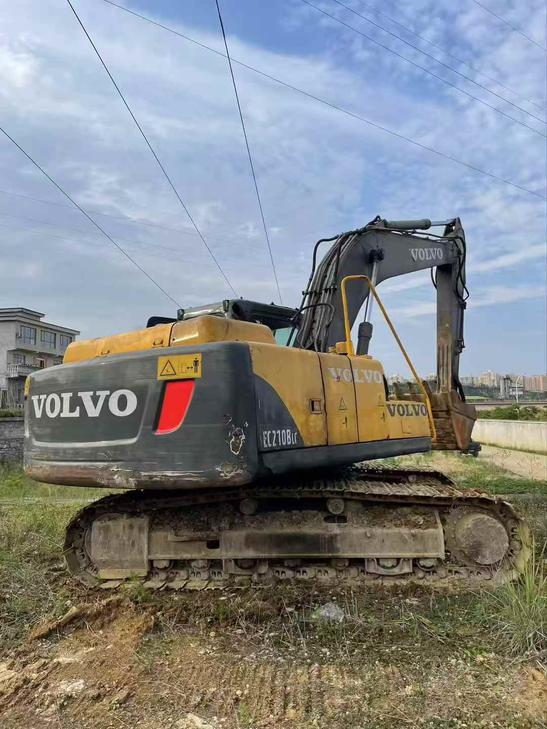

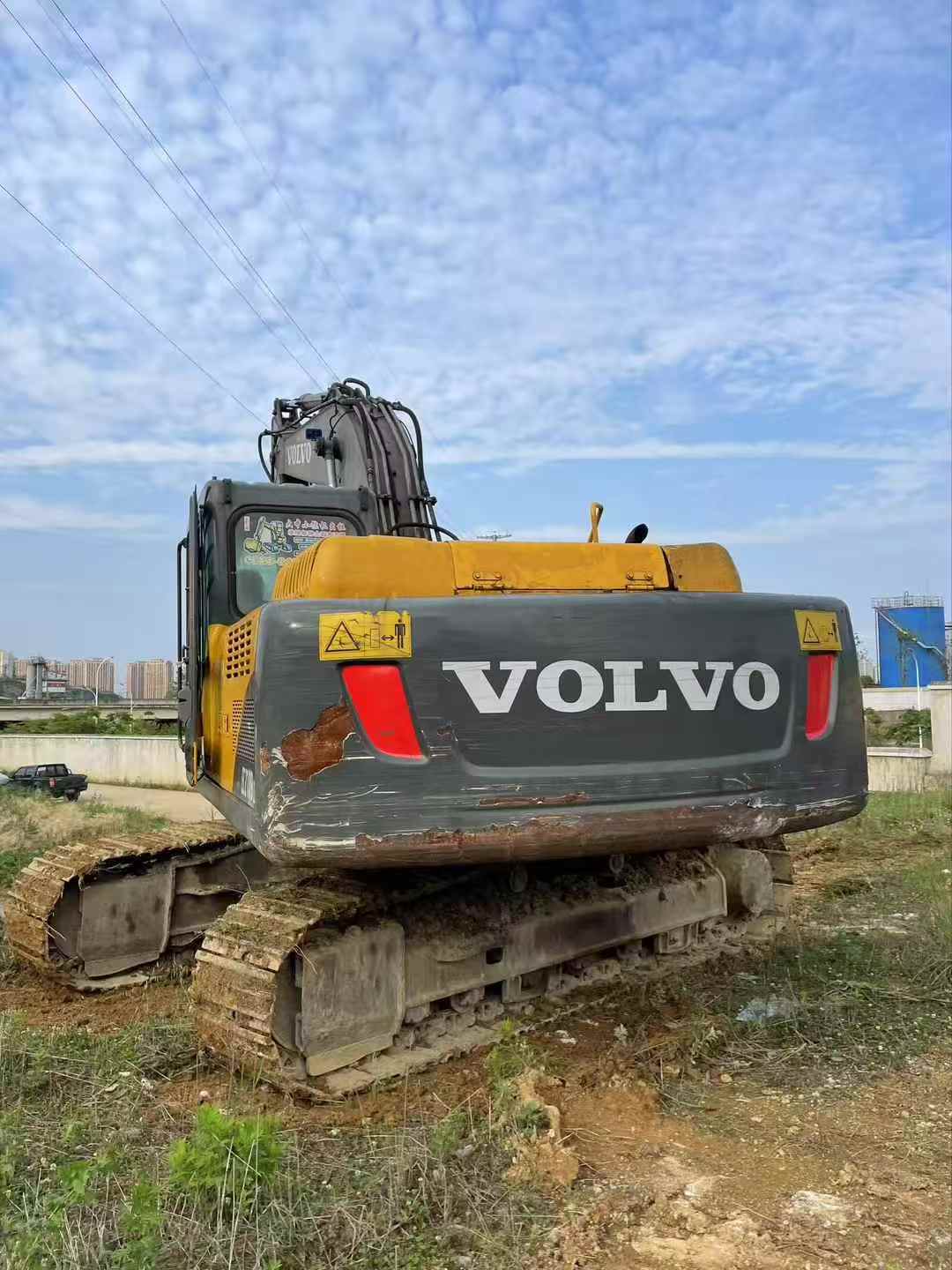

This 2013 Volvo EC210B excavator is available from Guizhou, China. The EC210B is a proven mid-size crawler excavator known for reliable performance in construction, earthmoving, and infrastructure projects. With over a decade of field use, this machine offers an economical entry point for contractors seeking dependable Volvo engineering at a competitive price.
- Year of Manufacture: 2013
- Model: Volvo EC210B
- Location: Guizhou Province, China
- Machine Type: Hydraulic Crawler Excavator
- Operating Weight Class: ~21 tonnes
The EC210B features Volvo's durable undercarriage and hydraulic systems designed for demanding jobsite conditions. This unit is priced for quick sale and ready for inspection. Suitable for general excavation, trenching, material handling, and demolition work. Contact us for current availability and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1075432 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20500 |
| Bucket capacity (m³) | 0.9-0.92 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Korea/Shanghai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D6D |
| Rated power (kw/rpm) | 107/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 126 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.7 |
| Working form | Turbocharging; Electronically controlled direct injection |
| Ground specific pressure (Kpa) | 45.6 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 136.3 (Standard mode) /147.1 (Extra mode) |
| Rod digging force (kN) | 98.2 (Standard Mode) /104.9 (Extra mode) |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.2/5.5 |
| Rotary hydraulic motor type | Axial piston hydraulic motor (with mechanical brake) |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 200 * 2 + 19 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |

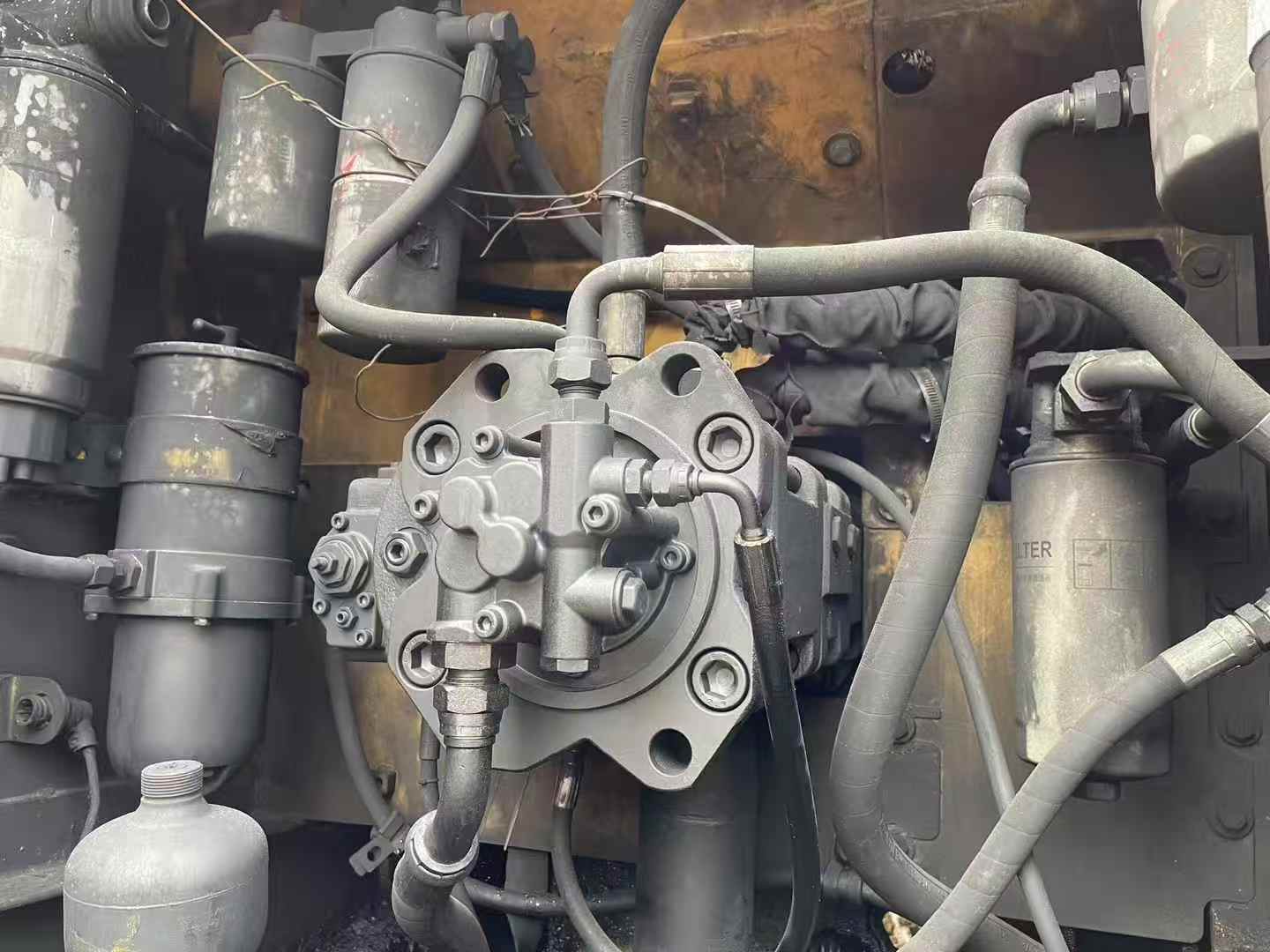

| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 32.4/34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1065 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1540 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 1235 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 27.5 |
| Hydraulic System (L) | 295 |
| Total transport length (mm) | 9690 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3000 (total height of big arm) |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1025 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3650 |
| Back end turning radius (mm) | 2850 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | Two teeth 700; Three teeth 600/700/800/900 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9450 |
| Maximum unloading height (mm) | 6650 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 9750 |
| Maximum effective digging depth (mm) | 6510 |
