Product Description

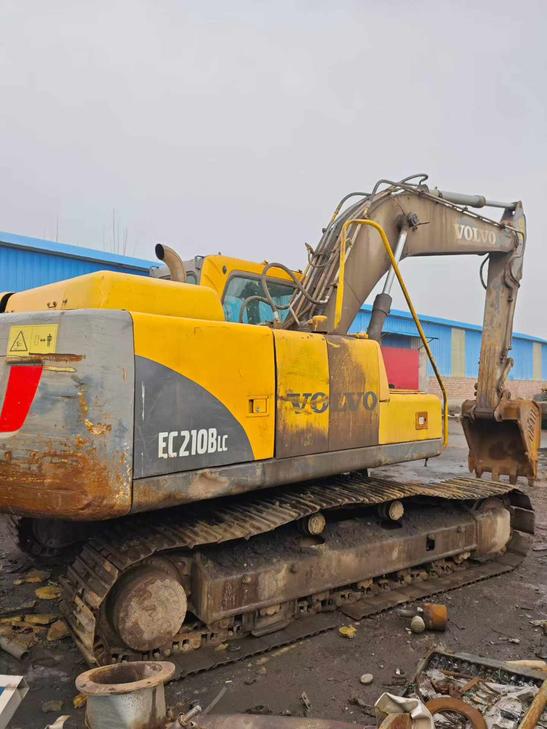

Built for demanding jobsites, this 2016 Volvo EC210B delivers precise control and consistent performance across a 21-ton operating platform. Powered by the Volvo D6D engine producing 107 kW at 1900 rpm, this excavator combines water-cooled reliability with electronically controlled direct injection for efficient fuel management throughout extended shifts.
Operators benefit from exceptional visibility and ergonomic cabin design that reduces fatigue during long work cycles. The machine's 0.9 m³ bucket capacity and 9,940 mm maximum digging radius provide versatile reach, while dual-mode digging forces—147.1 kN in Extra mode—handle tough excavation tasks with authority. Hydraulic responsiveness comes from dual 200 L/min variable piston pumps, ensuring smooth simultaneous functions.
Key operator advantages include:
- Stable 2,200 mm track gauge with low 45.6 kPa ground pressure
- 11.6 rpm rotation speed for efficient positioning
- Dual-speed travel: 3.2/5.5 km/h for site flexibility
- 350 L fuel capacity for extended runtime
- Currently located in Jiangsu, ready for deployment
| Specifications | Value |
|---|---|
| No. | 1045032 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20500 |
| Bucket capacity (m³) | 0.9-0.92 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Korea/Shanghai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D6D |
| Rated power (kw/rpm) | 107/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 126 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.7 |
| Working form | Turbocharging; Electronically controlled direct injection |
| Ground specific pressure (Kpa) | 45.6 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 136.3 (Standard mode) /147.1 (Extra mode) |
| Rod digging force (kN) | 98.2 (Standard Mode) /104.9 (Extra mode) |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.2/5.5 |
| Rotary hydraulic motor type | Axial piston hydraulic motor (with mechanical brake) |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 200 * 2 + 19 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 32.4/34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1065 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1540 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 1235 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 27.5 |
| Hydraulic System (L) | 295 |
| Total transport length (mm) | 9690 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3000 (total height of big arm) |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1025 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3650 |
| Back end turning radius (mm) | 2850 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | Two teeth 700; Three teeth 600/700/800/900 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9450 |
| Maximum unloading height (mm) | 6650 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 9750 |
| Maximum effective digging depth (mm) | 6510 |
