Product Description
Ready to ship from Chongqing, this 2014 Volvo EC210B-Prime crawler excavator eliminates factory lead times and gets your crew working faster. Built as a joint venture in Korea/Shanghai, this 21-ton workhorse combines proven Volvo D6E power (110 kW at 1800 rpm) with efficient hydraulics—dual 200 L/min variable axial piston pumps deliver precise control across its 9,940 mm maximum dig radius and 6,730 mm maximum dig depth. The 0.92 m³ backhoe bucket and robust digging forces (147.1 kN bucket, 104.9 kN stick in Extra mode) tackle demanding earthwork with confidence.

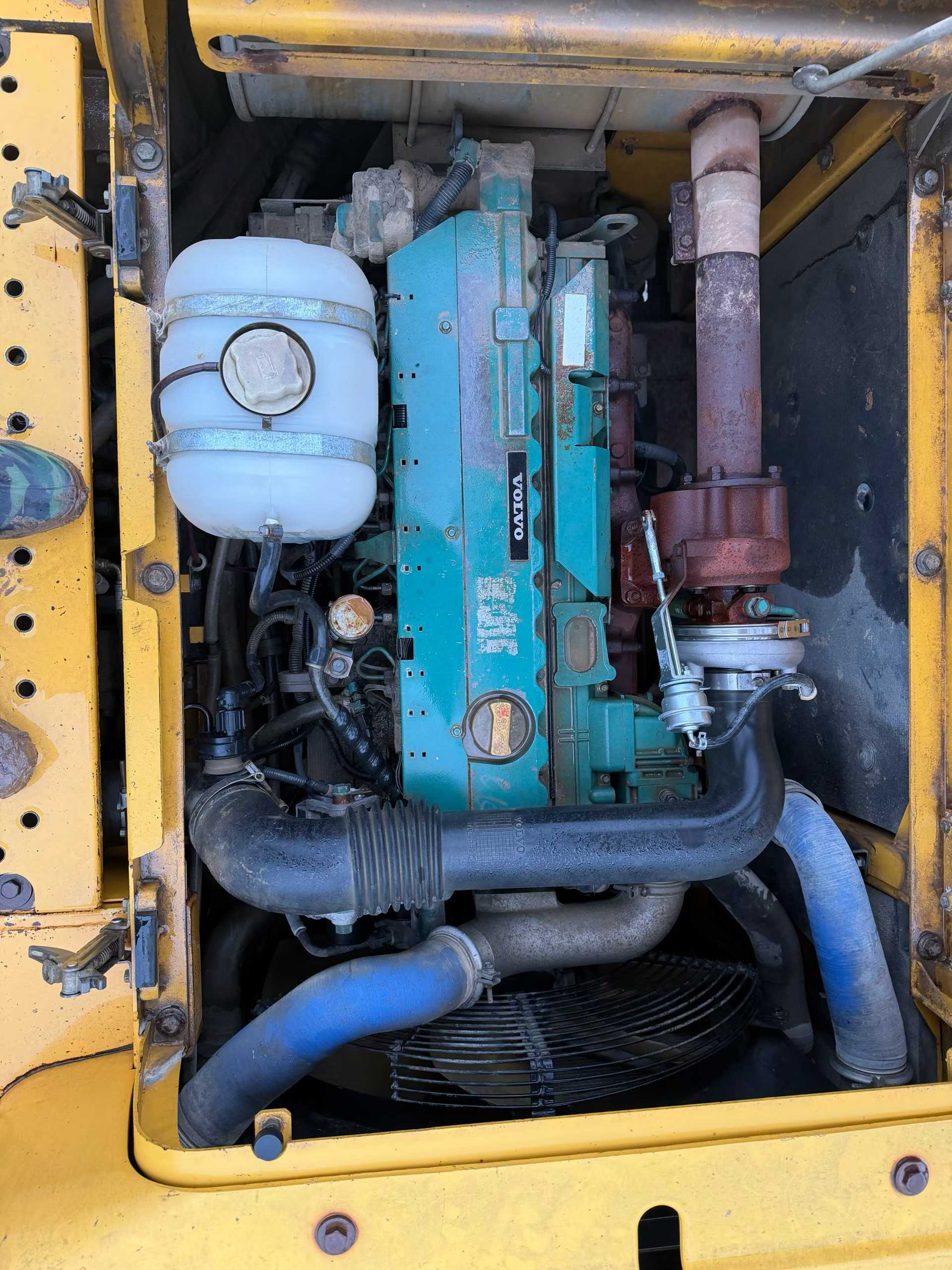

- Power: Volvo D6E turbocharged diesel, 5.7L displacement, water-cooled with common-rail direct injection
- Performance: 5,700 mm boom, 2,900 mm stick, 70% gradeability, 11.6 rpm swing speed
- Hydraulics: 34.3 MPa working pressure, 160L tank capacity, variable displacement system
- Mobility: 3.2/5.5 km/h travel speeds, 2,860 mm tail swing radius, 600 mm track shoes
- Availability: Currently located in Chongqing—inspect and deploy immediately
Skip months of downtime. Arrange site delivery from Chongqing today and put this depen
| Specifications | Value |
|---|---|
| No. | 1035719 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20500 |

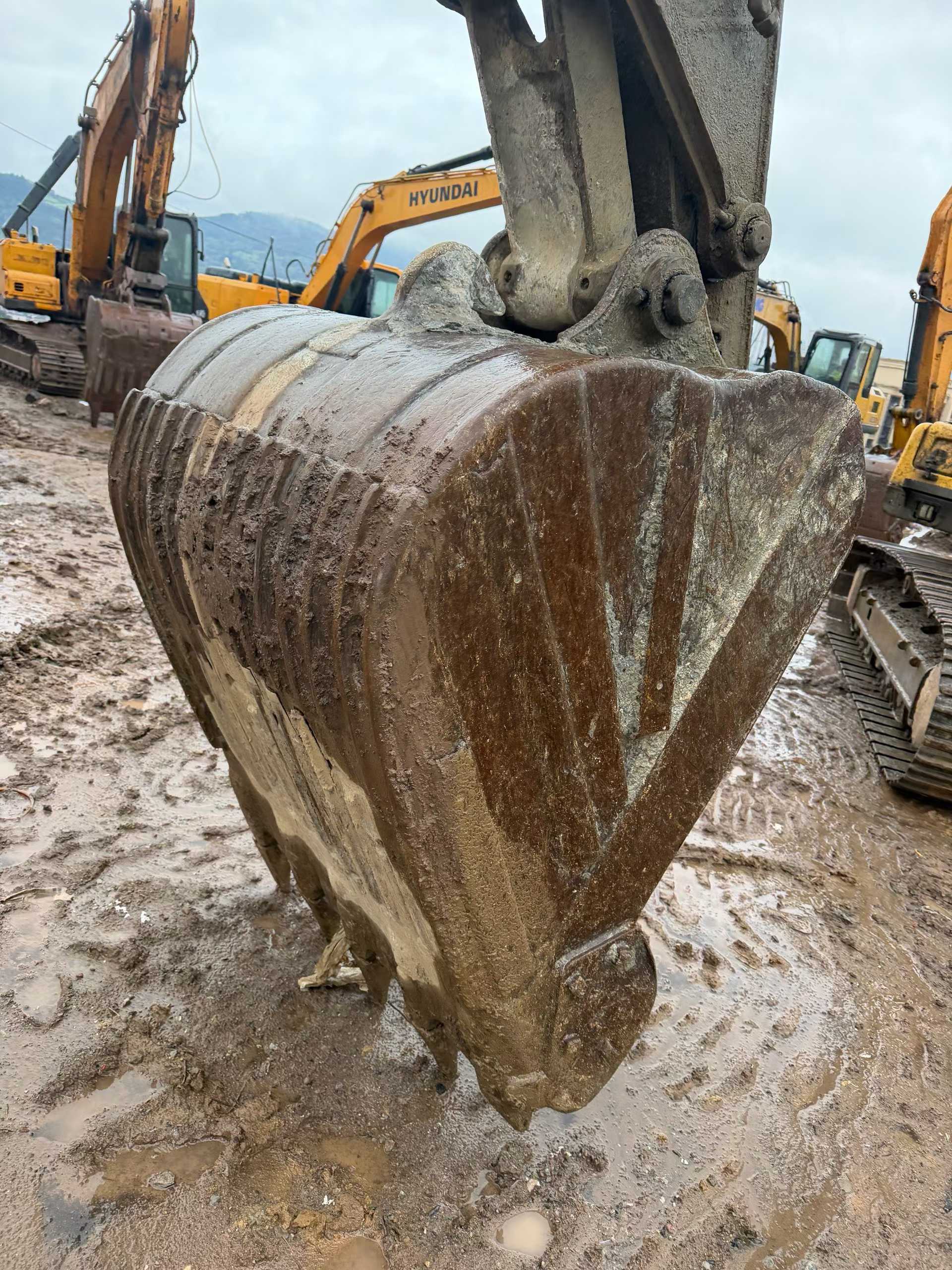

| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Korea/Shanghai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D6E |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 126 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.7 |
| Working form | Turbocharged, automatic idle, common-rail direct injection |
| Ground specific pressure (Kpa) | 42.2 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 136.3 (Standard mode) /147.1 (Extra mode) |
| Rod digging force (kN) | 98.2 (Standard Mode) /104.9 (Extra mode) |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.2/5.5 |

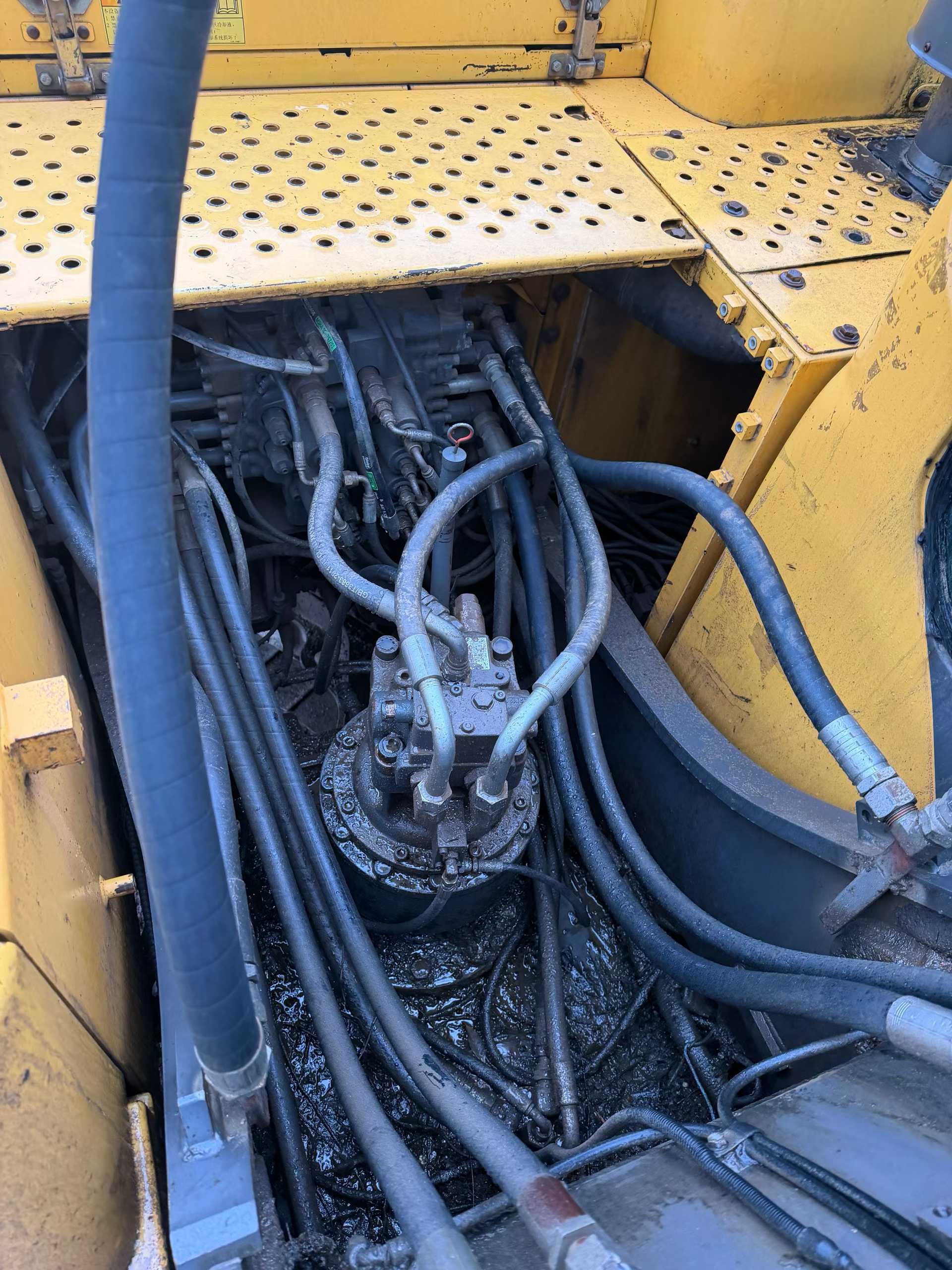

| Rotary hydraulic motor type | Axial piston hydraulic motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 200 * 2 + 18 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.9 |

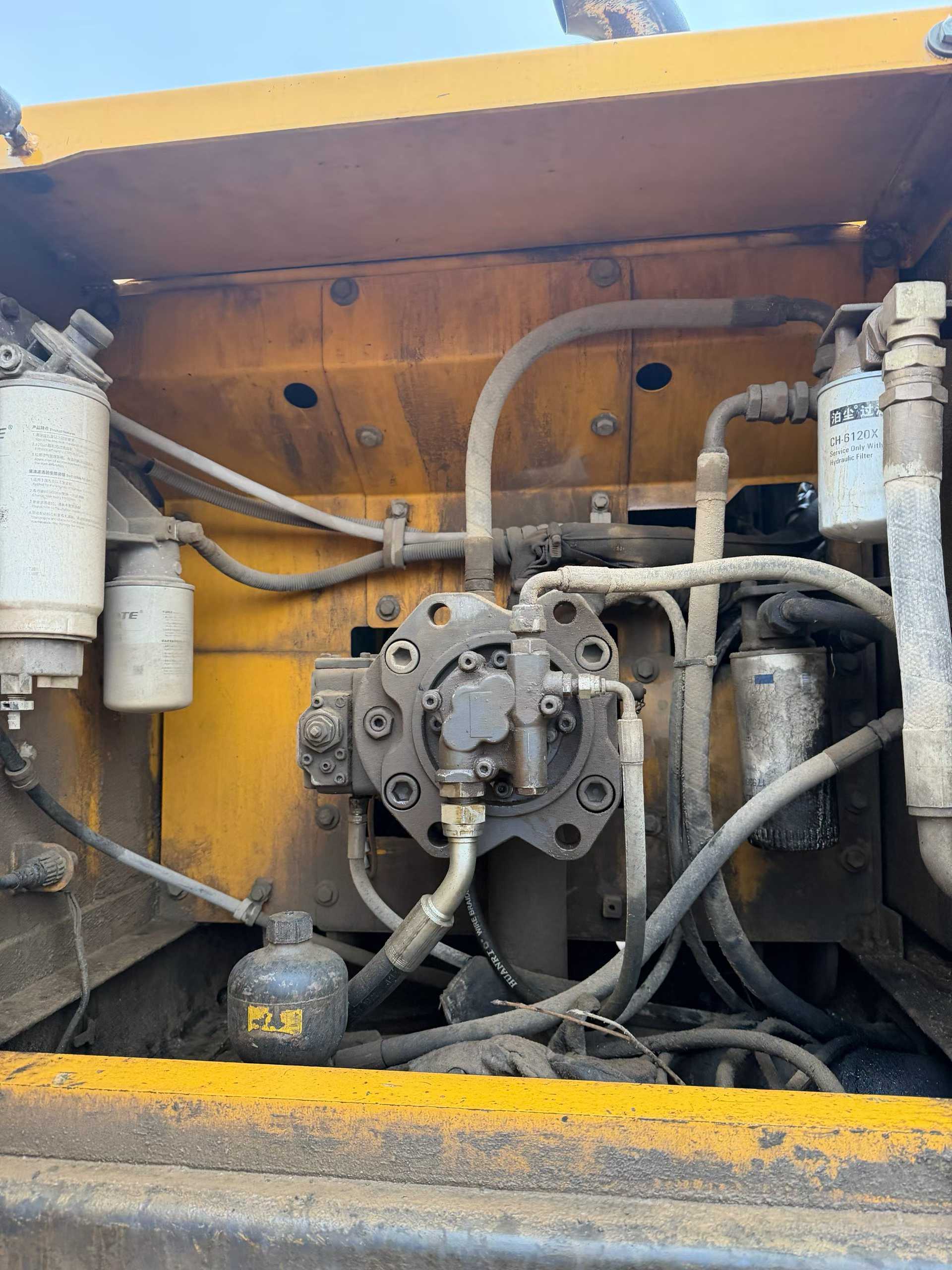

| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 32.4/34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1065 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1540 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 1235 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 32 |
| Hydraulic System (L) | 295 |
| Total transport length (mm) | 9700 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2940 |
| Full cab height (mm) | 2940 |
| Counterweight ground clearance (mm) | 1032 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3650 |
| Back end turning radius (mm) | 2860 |

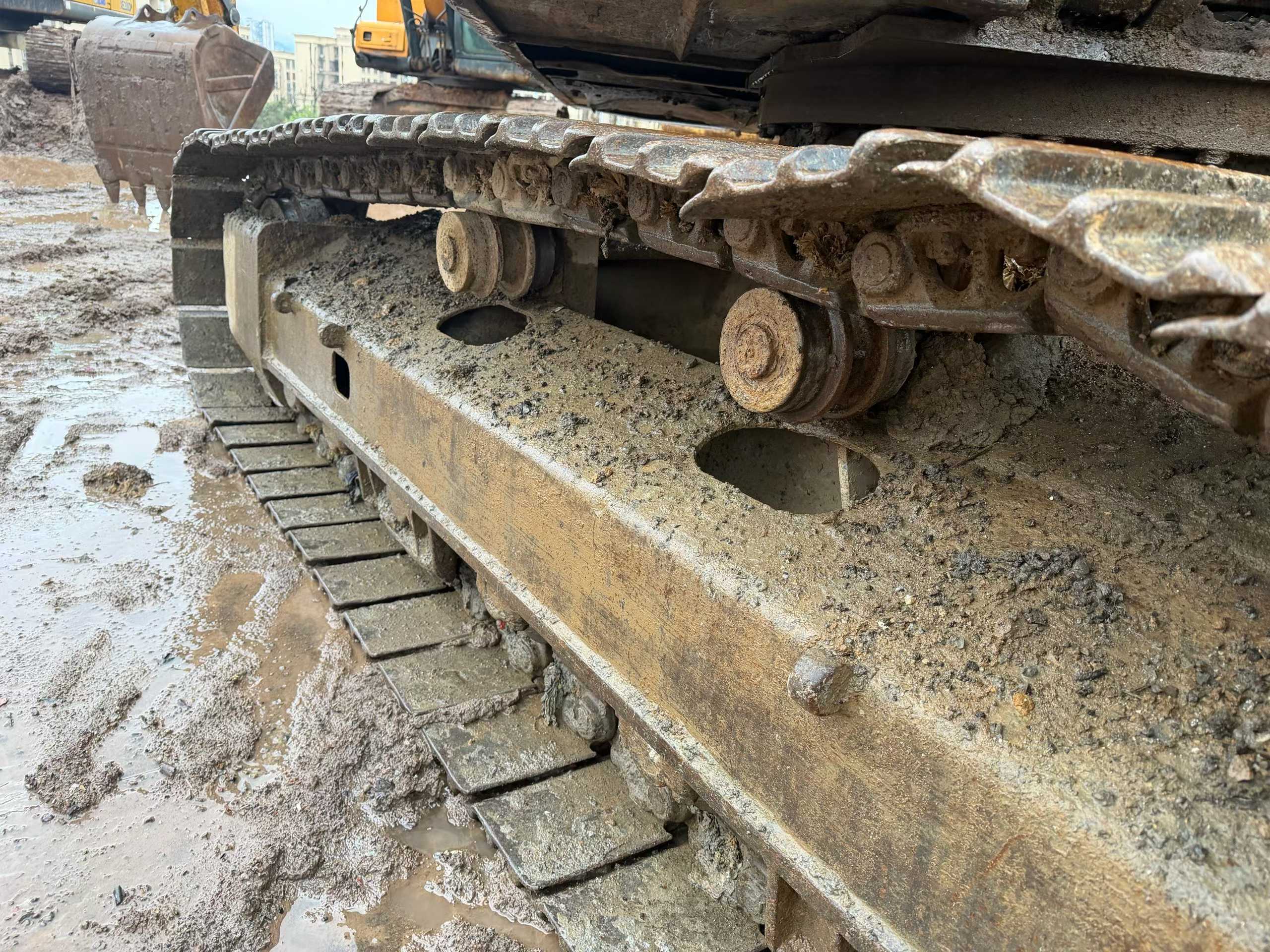

| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9450 |
| Maximum unloading height (mm) | 6650 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 9750 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 6510 |
see more
Overview
No.1035719
Brand Name：
VolvoModel Number：
EC210B-PrimeYear：
2014
Location：
Chongqing China
