Product Description

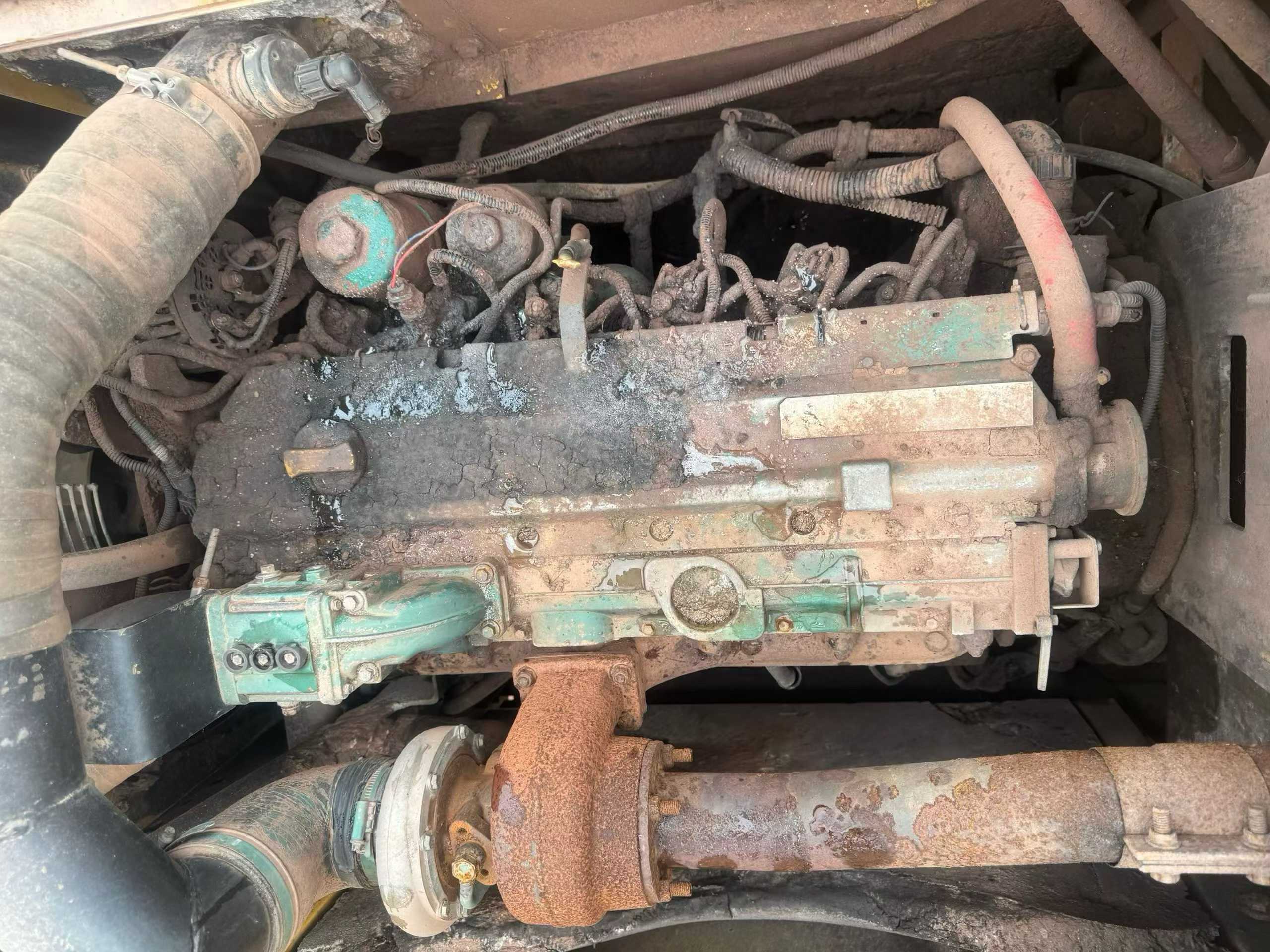

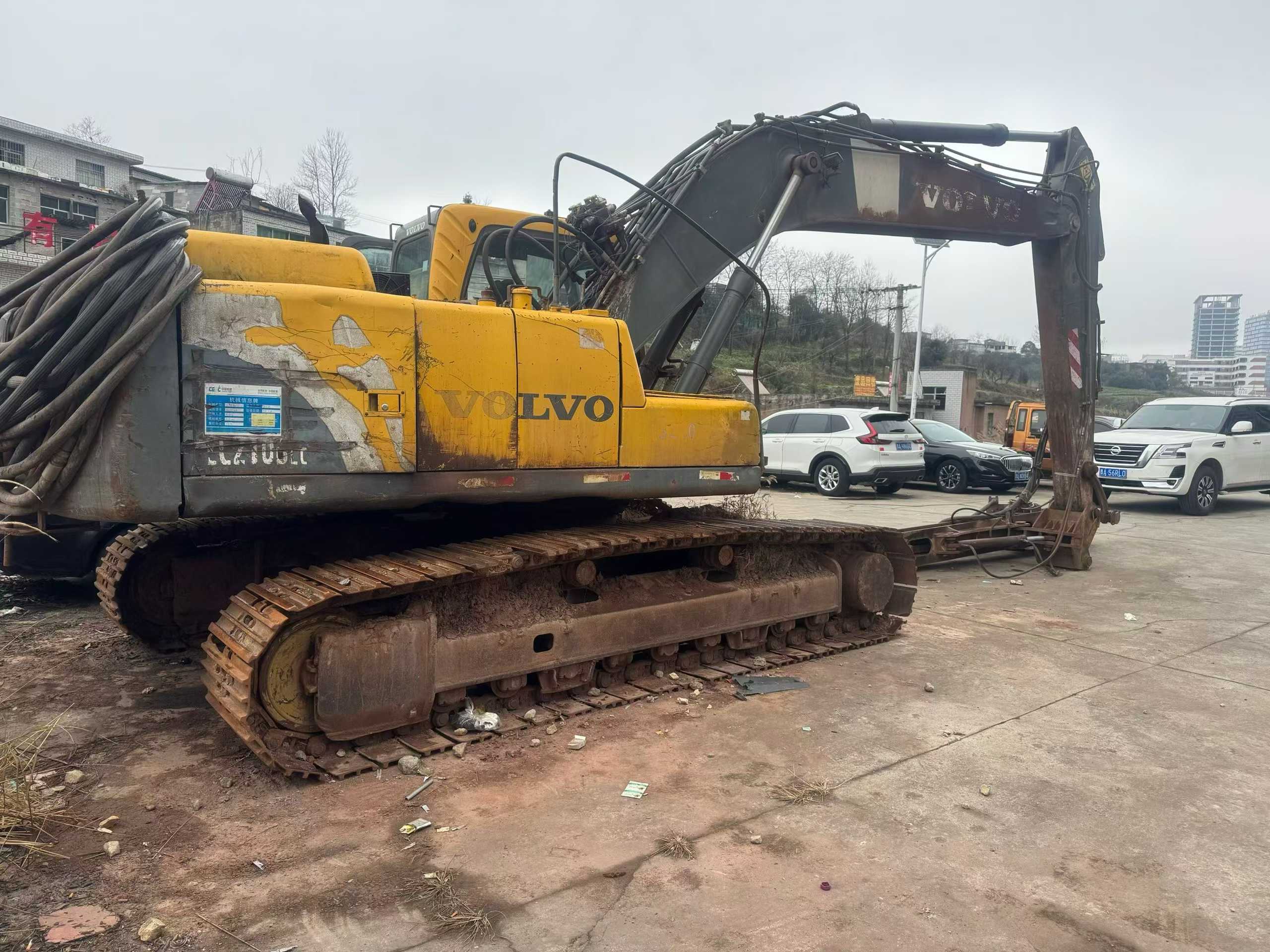

Proven performance meets robust engineering in this 2016 Volvo EC210BLC excavator, currently located in Maoming, Guangdong. With over seven years of operational history, this 21-ton workhorse demonstrates the legendary durability that defines Volvo's joint venture manufacturing standards. Powered by a reliable Cummins B5.9-C engine delivering 107kW of rated power and 618 N.m of maximum torque, this machine continues to deliver consistent productivity on demanding job sites.

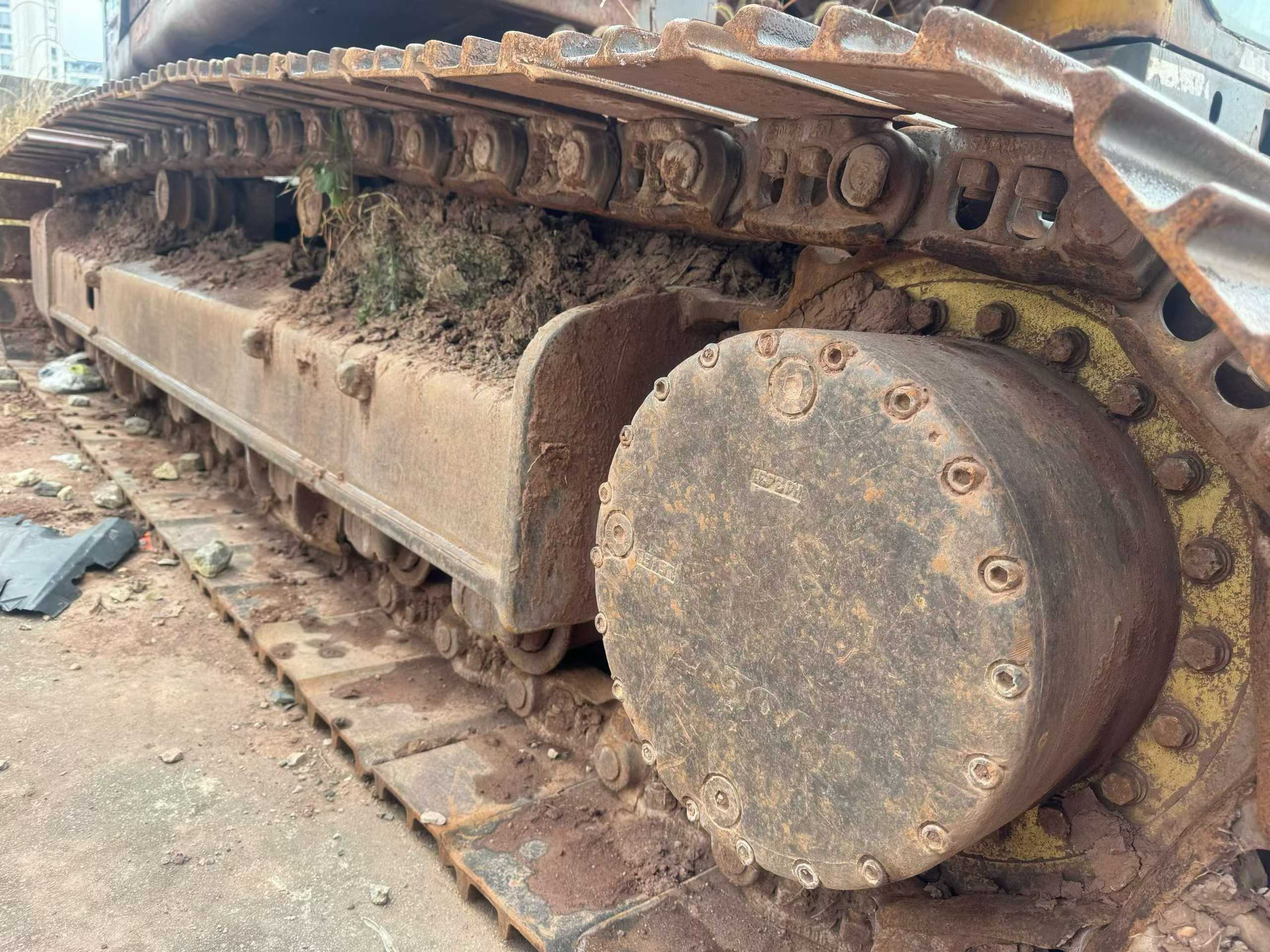

Built to withstand the rigors of heavy-duty excavation, this EC210BLC features impressive reach capabilities with a maximum digging radius of 9940mm and excavation depth of 6730mm. The 5700mm boom and 2900mm arm configuration, combined with bucket capacity ranging from 0.5 to 1.25m³, provides versatility across various applications. Operating weight between 20,500-21,000kg ensures stability during operation, while the 600mm track plates distribute ground pressure efficiently at 42.2-43.2 Kpa.
Key specifications include:
- Maximum digging height: 9450mm
- Maximum unloading height: 6650mm
- Rotation speed: 11.6 rpm for efficient cycle times
- Compact transport dimensions: 9690mm × 2990mm × 3000mm
A prov
| Specifications | Value |
|---|---|
| No. | 994878 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20500 / 21000 |
| Bucket capacity (m³) | 0.5-1.25 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 107 |
| Maximum torque (N.m) | 618 / 1500 |
| Displacement (L) | 5.9 |
| Ground specific pressure (Kpa) | 42.2 / 43.2 |
| Rotation speed (rpm) | 11.6 |
| Total transport length (mm) | 9690 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3000 |
| Full cab height (mm) | 2900 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9450 |
| Maximum unloading height (mm) | 6650 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 9750 |
