Product Description

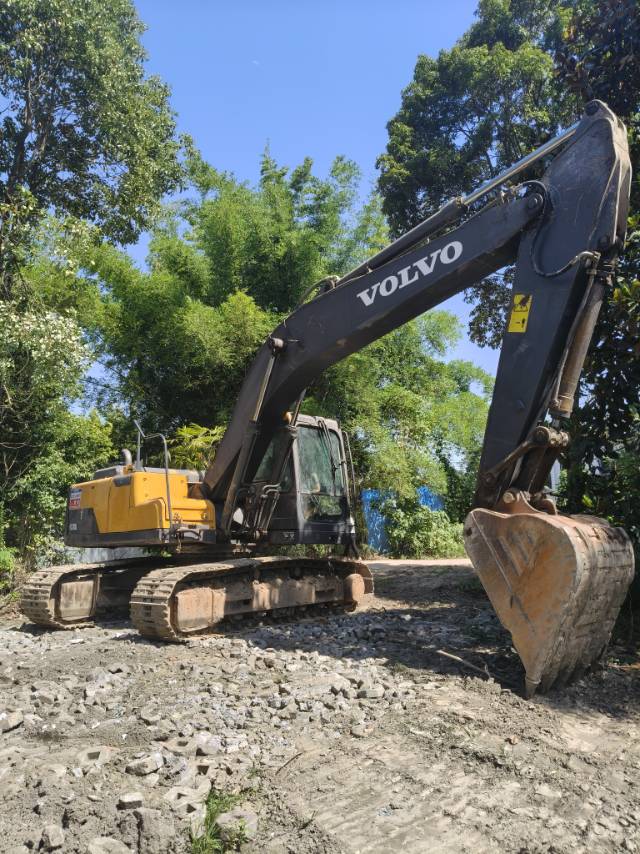

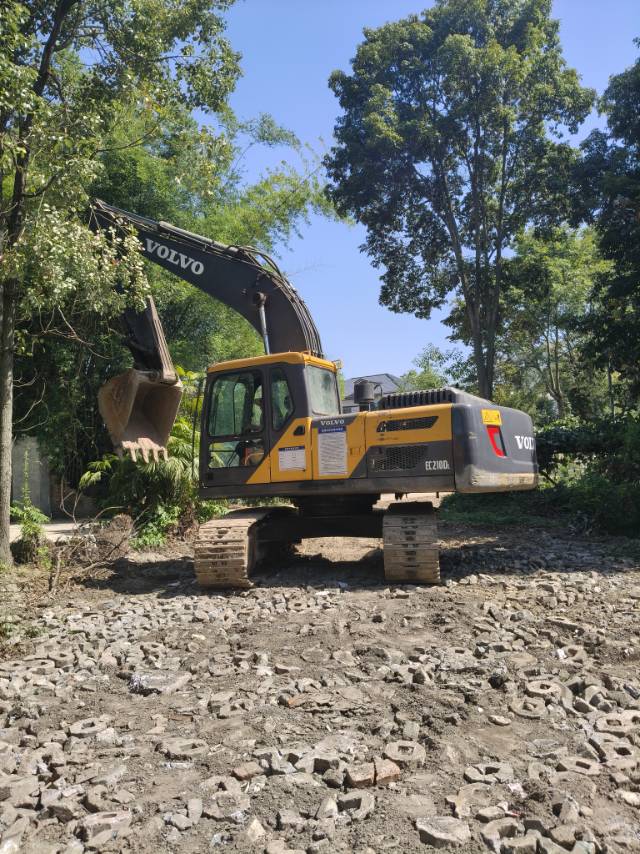

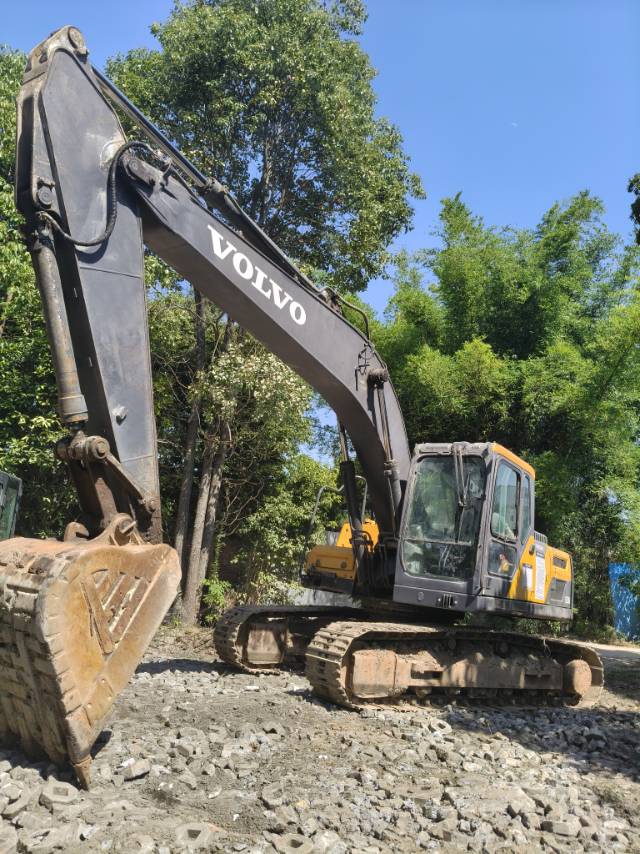

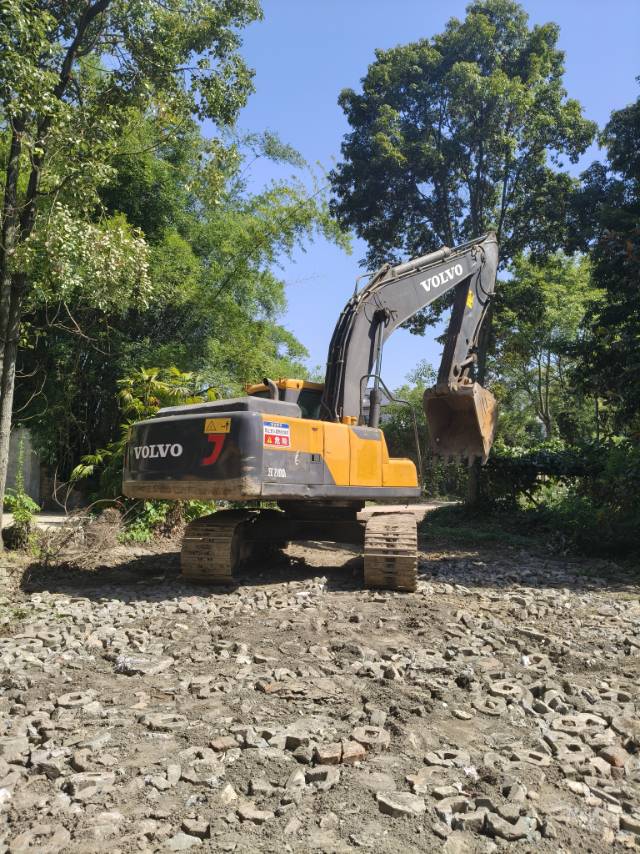

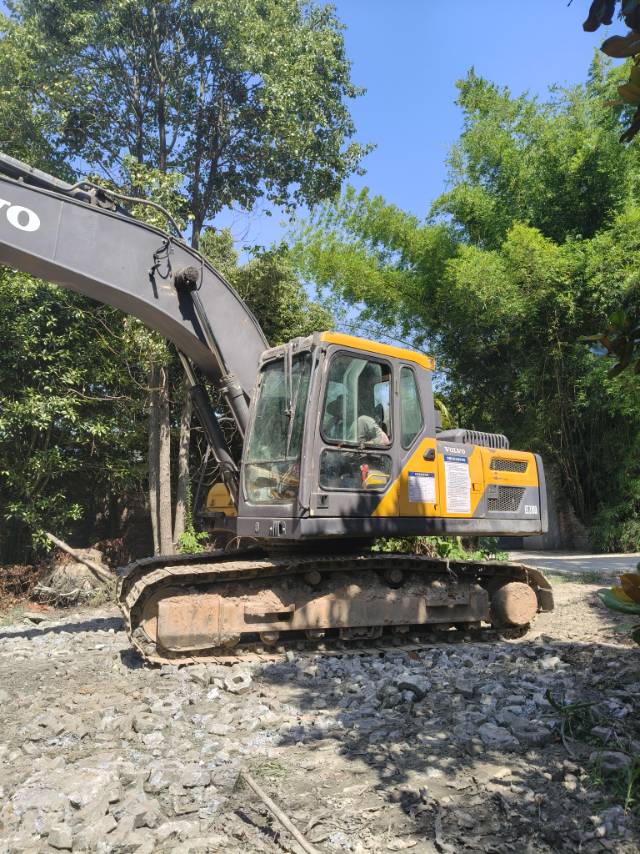

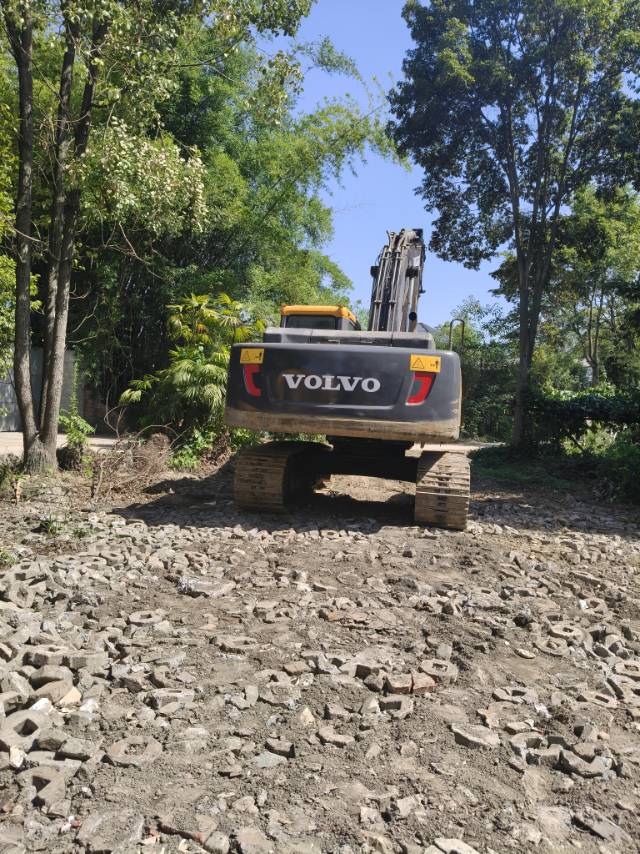

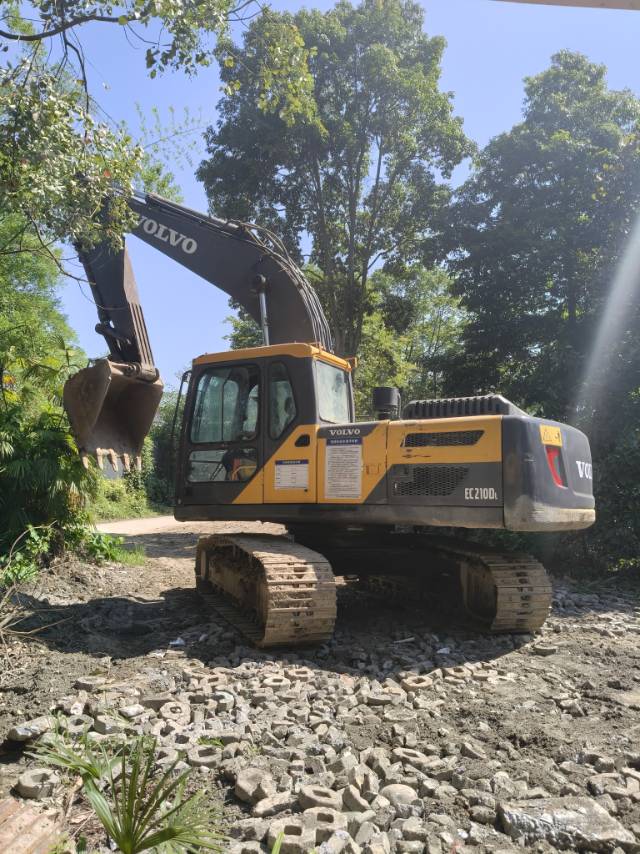

Discover the 2018 Volvo EC210D, a robust and reliable excavator currently available in Sichuan, China. This machine has been maintained to the highest standards, featuring a newly replaced chain by the owner, ensuring optimal performance and durability. The EC210D is known for its efficiency and power, making it an excellent choice for demanding construction projects. Ready for immediate deployment, this excavator can be put to work right away, minimizing downtime and maximizing productivity. Interested buyers have the opportunity to test drive the machine in Chengdu, confirming its readiness and capability.

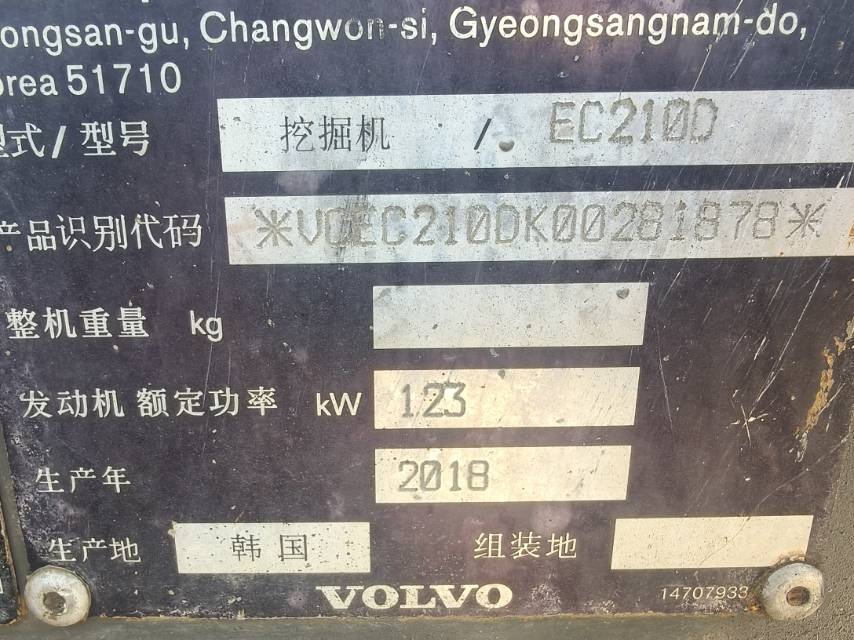

- Year: 2018
- Brand: Volvo
- Model: EC210D
- Location: Sichuan, China

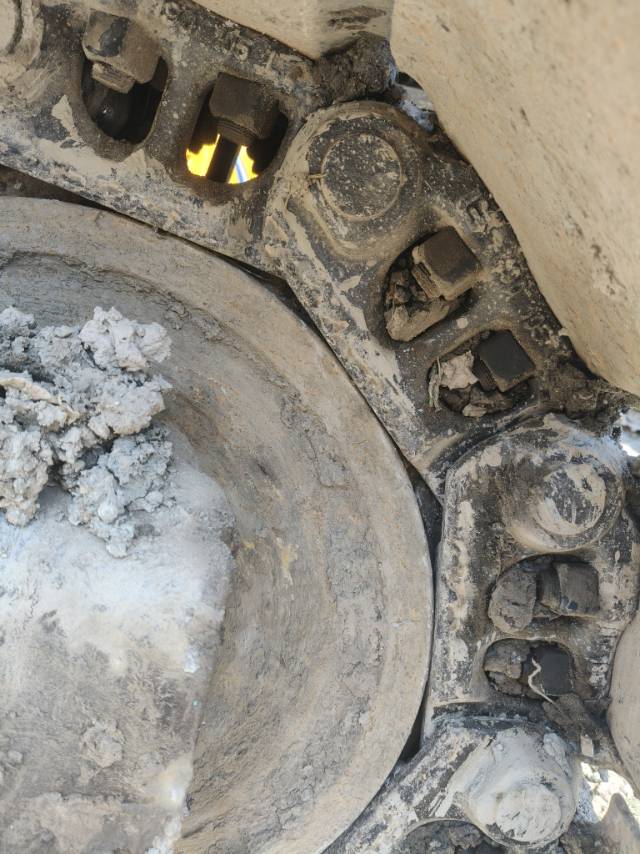

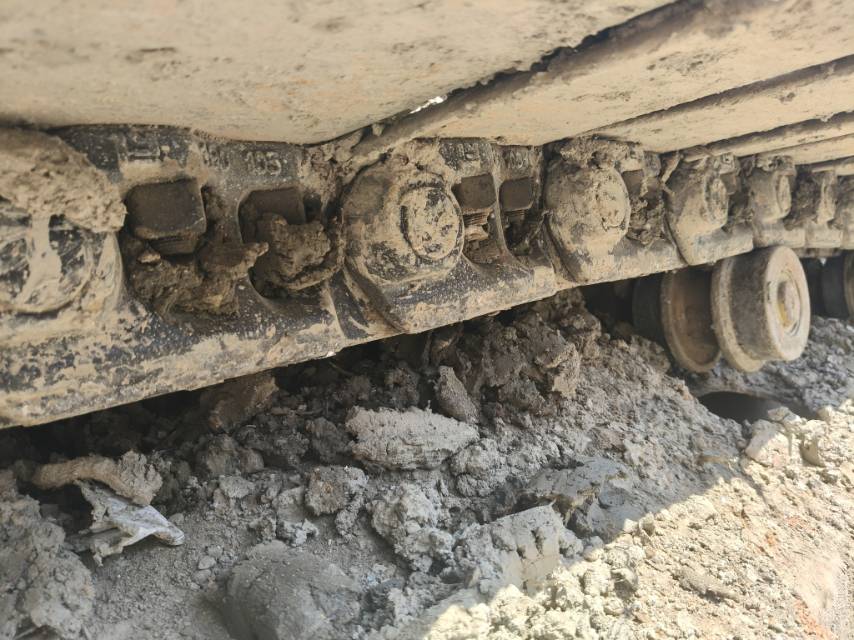

- New chain installed
- Immediate availability for work
- Test drive option in Chengdu
| Specifications | Value |
|---|---|
| No. | 1130747 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 18100 - 22800 |
| Bucket capacity (m³) | 0.52 - 1.22 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

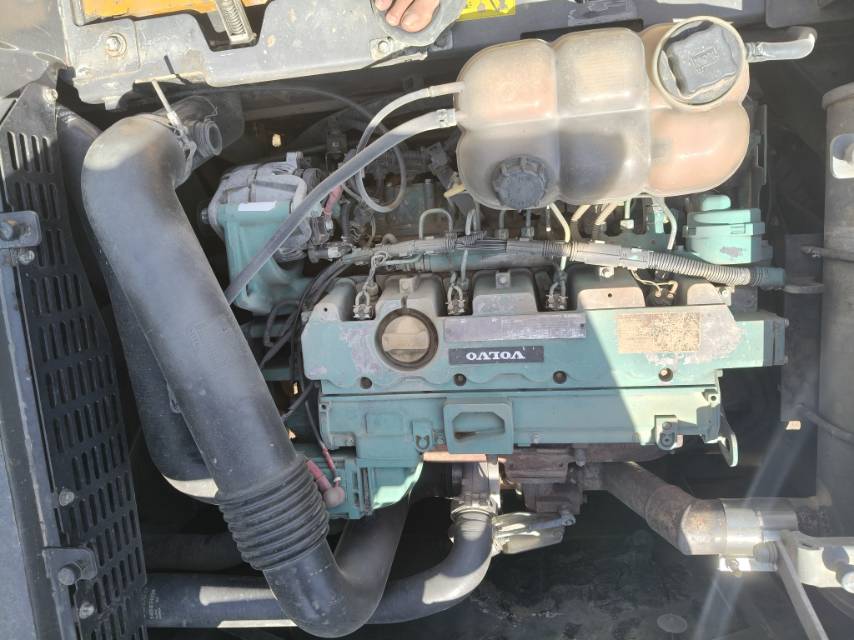

| Engine type | Volvo D5E |
| Rated power (kw/rpm) | 123/2000 |
| Cylinder diameter × stroke (mm) | 108*130 |
| Maximum torque (N.m) | 670 / 1 600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.7 |
| Rotation speed (rpm) | 12.3 |
| Bucket digging force (kN) | 123 |
| Rod digging force (kN) | 96 |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.5 / 5.8 |
| Turning torque (Nm) | 76.7 |
| Main overflow set pressure (Mpa) | 32.4 / 36.3 |
| Maximum flow of main pump (l/min) | 2 x 212 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |

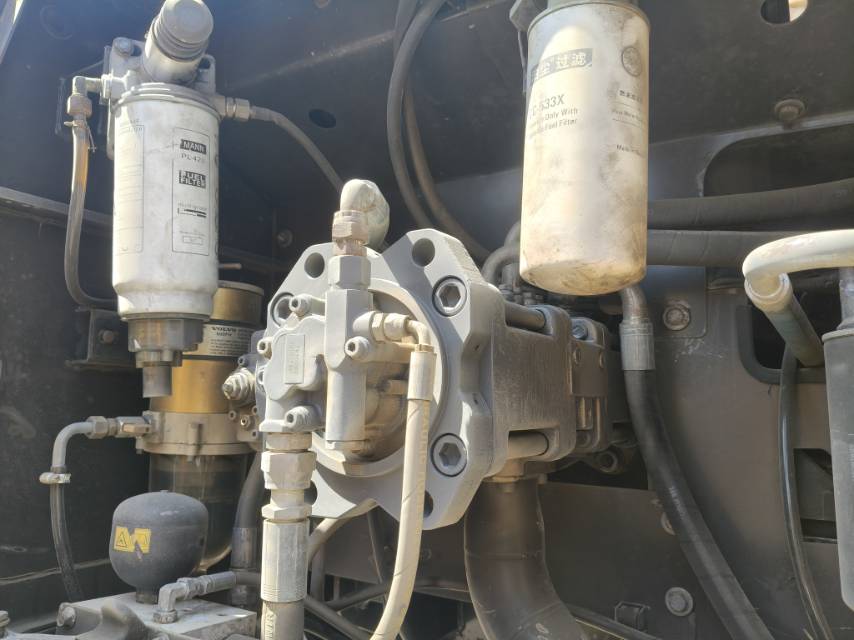

| Main pump type | Two variable displacement axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 32.4 / 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 1 x 18 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120 x 1 065 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*135 x 1 540 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125 x 1 235 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 375 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 17 |
| Coolant (L) | 15 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 9745 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3 080 |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1025 |
| Minimum ground clearance (mm) | 460 |
| Onboard width (mm) | 2700 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3370 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9220 |
| Maximum unloading height (mm) | 6430 |
| Maximum vertical digging depth (mm) | 5620 |
| Maximum excavation radius of stop surface (mm) | 9380 |
