Product Description

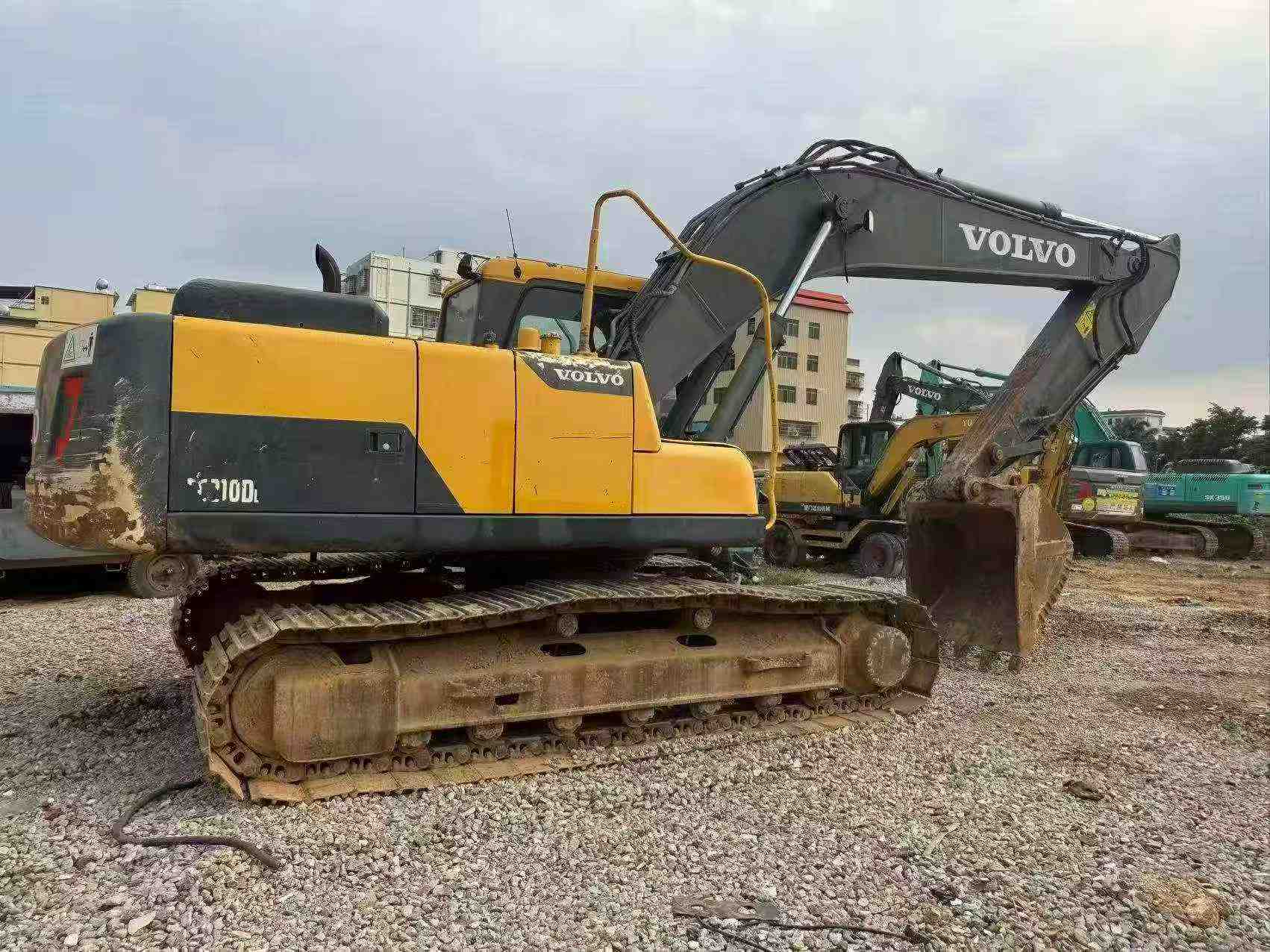

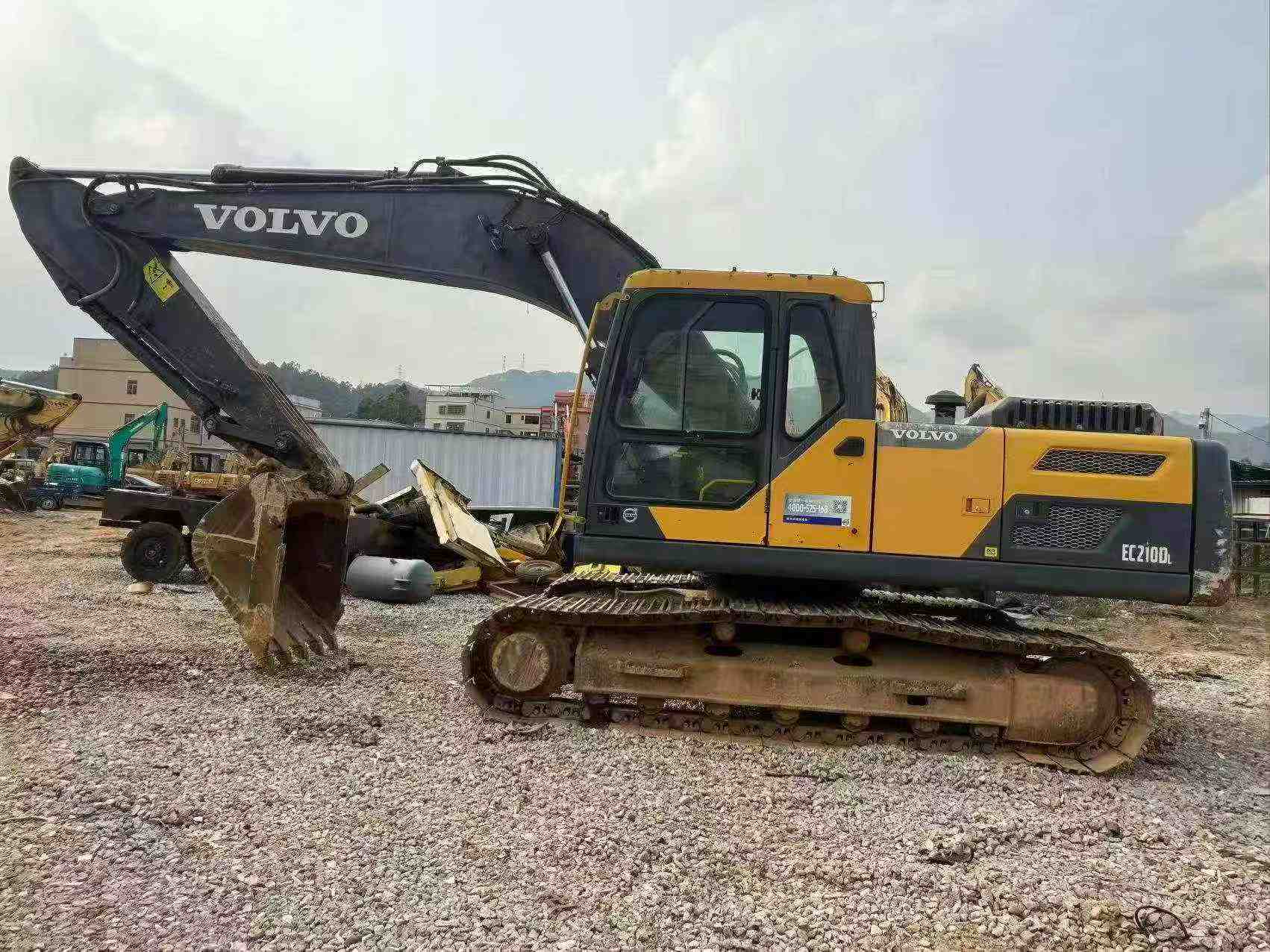

With a robust 21-ton working weight and a powerful Volvo D5E engine, this 2020 Volvo EC210D excavator is equipped for immediate site tasks. Delivering 123 kW of power at 2000 rpm, it ensures efficient performance in digging, grading, and demolition. The backhoe bucket, with a capacity ranging from 0.52 to 1.22 m³, handles tough materials effortlessly. Featuring a 5700 mm boom and 2900 mm rod, this machine offers a maximum digging depth of 6730 mm and a digging force of 123 kN, making it ideal for deep excavation projects.
- Maximum tractive force: 183 kN
- Travel speed: 3.5 / 5.8 km/h
- Two variable displacement axial piston pumps
- Fuel tank capacity: 375 L
- Total transport dimensions: 9745 x 2800 x 3080 mm
Ready to tackle any job, the EC210D is a reliable and versatile addition to your fleet, ensuring productivity and durability on every project.
| Specifications | Value |
|---|---|
| No. | 1056849 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 18100 - 22800 |
| Bucket capacity (m³) | 0.52 - 1.22 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

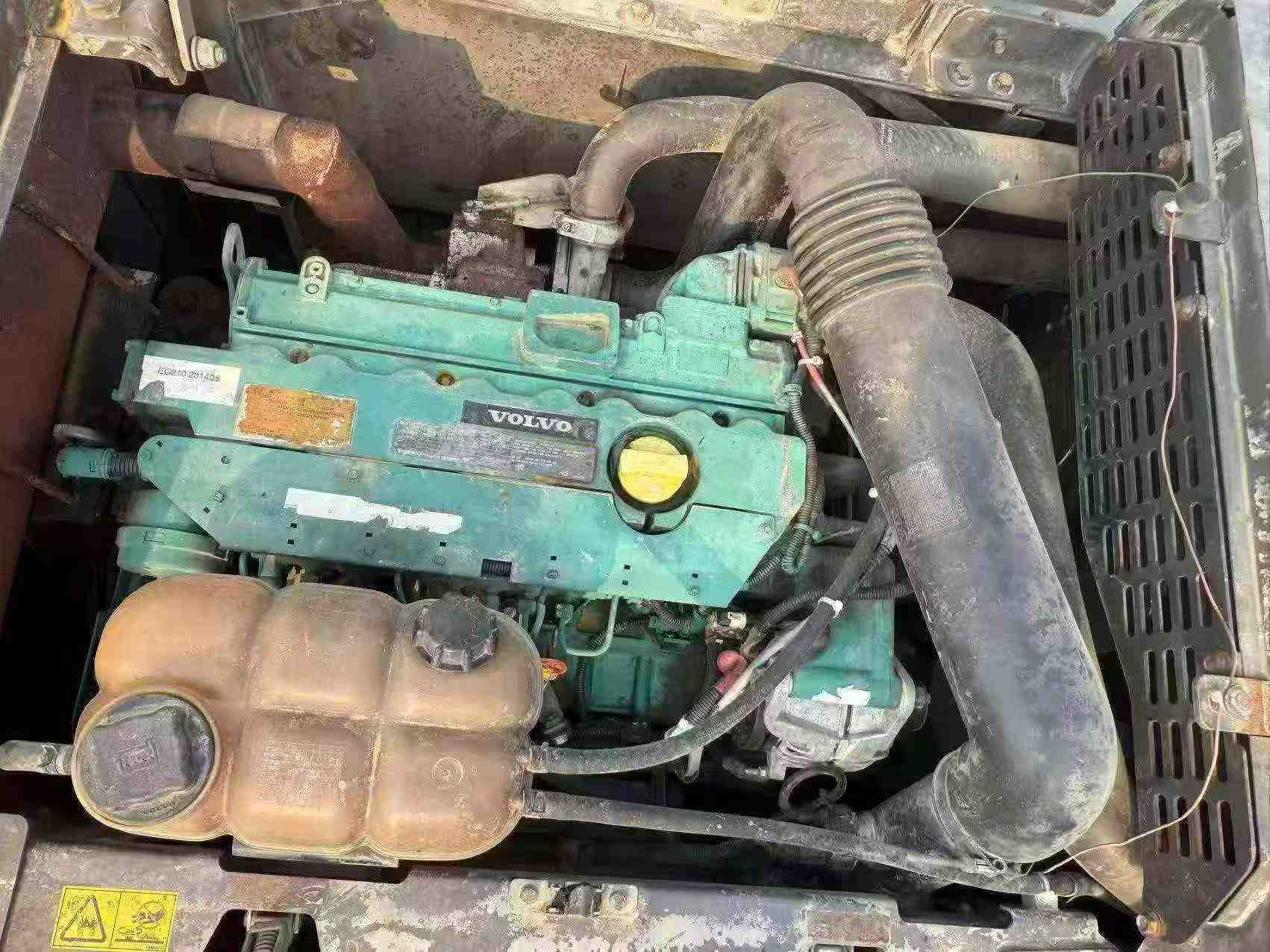

| Engine type | Volvo D5E |
| Rated power (kw/rpm) | 123/2000 |
| Cylinder diameter × stroke (mm) | 108*130 |
| Maximum torque (N.m) | 670 / 1 600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.7 |
| Rotation speed (rpm) | 12.3 |
| Bucket digging force (kN) | 123 |
| Rod digging force (kN) | 96 |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.5 / 5.8 |
| Turning torque (Nm) | 76.7 |
| Main overflow set pressure (Mpa) | 32.4 / 36.3 |
| Maximum flow of main pump (l/min) | 2 x 212 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |

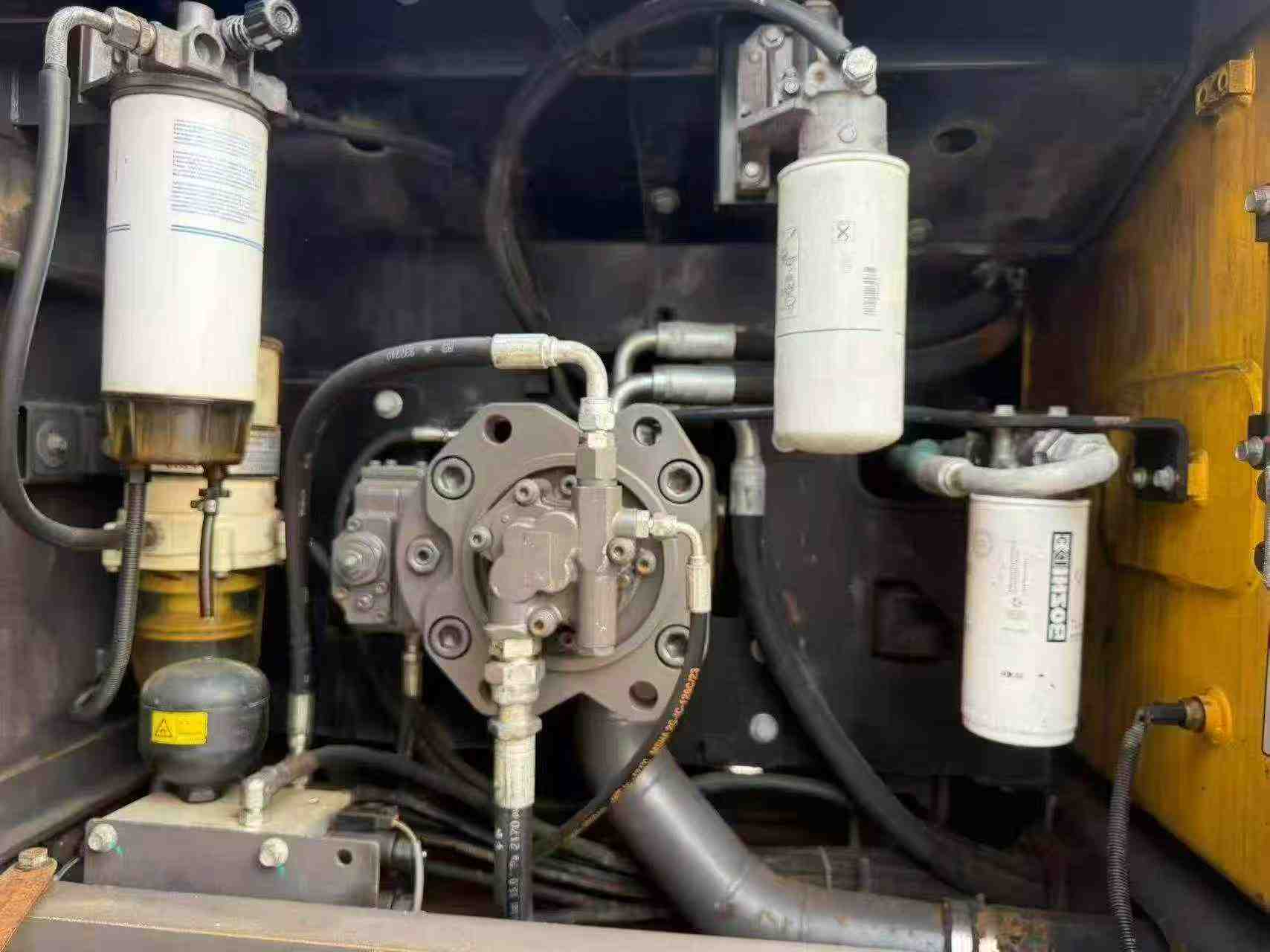

| Main pump type | Two variable displacement axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 32.4 / 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 1 x 18 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120 x 1 065 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*135 x 1 540 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125 x 1 235 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 375 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 17 |
| Coolant (L) | 15 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 9745 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3 080 |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1025 |
| Minimum ground clearance (mm) | 460 |
| Onboard width (mm) | 2700 |

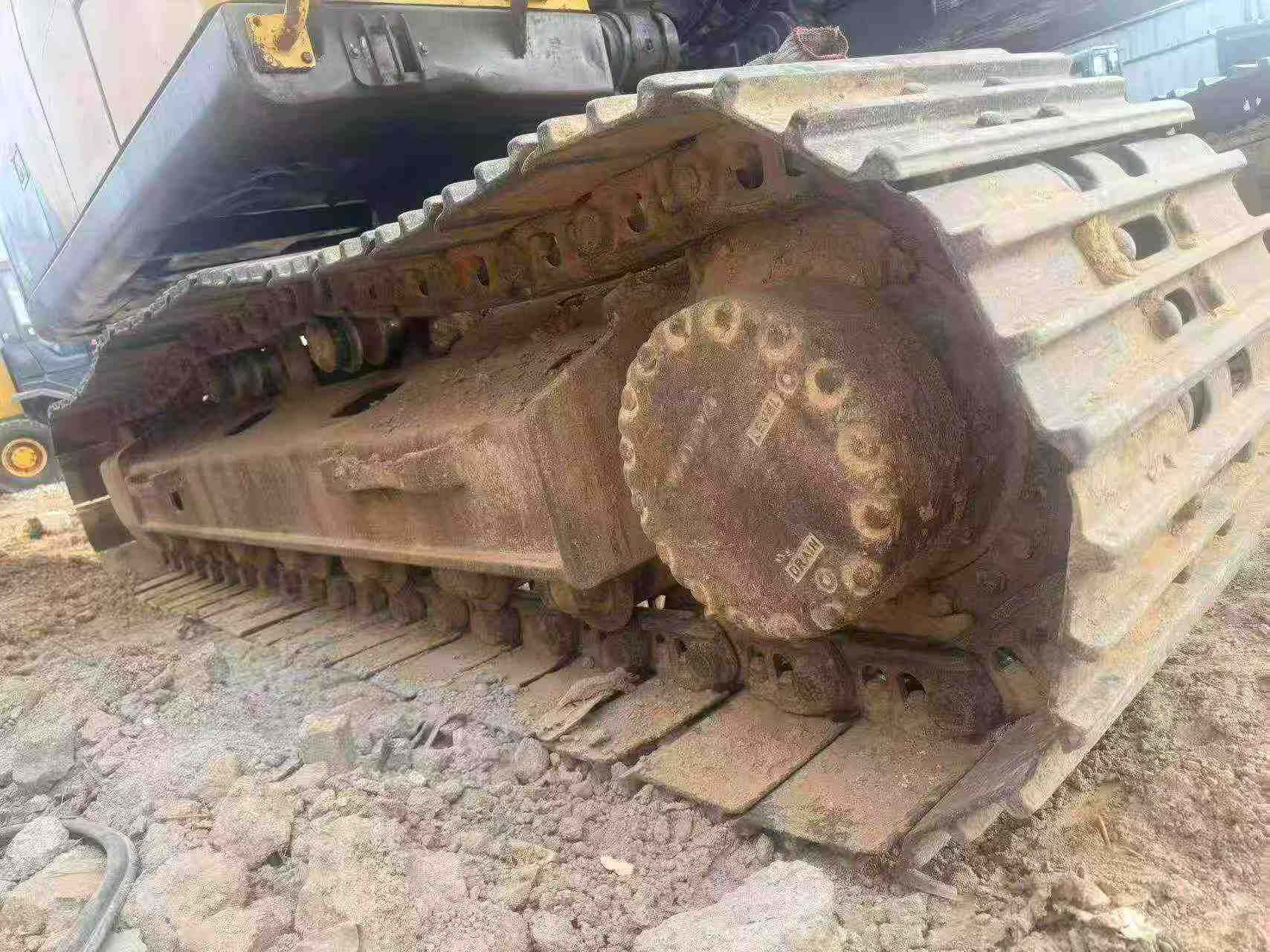

| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3370 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9220 |
| Maximum unloading height (mm) | 6430 |
| Maximum vertical digging depth (mm) | 5620 |
| Maximum excavation radius of stop surface (mm) | 9380 |
