Product Description

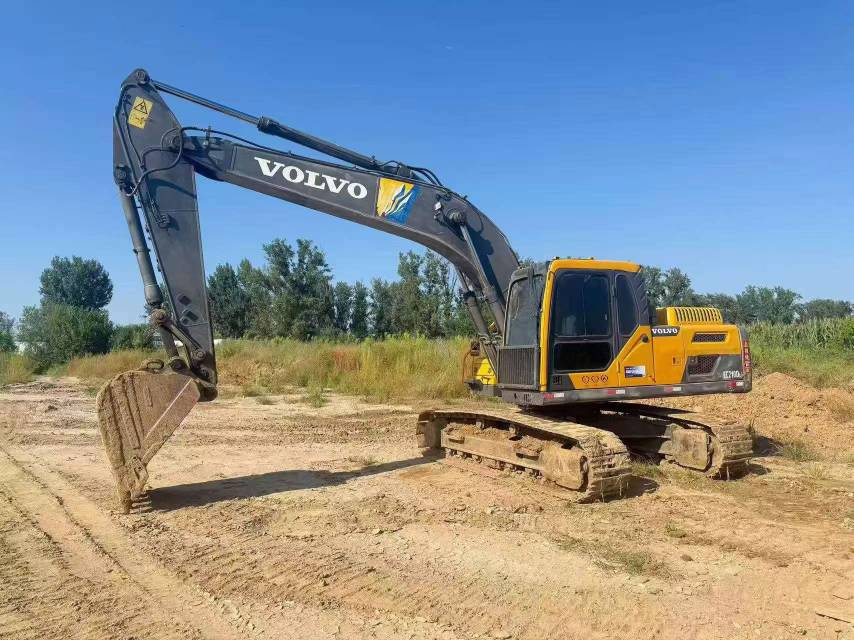

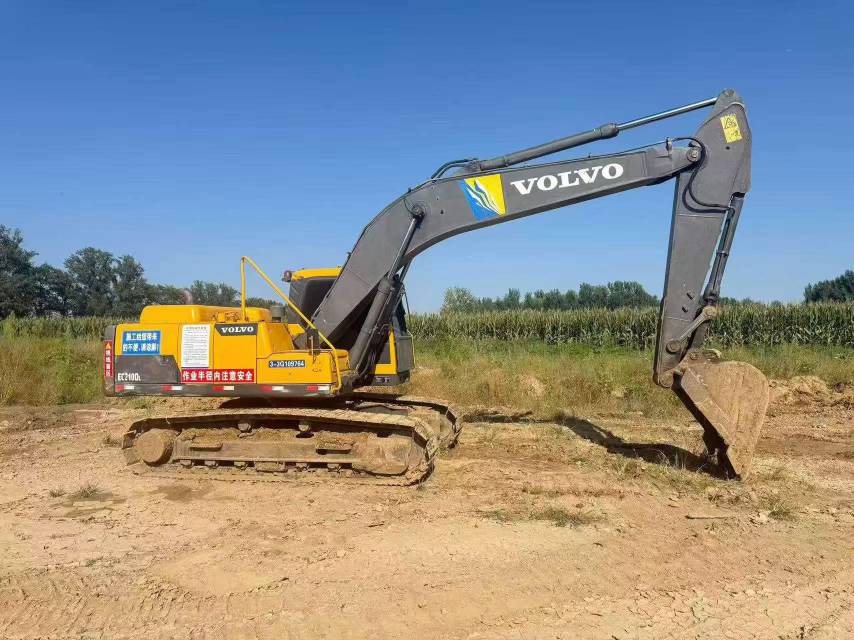

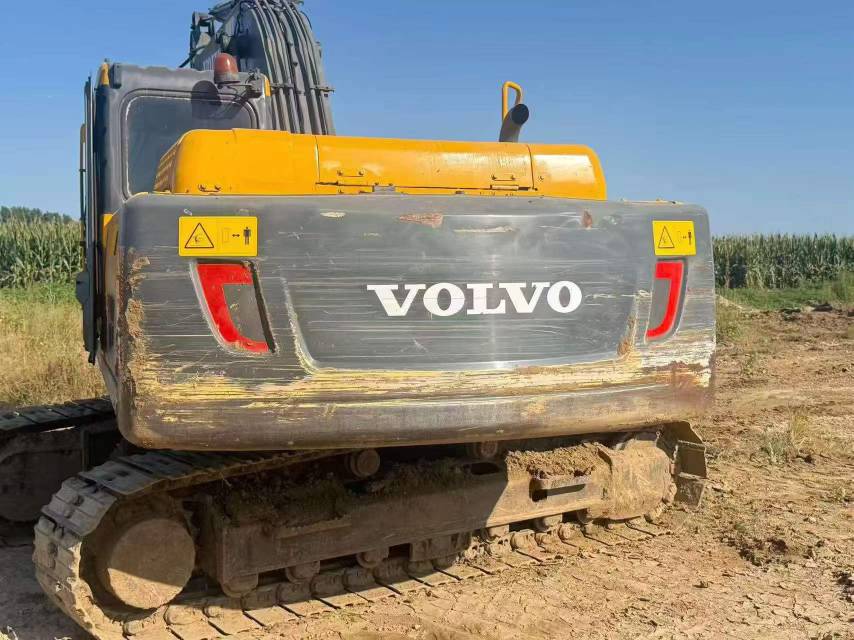

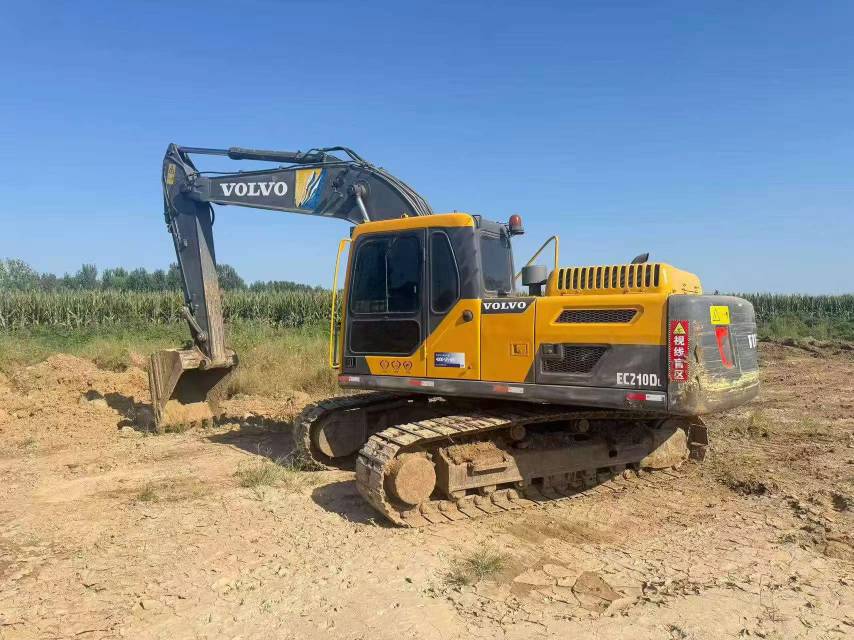

This 2020 Volvo EC210D excavator represents a well-maintained mid-size crawler excavator from one of the industry's most trusted manufacturers. Recently removed from active jobsite duty in Shanxi, China, this machine demonstrates solid operational condition with authentic Volvo branding throughout.
The EC210D features Volvo's renowned undercarriage durability and has recently completed comprehensive maintenance service, ensuring readiness for immediate deployment. This model is known for fuel efficiency, operator comfort, and reliable hydraulic performance in demanding applications.
- Year: 2020
- Model: Volvo EC210D
- Location: Shanxi, China
- Recent major service completed

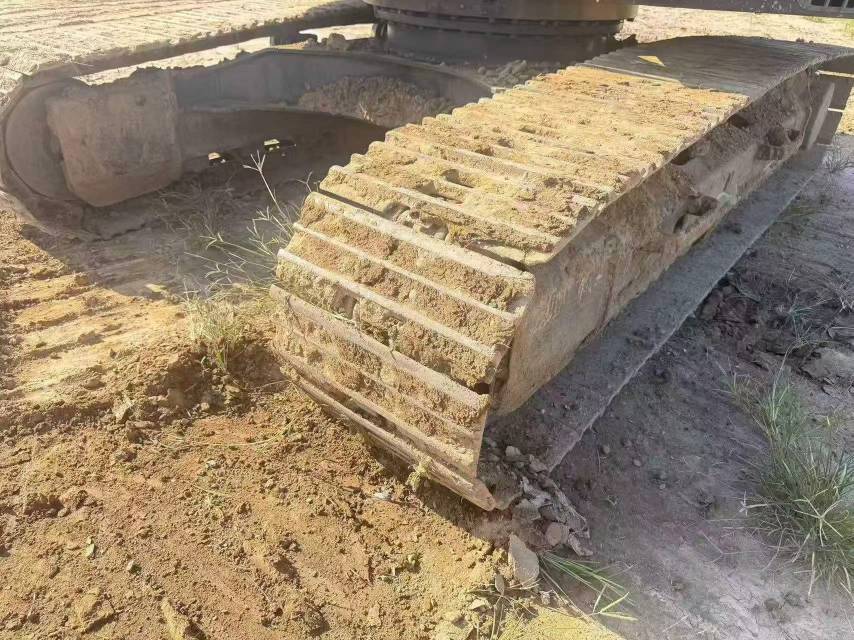

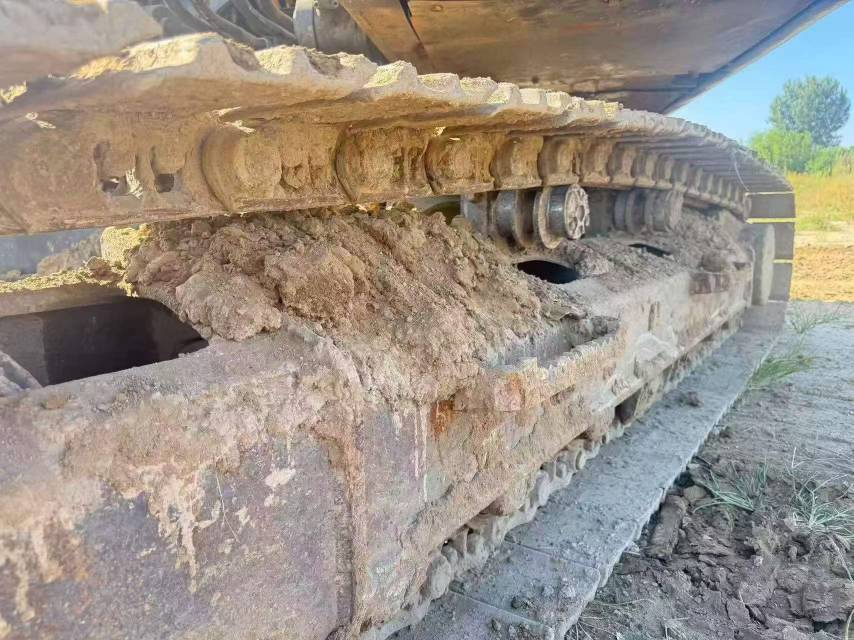

- Original undercarriage in good condition
- Genuine Volvo components verified
Suitable for excavation, loading, and general earthmoving operations. Available for inspection by appointment.
| Specifications | Value |
|---|---|
| No. | 1139201 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 18100 - 22800 |
| Bucket capacity (m³) | 0.52 - 1.22 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D5E |
| Rated power (kw/rpm) | 123/2000 |
| Cylinder diameter × stroke (mm) | 108*130 |
| Maximum torque (N.m) | 670 / 1 600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.7 |
| Rotation speed (rpm) | 12.3 |
| Bucket digging force (kN) | 123 |
| Rod digging force (kN) | 96 |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.5 / 5.8 |
| Turning torque (Nm) | 76.7 |
| Main overflow set pressure (Mpa) | 32.4 / 36.3 |
| Maximum flow of main pump (l/min) | 2 x 212 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Two variable displacement axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 32.4 / 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 1 x 18 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120 x 1 065 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*135 x 1 540 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125 x 1 235 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 375 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 17 |
| Coolant (L) | 15 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 9745 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3 080 |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1025 |
| Minimum ground clearance (mm) | 460 |
| Onboard width (mm) | 2700 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3370 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9220 |
| Maximum unloading height (mm) | 6430 |
| Maximum vertical digging depth (mm) | 5620 |
| Maximum excavation radius of stop surface (mm) | 9380 |
