Product Description

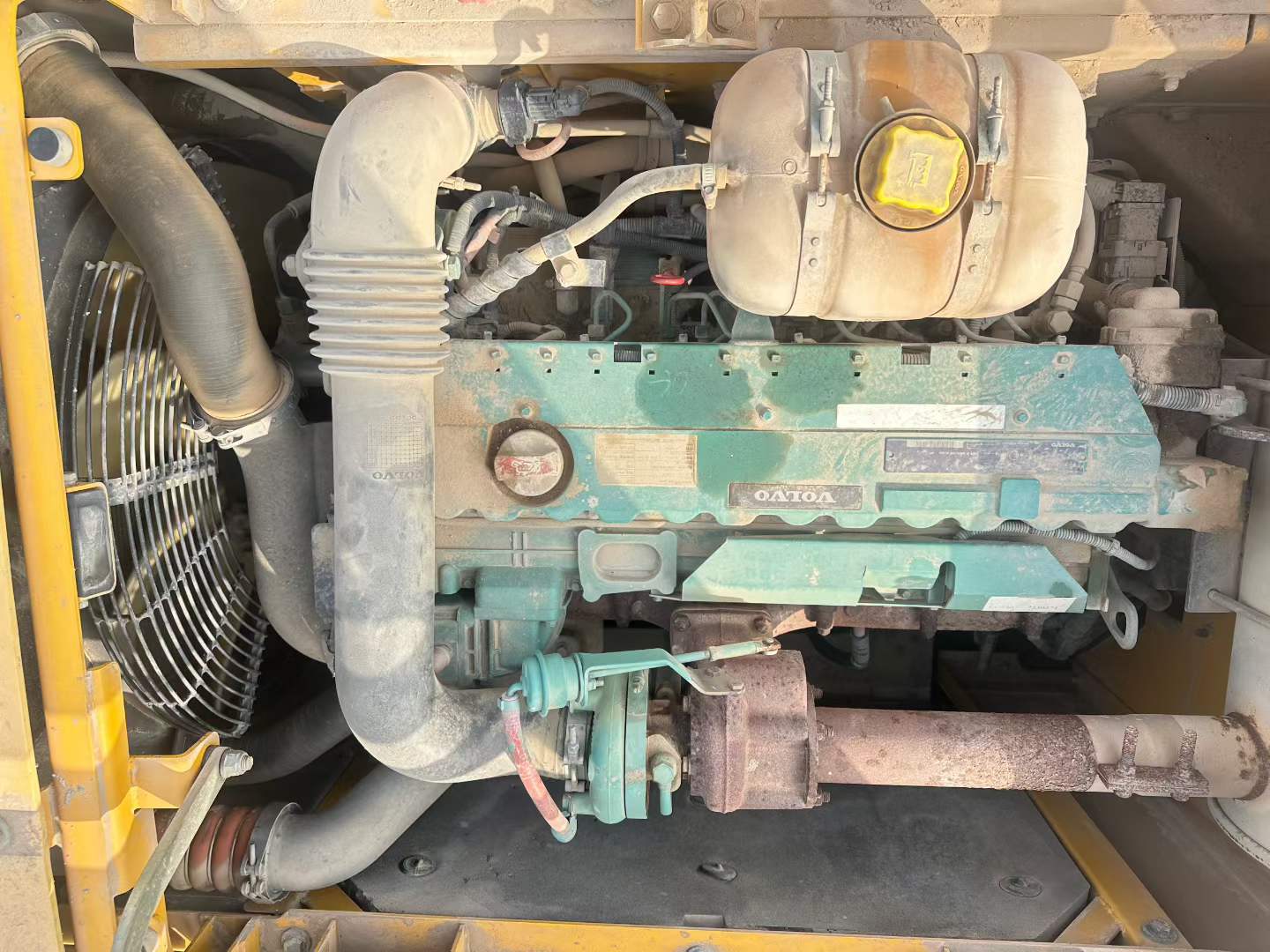

Strengthen your fleet with this reliable 2014 Volvo EC220D excavator, currently located in Shaanxi Province. Built as a joint venture/import model with Korean manufacturing standards, this 22-ton workhorse delivers consistent performance for contractors managing multiple job sites. Powered by a robust Volvo D6H engine producing 123 kW at 1800 rpm, this machine provides dependable output with 849 N·m maximum torque to handle demanding excavation tasks without interruption.
Operating specifications include:
- Working weight range: 20,900-24,400 kg for optimal stability
- Bucket capacity: 0.48-1.44 m³ with 127 kN digging force
- Maximum digging reach: 9,970 mm with 6,760 mm depth capability
- Dual travel speeds: 3.5/5.7 km/h for efficient site mobility
- 375L fuel tank capacity for extended operation cycles

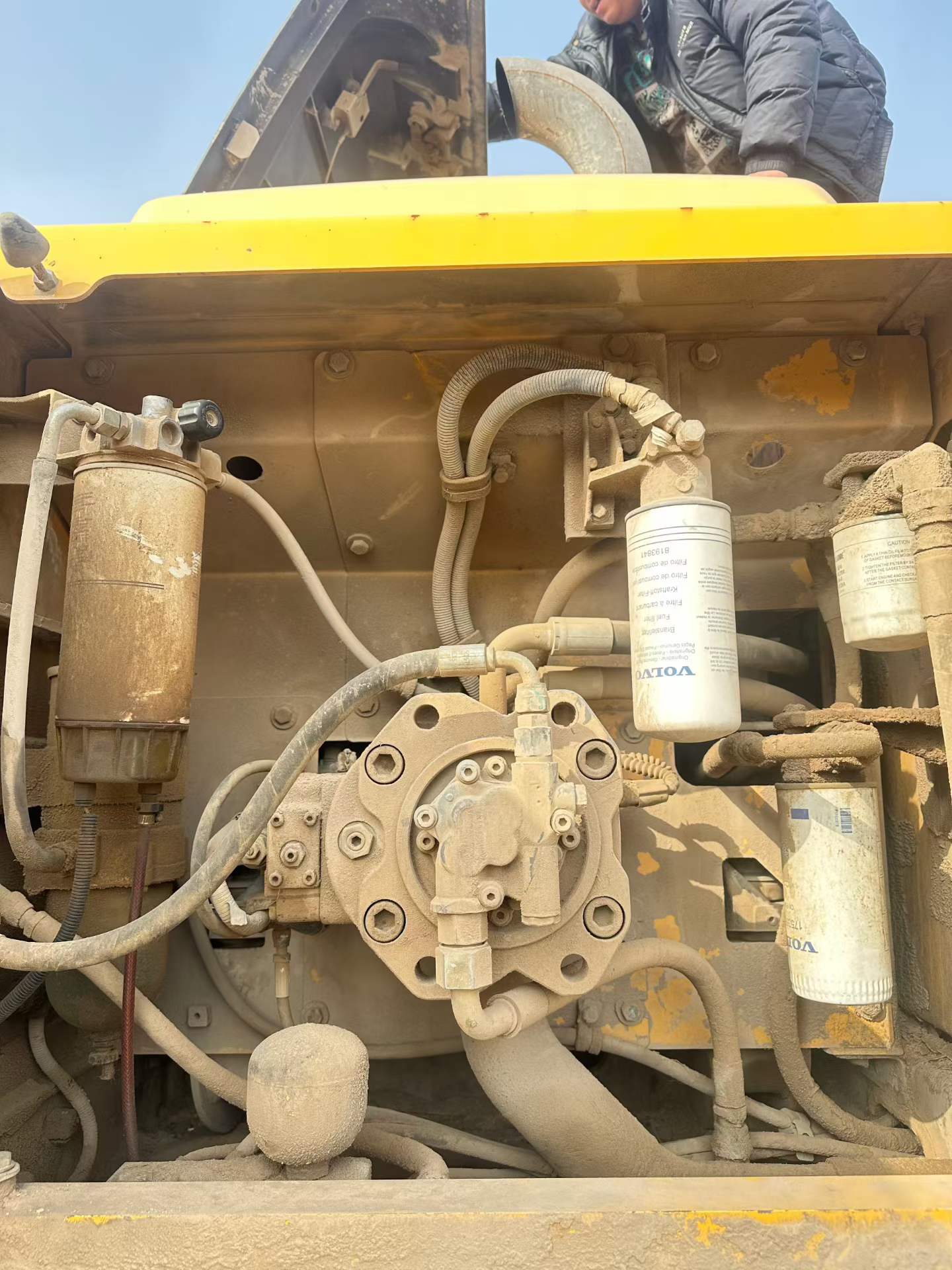

With proven hydraulic systems operating at 34.3 MPa and a compact 2,750 mm rear turning radius, this EC220D integrates seamlessly into existing operations. Whether serving as backup equipment during peak seasons or expanding capacity for concurrent projects, this unit offers the reliability and performance metrics contractors require for maintaining project schedules and
| Specifications | Value |
|---|---|
| No. | 999674 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 20900-24400 |
| Bucket capacity (m³) | 0.48 - 1.44 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volov D6H |
| Rated power (kw/rpm) | 123/1800 |
| Cylinder diameter × stroke (mm) | 98 x 126 |
| Maximum torque (N.m) | 849/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.7 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 127 |
| Rod digging force (kN) | 93 |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.5/5.7 |
| Turning torque (Nm) | 76.7 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Working Hydraulic Circuit (Mpa) | 34.3/36.2 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 375 |
| Hydraulic Tank (L) | 140 |
| Coolant (L) | 32 |
| Hydraulic System (L) | 295 |
| Total transport length (mm) | 9795 |
| Total transport width (mm) | 2700 |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1025 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2700 |
| Total track length (mm) | 4160 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2200 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6760 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6620 |
