Product Description

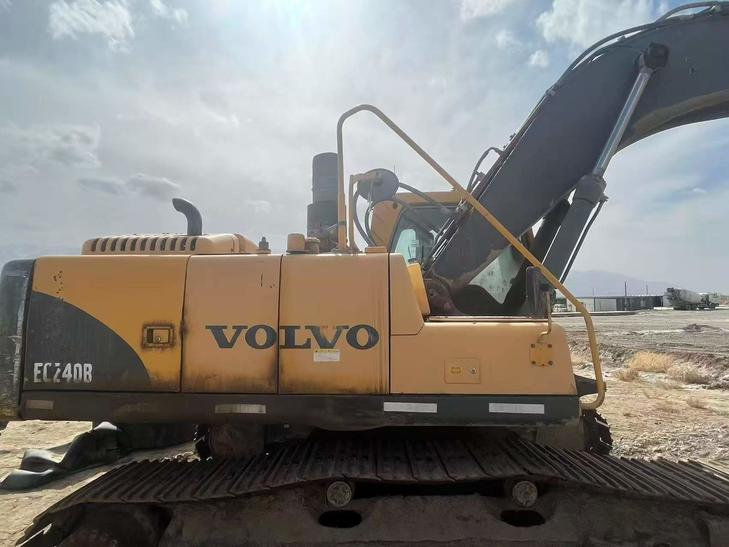

Volvo EC240B crawler excavator available for sale in Shanghai, China. This 2012 model represents reliable mid-size excavation equipment from Volvo's proven B-series lineup, now offered at a competitive price point for the pre-owned market.
The EC240B is recognized in the construction and earthmoving industries for its balanced performance, combining a 24-ton operating weight class with efficient fuel consumption. This machine features Volvo's characteristic robust undercarriage design and operator-focused cab layout, making it suitable for various applications including general excavation, trenching, and material handling.
Key attributes include:
- Year of Manufacture: 2012
- Current Location: Shanghai, China
- Machine Type: Hydraulic Crawler Excavator
- Established Volvo reliability and parts availability
- Competitively priced for immediate sale
Ideal for contractors and operators seeking dependable used equipment with proven performance history. Contact us for detailed inspection reports and purchasing information.
| Specifications | Value |
|---|---|
| No. | 1088041 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24300 |
| Bucket capacity (m³) | 1.05-1.98 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2970 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D7D |
| Rated power (kw/rpm) | 134/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 108 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.1 |
| Working form | Maximum torque: 750N.m/1400rpm, turbocharged |
| Ground specific pressure (Kpa) | 50 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 160.8 (Standard mode) /175.5 (Extra mode) |
| Rod digging force (kN) | 111.1 (Standard mode) /121.6 (Extra mode) |
| Travel speed (km/h) | 3. 2/5.5 |
| Rotary hydraulic motor type | Axial piston hydraulic motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 230 * 2 + 20 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130 x 1150 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1665 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-135 x 1345 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 44 |
| Hydraulic System (L) | 320 |
| Total transport length (mm) | 10020 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3040 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1080 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3890 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4460 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3660 |
| Maximum digging radius (mm) | 10260 |
| Maximum digging depth (mm) | 6980 |
| Maximum excavation height (mm) | 9690 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5970 |
| Maximum excavation radius of stop surface (mm) | 10080 |
| Maximum effective digging depth (mm) | 6740 |
