2012 Volvo EC240B

1/9
Buy Volvo EC240B Used Excavator / 1

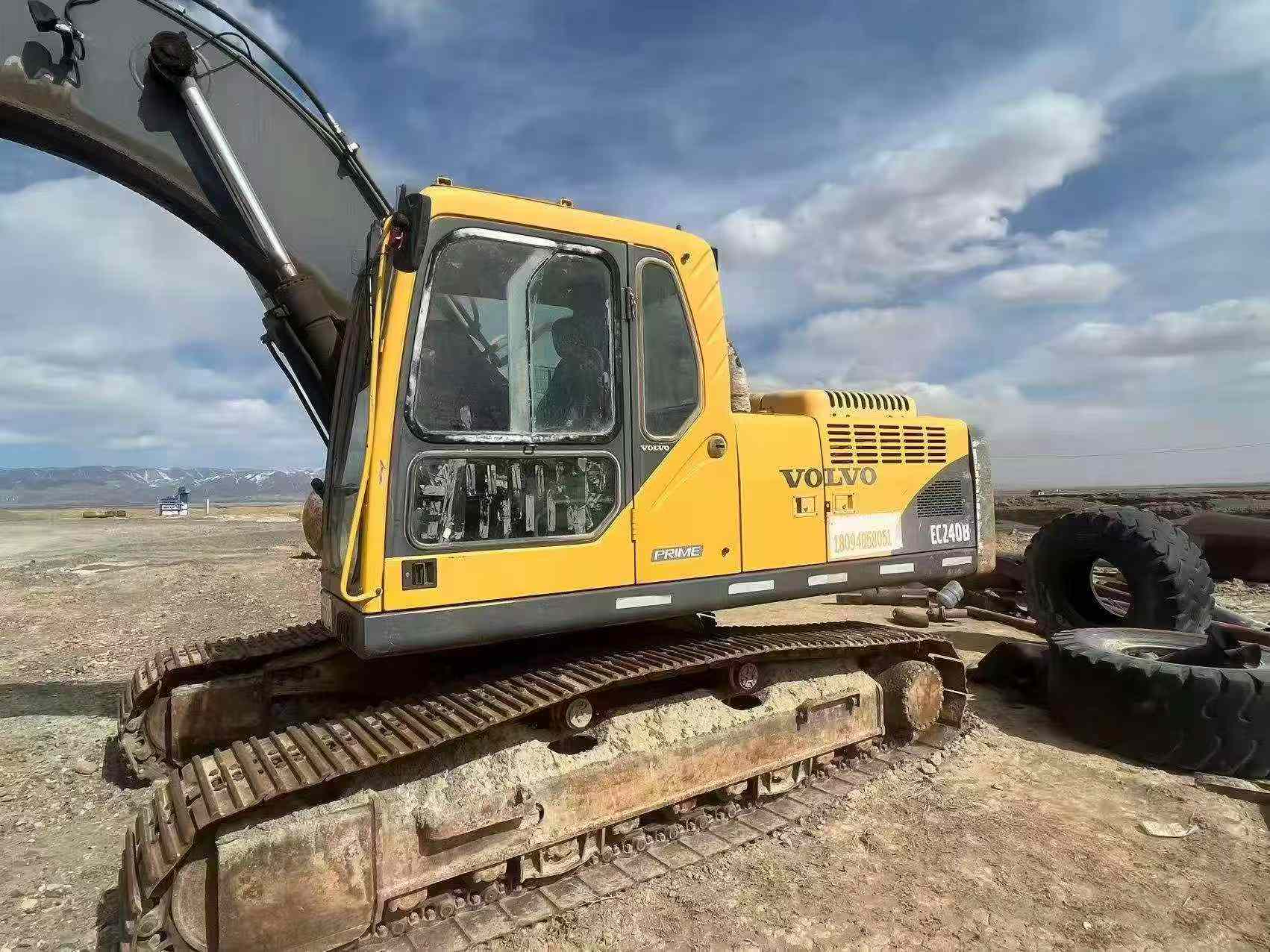

Buy Volvo EC240B Used Excavator / 2

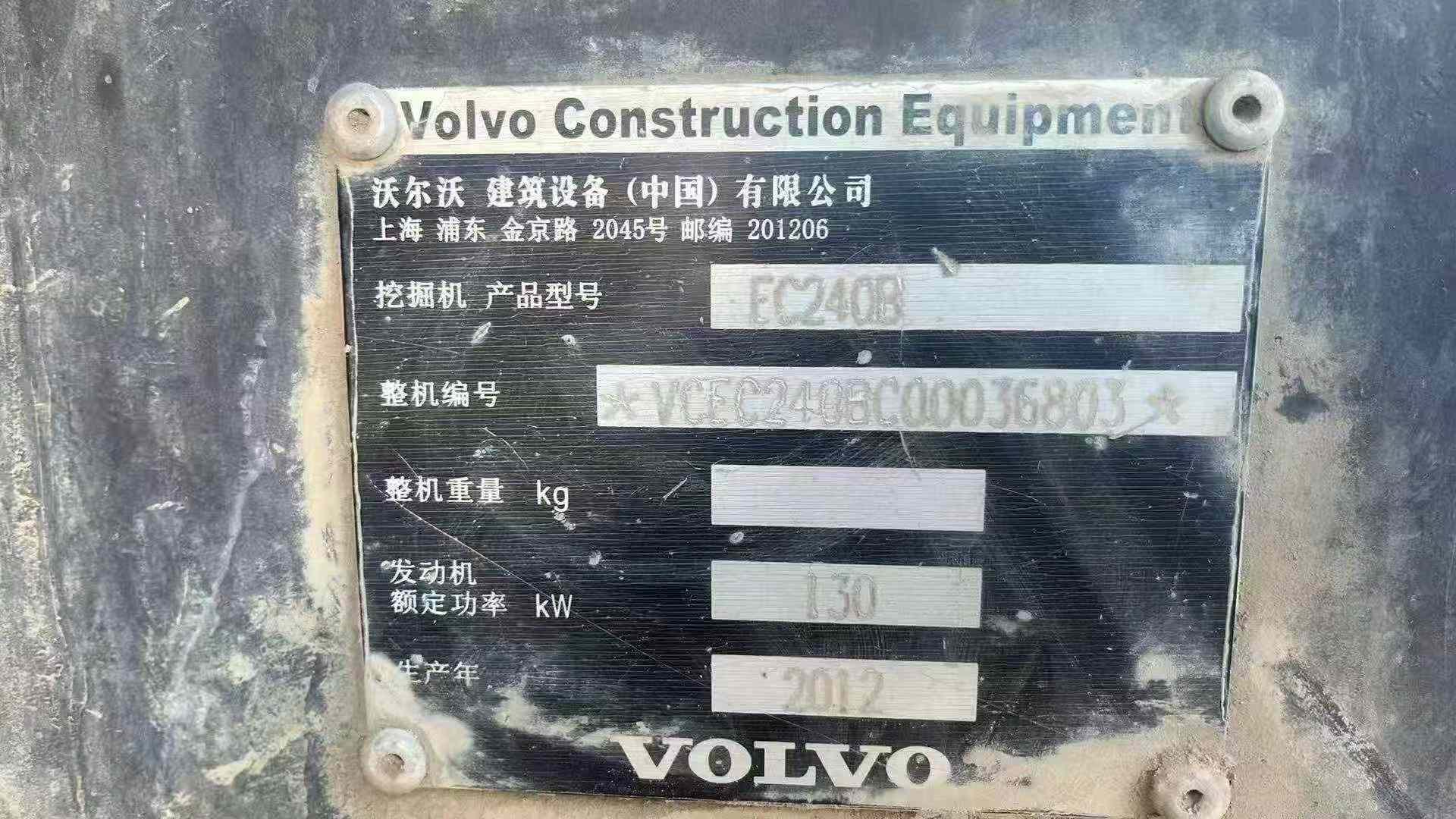

Buy Volvo EC240B Used Excavator / 3
Buy Volvo EC240B Used Excavator / 4

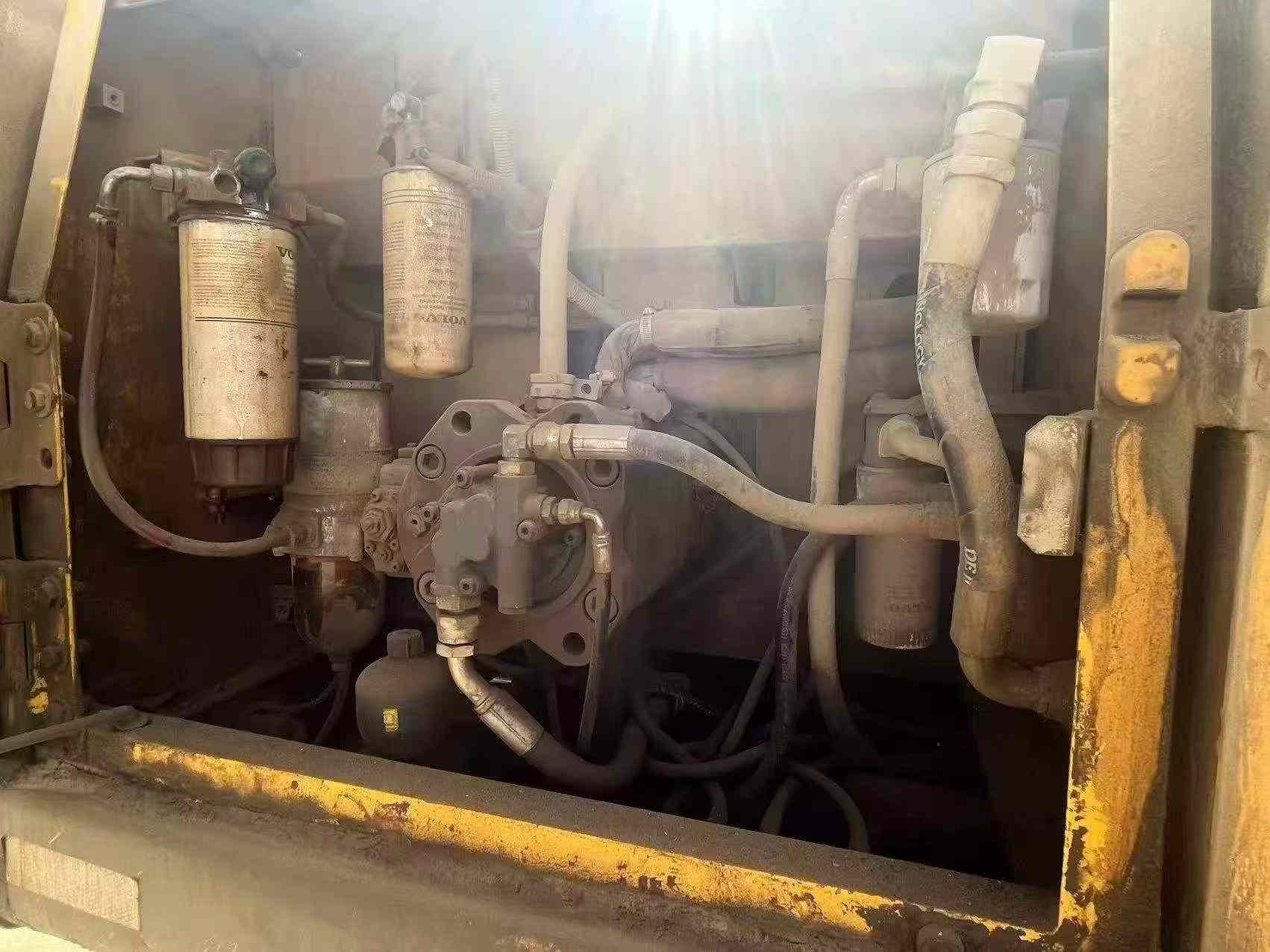

Buy Volvo EC240B Used Excavator / 5

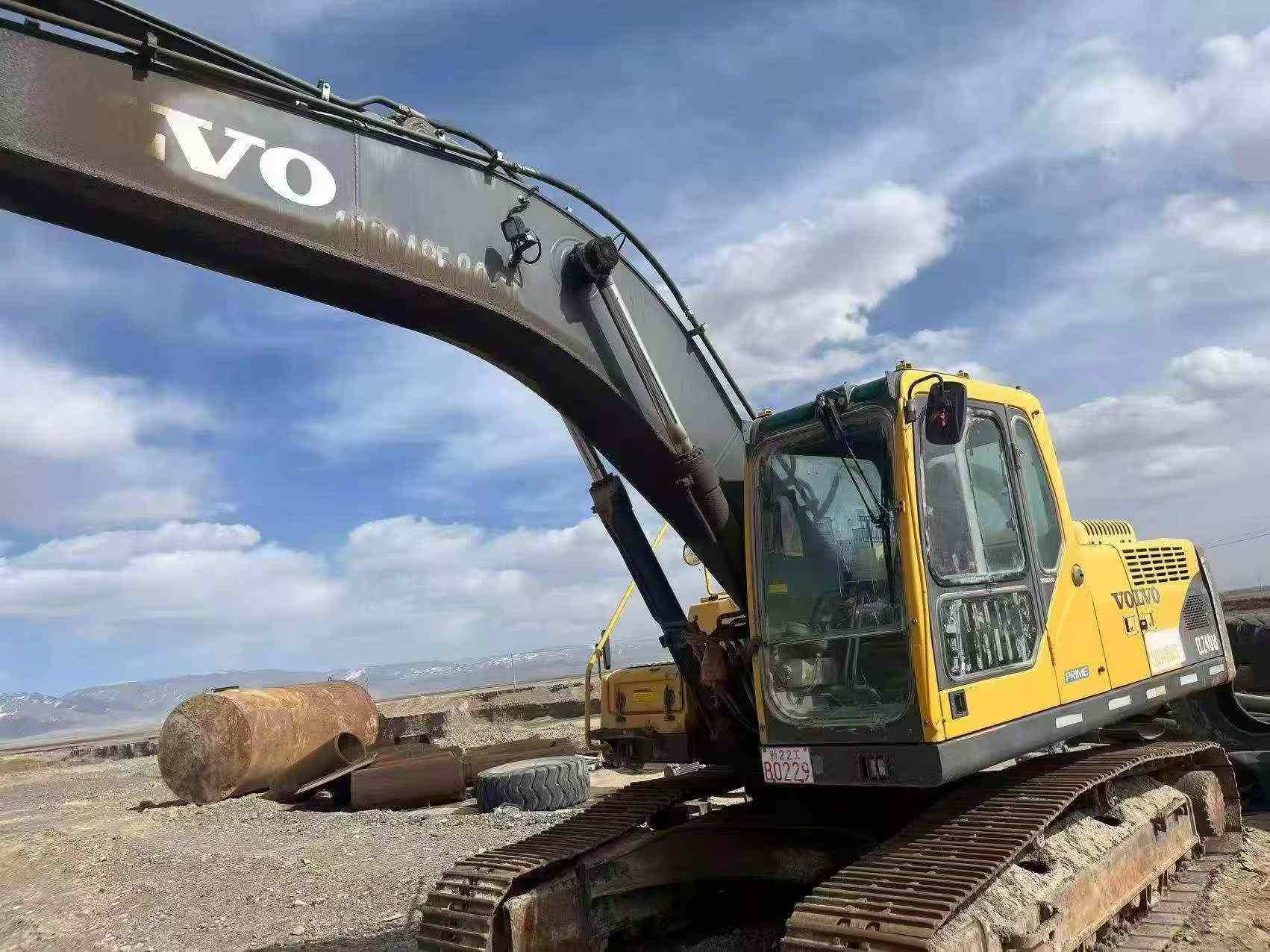

Buy Volvo EC240B Used Excavator / 6

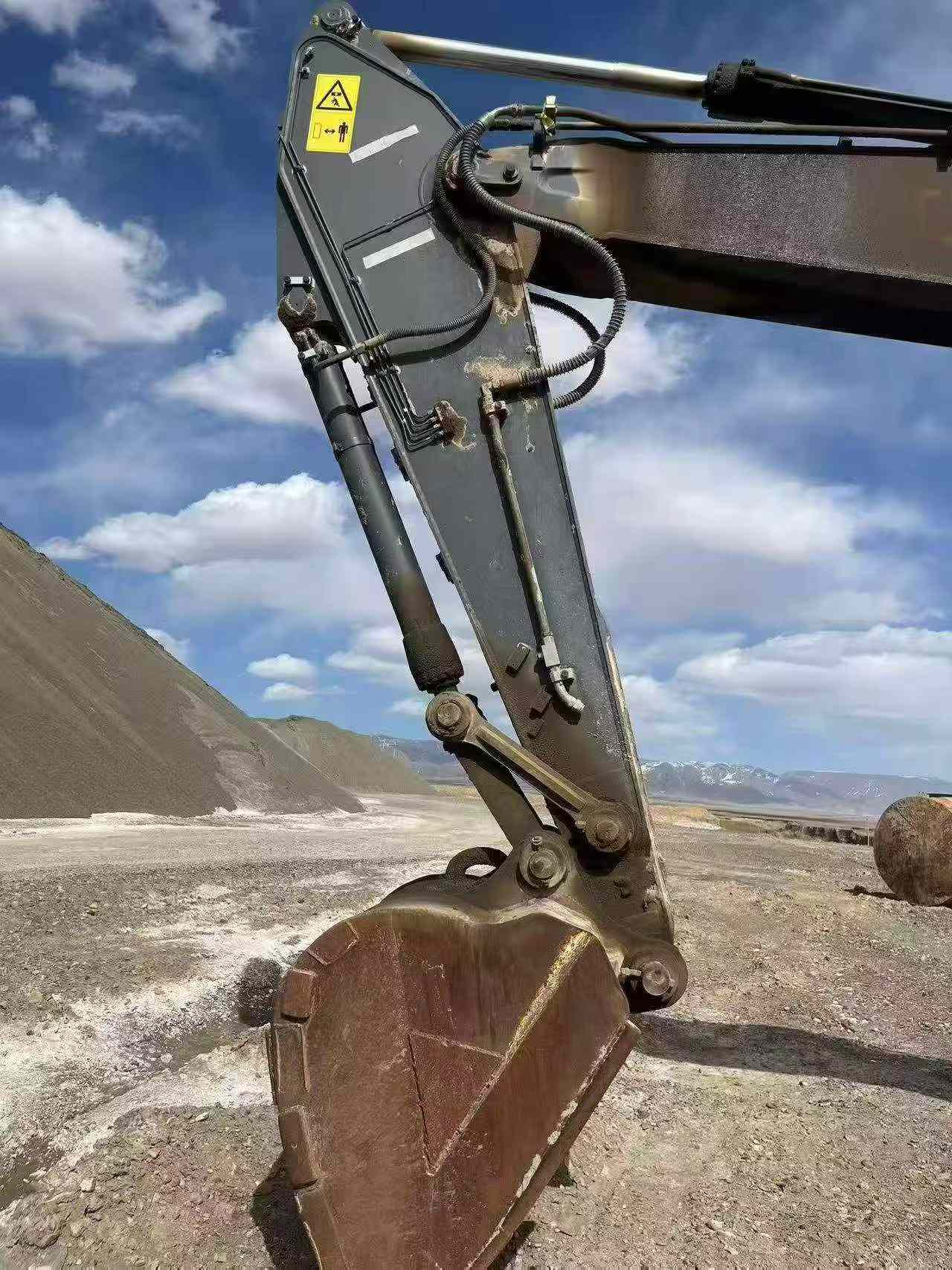

Buy Volvo EC240B Used Excavator / 7

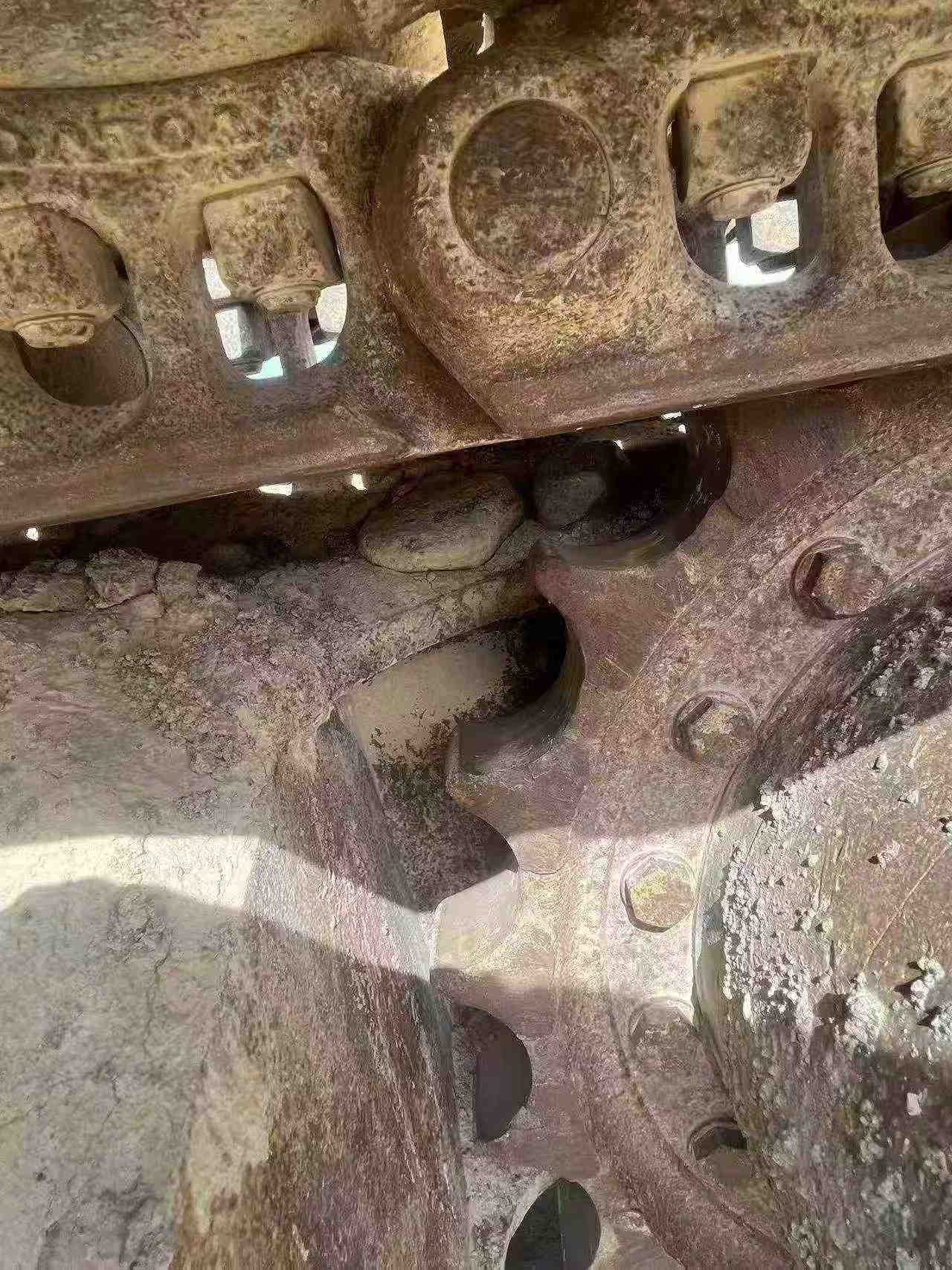

Buy Volvo EC240B Used Excavator / 8

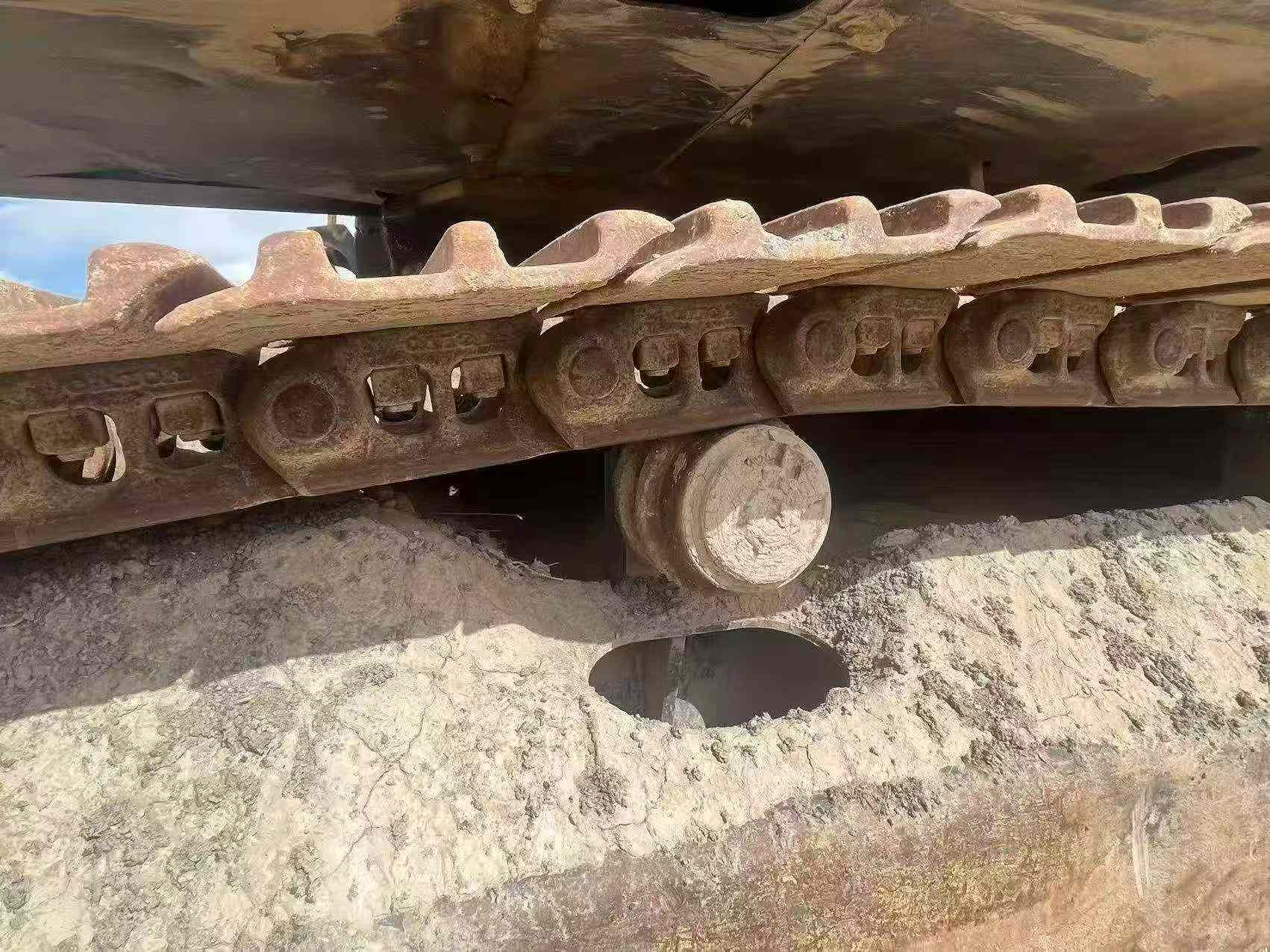

Buy Volvo EC240B Used Excavator / 9

Product Description

FairTradeMachinery presents a 2012 Volvo EC240B hydraulic excavator currently located in Shanghai, China. This mid-sized crawler excavator represents Volvo's proven B-series engineering, designed for demanding earthmoving and construction applications. As inventory stock, this machine offers exceptional value for contractors seeking reliable performance at a competitive price point.

The EC240B features Volvo's robust hydraulic system and operator-focused design, delivering consistent productivity across various jobsite conditions. Its 24-ton operating weight class makes it suitable for general excavation, trenching, and material handling tasks.

  • Year of Manufacture: 2012
  • Model: Volvo EC240B
  • Current Location: Shanghai, China
  • Machine Type: Tracked Hydraulic Excavator
  • Condition: Used - Inventory Stock

Contact our team for detailed specifications, current condition assessment, and competitive pricing on this Volvo excavator.

SpecificationsValue
No.1089577
Tonnage (tons)24
Working weight (kg)24300
Bucket capacity (m³)1.05-1.98
Boom length (mm)6000
Rod length (mm)2970
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

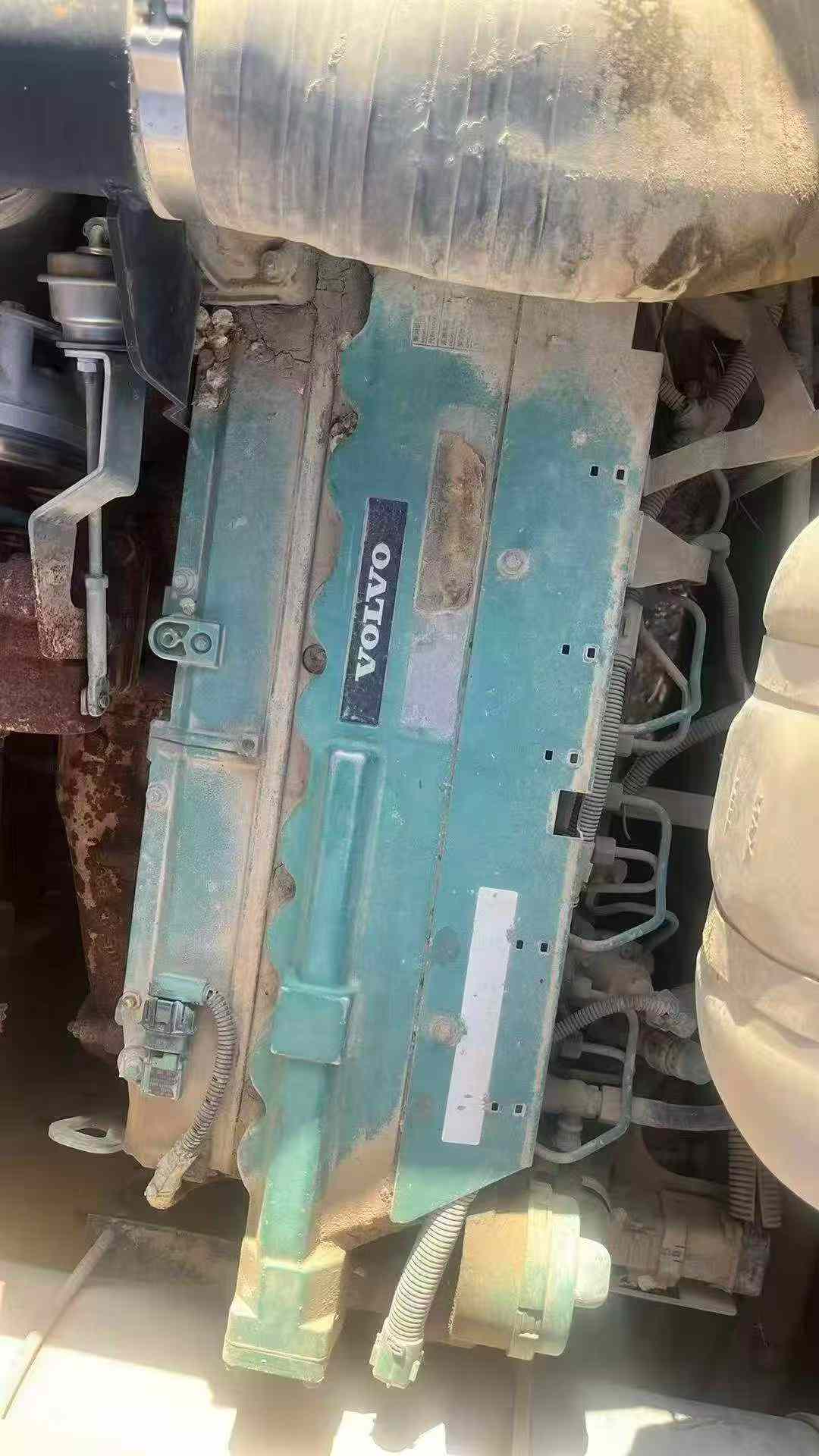

Engine typeVolvo D7D
Rated power (kw/rpm)134/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)108 x 130
Number of cylinders (PCS)6
Displacement (L)7.1
Working formMaximum torque: 750N.m/1400rpm, turbocharged
Ground specific pressure (Kpa)50
Rotation speed (rpm)11.4
Climbing ability (%)70
Bucket digging force (kN)160.8 (Standard mode) /175.5 (Extra mode)
Rod digging force (kN)111.1 (Standard mode) /121.6 (Extra mode)
Travel speed (km/h)3. 2/5.5
Rotary hydraulic motor typeAxial piston hydraulic motor
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)230 * 2 + 20
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)26.5
Control Hydraulic Circuit (Mpa)3.9
Main pump typeVariable axial piston pump ×2+ gear pump
Working Hydraulic Circuit (Mpa)31.4/34.3
Bucket cylinders - Number × diameter × stroke (mm)1-130 x 1150
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1665
Boom cylinders - Number × diameter × stroke (mm)2-135 x 1345
Fuel Tank (L)380
Hydraulic Tank (L)190
Engine Oil changes (L)32
Coolant (L)44
Hydraulic System (L)320
Total transport length (mm)10020
Total transport width (mm)2990
Total transport height (mm)3040
Full cab height (mm)2990
Counterweight ground clearance (mm)1080
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3890
Back end turning radius (mm)2940
Total track length (mm)4460
Track gauge (mm)2390
Track plate width (mm)600
Total track width (mm)2990
Track ground length (mm)3660
Maximum digging radius (mm)10260
Maximum digging depth (mm)6980
Maximum excavation height (mm)9690
Maximum unloading height (mm)6800
Maximum vertical digging depth (mm)5970
Maximum excavation radius of stop surface (mm)10080
Maximum effective digging depth (mm)6740
see more

Overview

No.1089577

Brand Name:

Volvo

Model Number:

EC240B

Year:

2012

Location:

Shanghai China
