2016 Volvo EC250D

1/5
Buy Volvo EC250D Used Excavator / 1
Buy Volvo EC250D Used Excavator / 2
Buy Volvo EC250D Used Excavator / 3
Buy Volvo EC250D Used Excavator / 4
Buy Volvo EC250D Used Excavator / 5

Product Description

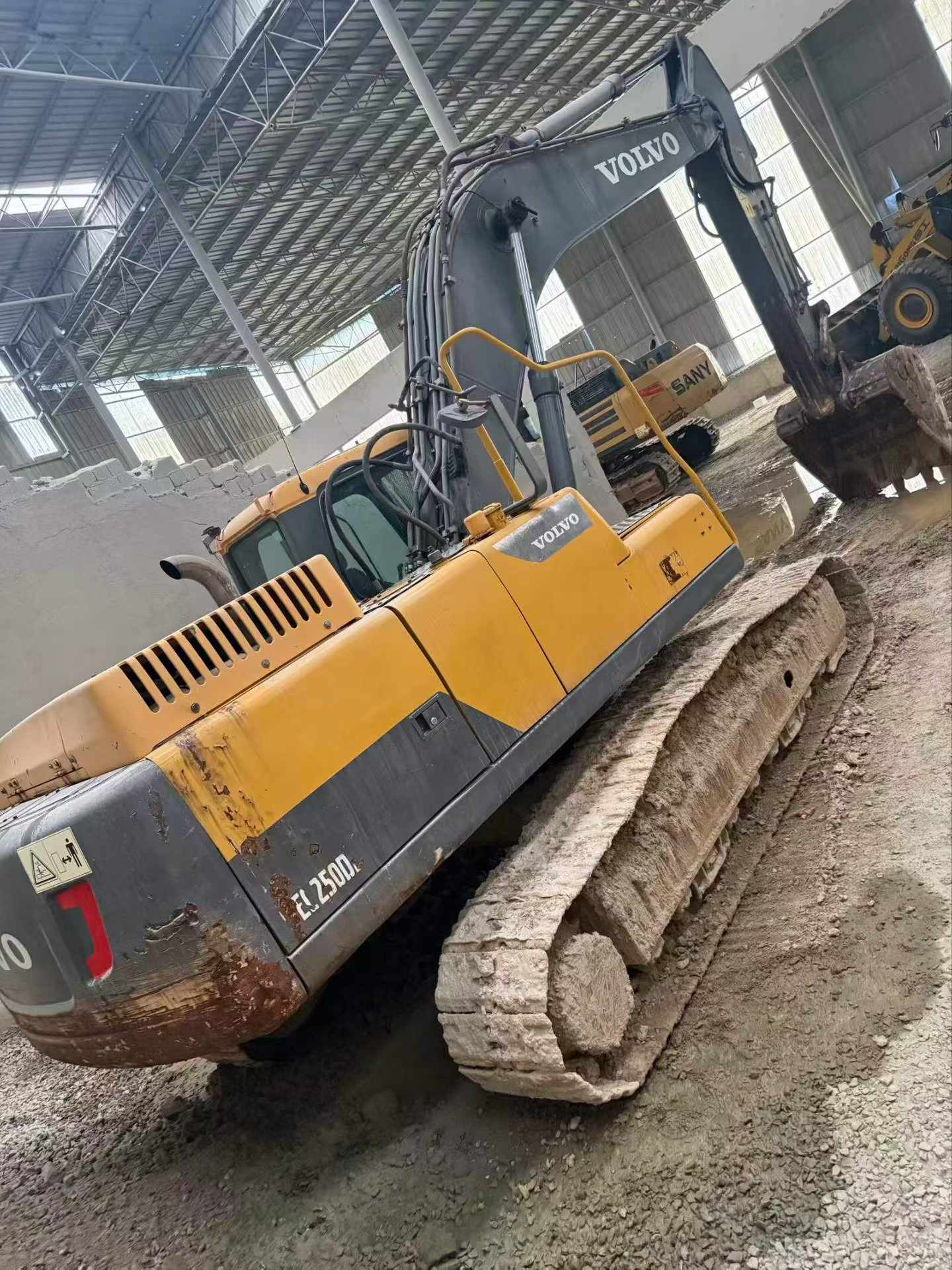

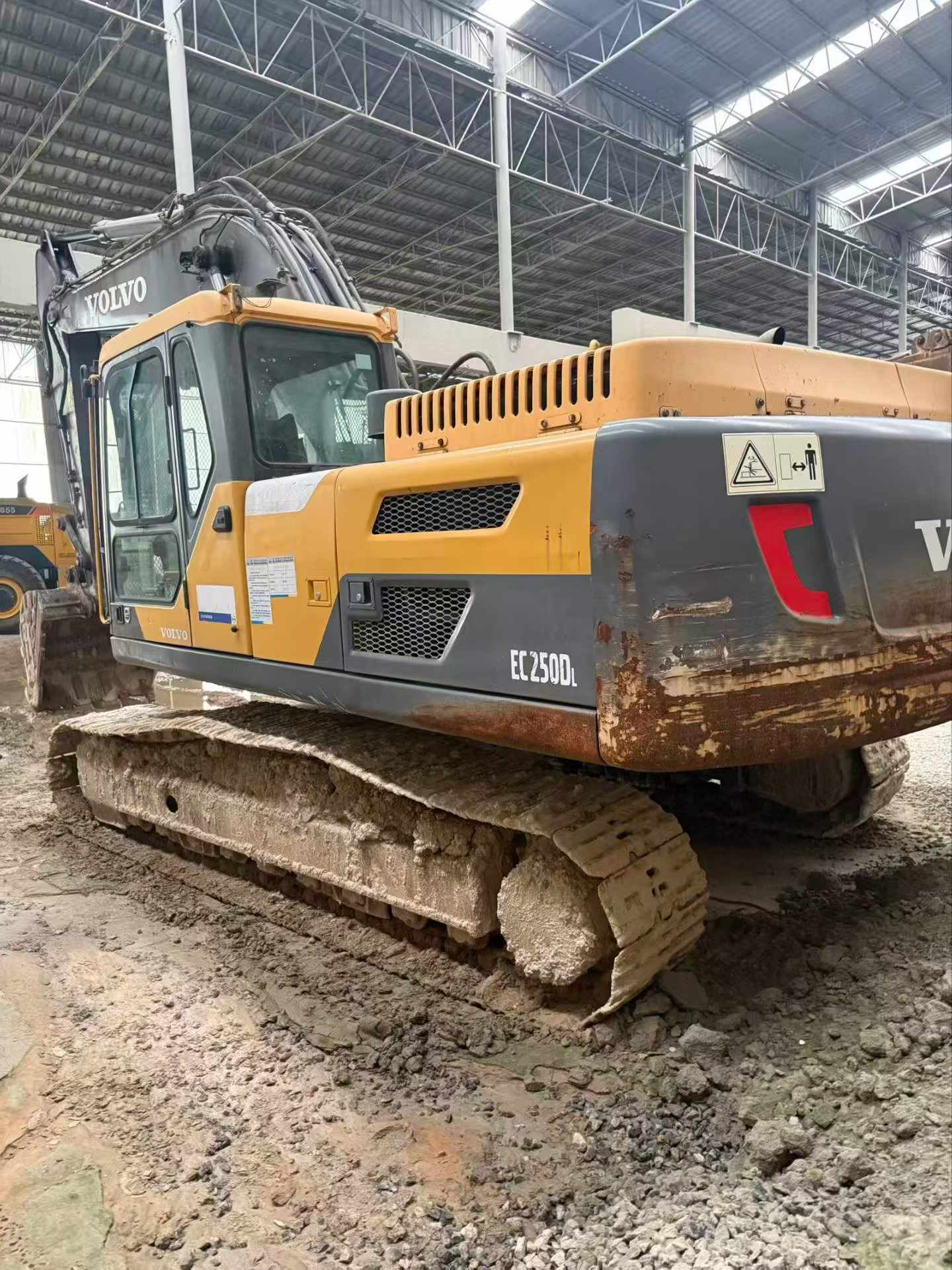

This 2016 Volvo EC250D excavator represents a solid mid-size crawler solution for demanding earthmoving operations. Located in Fujian, China, this machine comes from Volvo's proven D-Series lineup, known for reliability and fuel efficiency in the 25-ton class.

The EC250D features Volvo's intelligent hydraulic system, providing excellent digging performance and smooth operation across a variety of applications including general construction, infrastructure development, and material handling. With its robust undercarriage and well-maintained condition, this unit is positioned for continued productive service.

  • Year of Manufacture: 2016
  • Model: Volvo EC250D
  • Location: Fujian Province, China
  • Category: Crawler Excavator
  • Condition: Used, operational

Interested buyers are encouraged to request detailed specifications, service records, and arrange inspection. Competitive pricing available for qualified purchasers.

SpecificationsValue
No.1094959
Tonnage (tons)25
Working weight (kg)24600 - 28000
Bucket capacity (m³)0.48 - 1.85
Country of originKorea
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeD7E
Rated power (kw/rpm)138/1800
Cylinder diameter × stroke (mm)108*130
Maximum torque (N.m)870 / 1 350
Number of cylinders (PCS)6
Displacement (L)7.1
Rotation speed (rpm)11.9
Bucket digging force (kN)152
Rod digging force (kN)115
Maximum tractive force (kN)217
Travel speed (km/h)3.5/5.5
Turning torque (Nm)91.6
Maximum flow of main pump (l/min)2 x 240
Traveling Hydraulic Circuit (Mpa)36.3
Control Hydraulic Circuit (Mpa)3.9
Fuel Tank (L)470
Hydraulic Tank (L)195
Engine Oil changes (L)32
Coolant (L)41
Hydraulic System (L)400
Total transport length (mm)10260
Total transport width (mm)2990
Full cab height (mm)3020
Counterweight ground clearance (mm)1080
Minimum ground clearance (mm)470
Back end turning radius (mm)3070
Onboard width (mm)2890
Total track length (mm)4450
Track gauge (mm)2390
Track plate width (mm)600
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10260
Maximum digging depth (mm)6980
Maximum excavation height (mm)9690
Maximum unloading height (mm)6 800
see more
