Product Description

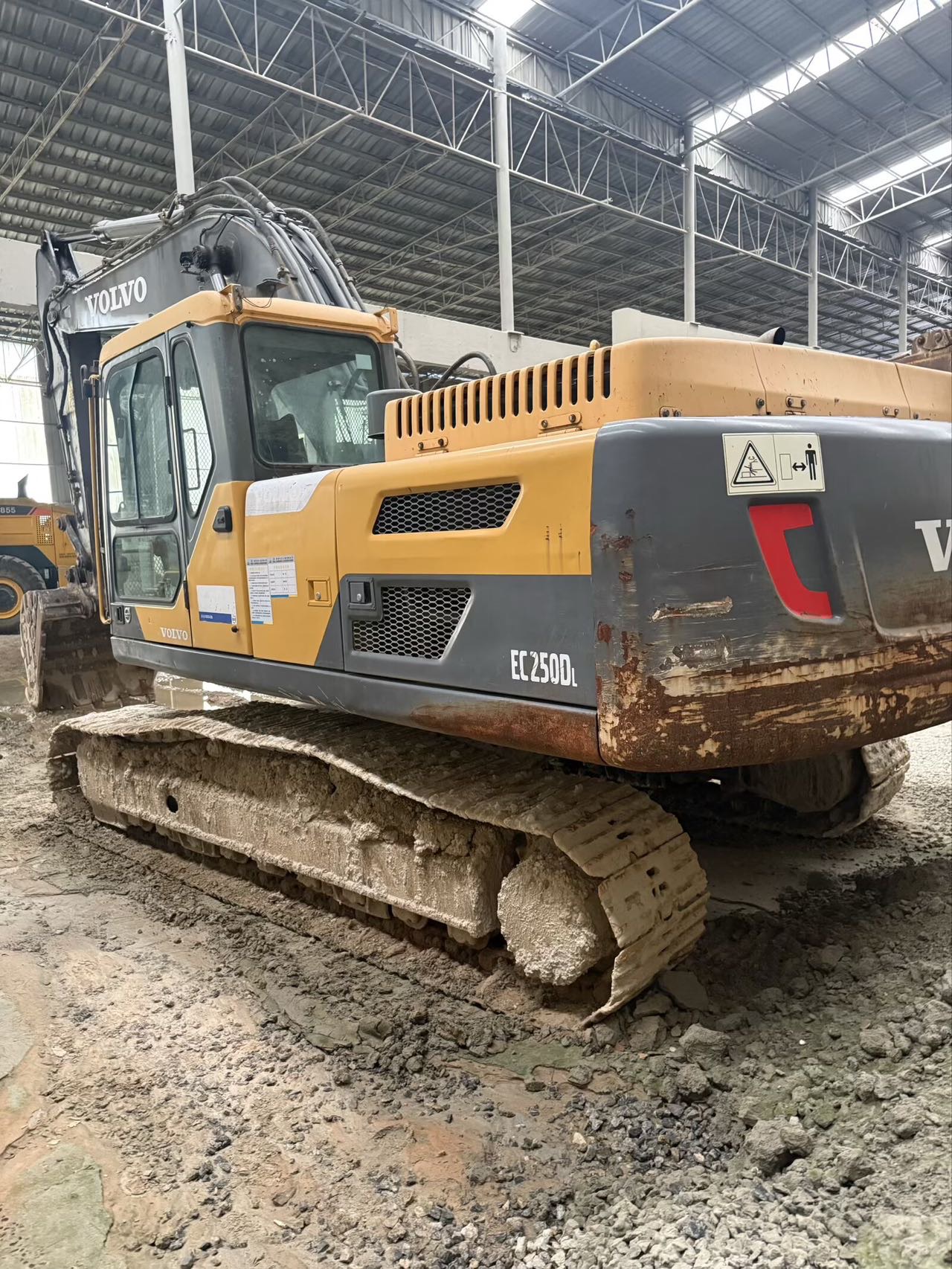

Discover the reliability and efficiency of the 2017 Volvo EC250D, a robust excavator designed for demanding construction projects. This machine, previously utilized by a site owner in Guangxi, China, offers the proven performance that Volvo is known for. Built to tackle tough jobs with precision and power, the EC250D is an excellent choice for contractors looking for a dependable used excavator that can handle a variety of tasks.
- Year: 2017
- Brand: Volvo
- Model: EC250D
- Location: Guangxi, China
| Specifications | Value |
|---|---|
| No. | 1115479 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 24600 - 28000 |
| Bucket capacity (m³) | 0.48 - 1.85 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D7E |
| Rated power (kw/rpm) | 138/1800 |
| Cylinder diameter × stroke (mm) | 108*130 |
| Maximum torque (N.m) | 870 / 1 350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.1 |
| Rotation speed (rpm) | 11.9 |
| Bucket digging force (kN) | 152 |
| Rod digging force (kN) | 115 |
| Maximum tractive force (kN) | 217 |
| Travel speed (km/h) | 3.5/5.5 |
| Turning torque (Nm) | 91.6 |
| Maximum flow of main pump (l/min) | 2 x 240 |
| Traveling Hydraulic Circuit (Mpa) | 36.3 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Fuel Tank (L) | 470 |
| Hydraulic Tank (L) | 195 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 10260 |
| Total transport width (mm) | 2990 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1080 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 3070 |
| Onboard width (mm) | 2890 |
| Total track length (mm) | 4450 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10260 |
| Maximum digging depth (mm) | 6980 |
| Maximum excavation height (mm) | 9690 |
| Maximum unloading height (mm) | 6 800 |
