Product Description

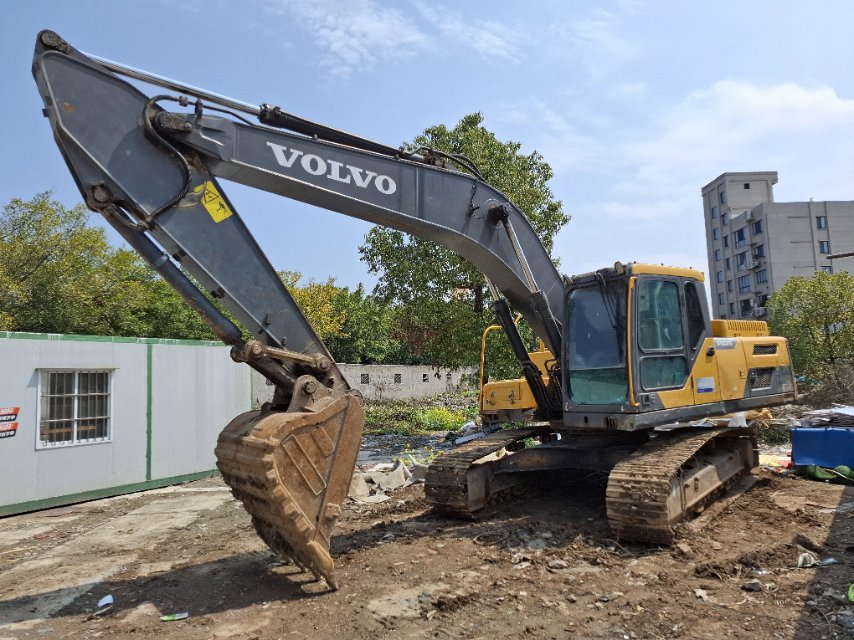

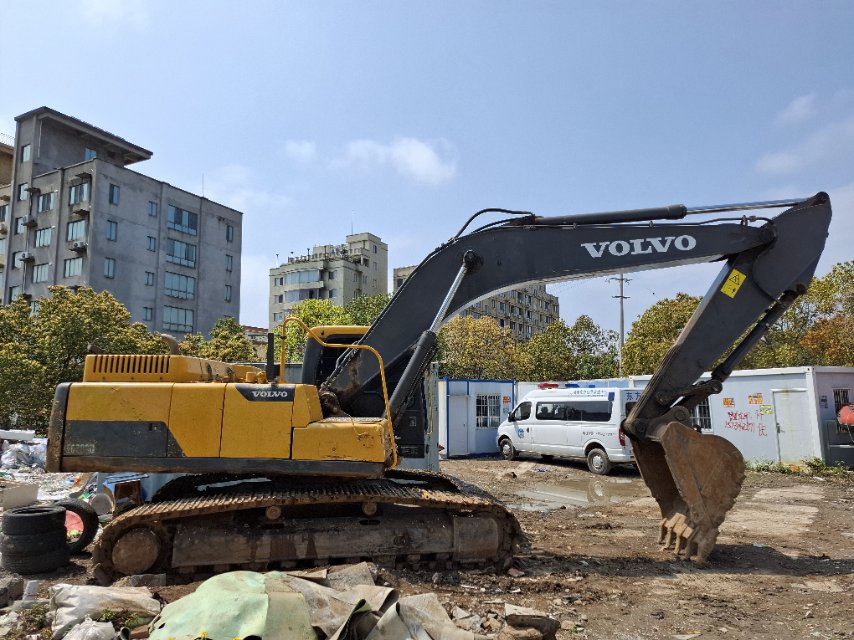

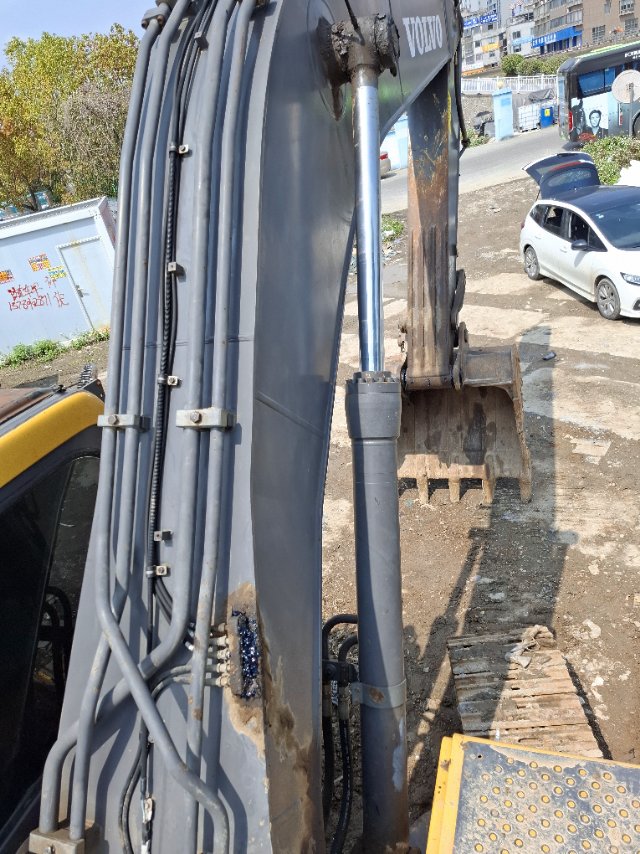

This 2018 Volvo EC250D excavator, currently located in Zhejiang, China, represents a well-maintained example of Volvo's renowned mid-size crawler excavator series. The machine features original factory paintwork throughout, indicating careful ownership with no evidence of heavy impact or structural repairs.
Key highlights include:

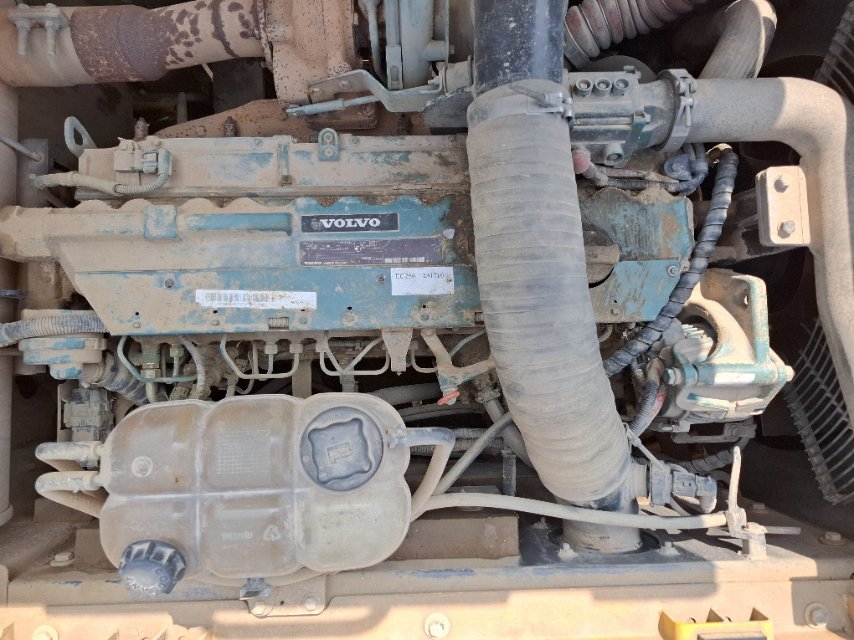

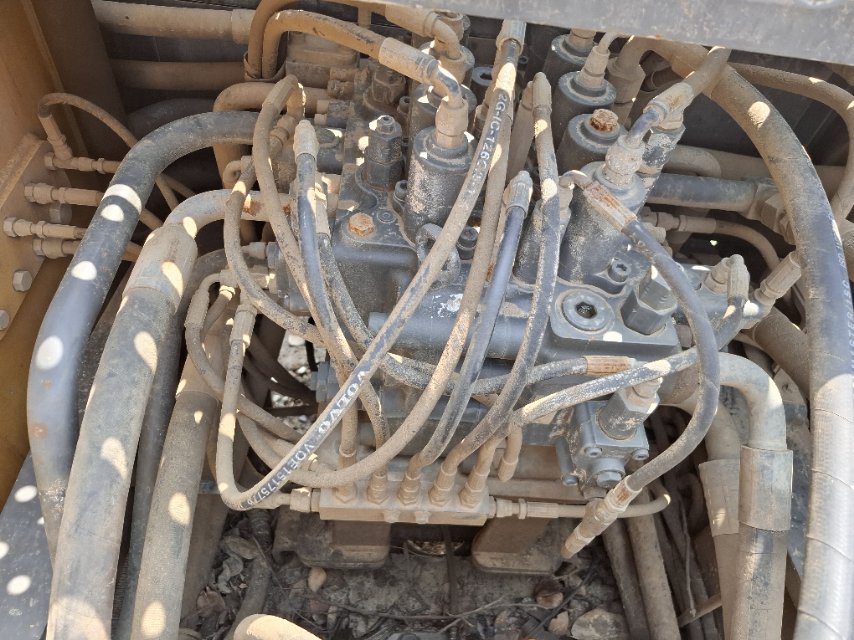

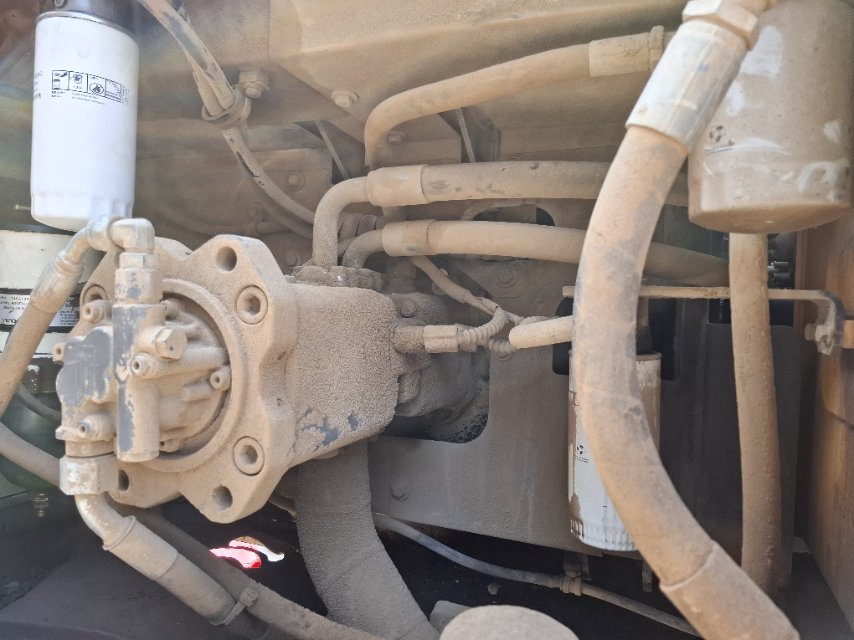

- Engine, hydraulic pump, and main control valve in excellent condition
- Zero-clearance slewing ring bearing ensuring precise swing operation

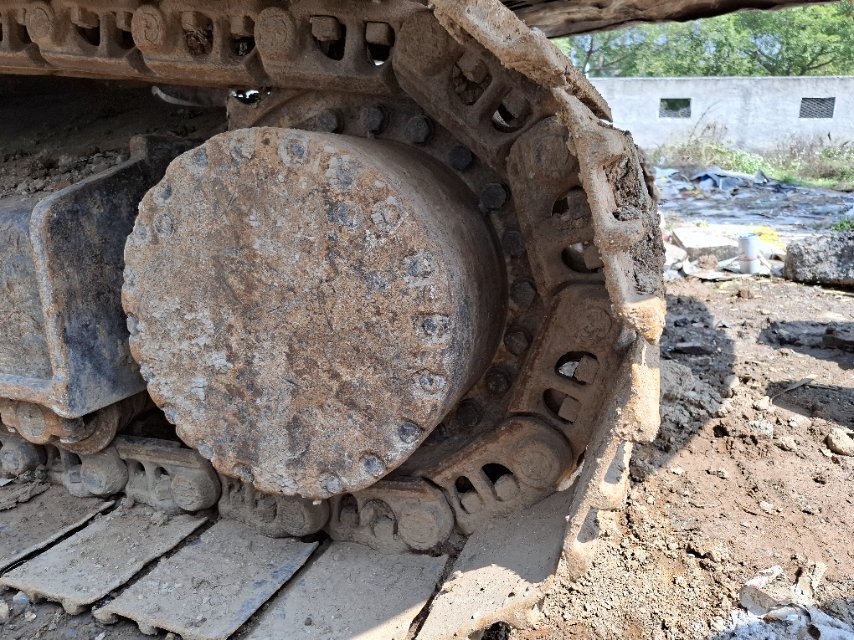

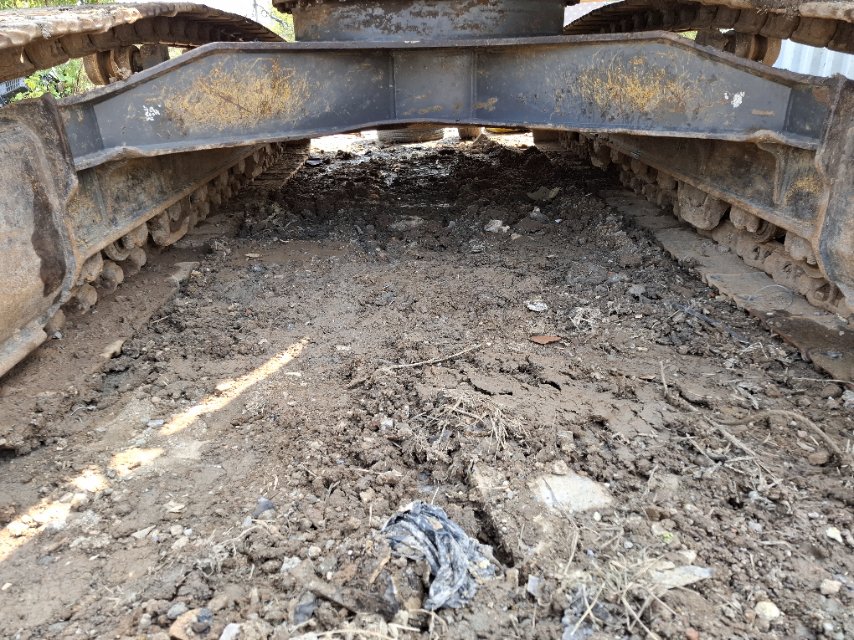

- Undercarriage components showing minimal wear
- Complete original paint with no hammer work required
- Low operational hours relative to model year
The EC250D is valued for its 25-ton operating weight, fuel efficiency, and versatility across construction, demolition, and earthmoving applications. This unit's exceptional mechanical condition and preservation make it an attractive option for contractors seeking reliable performance without the premium of new equipment.
| Specifications | Value |
|---|---|
| No. | 1052923 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 24600 - 28000 |
| Bucket capacity (m³) | 0.48 - 1.85 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D7E |
| Rated power (kw/rpm) | 138/1800 |
| Cylinder diameter × stroke (mm) | 108*130 |
| Maximum torque (N.m) | 870 / 1 350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.1 |
| Rotation speed (rpm) | 11.9 |
| Bucket digging force (kN) | 152 |
| Rod digging force (kN) | 115 |
| Maximum tractive force (kN) | 217 |
| Travel speed (km/h) | 3.5/5.5 |
| Turning torque (Nm) | 91.6 |
| Maximum flow of main pump (l/min) | 2 x 240 |
| Traveling Hydraulic Circuit (Mpa) | 36.3 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Fuel Tank (L) | 470 |
| Hydraulic Tank (L) | 195 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 10260 |
| Total transport width (mm) | 2990 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1080 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 3070 |
| Onboard width (mm) | 2890 |
| Total track length (mm) | 4450 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10260 |
| Maximum digging depth (mm) | 6980 |
| Maximum excavation height (mm) | 9690 |
| Maximum unloading height (mm) | 6 800 |
