Product Description
Expand your operational capacity with this 2016 Volvo EC30 compact excavator, currently positioned in Chongqing and ready for immediate fleet integration. Powered by a reliable Mitsubishi S3L2 engine delivering 20kW at 2400 rpm, this 3-ton machine serves as an efficient backup unit for contractors managing multiple job sites. Its compact 1480mm transport width and 4370mm overall length enable quick mobilization between projects without specialized hauling requirements.
Key fleet-ready specifications include:
- Working weight: 3,090 kg with minimal 31 kPa ground pressure for sensitive surface work
- Maximum digging depth of 2,740mm and 4,620mm excavation radius for versatile applications
- 0.07m³ backhoe bucket capacity suited for utility work and confined spaces
- 62.1 L/min hydraulic flow ensuring responsive cycle times
- 1,270mm rear turning radius for tight-access urban environments
- 49L fuel tank supporting extended shift operations
Joint venture manufacturing quality meets practical jobsite demands. Add redundancy to your equipment roster while maintaining Volvo-standard reliability across your operations.
| Specifications | Value |
|---|---|
| No. | 1017862 |
| Tonnage (tons) | 3 |
| Working weight (kg) | 3090.3 |
| Bucket capacity (m³) | 0.07 |
| Boom length (mm) | 2300 |
| Rod length (mm) | 1200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

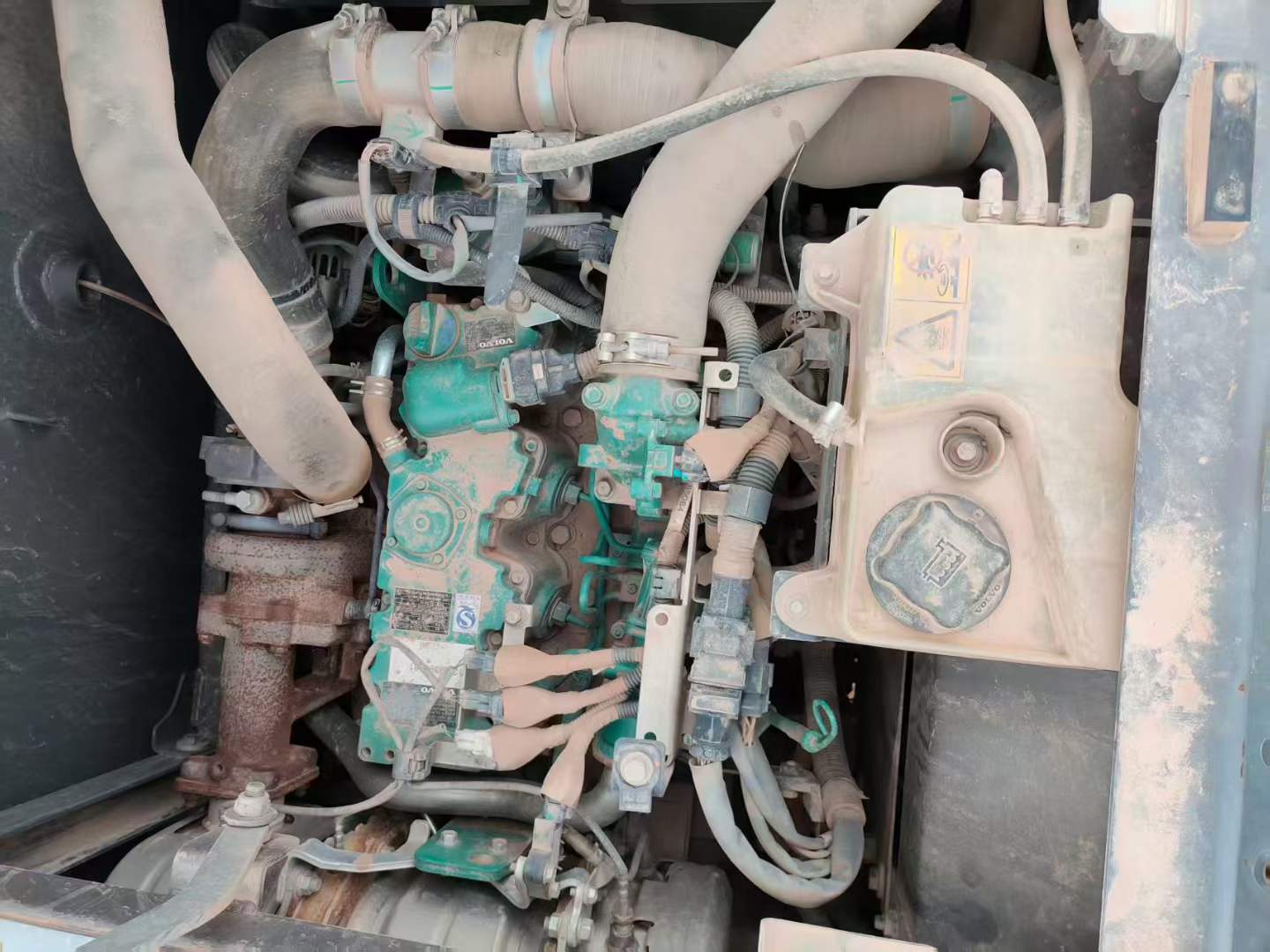

| Engine type | Mitsubishi S3L2 |
| Rated power (kw/rpm) | 20/2400 |
| Maximum torque (N.m) | 77/1600 |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.3 |
| Ground specific pressure (Kpa) | 31 |
| Rotation speed (rpm) | 10 |
| Travel speed (km/h) | 3.7 |
| Maximum flow of main pump (l/min) | 62.1 |
| Fuel Tank (L) | 49 |
| Engine Oil changes (L) | 5.2 |
| Coolant (L) | 6 |
| Hydraulic System (L) | 46.5 |
| Total transport length (mm) | 4370 |
| Total transport width (mm) | 1480 |
| Total transport height (mm) | 2390 |
| Full cab height (mm) | 2390 |
| Counterweight ground clearance (mm) | 570 |
| Minimum ground clearance (mm) | 280 |
| Back end turning radius (mm) | 1270 |
| Track gauge (mm) | 1180 |
| Track plate width (mm) | 300 |
| Track ground length (mm) | 1910 |
| Maximum digging depth (mm) | 2740 |
| Maximum excavation height (mm) | 4450 |
| Maximum unloading height (mm) | 3250 |
| Maximum vertical digging depth (mm) | 2150 |
| Maximum excavation radius of stop surface (mm) | 4620 |
