2014 Volvo EC300D

1/9

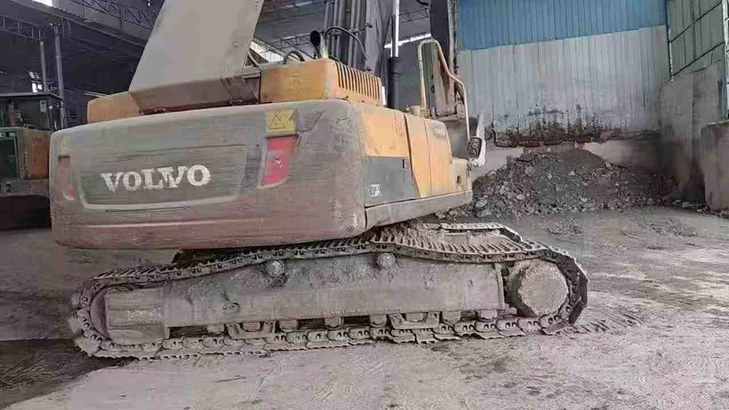

Buy Volvo EC300D Used Excavator / 1
Buy Volvo EC300D Used Excavator / 2
Buy Volvo EC300D Used Excavator / 3
Buy Volvo EC300D Used Excavator / 4
Buy Volvo EC300D Used Excavator / 5
Buy Volvo EC300D Used Excavator / 6
Buy Volvo EC300D Used Excavator / 7
Buy Volvo EC300D Used Excavator / 8
Buy Volvo EC300D Used Excavator / 9

Product Description

This 2014 Volvo EC300D excavator represents a solid investment opportunity for contractors seeking reliable performance in a proven platform. Sourced directly from its first owner in Sichuan, China, this machine offers transparency and traceable ownership history. The EC300D is recognized in the industry for its balanced combination of digging force, fuel efficiency, and operator comfort, making it suitable for general earthmoving, site development, and infrastructure projects.

Key features of the Volvo EC300D include:

  • Volvo's renowned D7E diesel engine delivering dependable power output
  • Advanced hydraulic system for precise control and productivity
  • Spacious ROPS/FOPS certified cab with ergonomic controls
  • Durable undercarriage designed for extended service life
  • First-owner machine with direct sourcing credentials

Currently located in Sichuan, China, this unit is available for inspection and ready for international export arrangements. Contact us for detailed specifications, additional imagery, and shipping logistics.

SpecificationsValue
No.1088618
Tonnage (tons)30
Working weight (kg)30040
Bucket capacity (m³)1.4
Boom length (mm)6430
Rod length (mm)3710
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeD7E
Rated power (kw/rpm)169/1800
Cylinder diameter × stroke (mm)108 x 130
Maximum torque (N.m)1080/1350
Number of cylinders (PCS)6
Displacement (L)7.1
Working formTurbocharged, 4-stroke, water-cooled, direct injection
Rotation speed (rpm)10.7
Climbing ability (%)35 °
Maximum tractive force (kN)247
Travel speed (km/h)3.4/5.4
Turning torque (Nm)110.9
Maximum flow of main pump (l/min)2 x 263
Traveling Hydraulic Circuit (Mpa)36.3
Rotary Hydraulic Circuit (Mpa)27.9
Working Hydraulic Circuit (Mpa)33.3/36.3
Bucket cylinders - Number × diameter × stroke (mm)1 x 140 x 1140
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 150 x 1745
Boom cylinders - Number × diameter × stroke (mm)2 x 140 x 1480
Fuel Tank (L)470
Hydraulic Tank (L)195
Coolant (L)41
Hydraulic System (L)400
Total transport length (mm)10640
Total transport width (mm)3190
Total transport height (mm)3090
Full cab height (mm)3090
Counterweight ground clearance (mm)1135
Minimum ground clearance (mm)480
Onboard width (mm)890
Total track length (mm)4870
Track plate width (mm)600
Maximum digging radius (mm)10190
Maximum digging depth (mm)6850
Maximum excavation height (mm)9660
Maximum unloading height (mm)6670
Maximum vertical digging depth (mm)5730
Maximum excavation radius of stop surface (mm)9980
Maximum effective digging depth (mm)6610
see more

Overview

No.1088618

Brand Name:

Volvo

Model Number:

EC300D

Year:

2014

Location:

Sichuan China

Pub Date
