Product Description

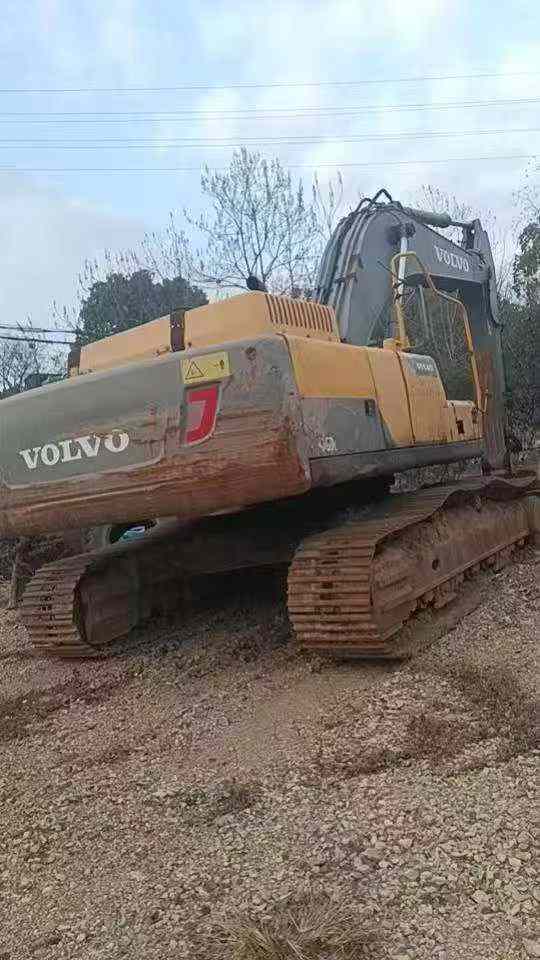

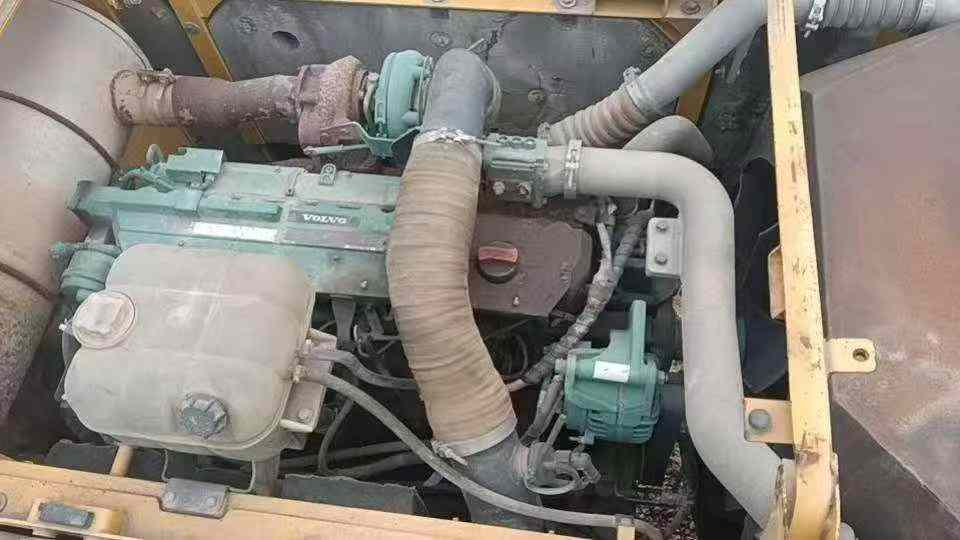

With a working weight of 30,040 kg and a bucket capacity of 1.4 m³, this 2016 Volvo EC300DL excavator is an ideal fleet addition for busy contractors. Located in 浙江绍兴, it boasts a powerful D7E engine, delivering 170 kW at 1800 rpm, ensuring reliable performance on any job site. Equipped with a 6-cylinder engine and a displacement of 7.1 L, this machine provides the necessary power for demanding tasks.
- Maximum digging force: 186 kN (bucket), 161 kN (rod)
- Travel speed: 3.4/5.4 km/h
- Boom length: 6200 mm, Rod length: 2550 mm
- Fuel tank: 470 L, Hydraulic tank: 195 L
- Total transport dimensions: 10640 mm (length) x 3190 mm (width) x 3090 mm (height)
This Volvo EC300DL is designed to integrate seamlessly into your existing fleet, providing robust support and enhancing operational efficiency. Its durable construction and versatile capabilities make it a valuable asset for any contractor looking to expand their equipment lineup.
| Specifications | Value |
|---|---|
| No. | 1001697 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30040 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 6200 |
| Rod length (mm) | 2550 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D7E |
| Rated power (kw/rpm) | 170/1800 |
| Cylinder diameter × stroke (mm) | 108X130 |
| Maximum torque (N.m) | 1080/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.1 |
| Rotation speed (rpm) | 10.7 |
| Bucket digging force (kN) | 186 |
| Rod digging force (kN) | 161 |
| Maximum tractive force (kN) | 247 |
| Travel speed (km/h) | 3.4/5.4 |
| Turning torque (Nm) | 110.9 |
| Maximum flow of main pump (l/min) | 2 x 263 |
| Traveling Hydraulic Circuit (Mpa) | 36.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Working Hydraulic Circuit (Mpa) | 33.3/36.3 |
| Pilot pump flow (L/min) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1×140 x 1140 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1×150 x 1745 |
| Boom cylinders - Number × diameter × stroke (mm) | 2×140 x 1480 |
| Fuel Tank (L) | 470 |
| Hydraulic Tank (L) | 195 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 10640 |
| Total transport width (mm) | 3190 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1135 |
| Minimum ground clearance (mm) | 480 |
| Onboard width (mm) | 2890 |
| Total track length (mm) | 4870 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4015 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 50 |
| Maximum digging radius (mm) | 10190 |
| Maximum digging depth (mm) | 6850 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6670 |
| Maximum vertical digging depth (mm) | 5730 |
| Maximum excavation radius of stop surface (mm) | 9980 |
