Product Description

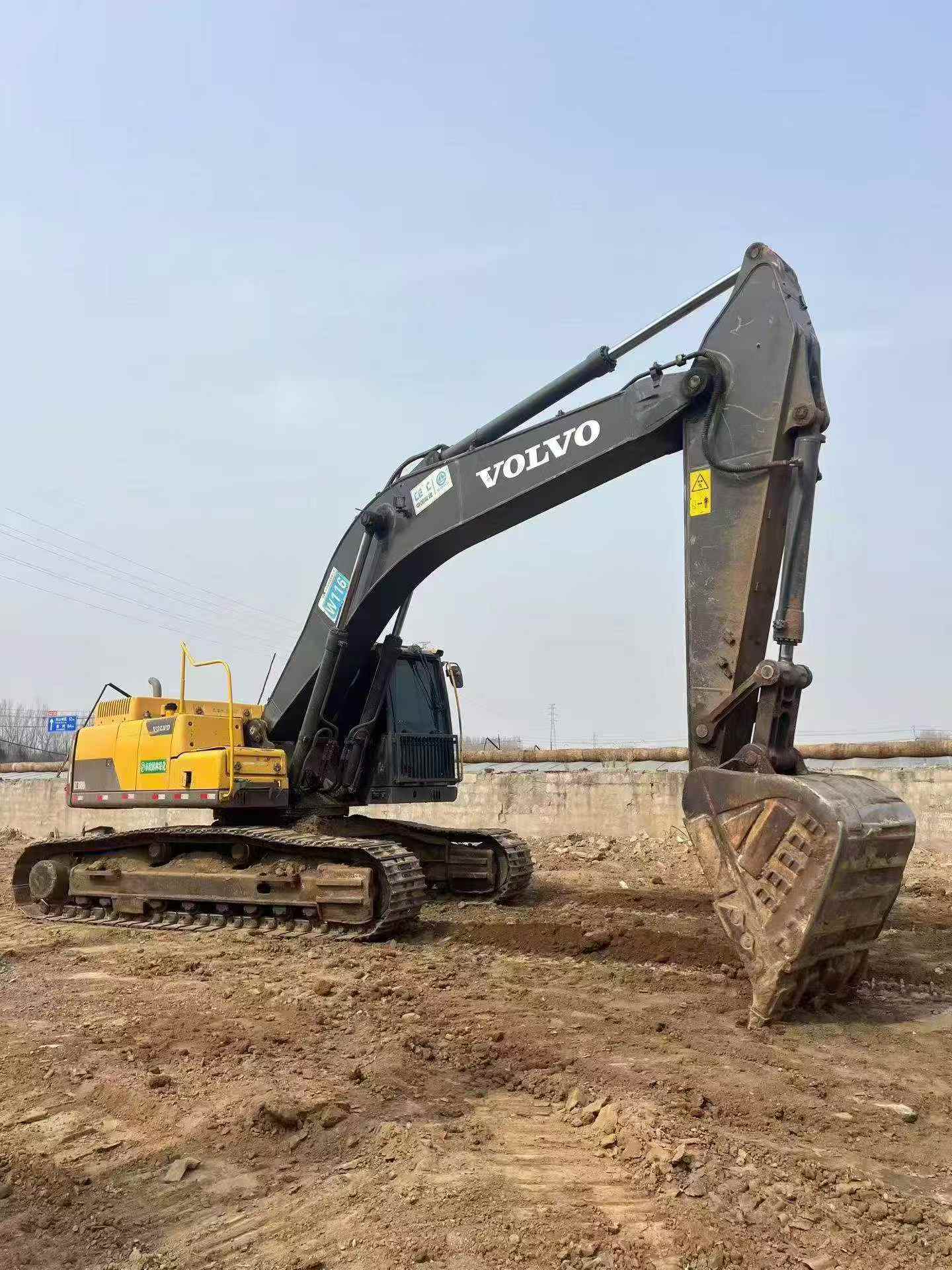

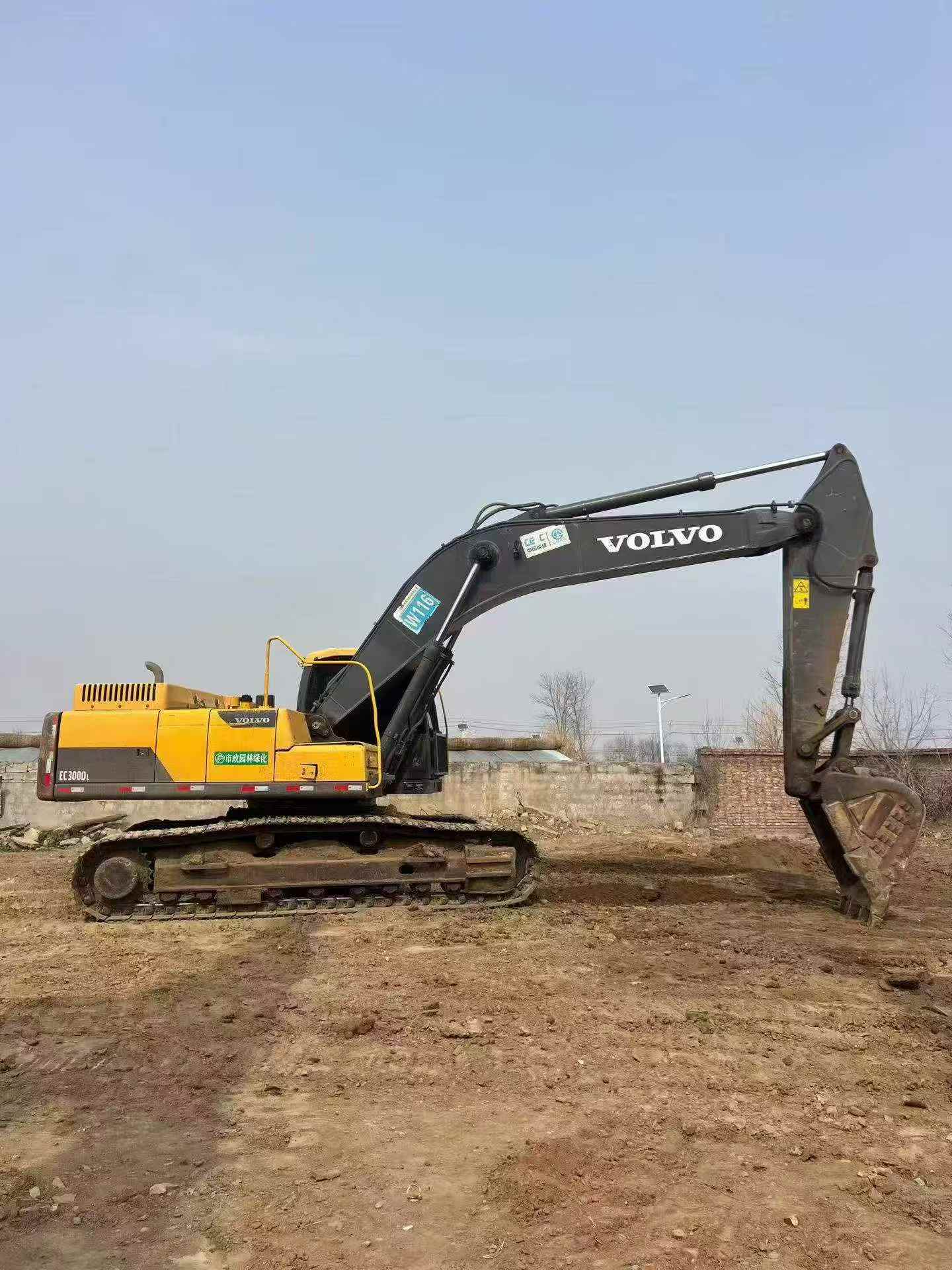

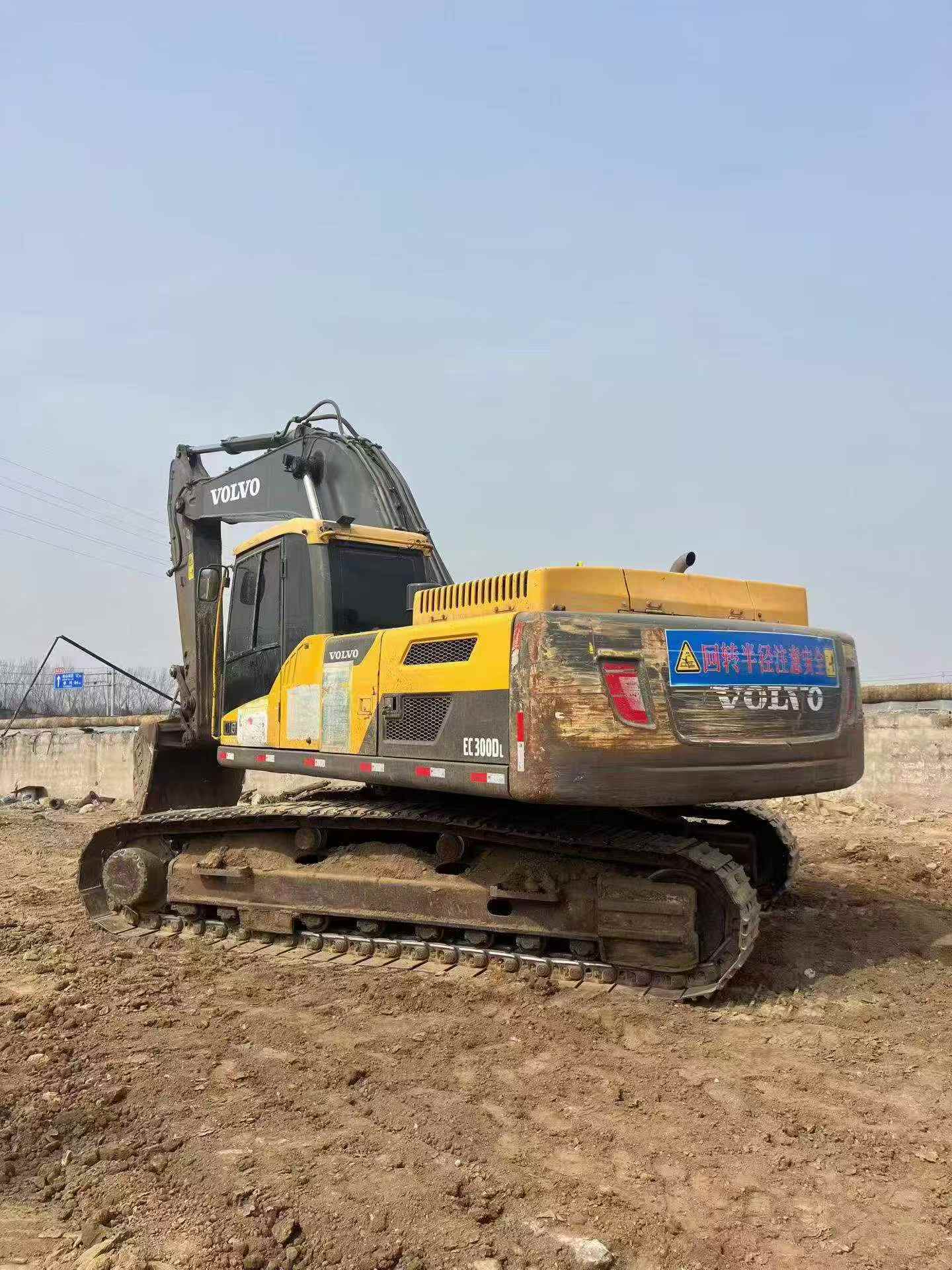

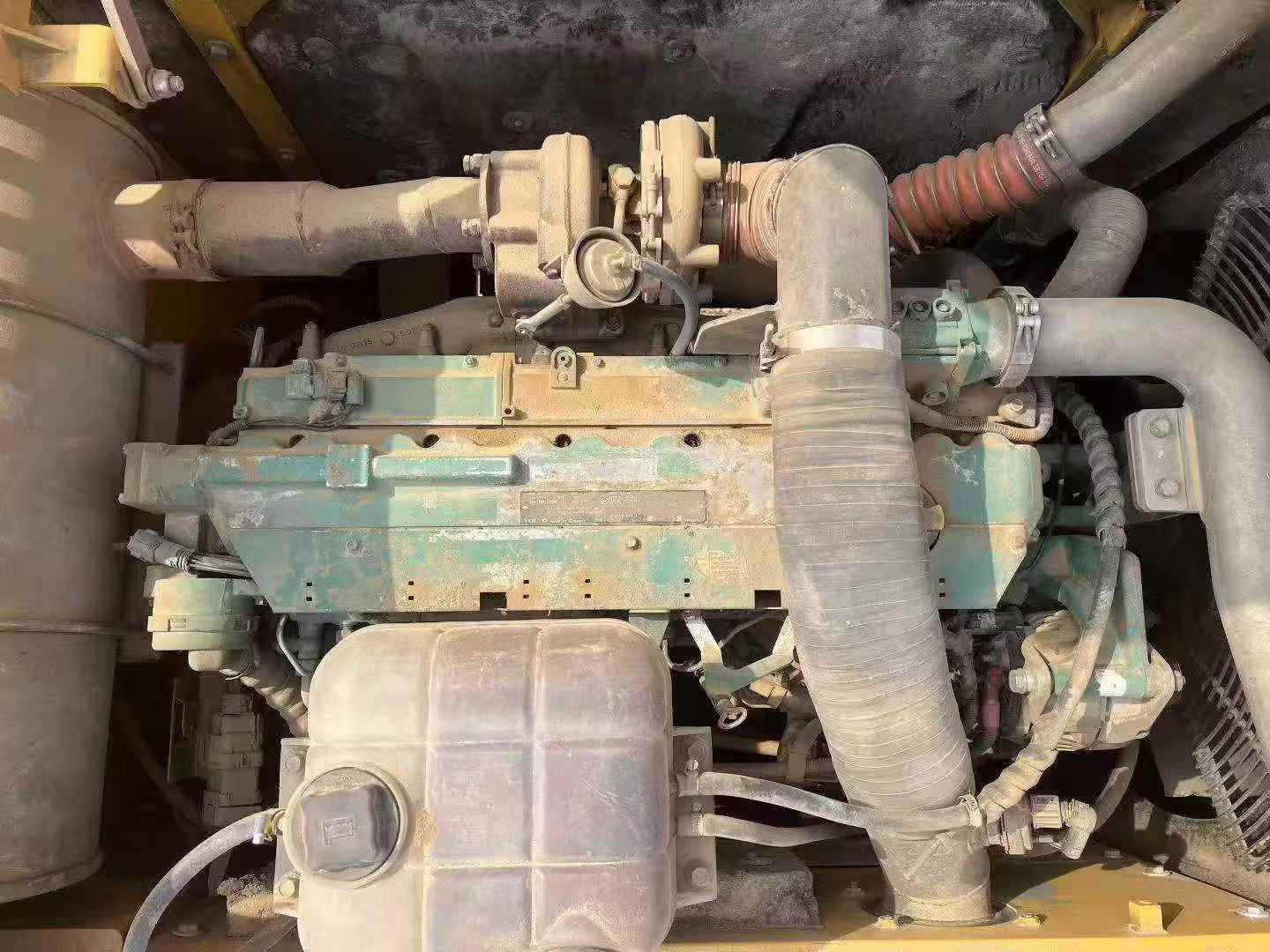

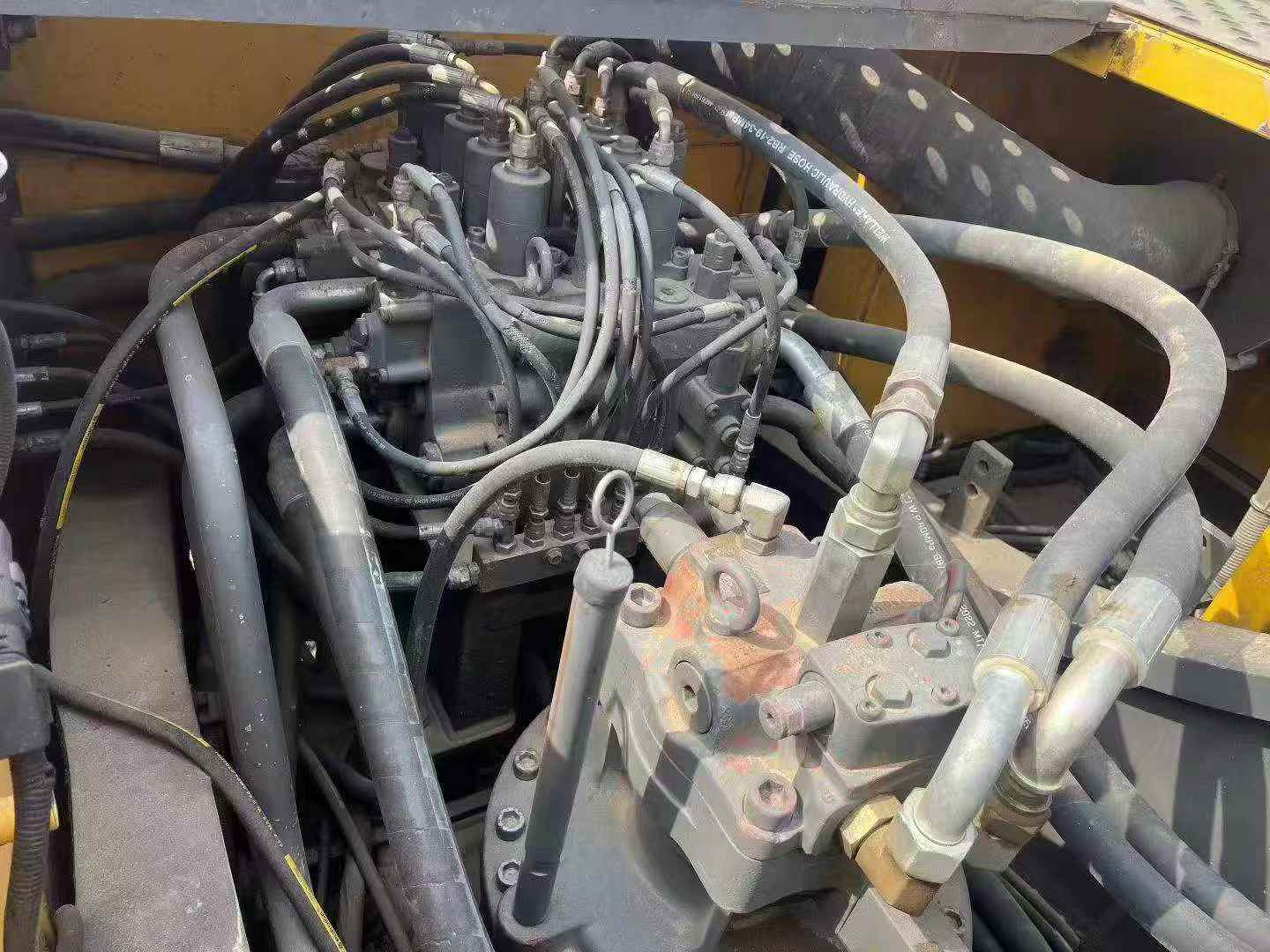

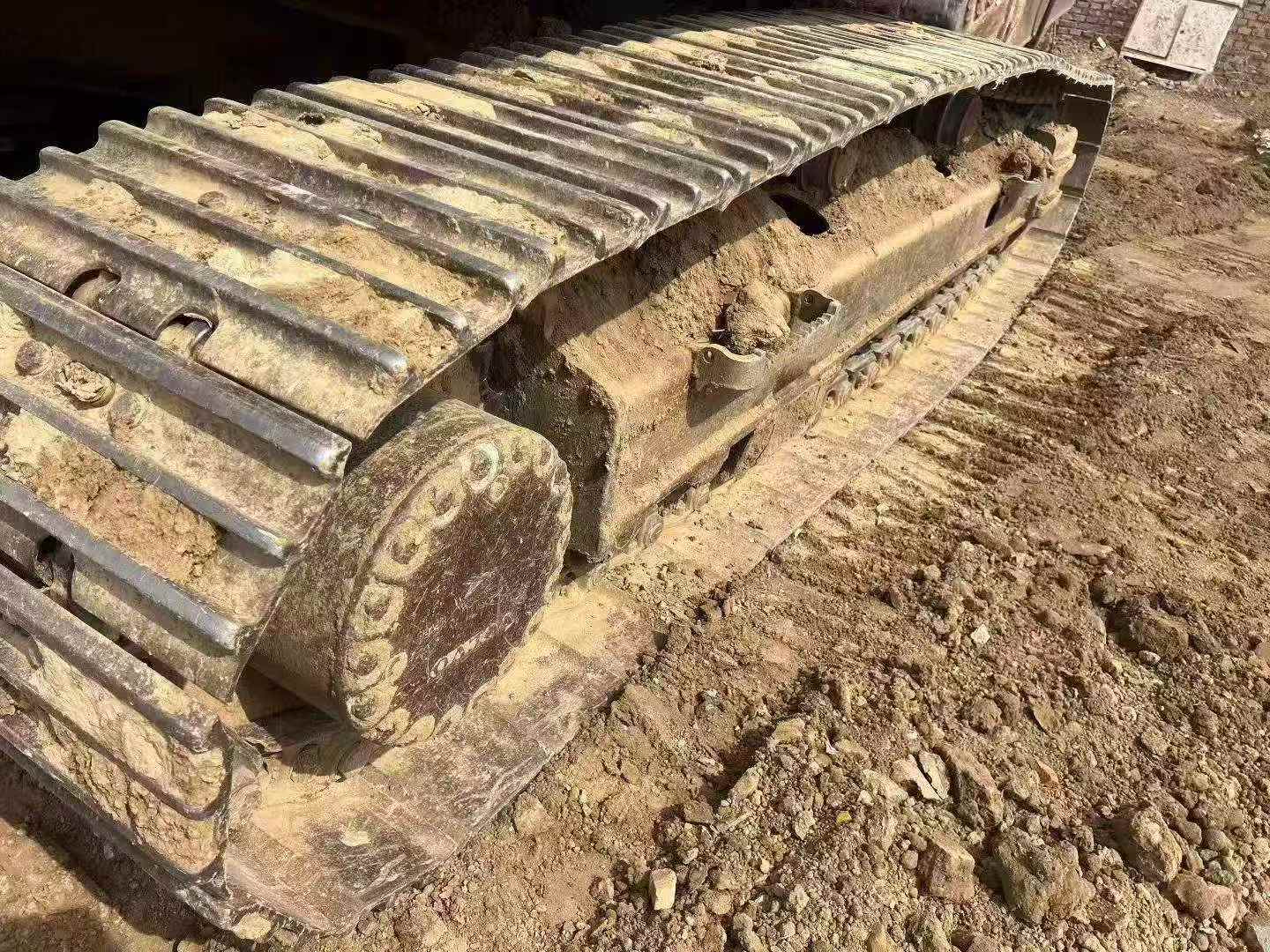

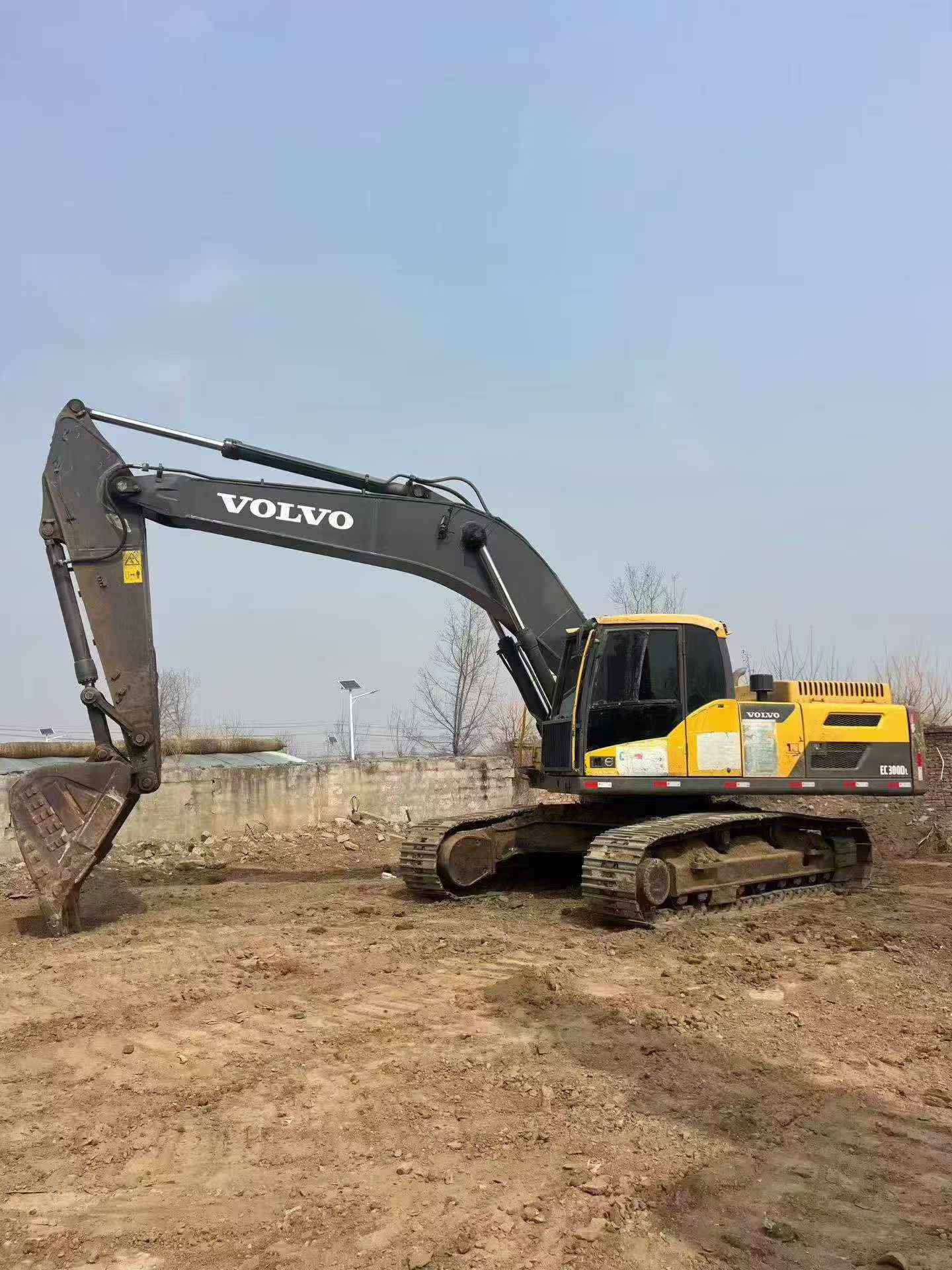

Discover the reliability and performance of the 2020 Volvo EC300DL, a robust excavator available for purchase in Hebei, China. This machine boasts an immaculate undercarriage, ensuring stability and durability on any job site. The key components, including the engine, hydraulic system, and transmission, are in excellent condition, with no leaks, promising optimal functionality and minimal maintenance. The owner, who is transitioning to a different industry, is motivated to sell, making this a prime opportunity to acquire a high-quality excavator at a competitive price. For more details or to arrange a viewing, please contact us directly.
- Year: 2020
- Brand: Volvo
- Model: EC300DL
- Location: Hebei, China
| Specifications | Value |
|---|---|
| No. | 1056859 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30040 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 6200 |
| Rod length (mm) | 2550 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D7E |
| Rated power (kw/rpm) | 170/1800 |
| Cylinder diameter × stroke (mm) | 108X130 |
| Maximum torque (N.m) | 1080/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.1 |
| Rotation speed (rpm) | 10.7 |
| Bucket digging force (kN) | 186 |
| Rod digging force (kN) | 161 |
| Maximum tractive force (kN) | 247 |
| Travel speed (km/h) | 3.4/5.4 |
| Turning torque (Nm) | 110.9 |
| Maximum flow of main pump (l/min) | 2 x 263 |
| Traveling Hydraulic Circuit (Mpa) | 36.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Working Hydraulic Circuit (Mpa) | 33.3/36.3 |
| Pilot pump flow (L/min) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1×140 x 1140 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1×150 x 1745 |
| Boom cylinders - Number × diameter × stroke (mm) | 2×140 x 1480 |
| Fuel Tank (L) | 470 |
| Hydraulic Tank (L) | 195 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 10640 |
| Total transport width (mm) | 3190 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1135 |
| Minimum ground clearance (mm) | 480 |
| Onboard width (mm) | 2890 |
| Total track length (mm) | 4870 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4015 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 50 |
| Maximum digging radius (mm) | 10190 |
| Maximum digging depth (mm) | 6850 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6670 |
| Maximum vertical digging depth (mm) | 5730 |
| Maximum excavation radius of stop surface (mm) | 9980 |
