Product Description

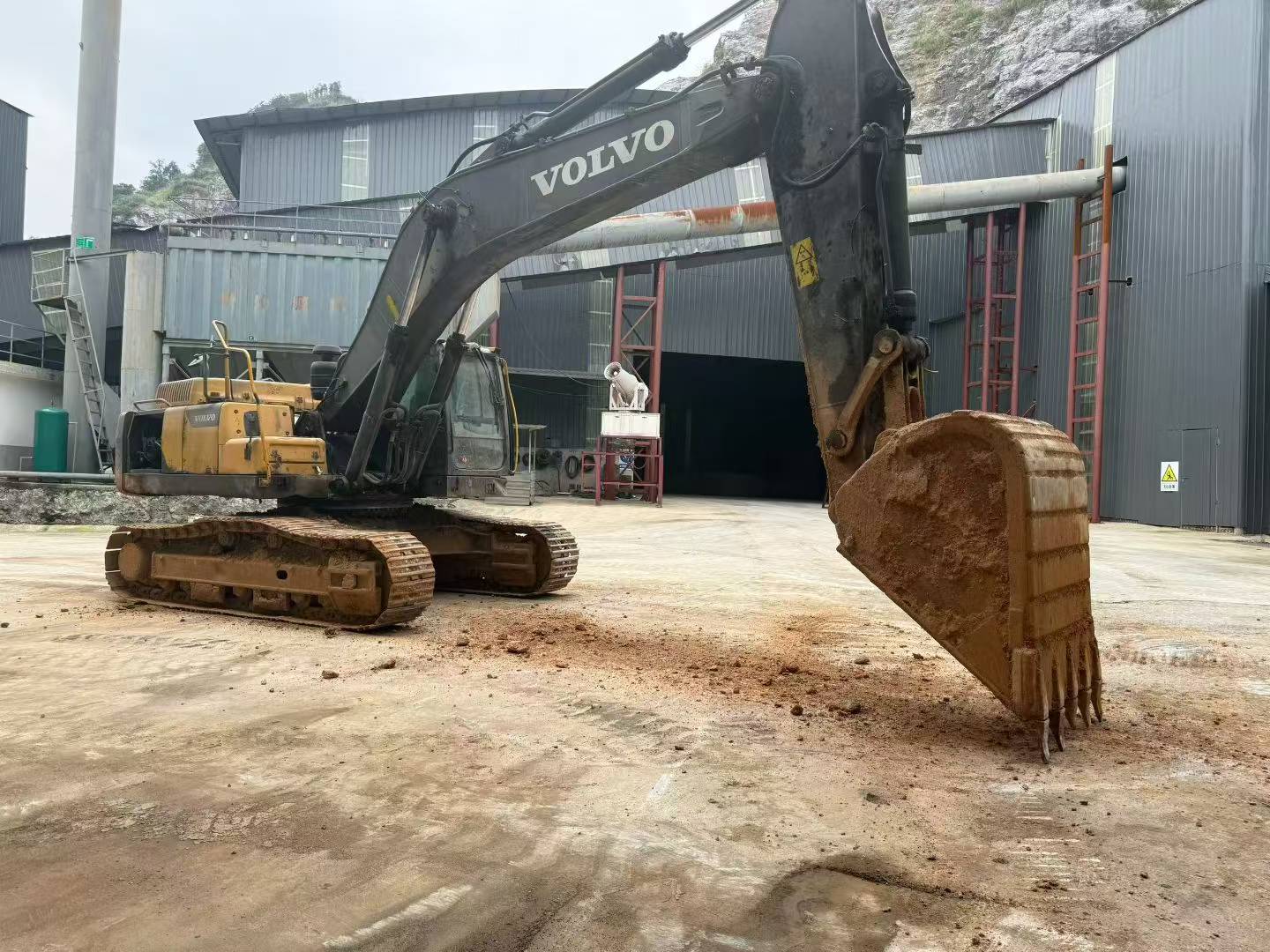

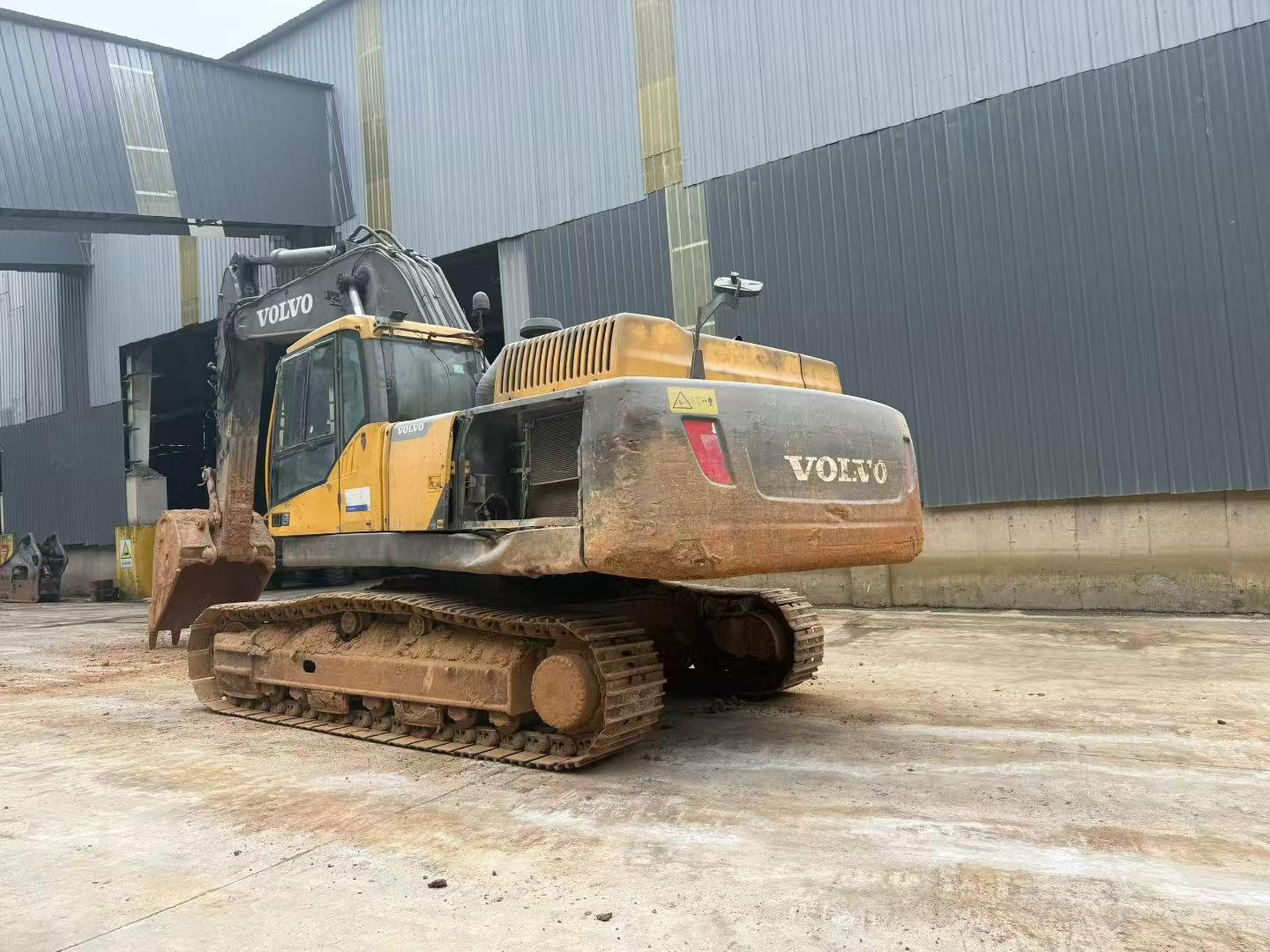

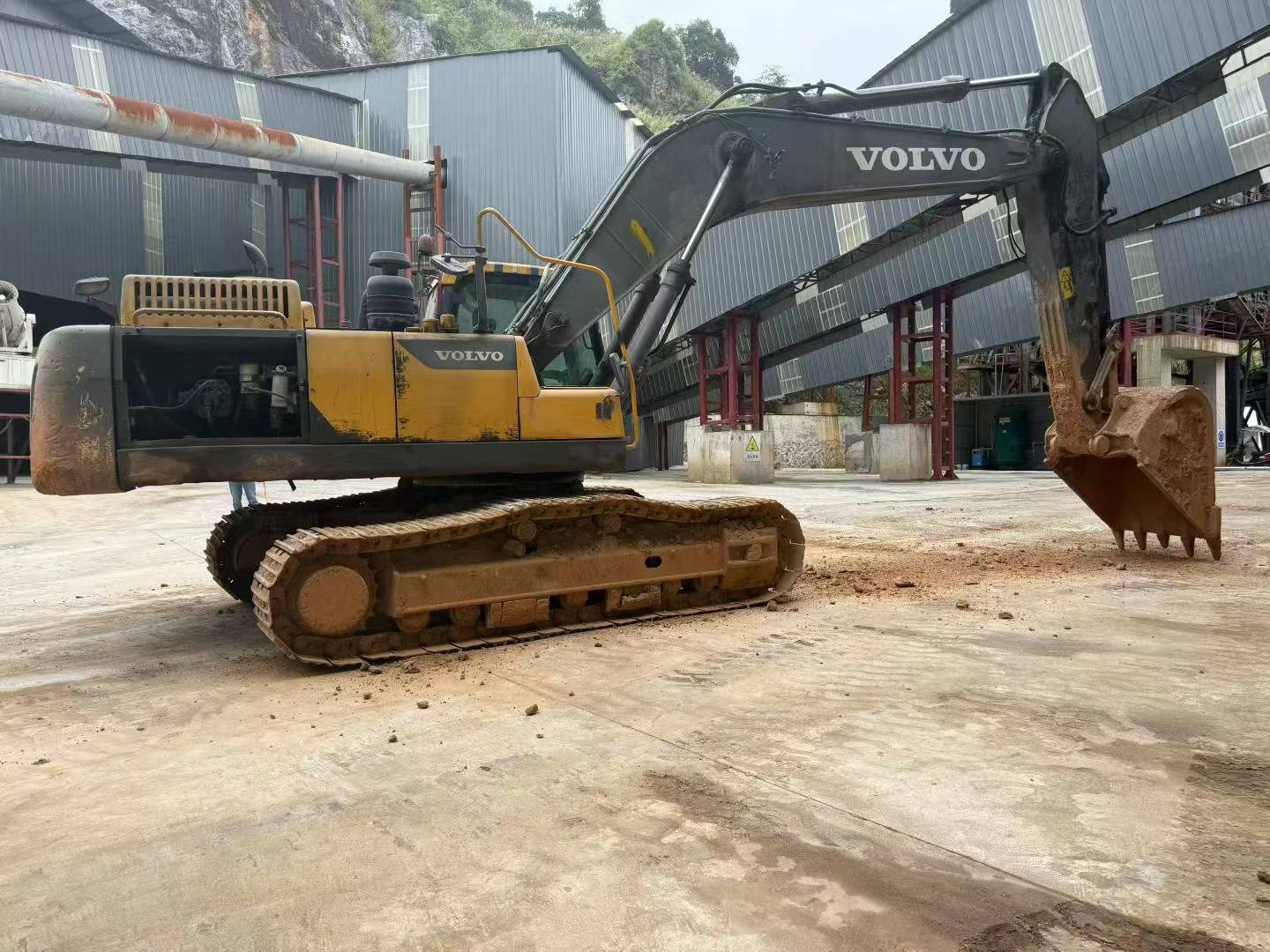

This 2016 Volvo EC350D hydraulic excavator offers reliable performance for demanding earthmoving applications. Located in Jiangxi, China, this machine comes with complete documentation and is available for immediate delivery. The EC350D is known for its robust build quality and operational efficiency in the 35-ton class.
Key features include:

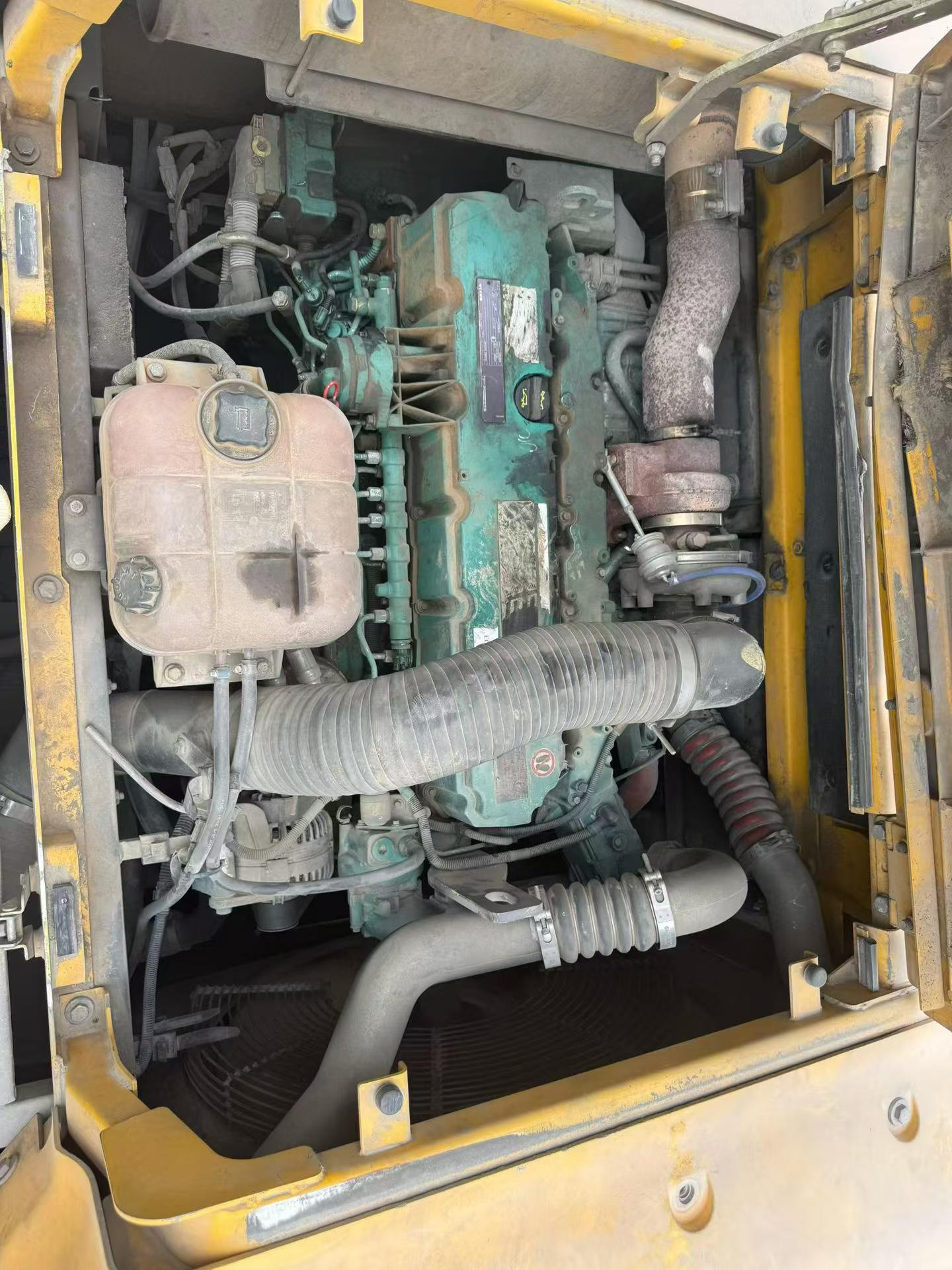

- Proven Volvo D8 engine technology

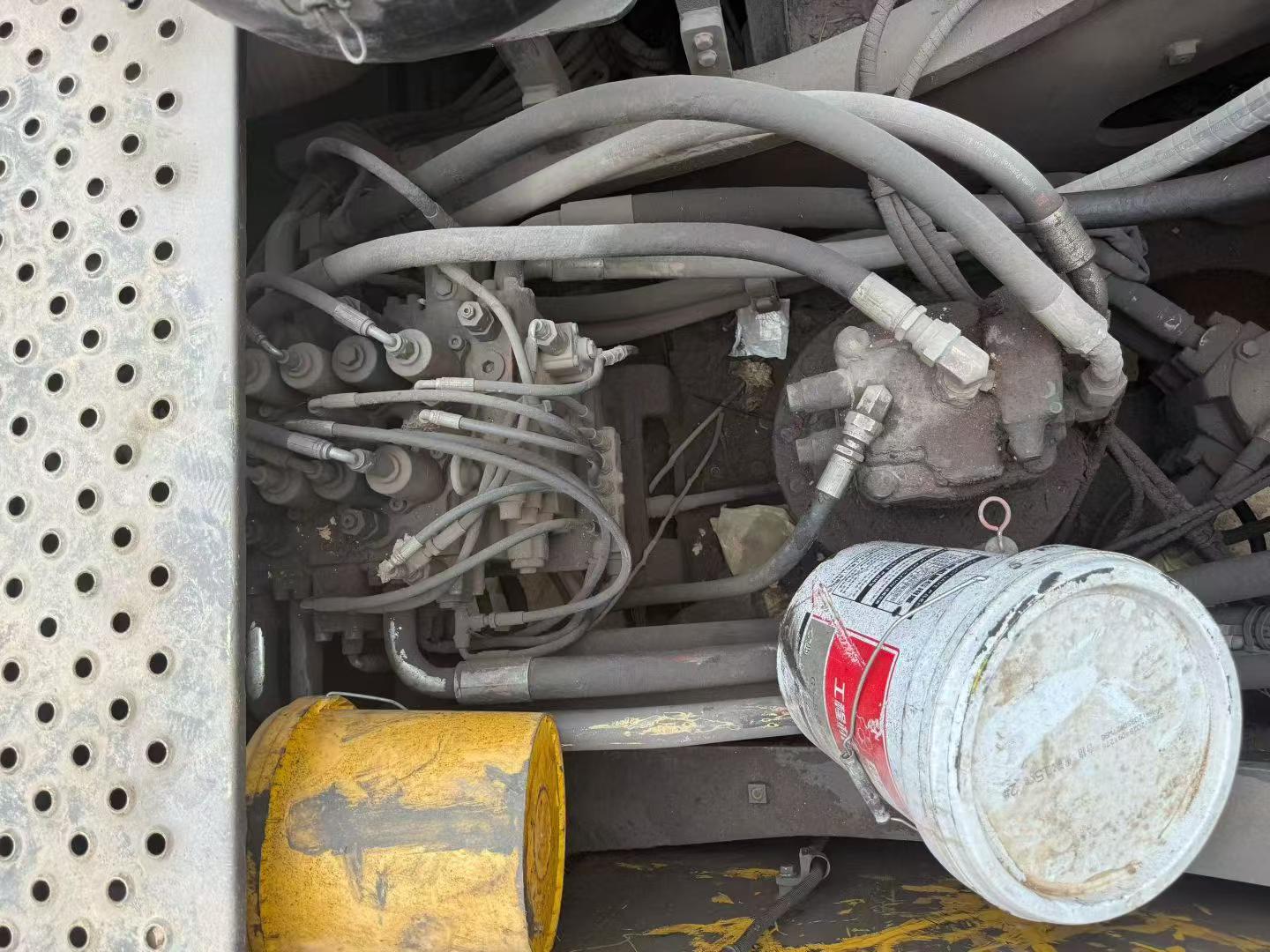

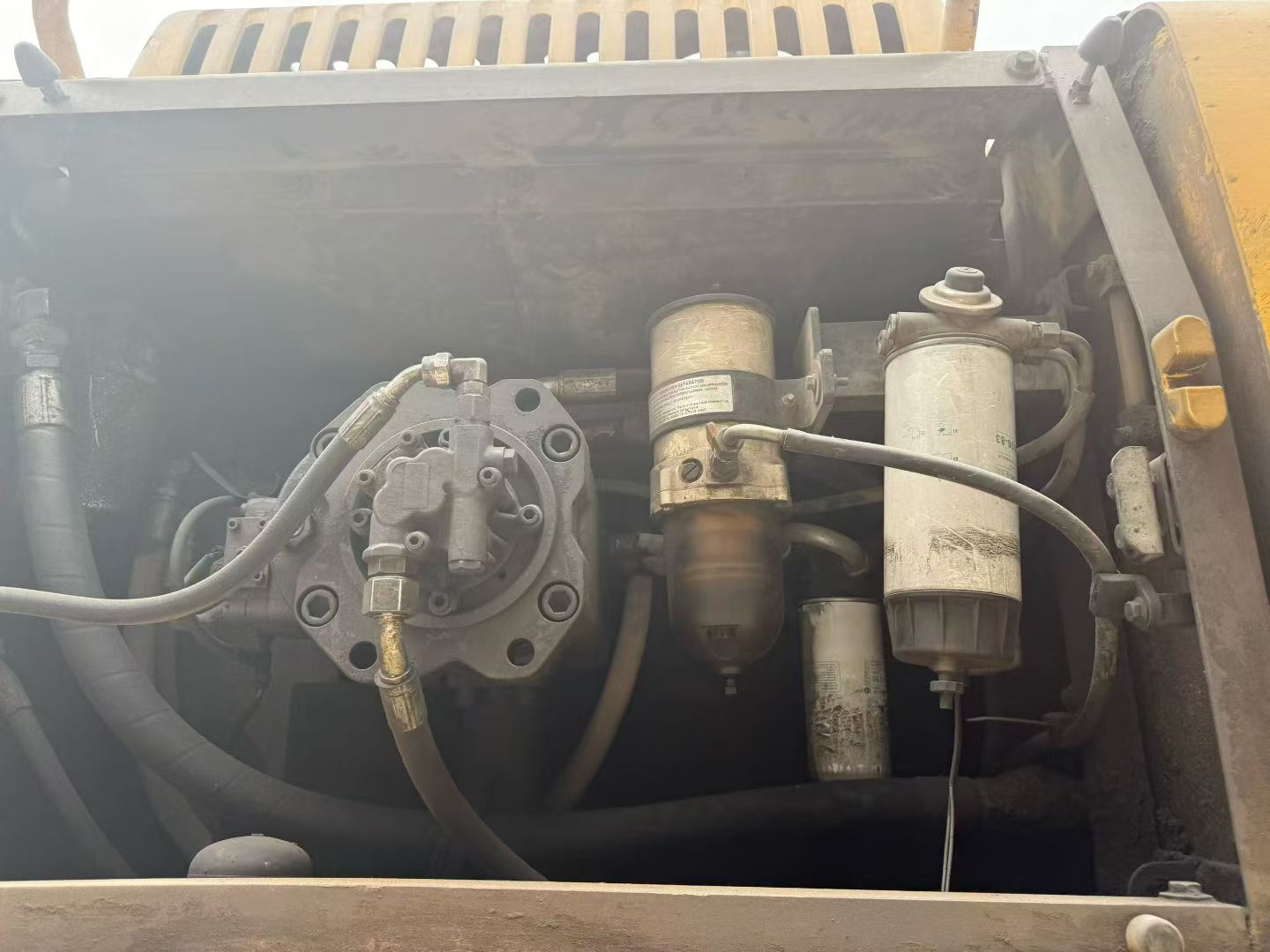

- Advanced hydraulic system for precise control
- Reinforced boom and arm structure

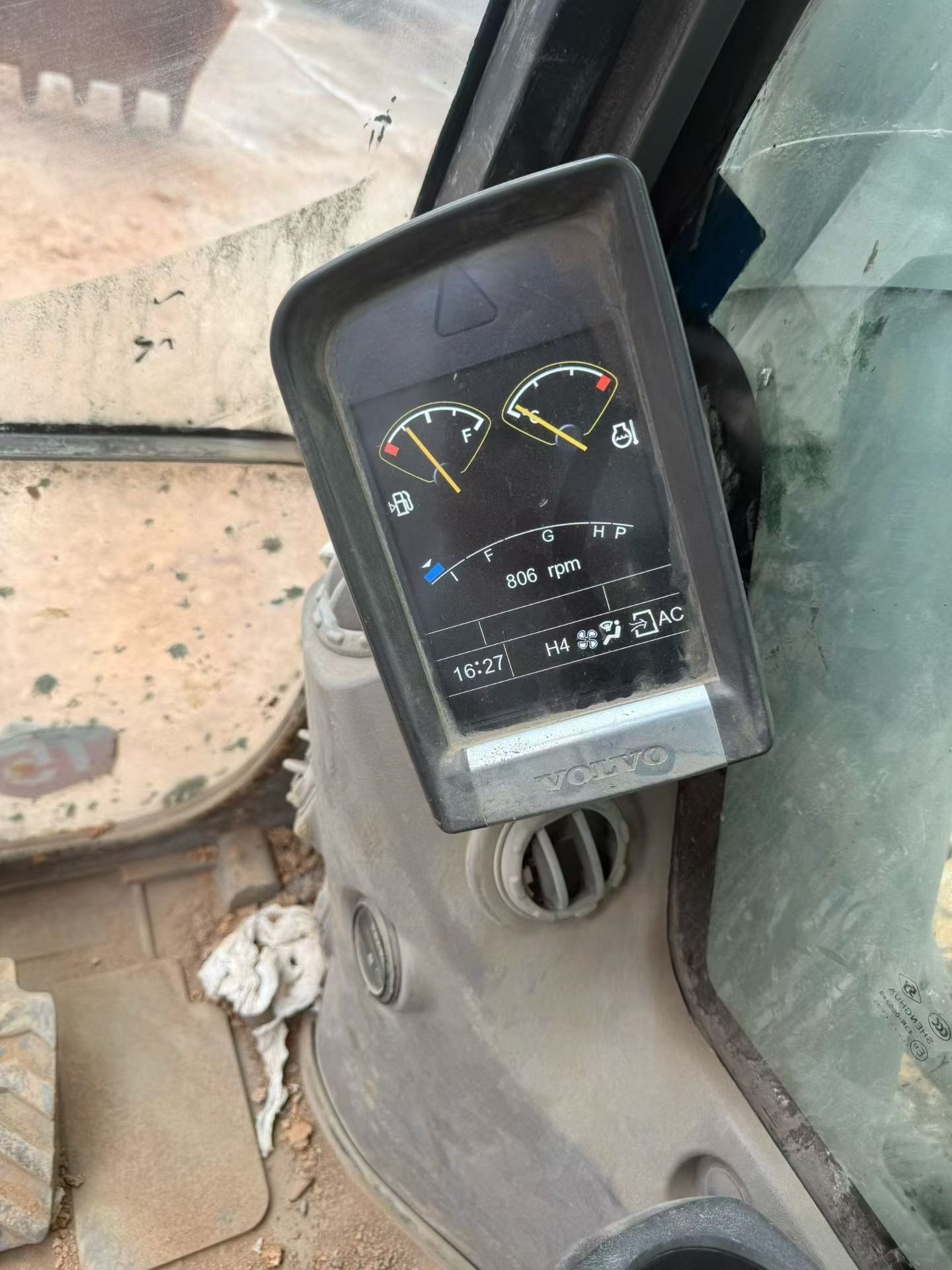

- Operator-focused cab design
- Full service records available
This unit is ready for inspection and suitable for construction, mining, and infrastructure projects. Contact us for detailed specifications, current operating hours, and pricing information.
| Specifications | Value |
|---|---|
| No. | 1082230 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 34300-38700 |
| Bucket capacity (m³) | 1.0-2.53 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D8K |
| Rated power (kw/rpm) | 197/1800 |
| Cylinder diameter × stroke (mm) | 110 x 138 |
| Maximum torque (N.m) | 1340 |
| Displacement (L) | 7.8 |
| Rotation speed (rpm) | 10.3 |
| Climbing ability (%) | 35 ° |
| Maximum tractive force (kN) | 261 |
| Travel speed (km/h) | 3.3/5.1 |
| Turning torque (Nm) | 126 |
| Maximum flow of main pump (l/min) | 2 x 288 |
| Traveling Hydraulic Circuit (Mpa) | 33.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Working Hydraulic Circuit (Mpa) | 33.3/36.3 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 170 x 1700 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 150 x 1530 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 215 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 465 |
| Total transport length (mm) | 11190 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3230 |
| Full cab height (mm) | 3030 |
| Counterweight ground clearance (mm) | 1180 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 4120 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 11110 |
| Maximum digging depth (mm) | 7480 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 5890 |
| Maximum excavation radius of stop surface (mm) | 10900 |
