Product Description

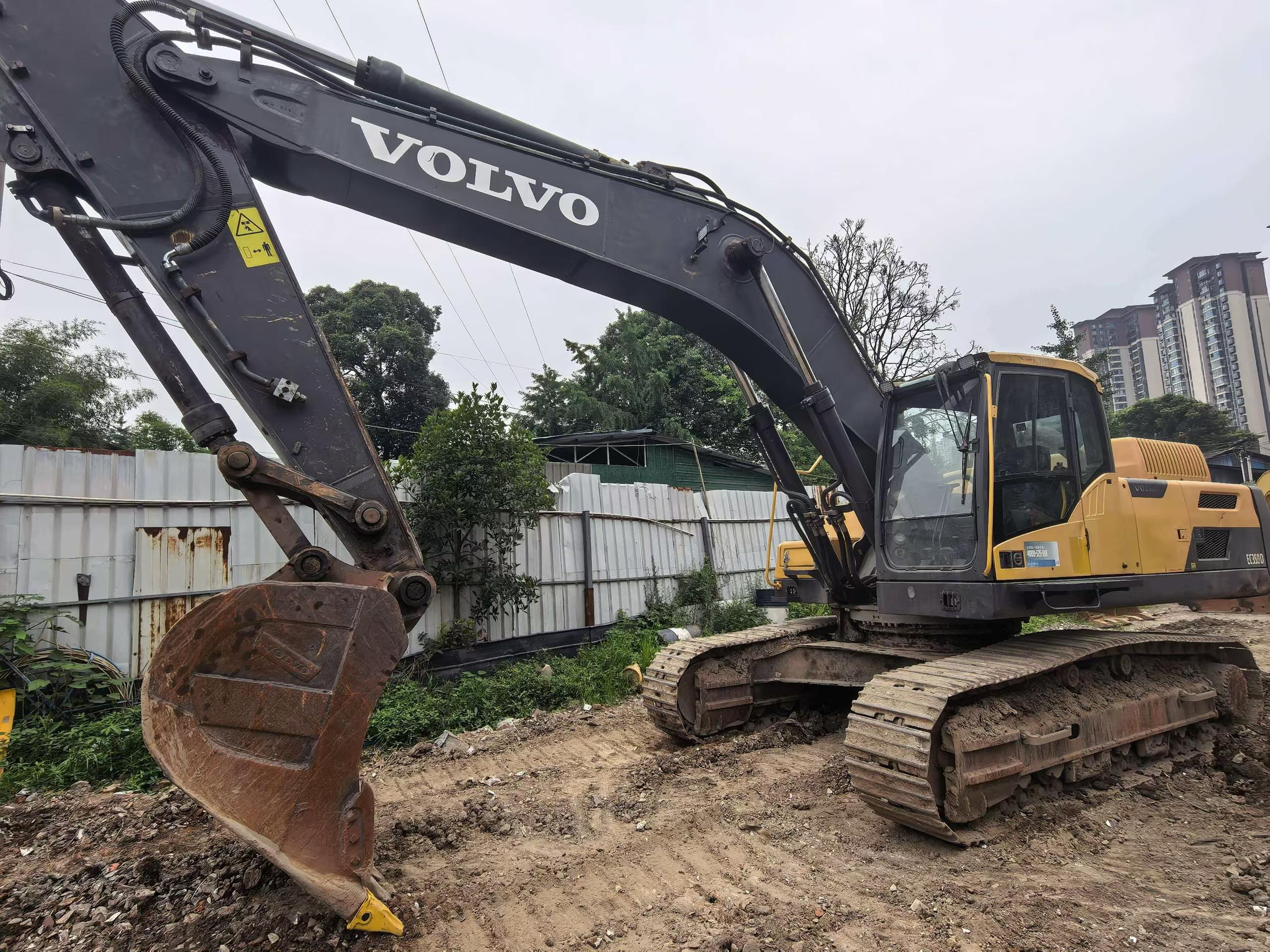

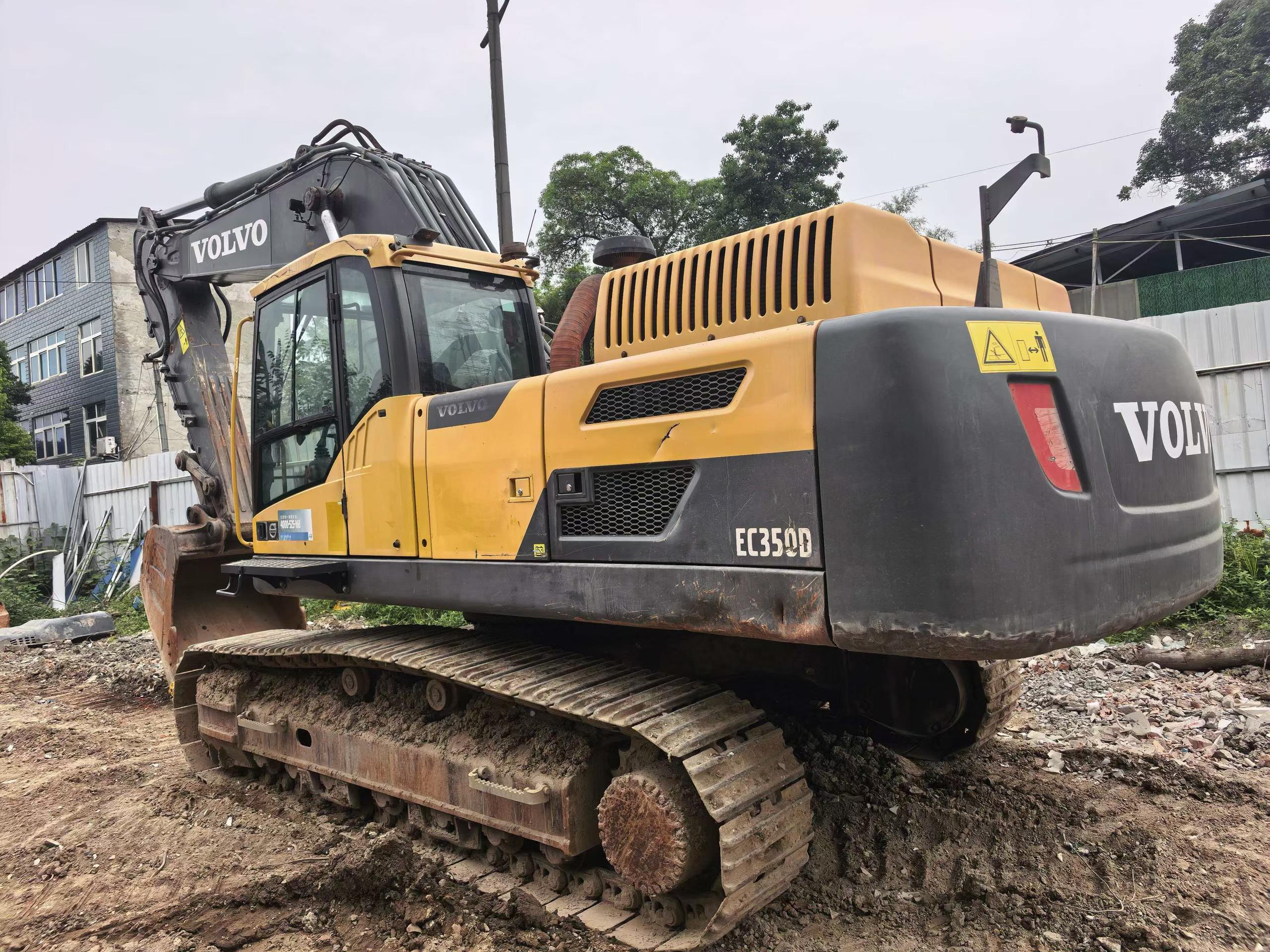

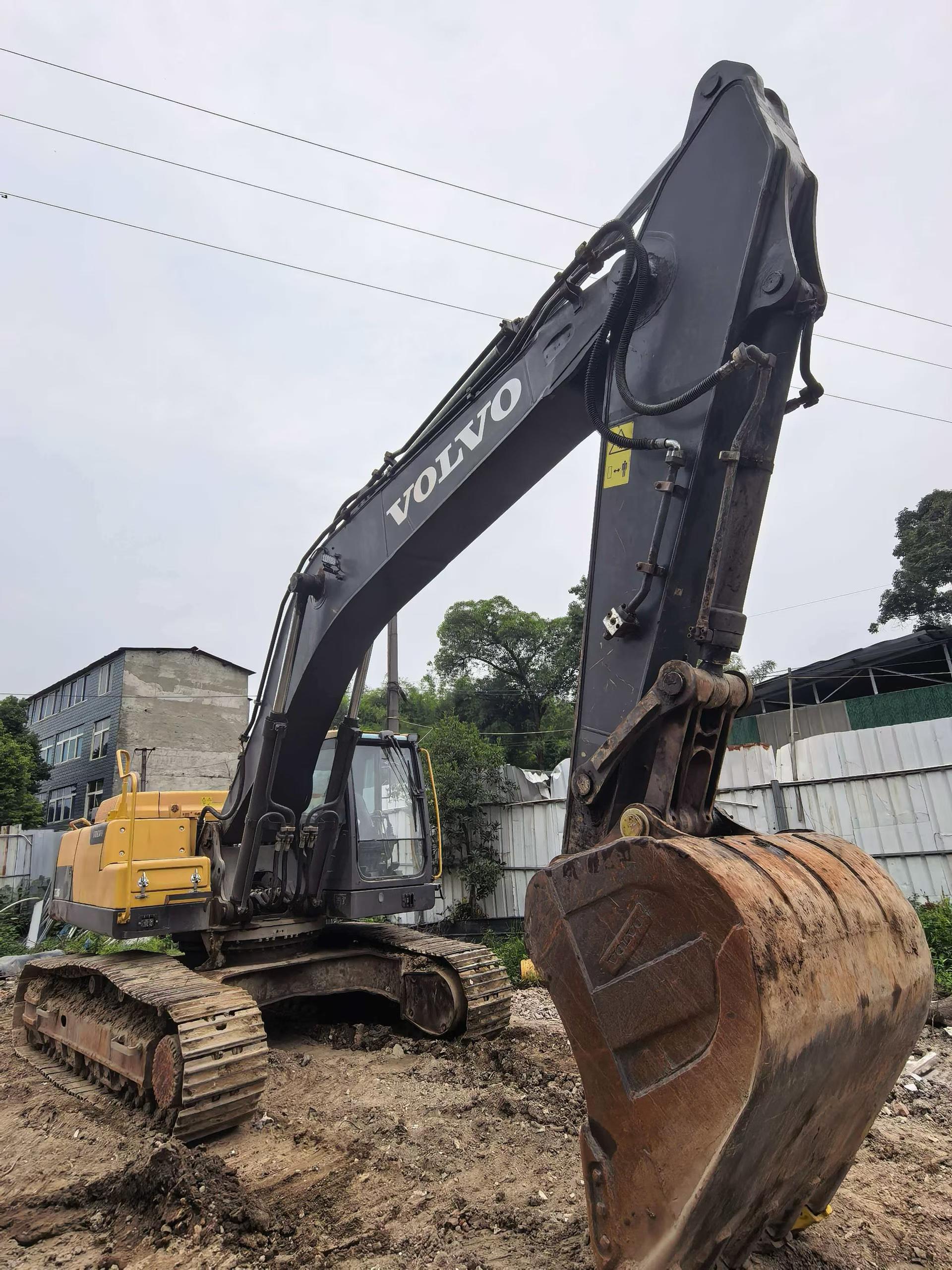

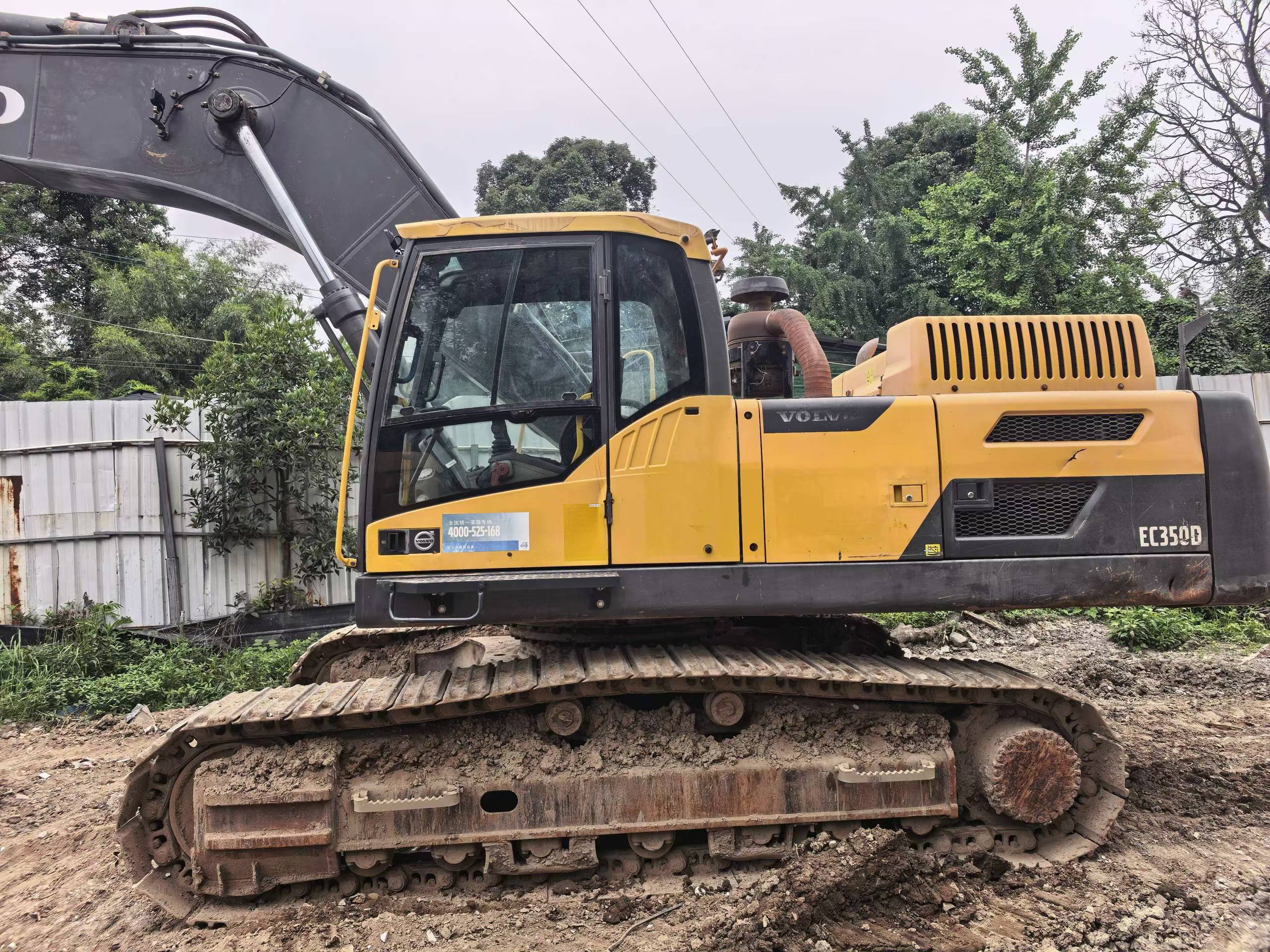

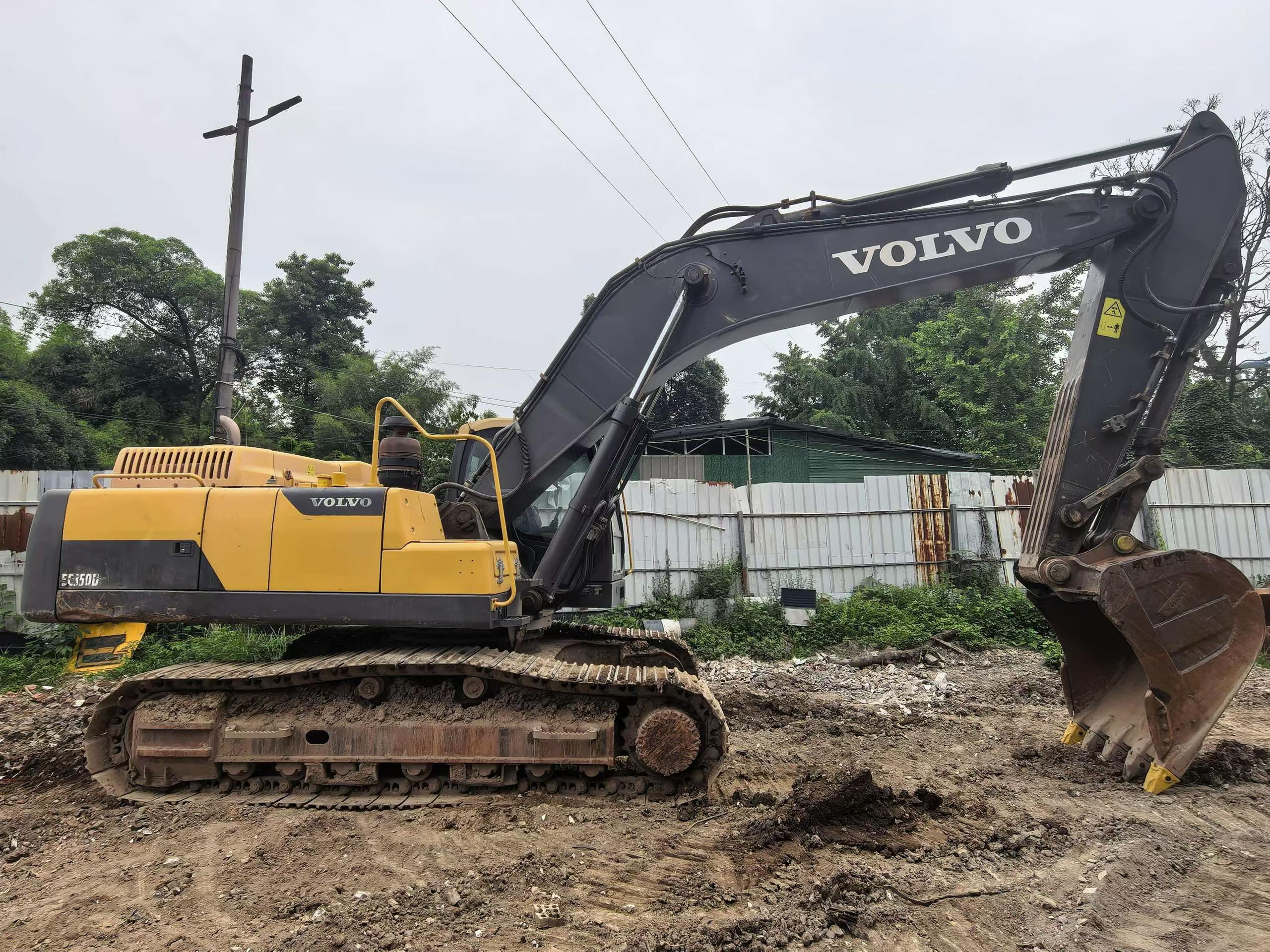

This 2020 Volvo EC350D excavator offers proven performance with approximately 7,000 operating hours. Currently located in Sichuan, China, this machine features its original undercarriage, demonstrating careful maintenance and operational integrity throughout its service life.
The EC350D is recognized in the industry for its robust hydraulic system, fuel efficiency, and operator comfort. This unit maintains excellent working condition, making it suitable for earthmoving, excavation, and heavy construction applications.
- Year of Manufacture: 2020
- Operating Hours: ~7,000

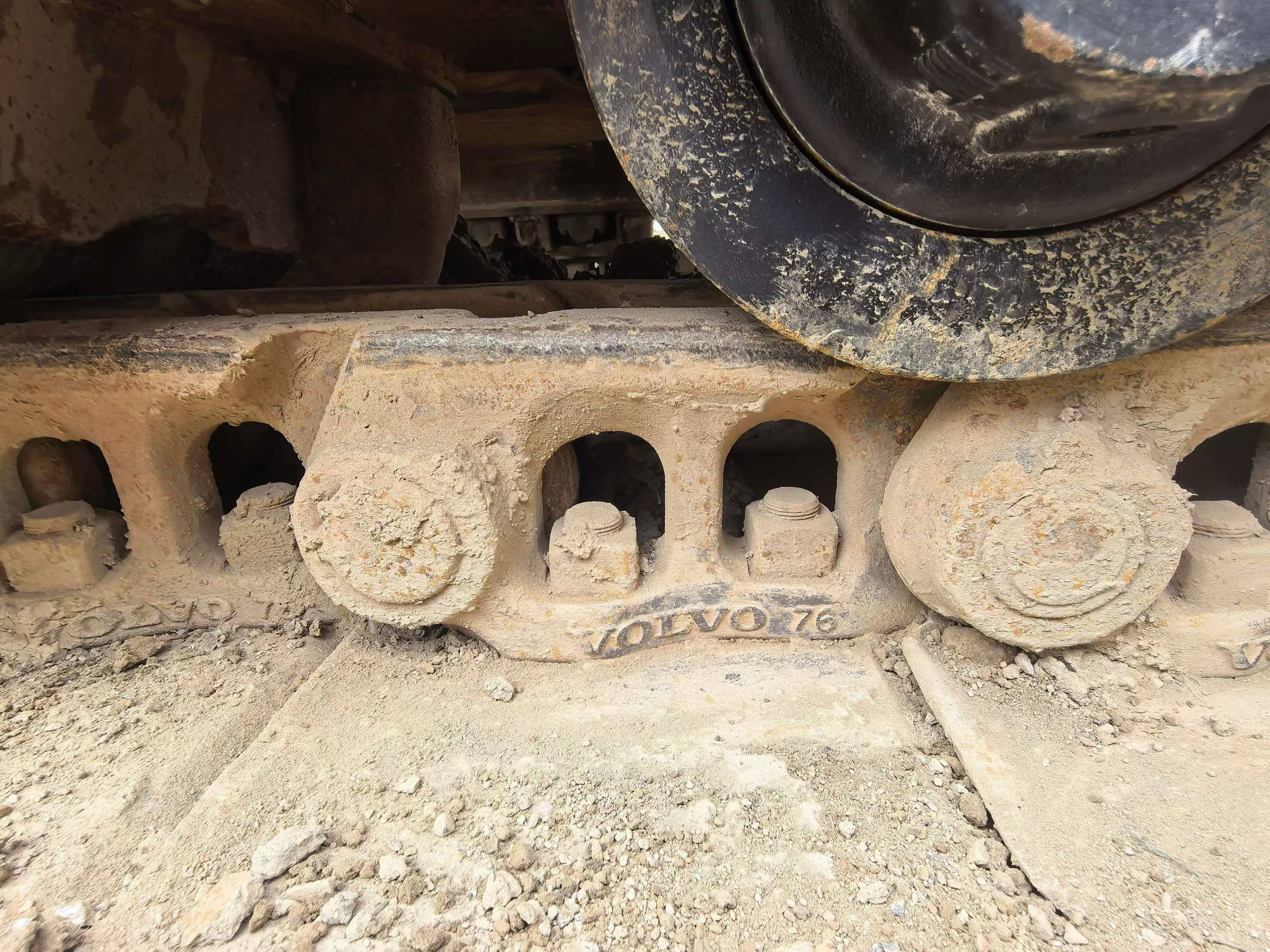

- Undercarriage: Original equipment
- Current Location: Sichuan, China
- Condition: Well-maintained
Ideal for contractors seeking a reliable mid-size excavator with documented service history. Available for inspection by appointment.
| Specifications | Value |
|---|---|
| No. | 1075453 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 34300-38700 |
| Bucket capacity (m³) | 1.0-2.53 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

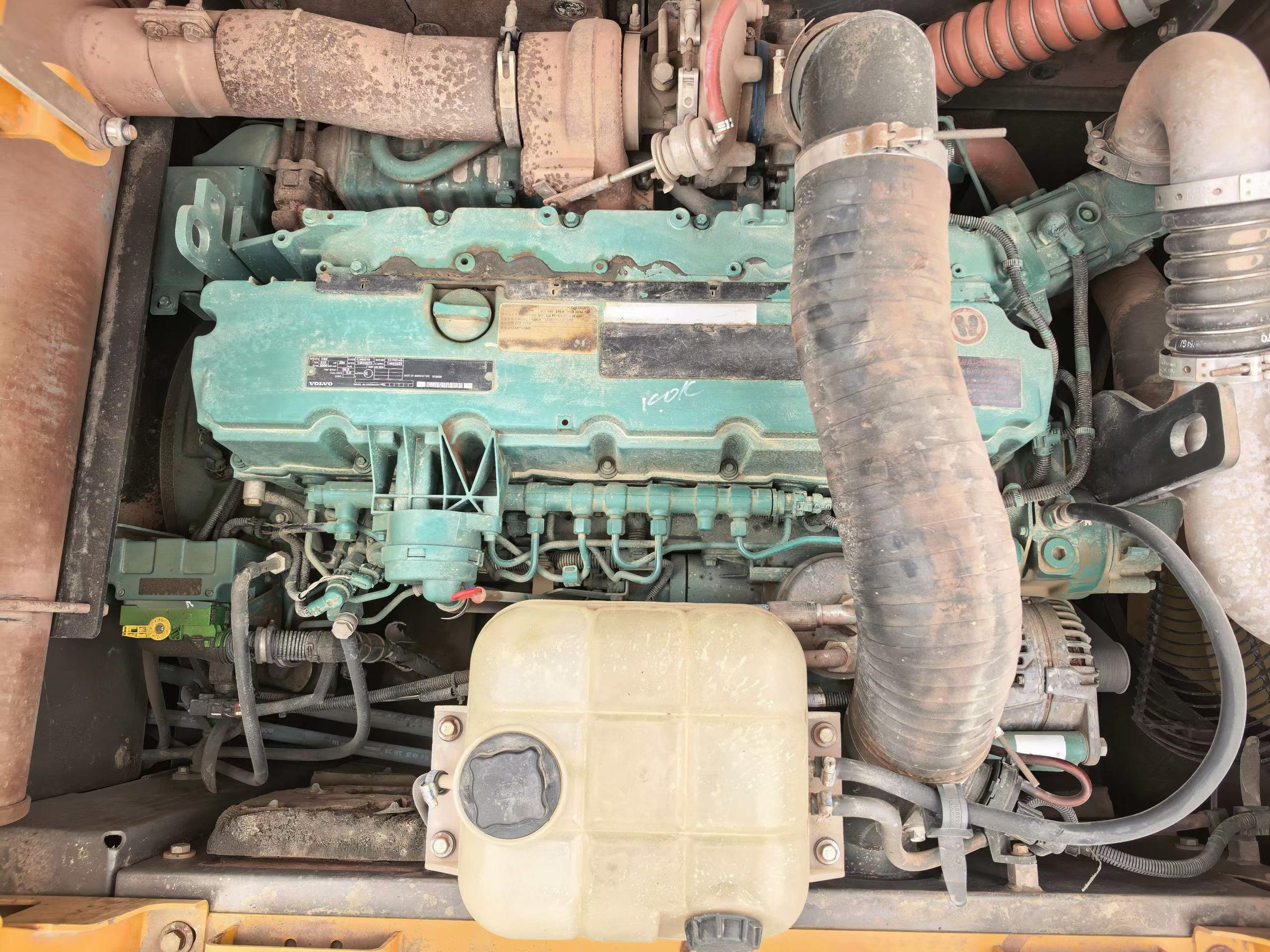

| Engine type | Volvo D8K |
| Rated power (kw/rpm) | 197/1800 |
| Cylinder diameter × stroke (mm) | 110 x 138 |
| Maximum torque (N.m) | 1340 |
| Displacement (L) | 7.8 |
| Rotation speed (rpm) | 10.3 |
| Climbing ability (%) | 35 ° |
| Maximum tractive force (kN) | 261 |
| Travel speed (km/h) | 3.3/5.1 |
| Turning torque (Nm) | 126 |

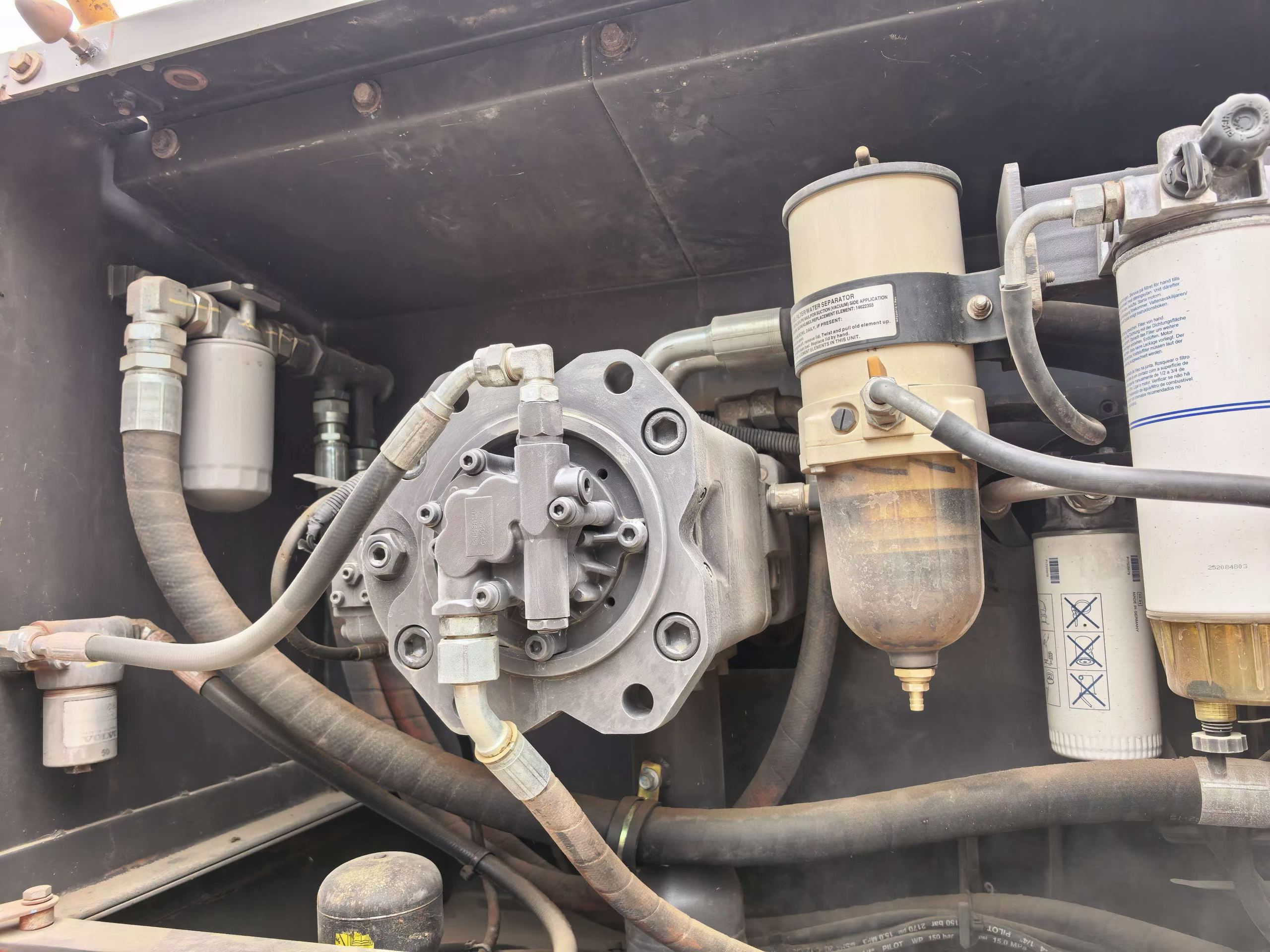

| Maximum flow of main pump (l/min) | 2 x 288 |
| Traveling Hydraulic Circuit (Mpa) | 33.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Working Hydraulic Circuit (Mpa) | 33.3/36.3 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 170 x 1700 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 150 x 1530 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 215 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 465 |
| Total transport length (mm) | 11190 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3230 |
| Full cab height (mm) | 3030 |
| Counterweight ground clearance (mm) | 1180 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 4120 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 11110 |
| Maximum digging depth (mm) | 7480 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 5890 |
| Maximum excavation radius of stop surface (mm) | 10900 |
