2020 Volvo EC350D

1/9
Buy Volvo EC350D Used Excavator / 1

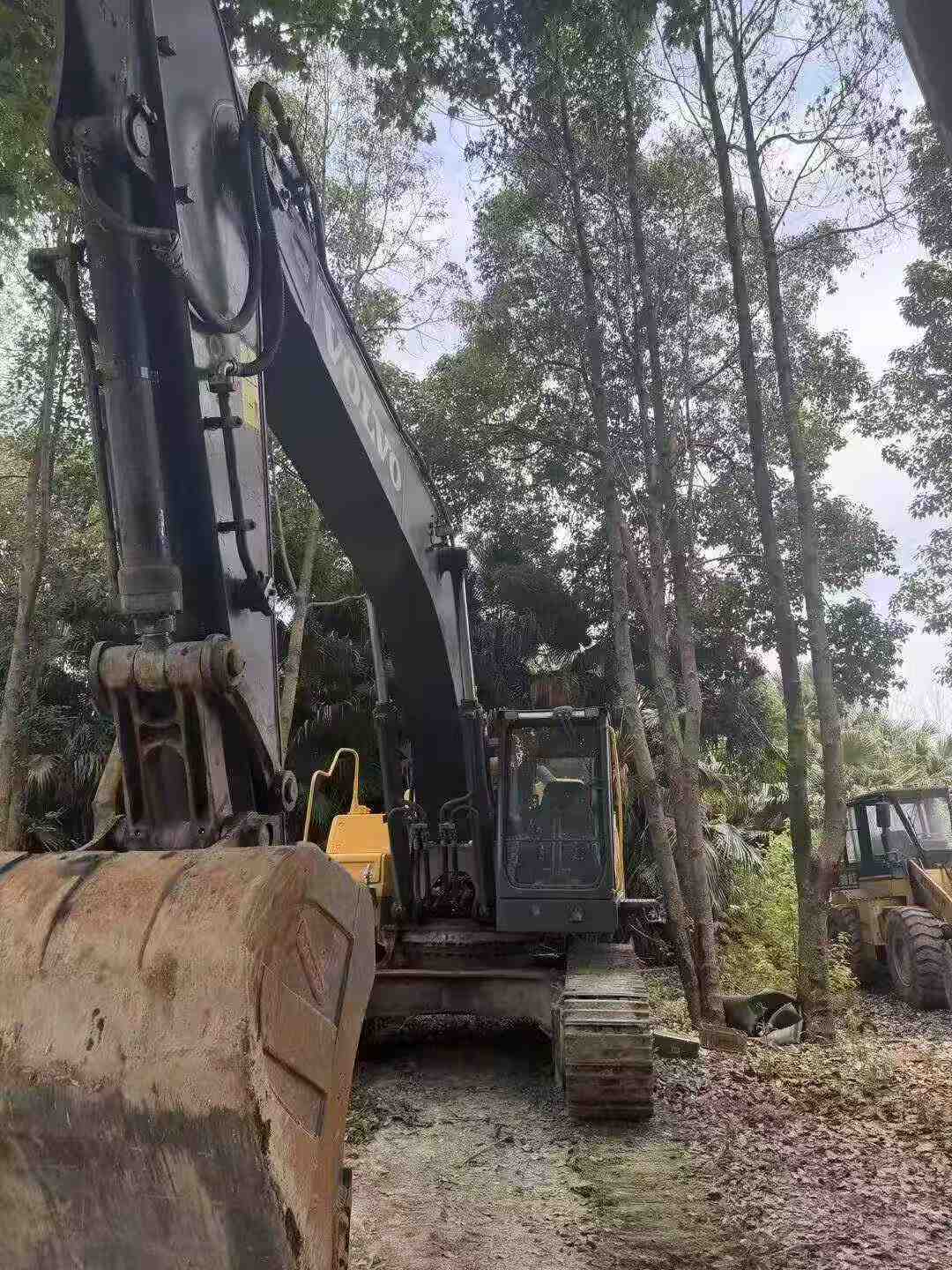

Buy Volvo EC350D Used Excavator / 2

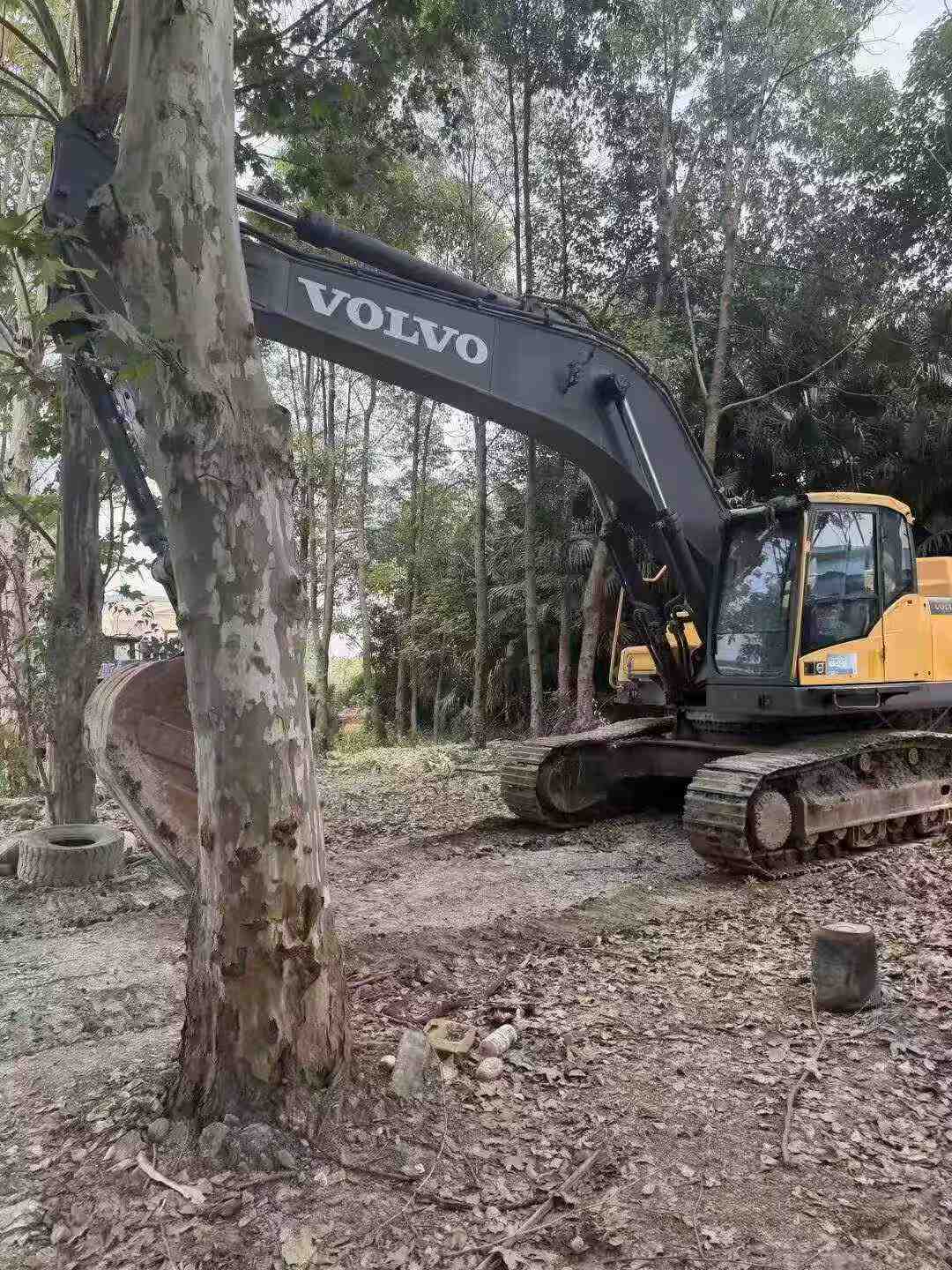

Buy Volvo EC350D Used Excavator / 3

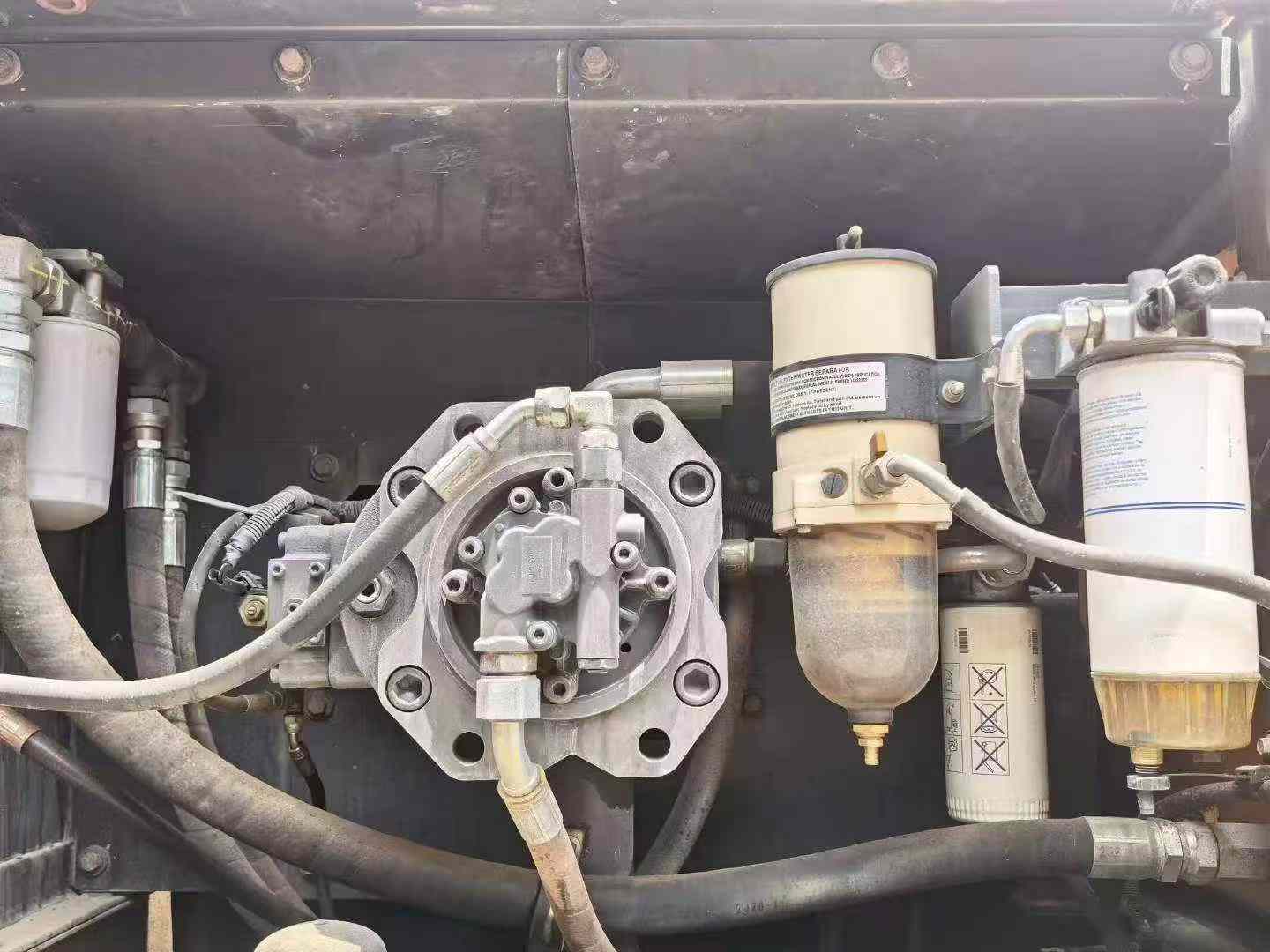

Buy Volvo EC350D Used Excavator / 4

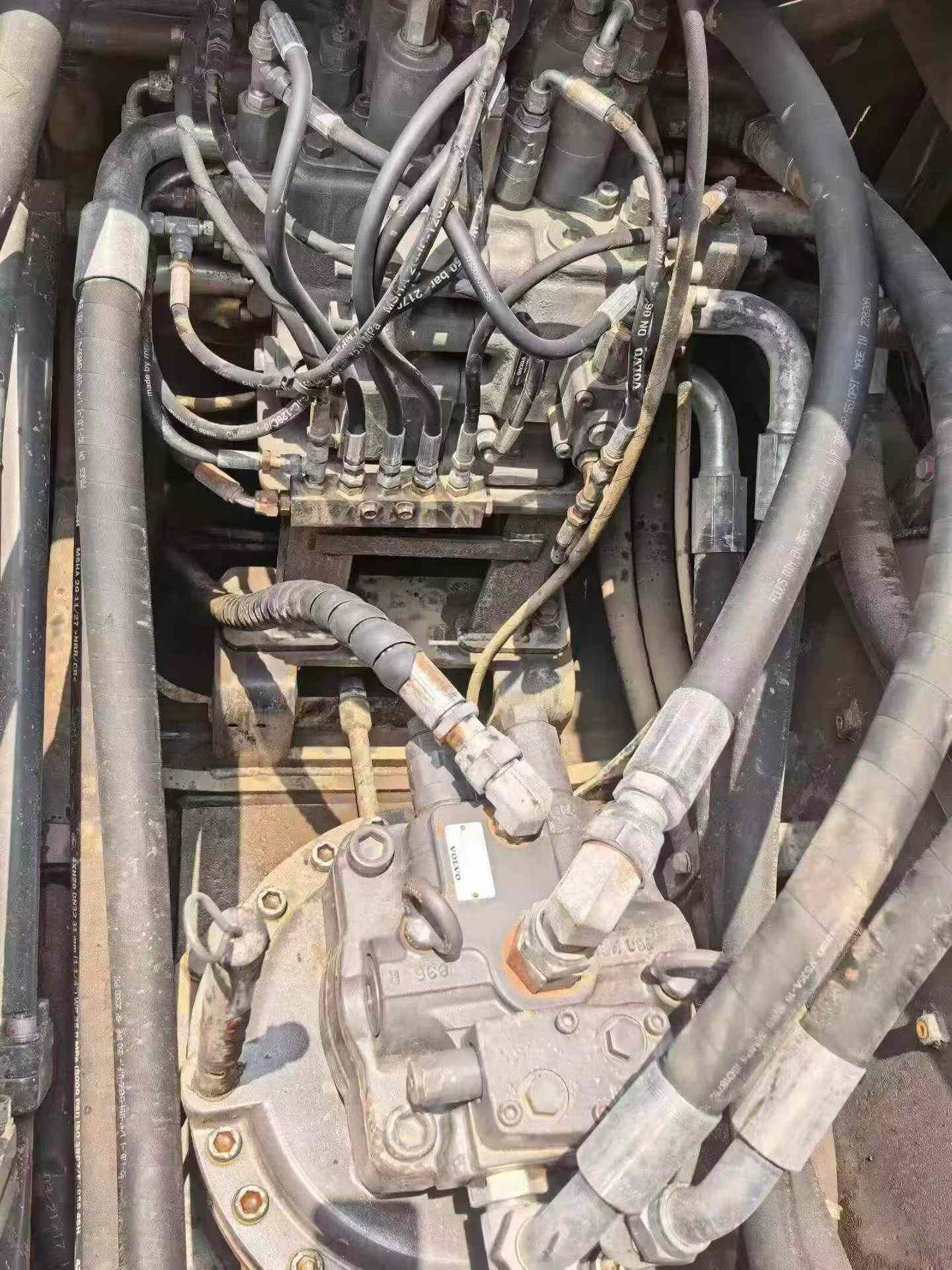

Buy Volvo EC350D Used Excavator / 5

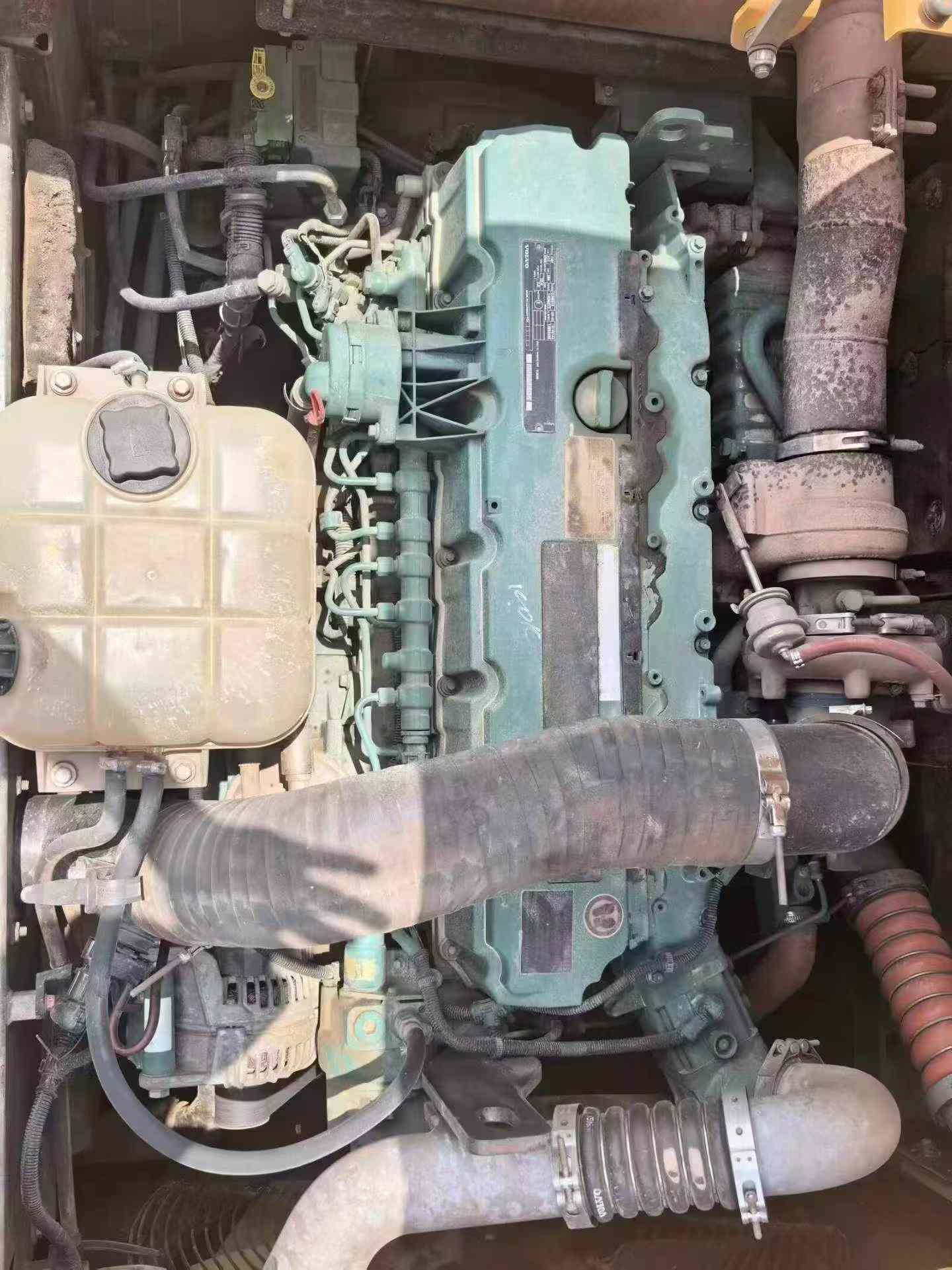

Buy Volvo EC350D Used Excavator / 6

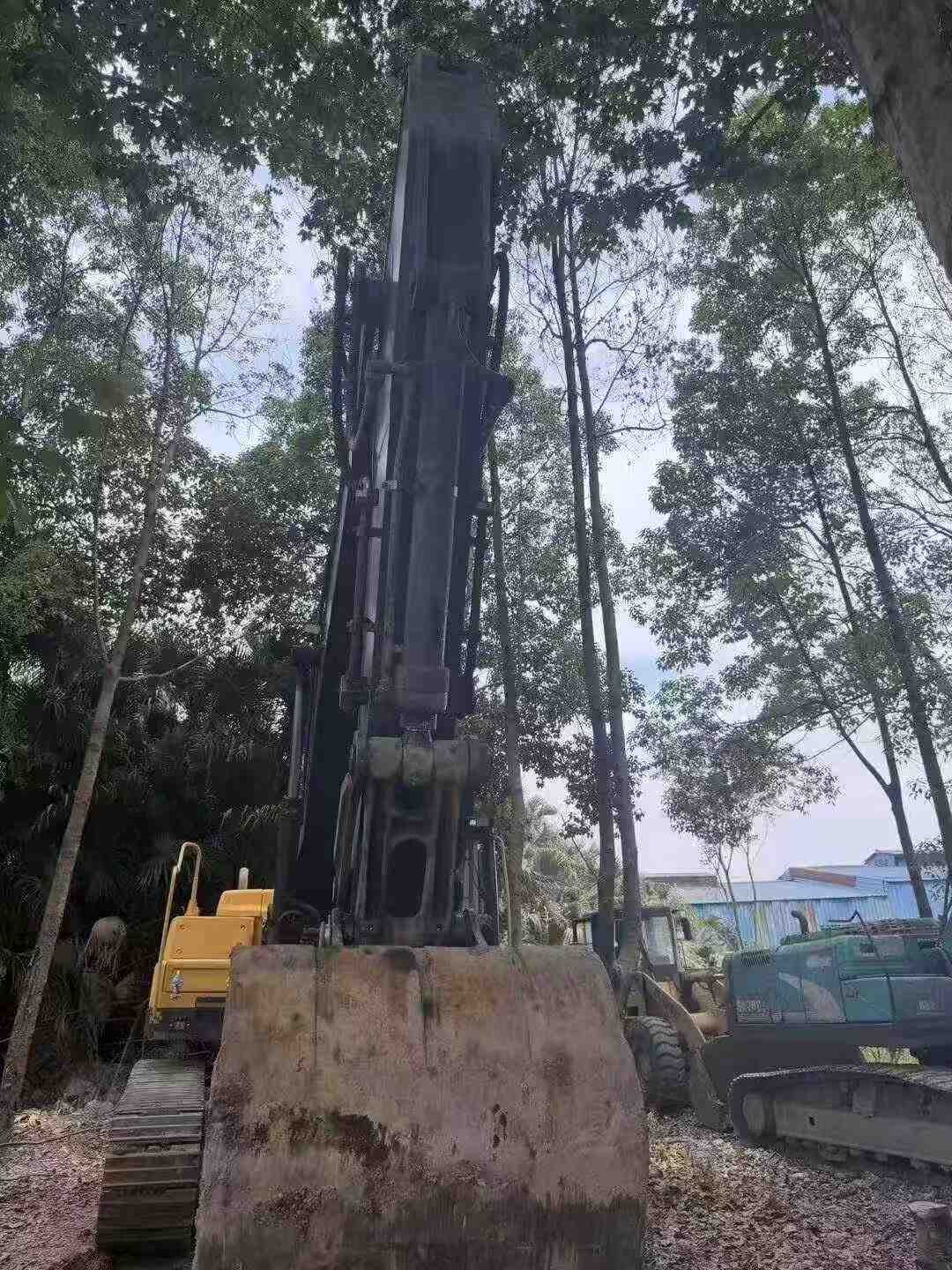

Buy Volvo EC350D Used Excavator / 7

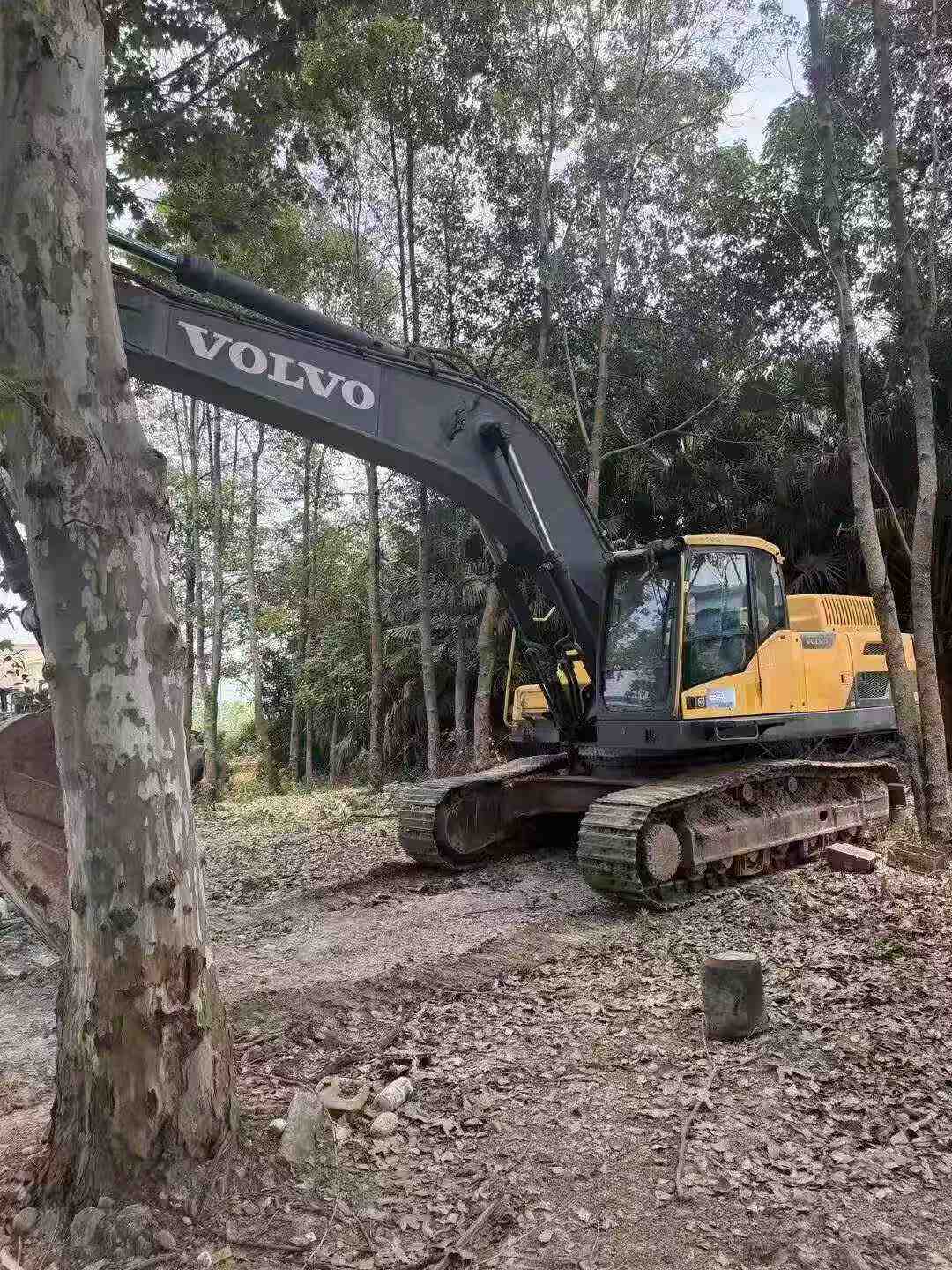

Buy Volvo EC350D Used Excavator / 8

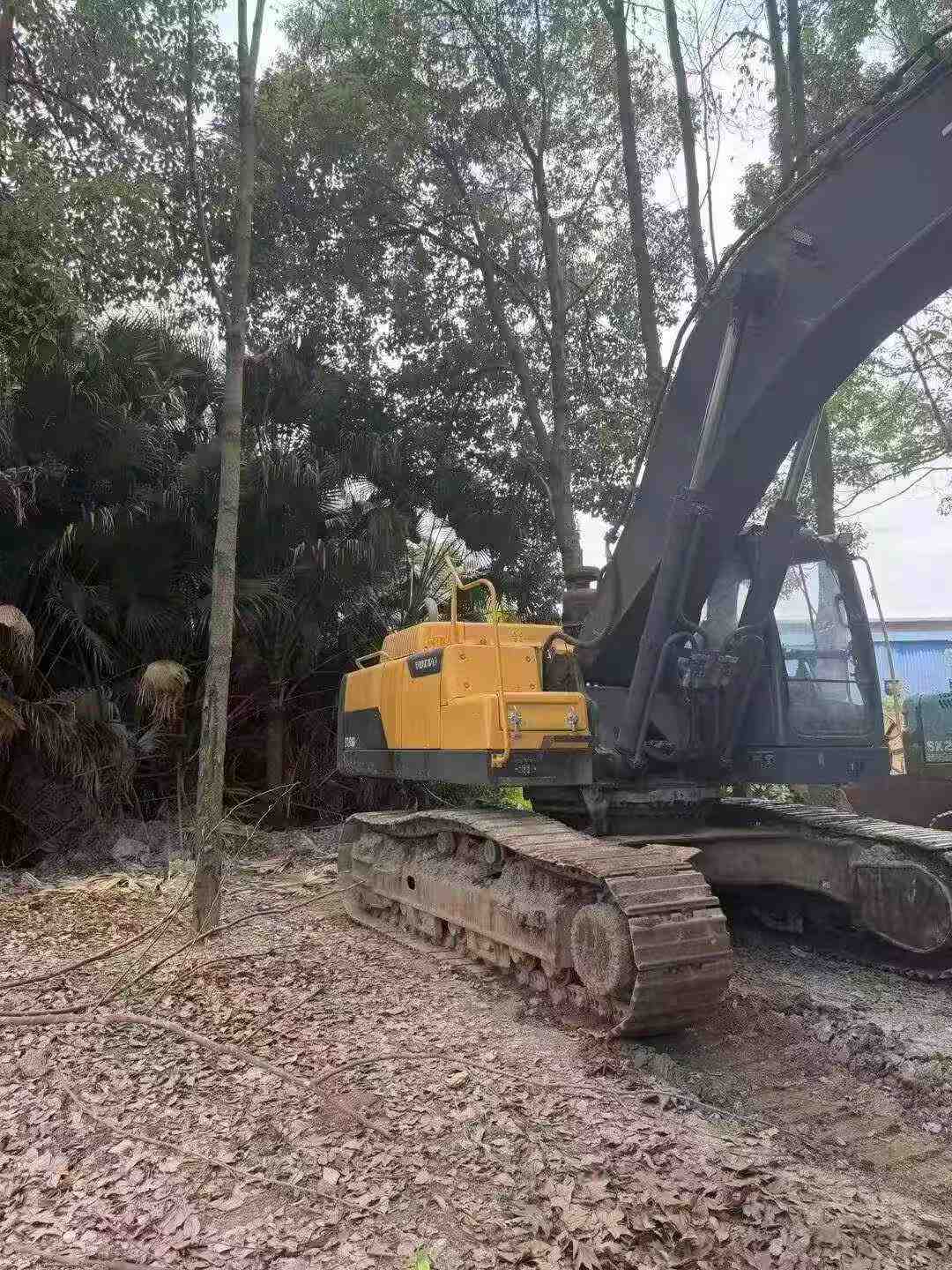

Buy Volvo EC350D Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2020 Volvo EC350D, now available in Sichuan, China. This used heavy machine is a testament to Volvo's commitment to durability and performance, making it an ideal choice for demanding construction and excavation projects. With a direct price of 350,000 RMB, this excavator offers exceptional value, ensuring you get the best return on your investment.

  • Year: 2020
  • Brand: Volvo
  • Model: EC350D
  • Location: Sichuan, China
  • Price: 350,000 RMB
SpecificationsValue
No.1108424
Tonnage (tons)35
Working weight (kg)34300-38700
Bucket capacity (m³)1.0-2.53
Country of originKorea
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D8K
Rated power (kw/rpm)197/1800
Cylinder diameter × stroke (mm)110 x 138
Maximum torque (N.m)1340
Displacement (L)7.8
Rotation speed (rpm)10.3
Climbing ability (%)35 °
Maximum tractive force (kN)261
Travel speed (km/h)3.3/5.1
Turning torque (Nm)126
Maximum flow of main pump (l/min)2 x 288
Traveling Hydraulic Circuit (Mpa)33.3
Rotary Hydraulic Circuit (Mpa)27.9
Control Hydraulic Circuit (Mpa)3.9
Working Hydraulic Circuit (Mpa)33.3/36.3
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 170 x 1700
Boom cylinders - Number × diameter × stroke (mm)2 x 150 x 1530
Fuel Tank (L)580
Hydraulic Tank (L)215
Engine Oil changes (L)32
Coolant (L)41
Hydraulic System (L)465
Total transport length (mm)11190
Total transport width (mm)3190
Total transport height (mm)3230
Full cab height (mm)3030
Counterweight ground clearance (mm)1180
Minimum ground clearance (mm)500
Back end turning radius (mm)4120
Onboard width (mm)2990
Total track length (mm)4630
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3700
Maximum digging radius (mm)11110
Maximum digging depth (mm)7480
Maximum excavation height (mm)10330
Maximum unloading height (mm)7250
Maximum vertical digging depth (mm)5890
Maximum excavation radius of stop surface (mm)10900
see more

Overview

No.1108424

Brand Name:

Volvo

Model Number:

EC350D

Year:

2020

Location:

Sichuan China

Pub Date
