Product Description

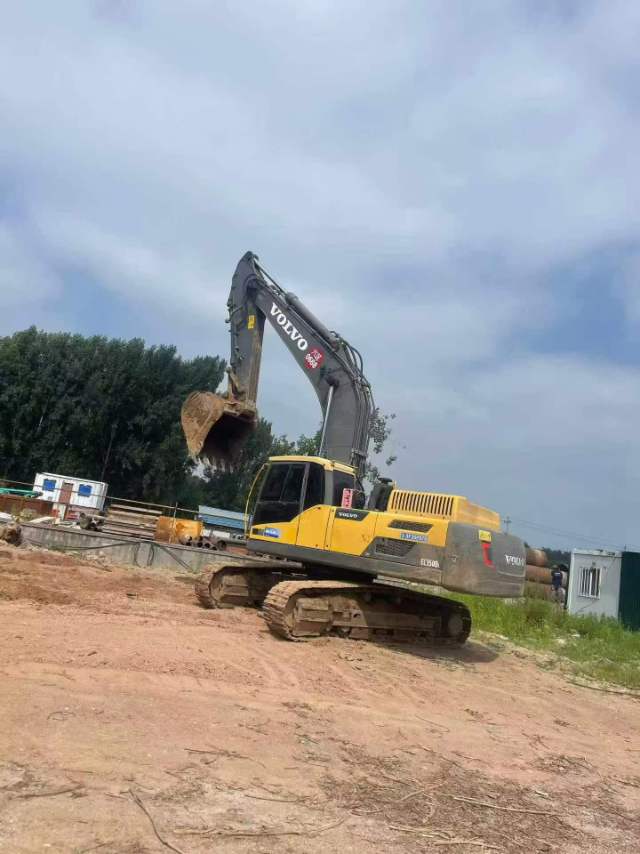

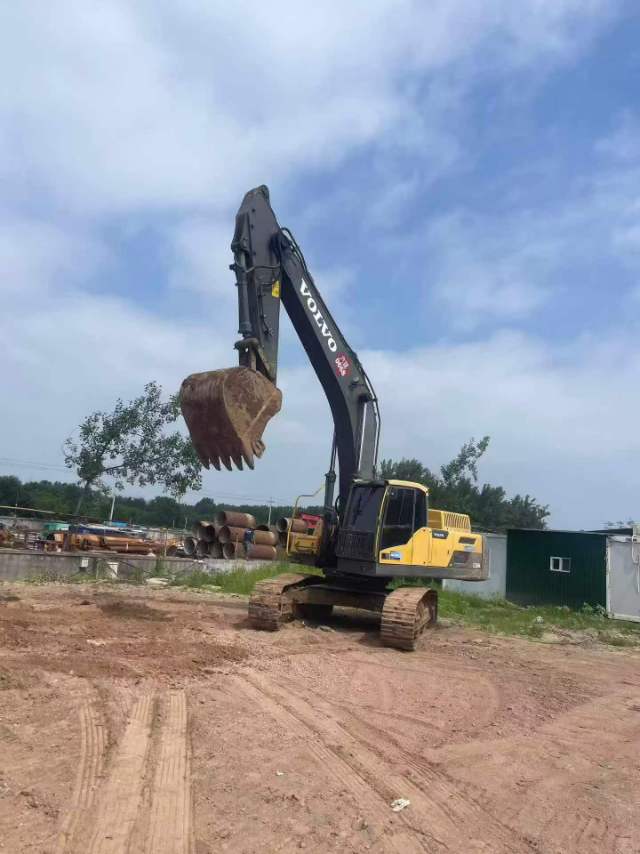

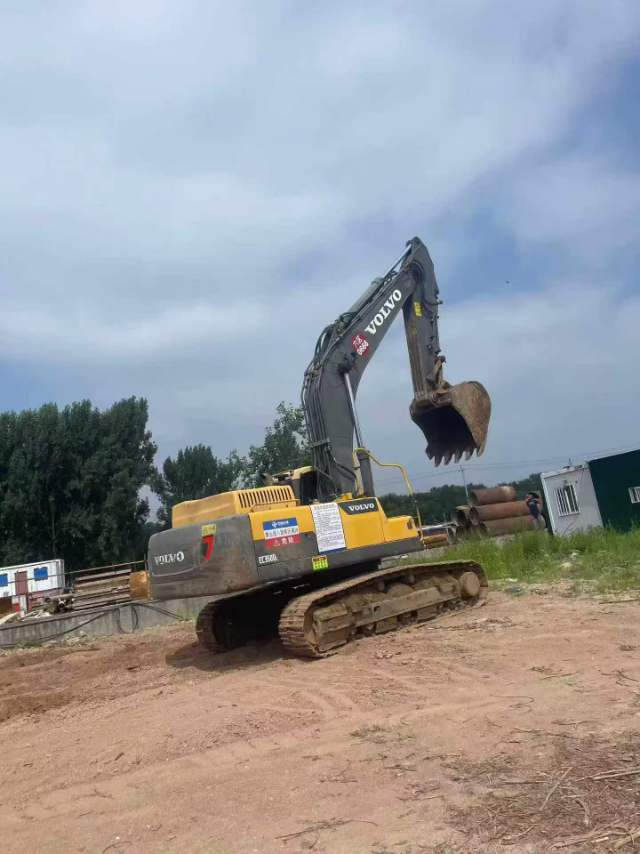

Discover the 2020 Volvo EC350D, a premium excavator currently available in Peking, China. This machine is in excellent condition, featuring its original paint and components, including the authentic hammer piping. Renowned for its robust performance, this excavator boasts a powerful engine and a well-maintained undercarriage, ensuring reliability on any job site. The EC350D is meticulously maintained with no leaks, reflecting its high-quality construction and care. Available with warranty options, this unit comes with detailed images and video upon request, providing a comprehensive view of its condition and capabilities.
- Year: 2020
- Brand: Volvo
- Model: EC350D
- Location: Peking, China
- Original Paint and Components
- Includes Authentic Hammer Piping
- Powerful and Reliable Performance

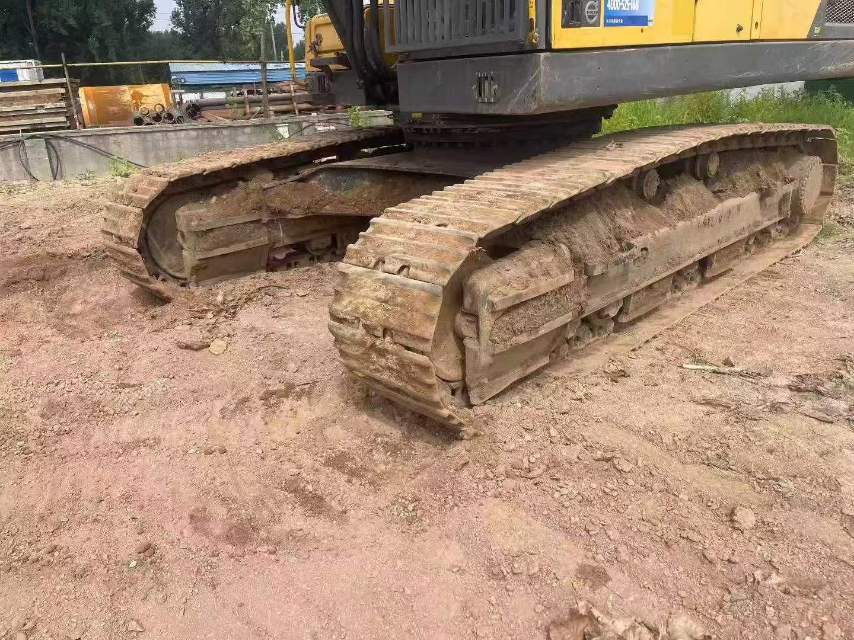

- No Leaks, Well-Maintained Undercarriage
- Warranty Options Available
- Detailed Images and Video Provided
| Specifications | Value |
|---|---|
| No. | 1130399 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 34300-38700 |
| Bucket capacity (m³) | 1.0-2.53 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

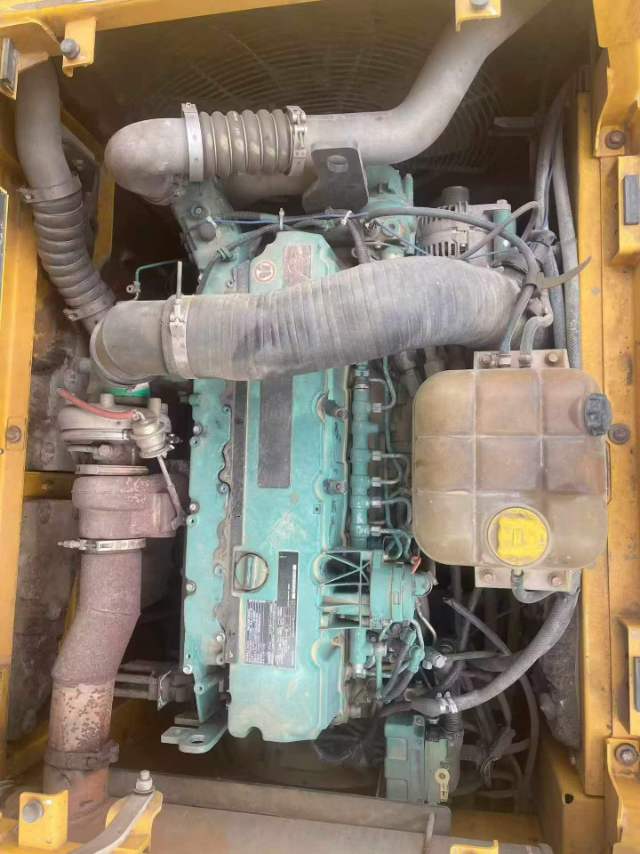

| Engine type | Volvo D8K |
| Rated power (kw/rpm) | 197/1800 |
| Cylinder diameter × stroke (mm) | 110 x 138 |
| Maximum torque (N.m) | 1340 |
| Displacement (L) | 7.8 |
| Rotation speed (rpm) | 10.3 |
| Climbing ability (%) | 35 ° |
| Maximum tractive force (kN) | 261 |
| Travel speed (km/h) | 3.3/5.1 |
| Turning torque (Nm) | 126 |
| Maximum flow of main pump (l/min) | 2 x 288 |
| Traveling Hydraulic Circuit (Mpa) | 33.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Working Hydraulic Circuit (Mpa) | 33.3/36.3 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 170 x 1700 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 150 x 1530 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 215 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 465 |
| Total transport length (mm) | 11190 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3230 |
| Full cab height (mm) | 3030 |
| Counterweight ground clearance (mm) | 1180 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 4120 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 11110 |
| Maximum digging depth (mm) | 7480 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 5890 |
| Maximum excavation radius of stop surface (mm) | 10900 |
