Product Description

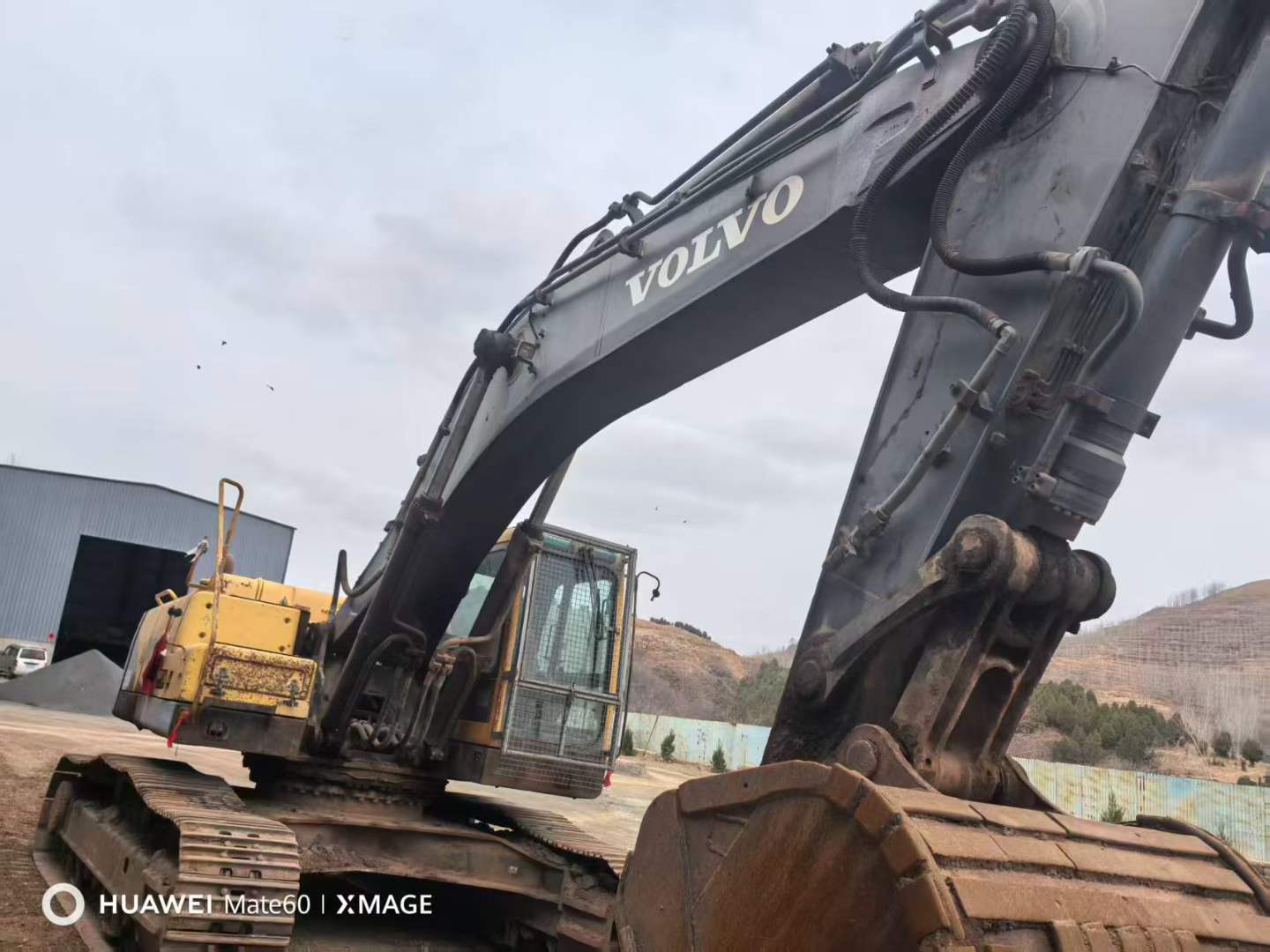

Available now in Jinan, Shandong, this 2012 Volvo EC360BLC hydraulic excavator delivers 36-ton performance without factory wait times. Powered by a Volvo D12D engine producing 198 kW at 1700 rpm, this machine combines proven reliability with immediate deployment capability. Skip the lead times—this excavator is ready for fast transport to your construction site.
Key specifications include:
- Operating weight: 36,900 kg with exceptional stability
- Bucket capacity: 1.35-3.0 m³ for versatile material handling
- Maximum digging reach: 11,180 mm; digging depth: 7,490 mm
- Bucket digging force: 236 kN (Extra mode) for demanding excavation
- Dual variable axial piston pumps: 280 L/min each for responsive hydraulics
- Water-cooled turbocharged engine: 12.1L displacement, 1,475 N·m max torque
Located in Shandong's logistics hub, this EC360BLC offers immediate availability for buyers requiring rapid project mobilization. Inspect in Jinan and arrange direct shipment—no production delays, no waiting lists. Secure proven Volvo engineering today.
| Specifications | Value |
|---|---|
| No. | 1036007 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36900 |
| Bucket capacity (m³) | 1.35-3.0 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D12D |
| Rated power (kw/rpm) | 198/1700 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 131 x 150 |
| Maximum torque (N.m) | 1475/1275 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.1 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 65.9 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 215.0 (Standard mode) /236.0 (Extra mode) |
| Rod digging force (kN) | 161.0 (Standard mode) /176.0 (Plus mode) |
| Travel speed (km/h) | 3.3/4.5 |
| Rotary hydraulic motor type | Axial piston hydraulic motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 280 * 2 + 25.5 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Variable axial piston pump ×2+ variable pump |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1700 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 500 |
| Total transport length (mm) | 11070 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3350 |
| Full cab height (mm) | 3190 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4340 |
| Back end turning radius (mm) | 3390 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4240 |
| Maximum digging radius (mm) | 11180 |
| Maximum digging depth (mm) | 7490 |
| Maximum excavation height (mm) | 10320 |
| Maximum unloading height (mm) | 7240 |
| Maximum vertical digging depth (mm) | 5510 |
| Maximum excavation radius of stop surface (mm) | 10970 |
| Maximum effective digging depth (mm) | 7320 |
