Product Description

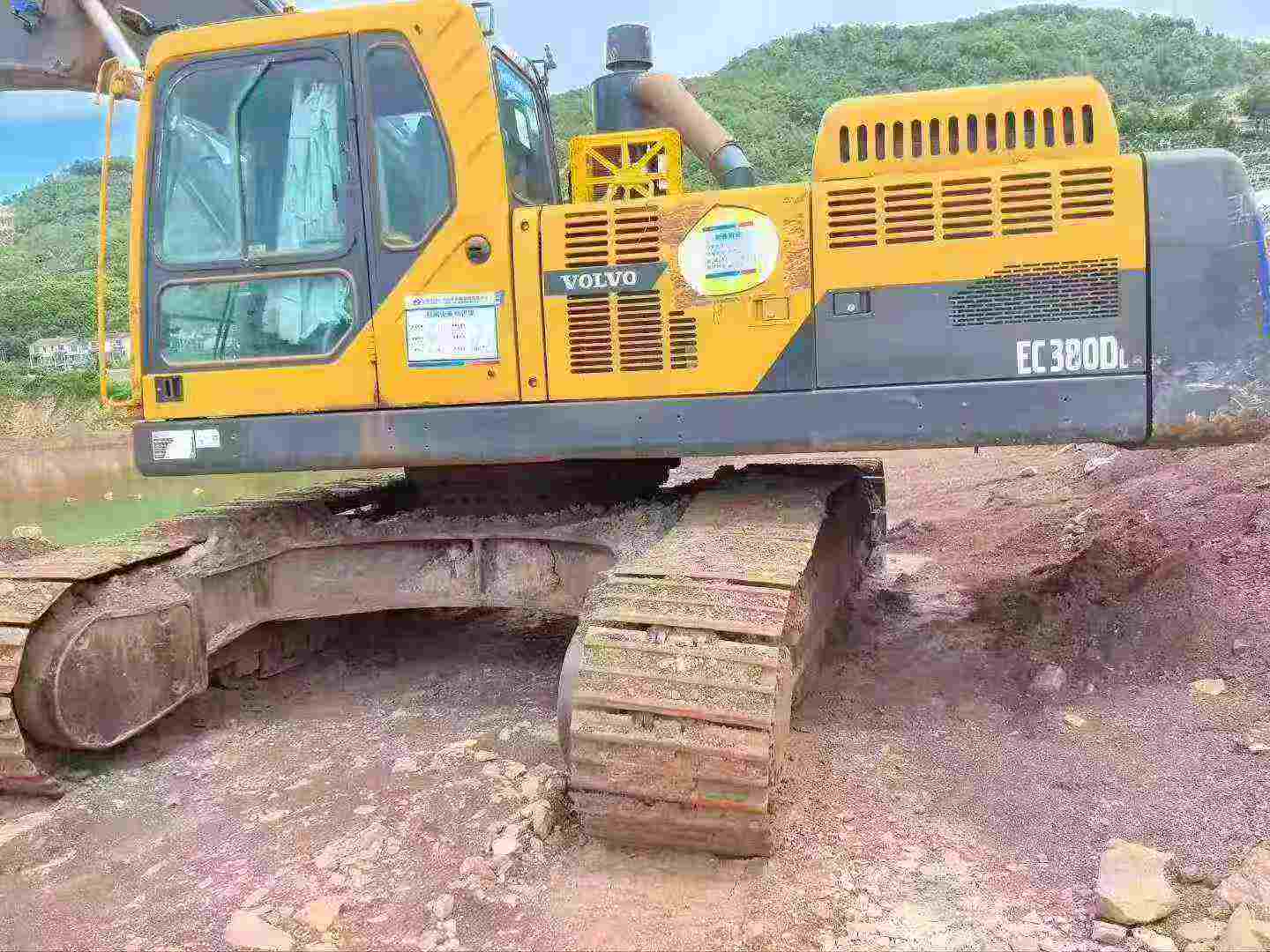

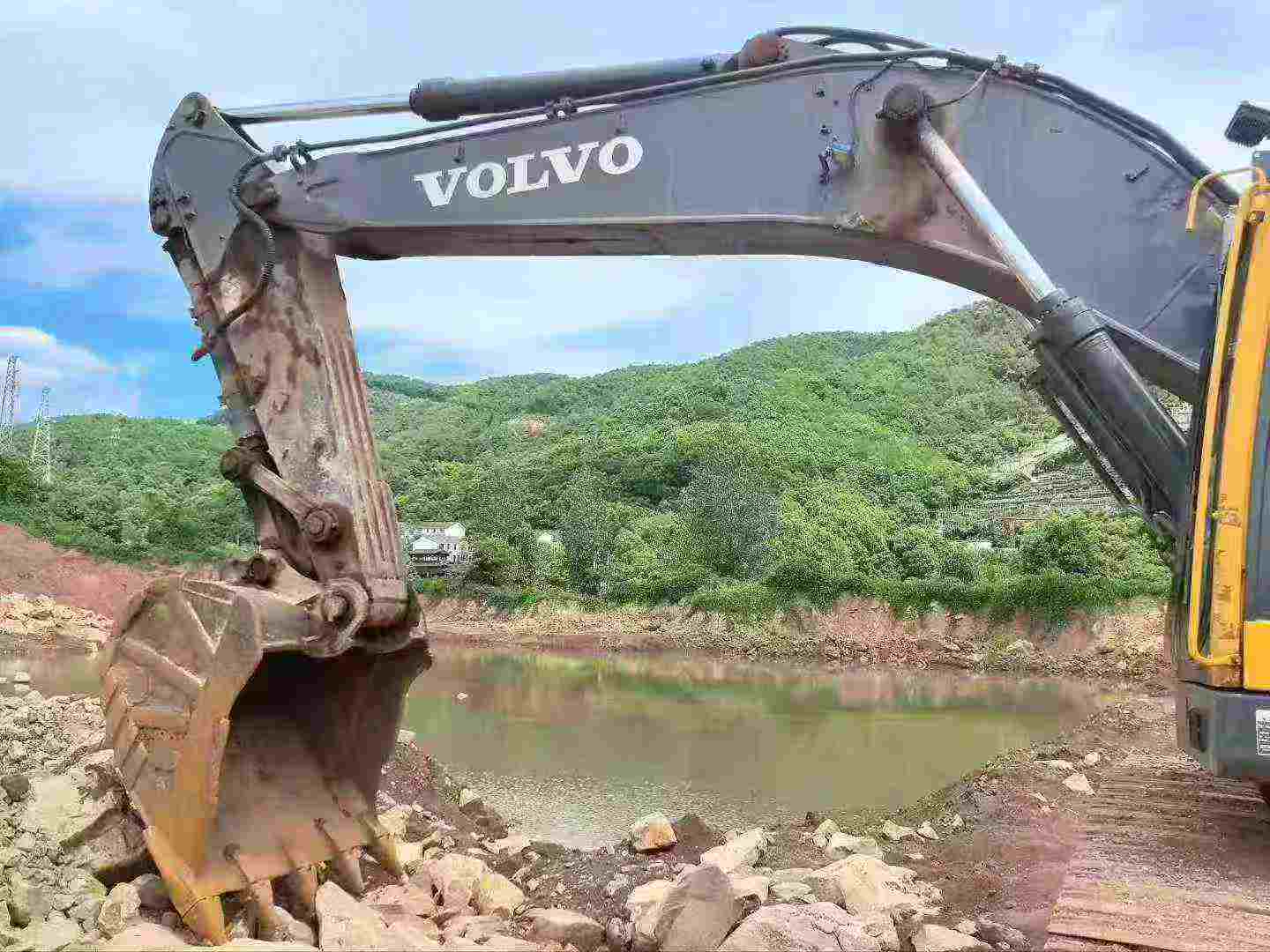

Built to withstand the rigors of heavy-duty excavation, this 2014 Volvo EC380D delivers 38 tons of proven performance backed by one of the industry's most trusted names. Powered by a 12.8L engine meeting US Tier 4i and EU Stage IIIB emission standards, this joint venture/import machine combines reliable traditional power with environmental compliance. With 144.4 kN of standard digging force (157.4 kN in extra force mode) and an impressive 11,520mm maximum excavation radius, it tackles demanding jobsites with confidence.
Currently located in Luzhou, Sichuan, this backhoe-equipped excavator features an 8,000mm maximum digging depth and dual-speed travel capabilities (3.4/5.53 km/h). Volvo's global parts network ensures minimal downtime, while the brand's strong resale value protects your investment long-term. Track configurations accommodate 600-900mm triple-tooth or 600mm double-tooth plates, offering versatility across terrain types.
- Proven Volvo reliability with extensive dealer support
- Strong resale value retention in secondary markets
- Readily available OEM and aftermarket parts worldwide
- Comprehensive hydraulic system: 2×160×1530mm boom cylinders, 1×175×1750mm arm cylinder
| Specifications | Value |
|---|---|
| No. | 1029040 |
| Tonnage (tons) | 38 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.53 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
