Product Description
Built to deliver consistent performance across demanding job sites, this 2014 Volvo EC380D excavator combines proven engineering with the reliability expected from a joint venture/import manufacturer. Operating at 38 tons with a powerful 12.8L engine meeting US Tier4i and EU IIIB emission standards, this machine offers exceptional digging force up to 157.4 kN in extra force mode and reaches a maximum excavation depth of 8,000mm.
Volvo's reputation in the used equipment market stems from widespread parts availability and strong resale value—critical factors when investing in pre-owned machinery. With an 11,520mm maximum excavation radius and versatile bucket configurations (triple-tooth options from 600-900mm), this backhoe-equipped excavator handles everything from trenching to site preparation. Track width options and a 5,180mm total track length ensure stability on varied terrain, while dual-speed travel (3.4/5.53 km/h) optimizes productivity.
- Year: 2014 | Location: Hunan Province
- Operating Weight: 38 tons
- Max Digging Depth: 8,000mm
- Engine: 12.8L, Tier4i/IIIB compliant
- Rod Digging Force: 144.4-157.4 kN
| Specifications | Value |
|---|---|
| No. | 1032815 |
| Tonnage (tons) | 38 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.53 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |

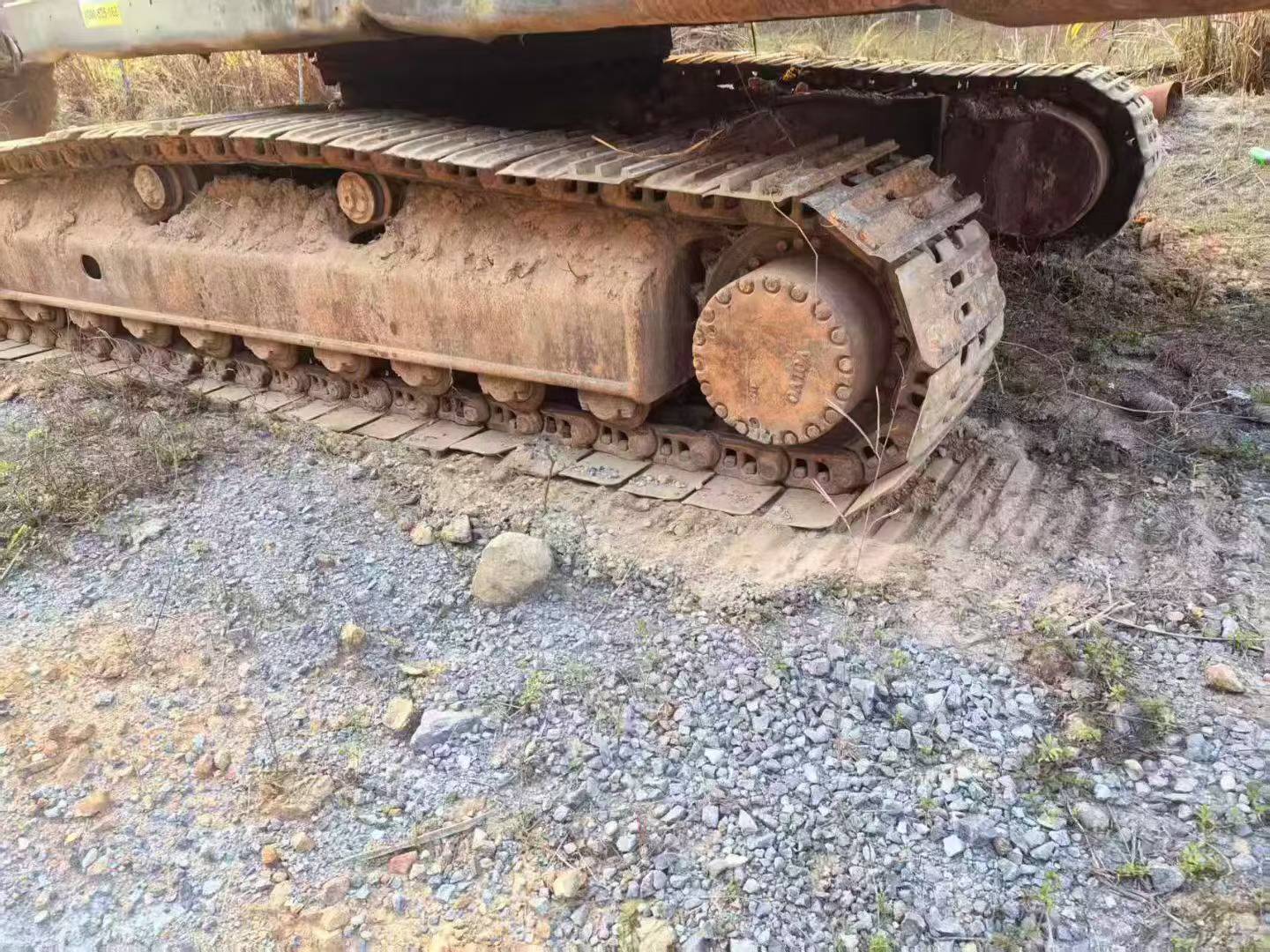

| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
