Product Description

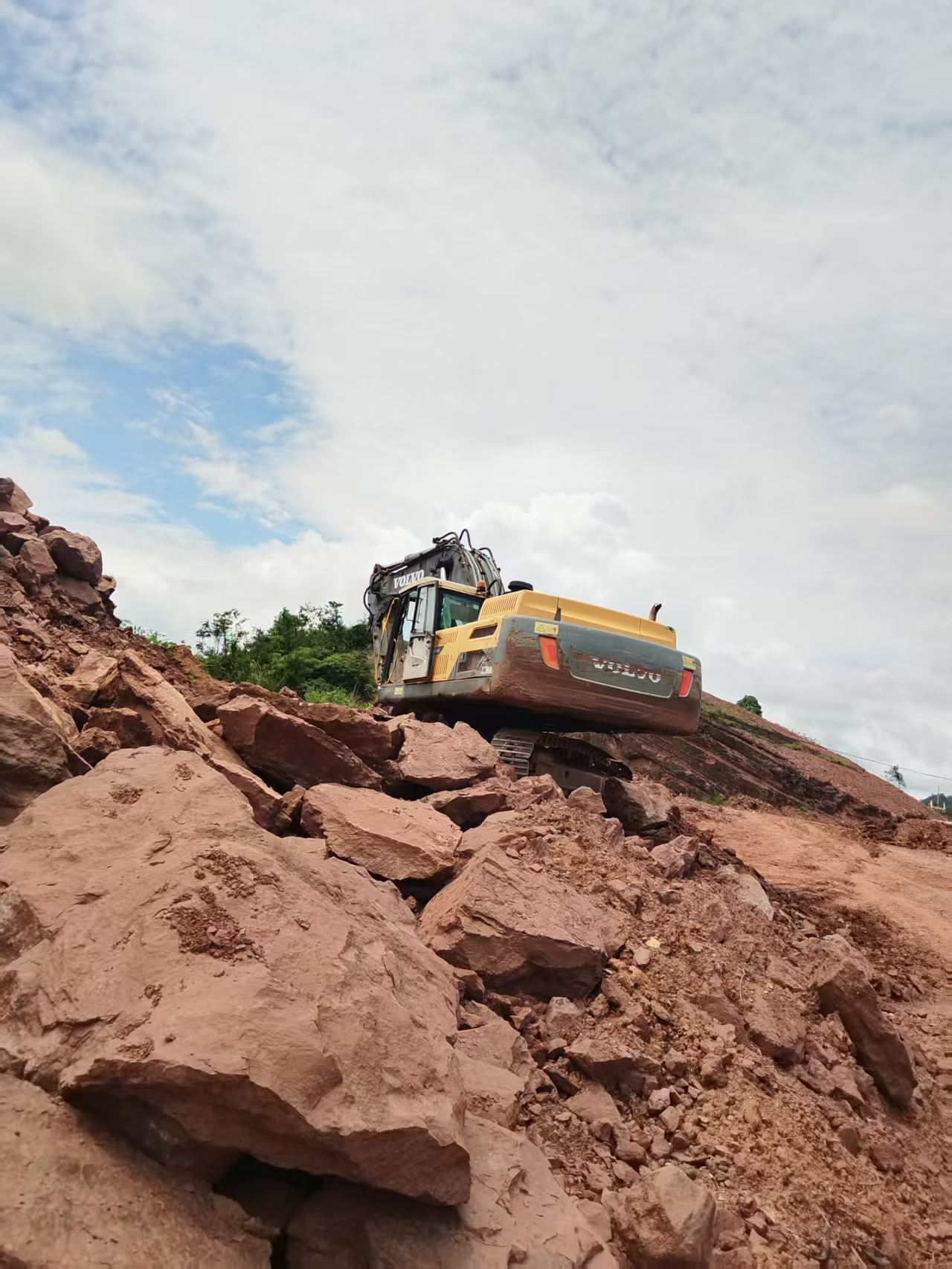

Discover the reliability and performance of the 2014 Volvo EC380D, a robust excavator available for immediate delivery from our location in Jiangxi, China. Designed to meet the demands of heavy construction projects, this machine has been maintained to ensure optimal functionality. Ideal for operations requiring high digging force and stability, the EC380D is equipped with features that enhance productivity and efficiency on any job site.
- Year: 2014
- Brand: Volvo
- Model: EC380D
- Location: Jiangxi, China
- Condition: Used, ready for immediate use
| Specifications | Value |
|---|---|
| No. | 1129642 |
| Tonnage (tons) | 38 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.53 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
