Product Description

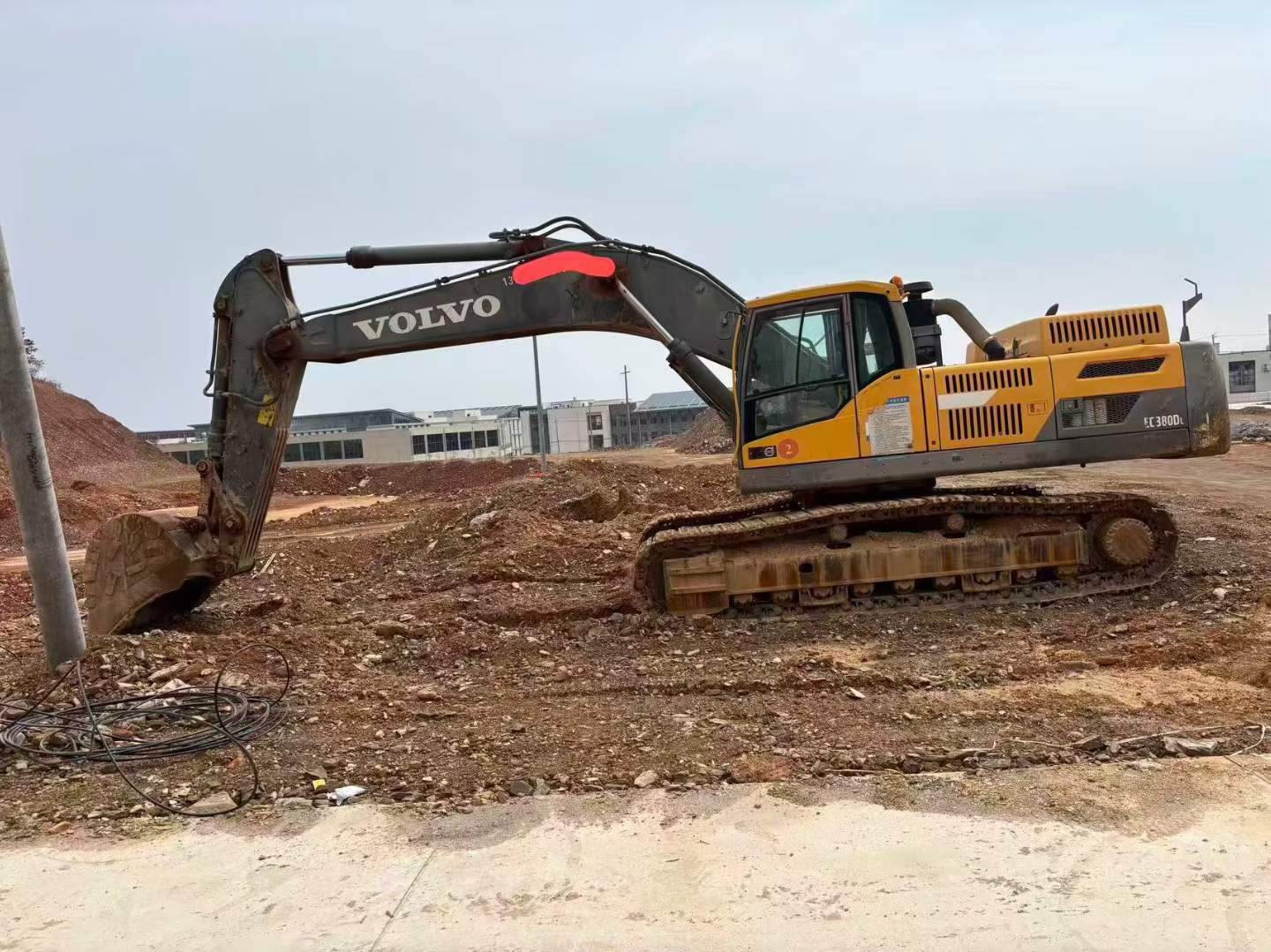

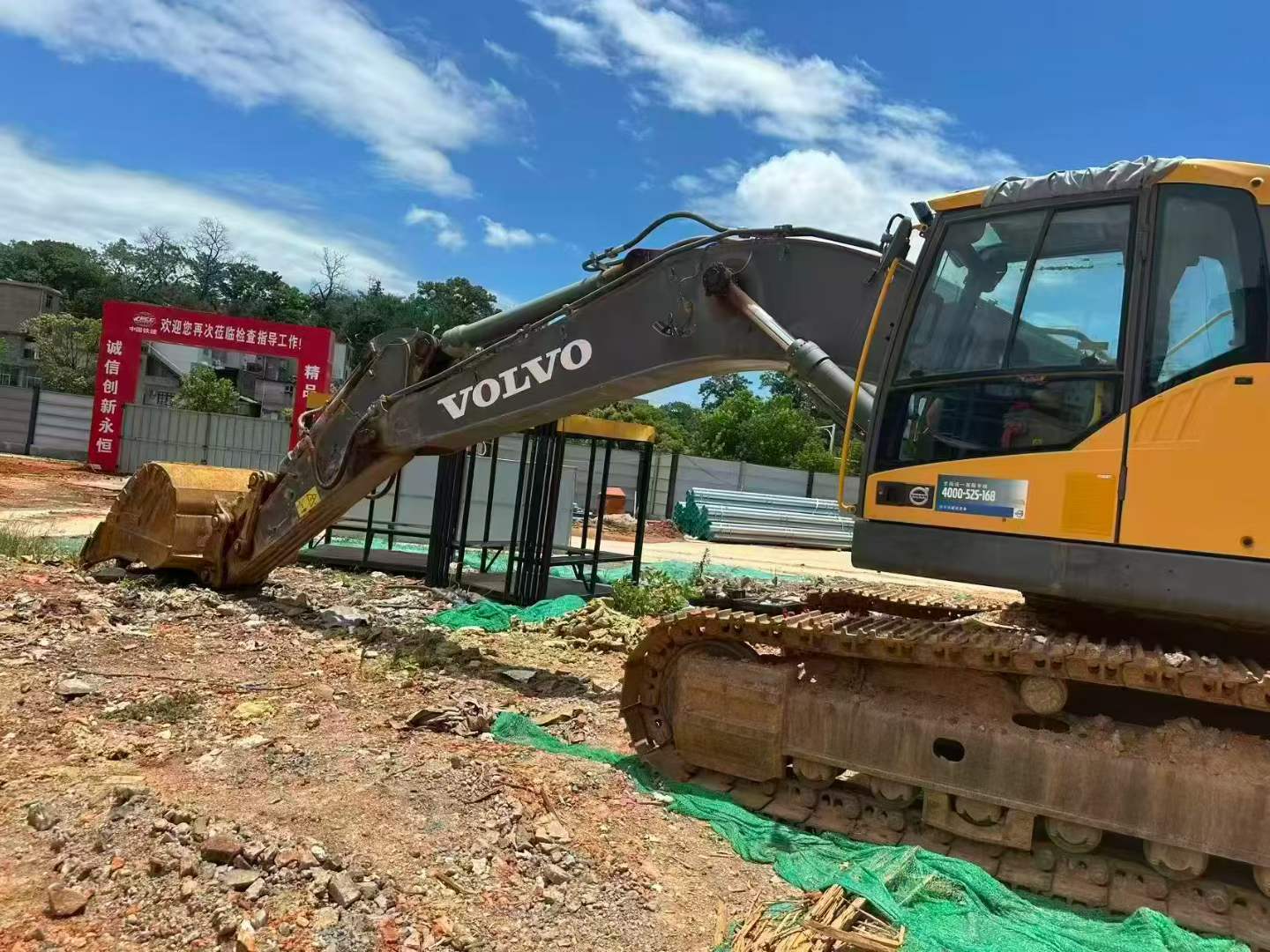

Maximize your equipment budget with this 2018 Volvo EC380D excavator, currently located in Putian, Fujian. Engineered with a proven 12.8L displacement engine meeting US Tier4i and EU IIIB emission standards, this 38-ton machine delivers exceptional digging performance with rod forces up to 157.4 kN in extra force mode. Built to joint venture/import quality standards, it combines Volvo's legendary durability with cost-effective ownership.
- Maximum excavation radius: 11,520mm with 8,000mm effective digging depth
- Travel speeds: 3.4/5.53 km/h for efficient site mobility

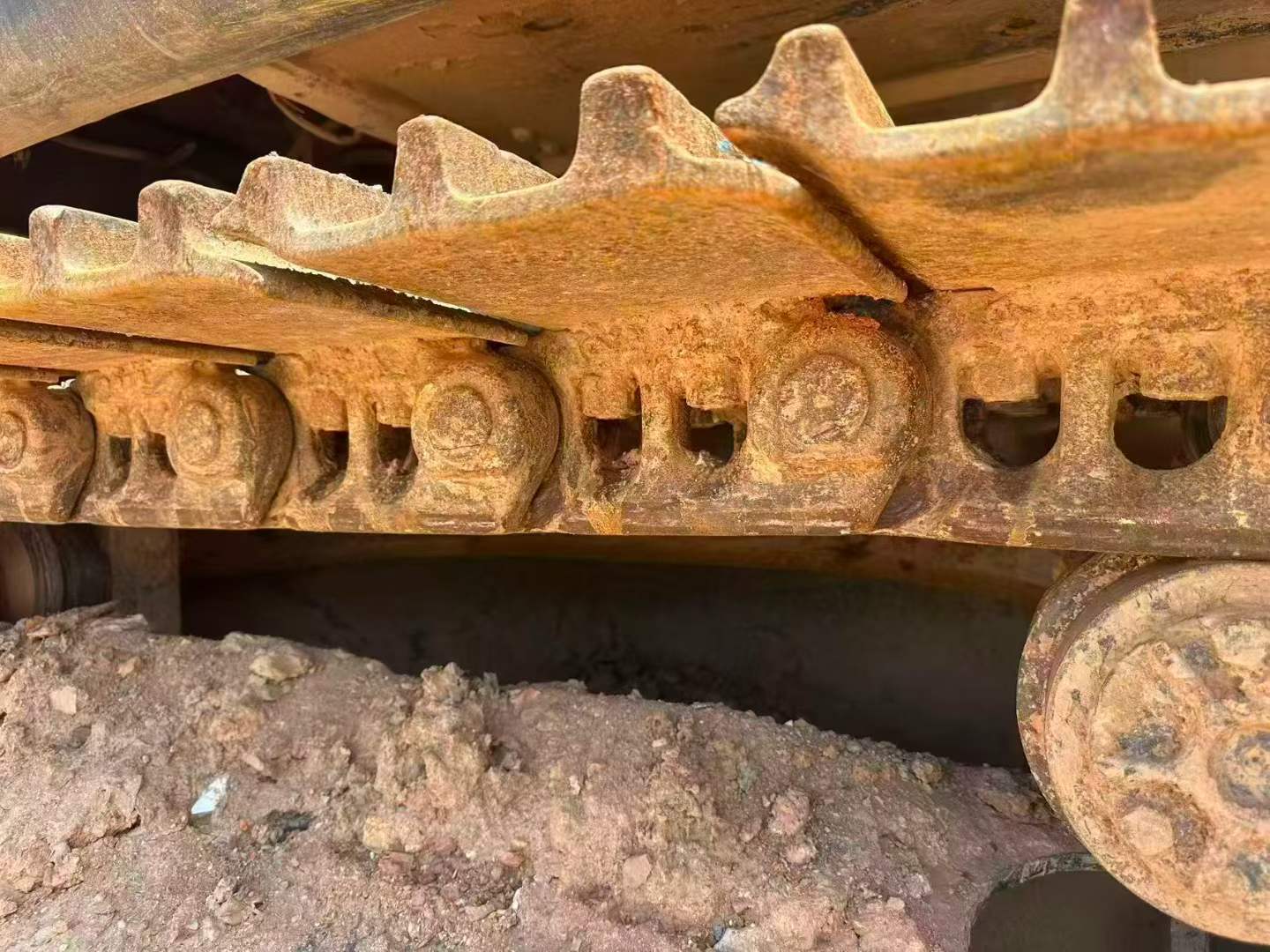

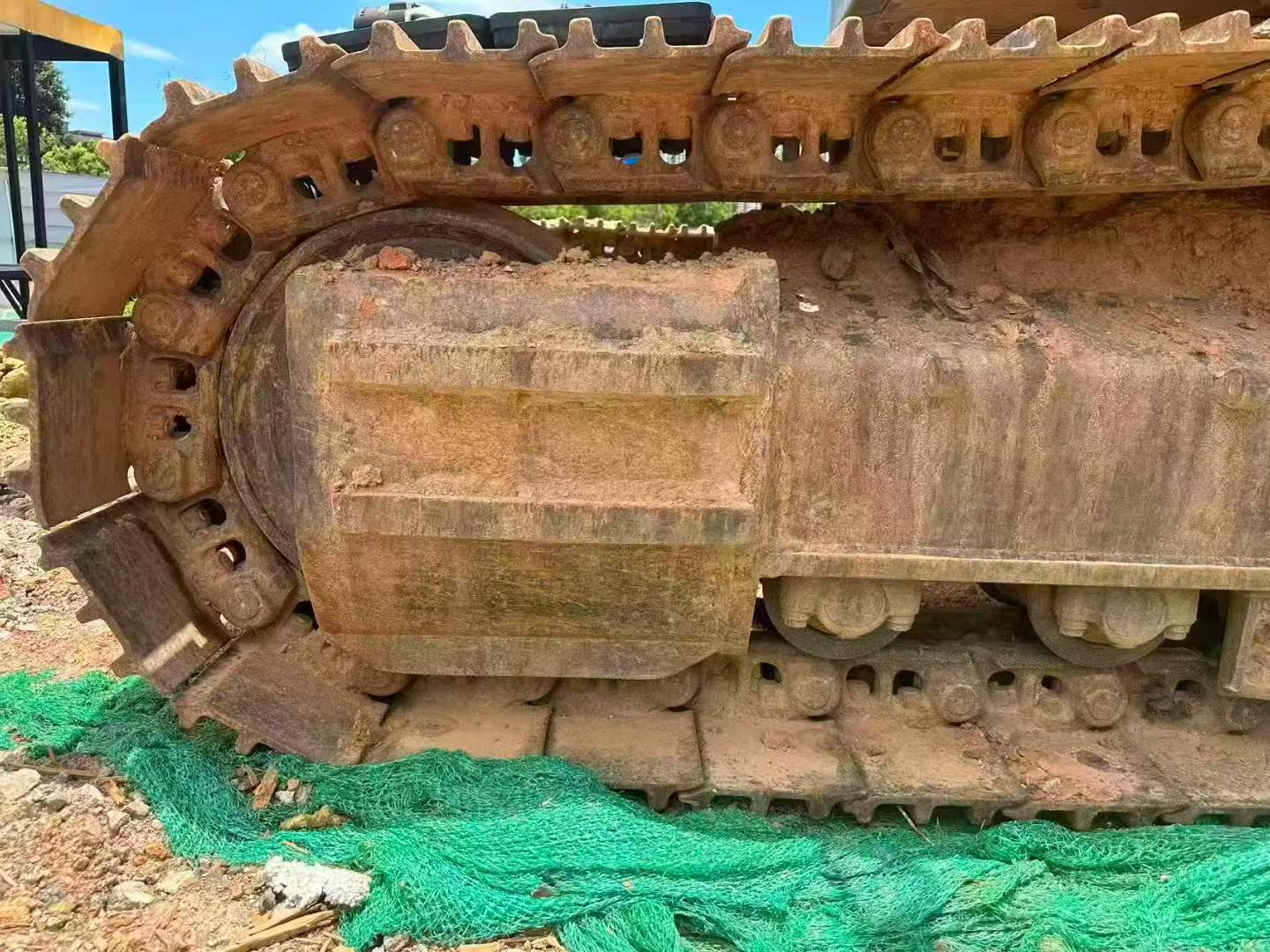

- Track configuration: 5,180mm total length, 2,740mm gauge, customizable plate widths (600-900mm)
- Hydraulic power: Dual 160×1530mm boom cylinders, 175×1750mm bucket rod cylinder
- Air-to-air cooling system ensures consistent performance in demanding conditions
Acquire proven productivity at a fraction of new equipment costs. This EC380D represents smart capital allocation for contractors requiring reliable performance without premium depreciation. Ready for immediate deployment in excavation, site preparation, and heavy construction applications.
| Specifications | Value |
|---|---|
| No. | 1027551 |
| Tonnage (tons) | 38 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.53 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
