Product Description

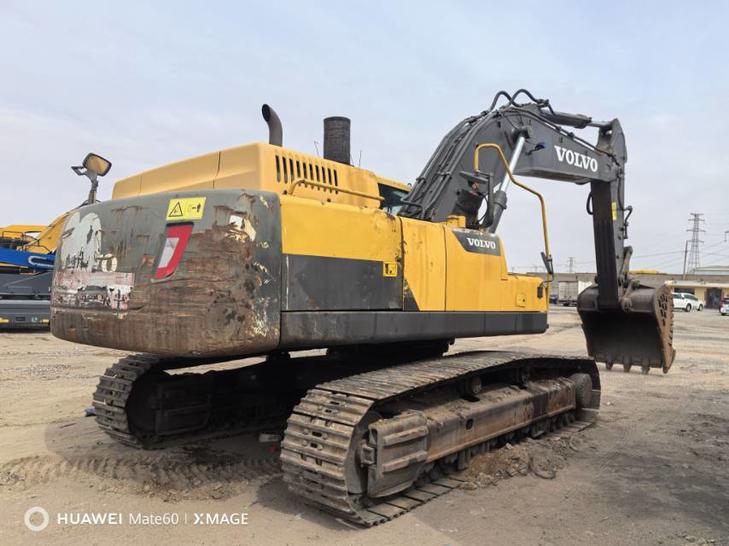

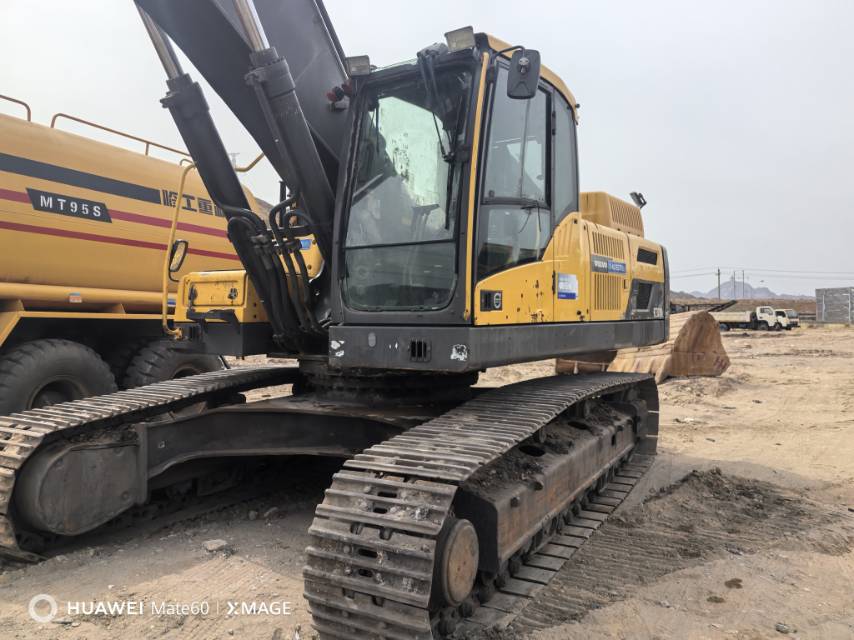

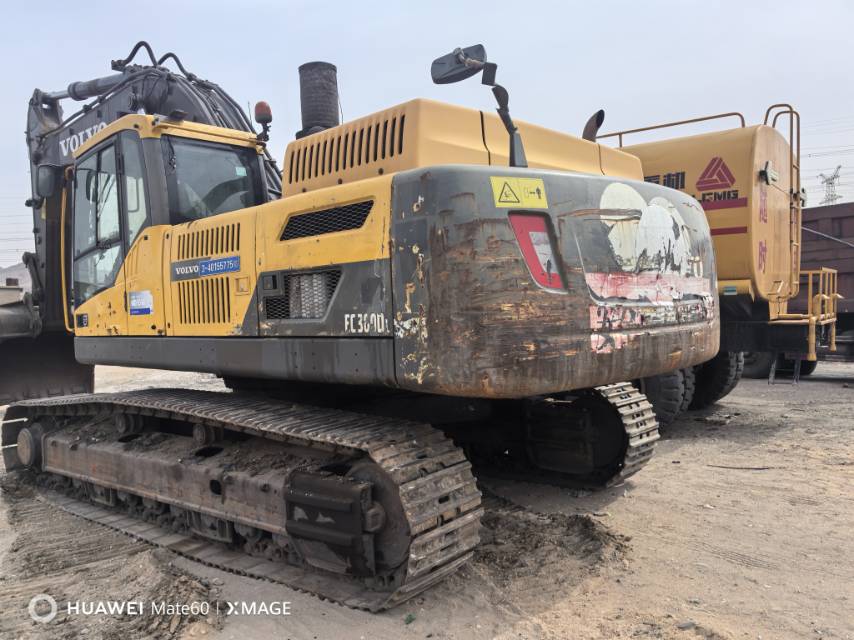

This 2018 Volvo EC380D hydraulic excavator represents a reliable mid-size solution for demanding earthmoving applications. Currently located in Inner Mongolia, China, this machine offers the proven performance and fuel efficiency that Volvo's D-series is known for in the construction and mining sectors.
Key features of the EC380D include:
- Volvo's fuel-efficient diesel engine delivering robust hydraulic performance
- Advanced hydraulic system for precise control and productivity

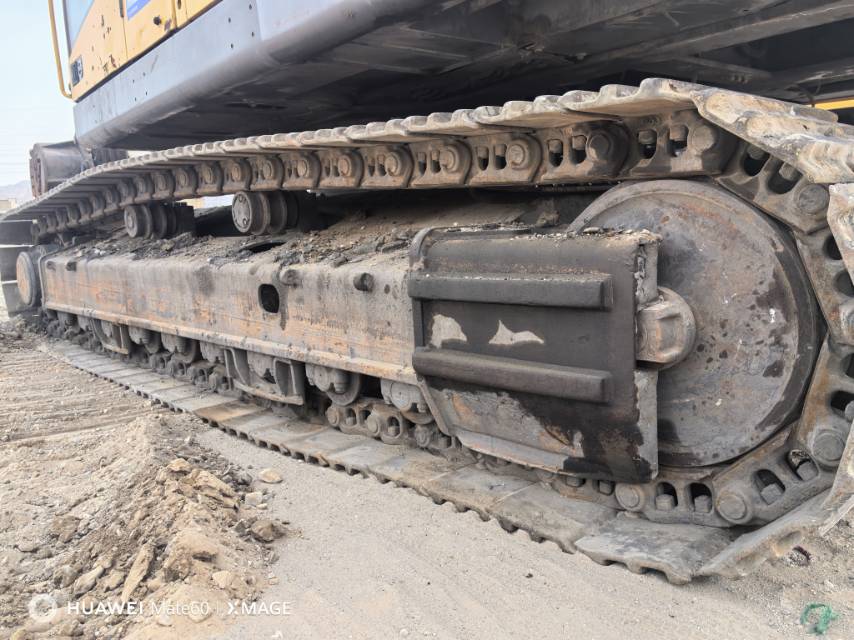

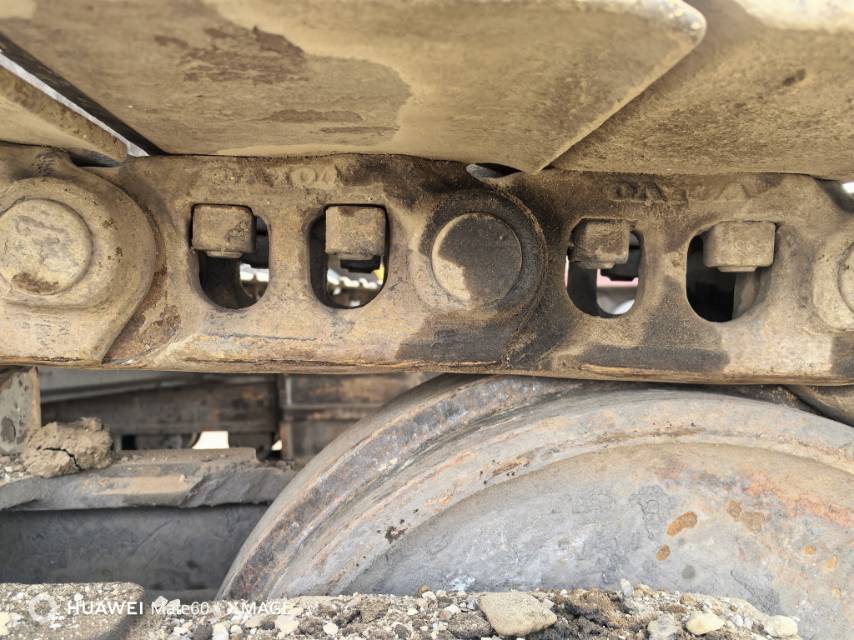

- Reinforced undercarriage designed for extended service life
- Operator-focused cab with ergonomic controls
- Well-maintained condition with verified operational status
This unit is competitively priced and ready for immediate deployment. The EC380D is suitable for general excavation, material handling, and site development projects. Contact us for detailed specifications, inspection reports, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1121119 |
| Tonnage (tons) | 38 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.53 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
