Product Description
Engineered with Volvo's renowned D13 engine delivering 12.8L displacement, this 2019 EC380D excavator combines raw power with precision hydraulics for demanding earthmoving operations. Operating at 38 tons, the machine generates exceptional digging force—144.4 kN standard or 157.4 kN with extra force mode—while maintaining compliance with US Tier 4i and EU Stage IIIB emission standards through advanced air-to-air cooling technology.

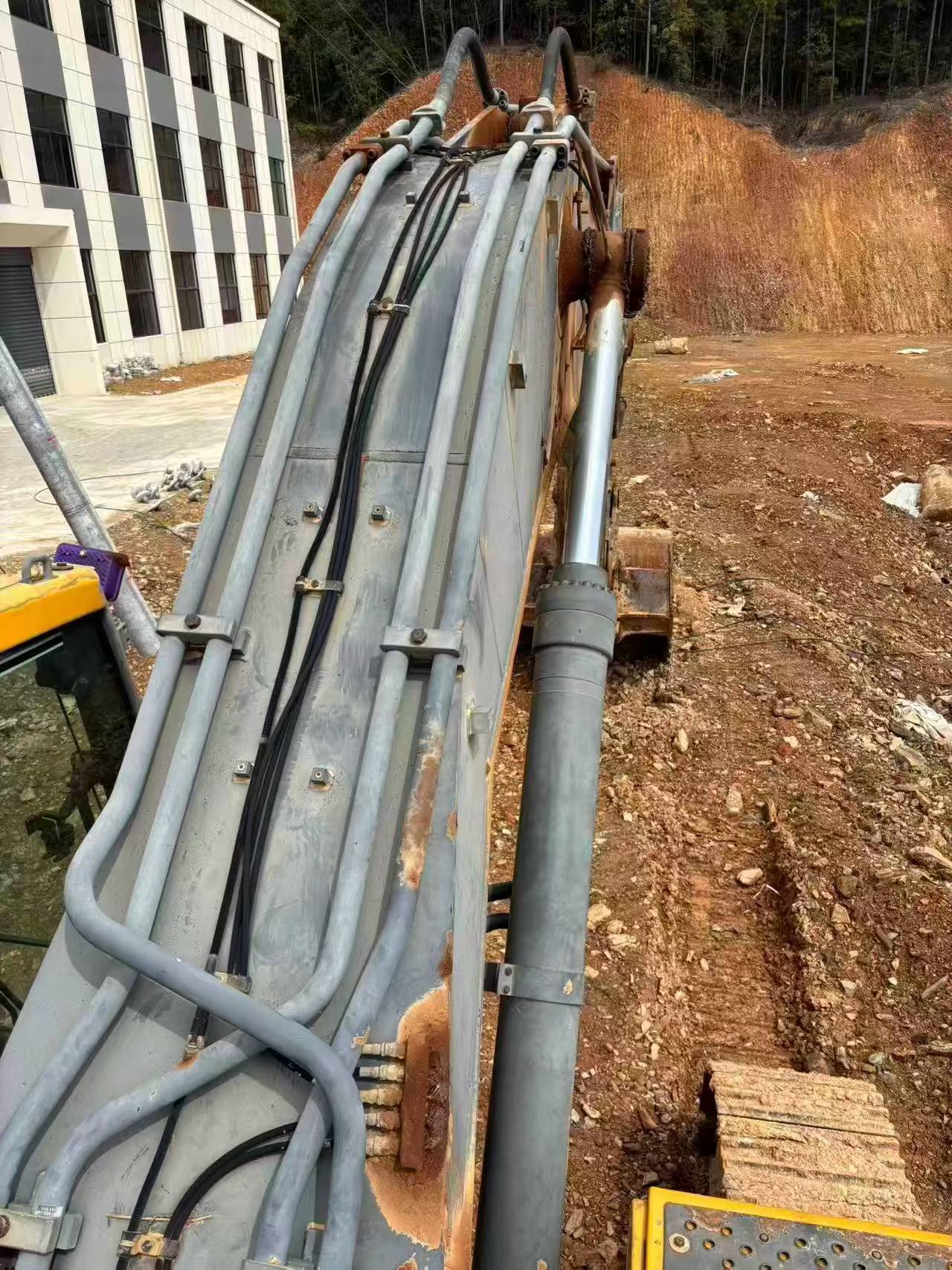

Hydraulic performance defines this model's technical superiority. Dual 160×1530mm boom cylinders, a single 175×1750mm arm cylinder, and a robust 145×1285mm bucket cylinder deliver coordinated power across an 11,520mm maximum reach and 8,000mm digging depth. The 5,180mm track length and 2,740mm gauge ensure stability during heavy-cycle work, while variable travel speeds (3.4/5.53 km/h) optimize positioning efficiency.
Currently located in Jiangxi Ji'an, this joint venture-manufactured excavator represents Volvo's commitment to durability and operational precision. Configurable track plates (600-900mm options) adapt to varied ground conditions, making this backhoe-equipped machine ideal for construction, mining, and infrastructure projects requiring proven Swedish engineering standards.
| Specifications | Value |
|---|---|
| No. | 1027612 |
| Tonnage (tons) | 38 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.53 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
