Product Description

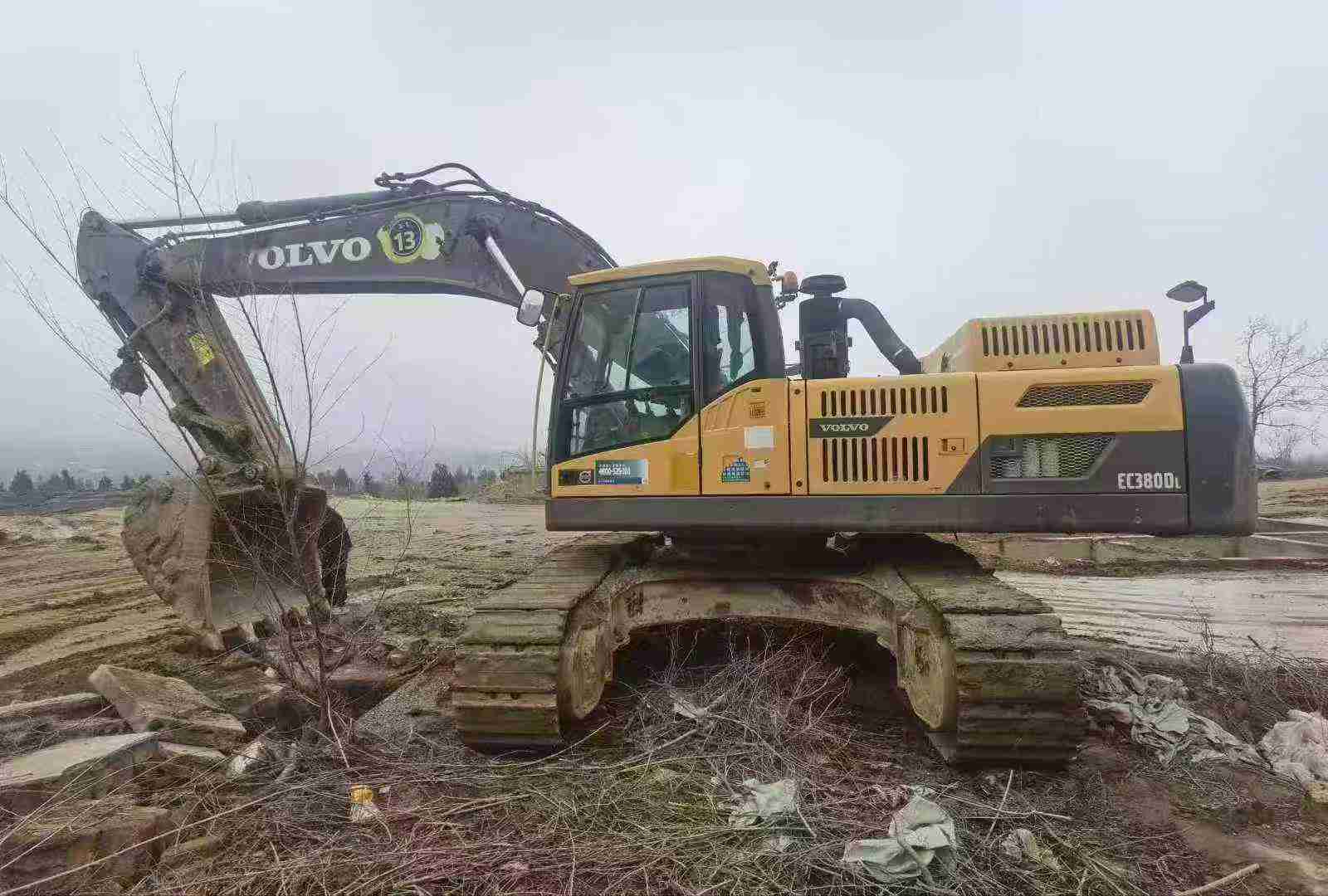

Engineered for operators who demand precision and control, this 2019 Volvo EC380D delivers exceptional performance in the 38-ton class. Powered by a robust 12.8L engine meeting US Tier 4i and EU Stage IIIB emission standards, this excavator combines environmental compliance with reliable traditional power delivery. Located in Shaoxing, Zhejiang, this joint venture-manufactured machine represents Volvo's commitment to operator-centric design and proven hydraulic technology.
From the spacious cabin, operators benefit from commanding visibility across the 11,520mm maximum excavation radius. Responsive hydraulics provide 157.4kN of digging force in extra-force mode, while dual-speed travel at 5.53 km/h maximizes productivity during repositioning. The 8,000mm maximum dig depth and thoughtfully positioned controls reduce operator fatigue during extended shifts. Track configuration options—including 600mm to 900mm shoe widths—ensure optimal ground pressure distribution across varied terrain conditions.
- 38-ton operating weight with 12.8L displacement engine
- Maximum dig depth: 8,000mm | Reach: 11,520mm
- Enhanced digging force: 144.4kN standard / 157.4kN extra-force mode
- Dual-speed travel: 3.4/5
| Specifications | Value |
|---|---|
| No. | 1028918 |
| Tonnage (tons) | 38 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.53 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
