Product Description

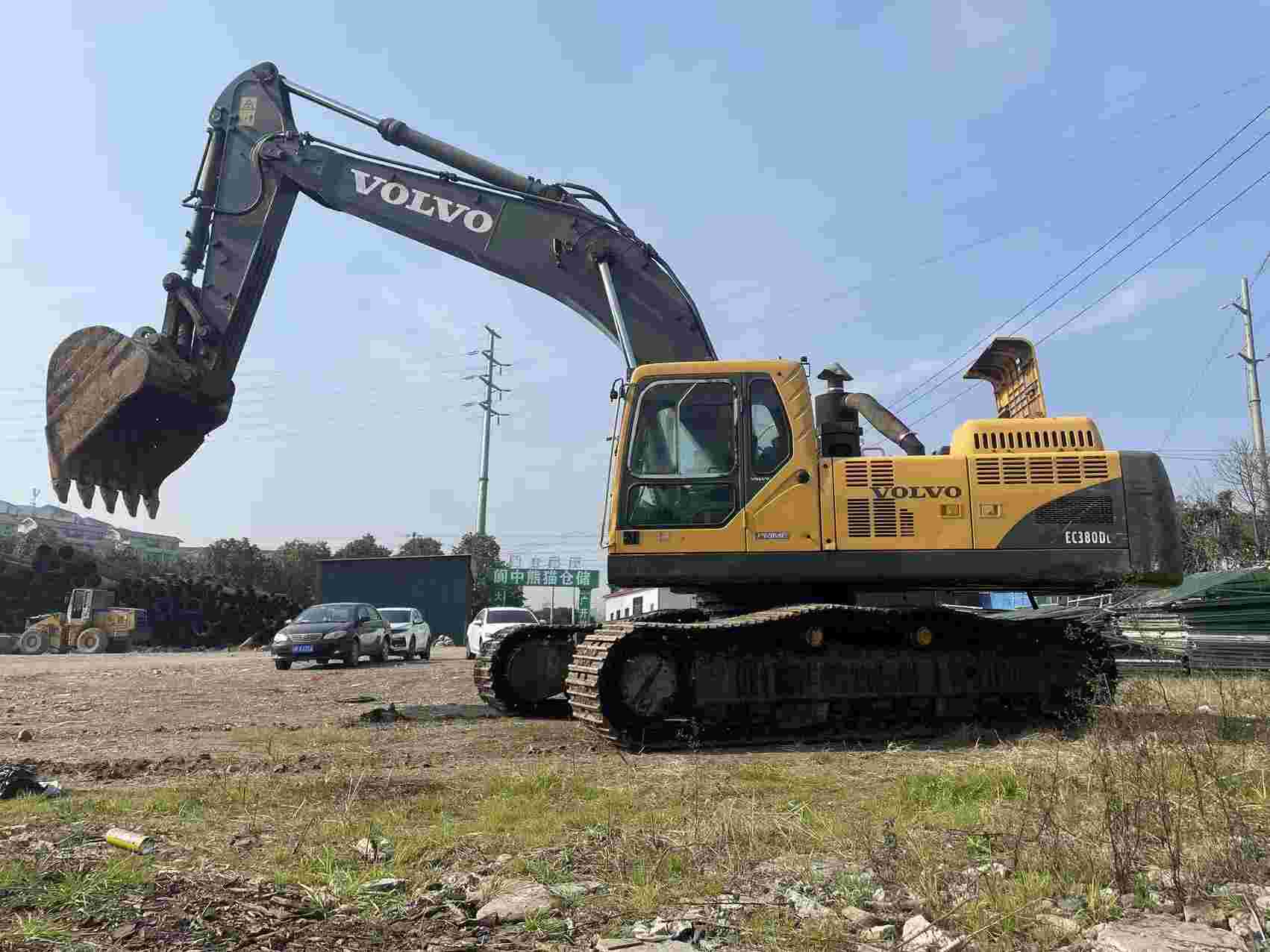

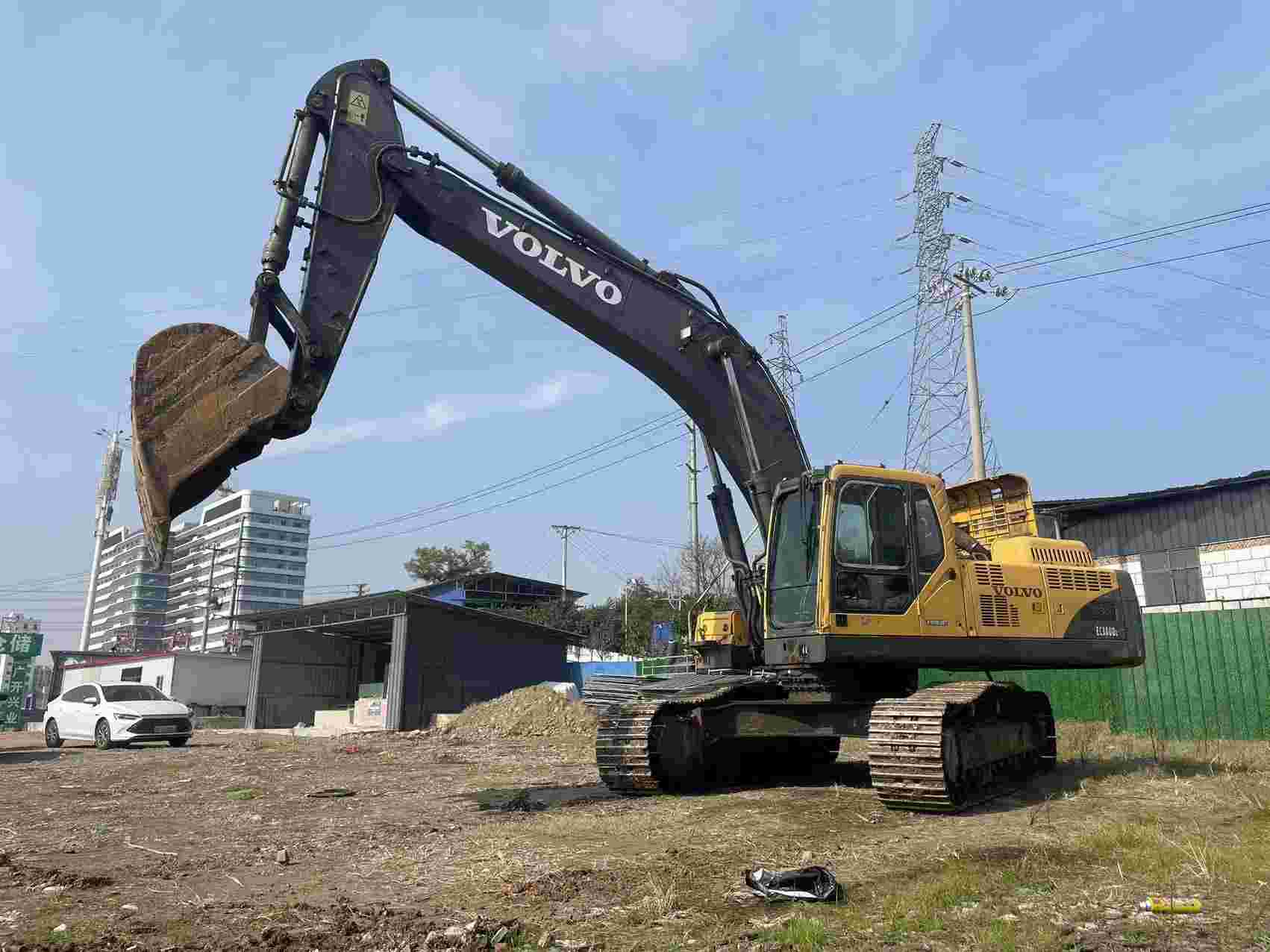

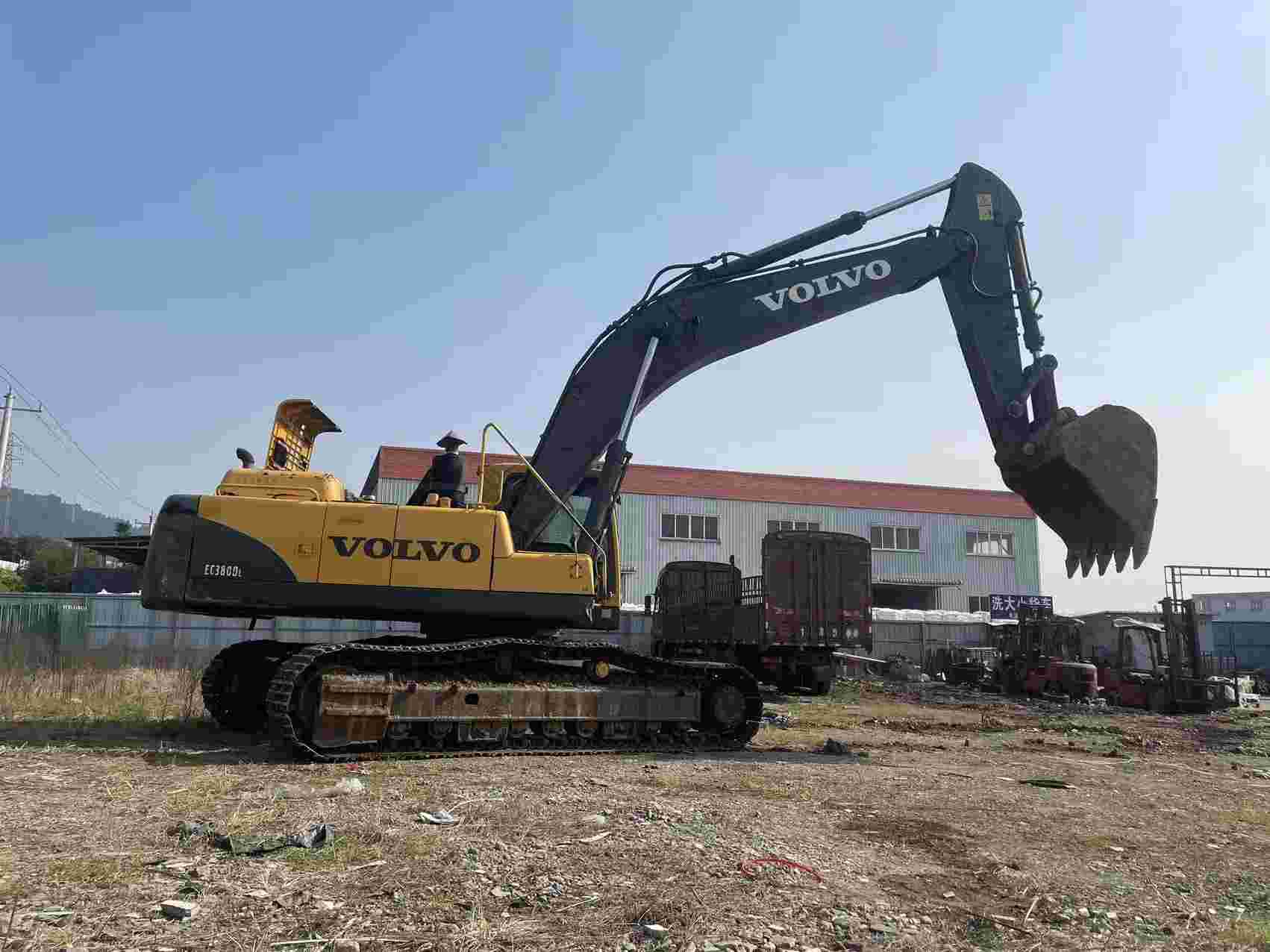

This 2020 Volvo EC380D hydraulic excavator represents a well-maintained single-owner machine from Sichuan, China. The undercarriage and hydraulic lines have been recently replaced and remain under warranty coverage, demonstrating proactive maintenance practices. All major components are original and unmodified, ensuring authentic OEM performance and reliability.
Key attributes include:
- Single ownership history with documented maintenance
- Recently replaced undercarriage components under warranty
- New hydraulic line system with active warranty protection
- Original major components without rebuilds or replacements
- Current location: Sichuan Province, China
The Volvo EC380D is engineered for demanding excavation applications, offering proven durability in the 36-40 tonne class. This unit's recent component updates and warranty coverage provide immediate operational readiness for contractors and fleet operators seeking reliable performance with reduced near-term maintenance exposure.
| Specifications | Value |
|---|---|
| No. | 1119724 |
| Tonnage (tons) | 38 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.53 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
