Product Description

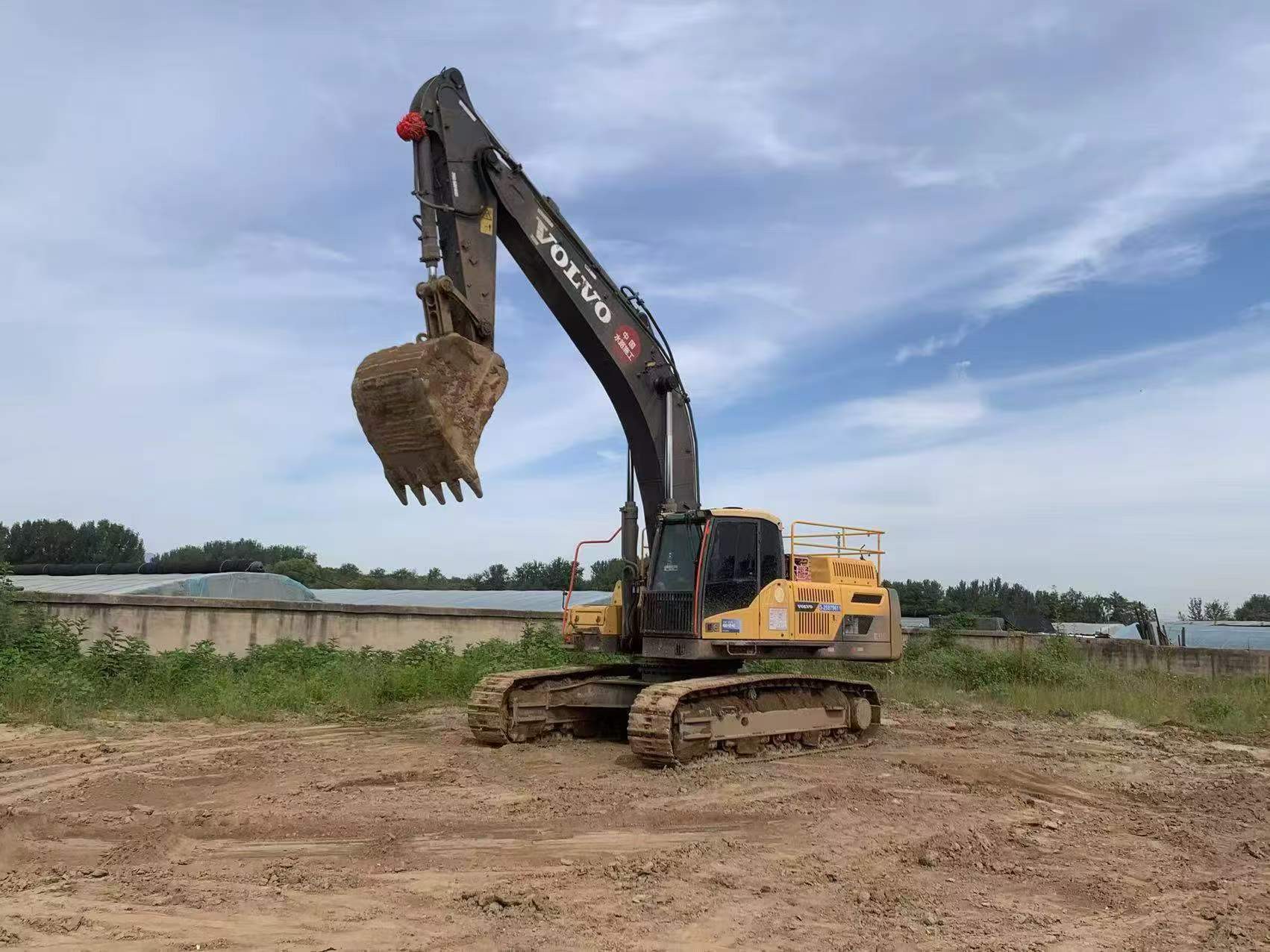

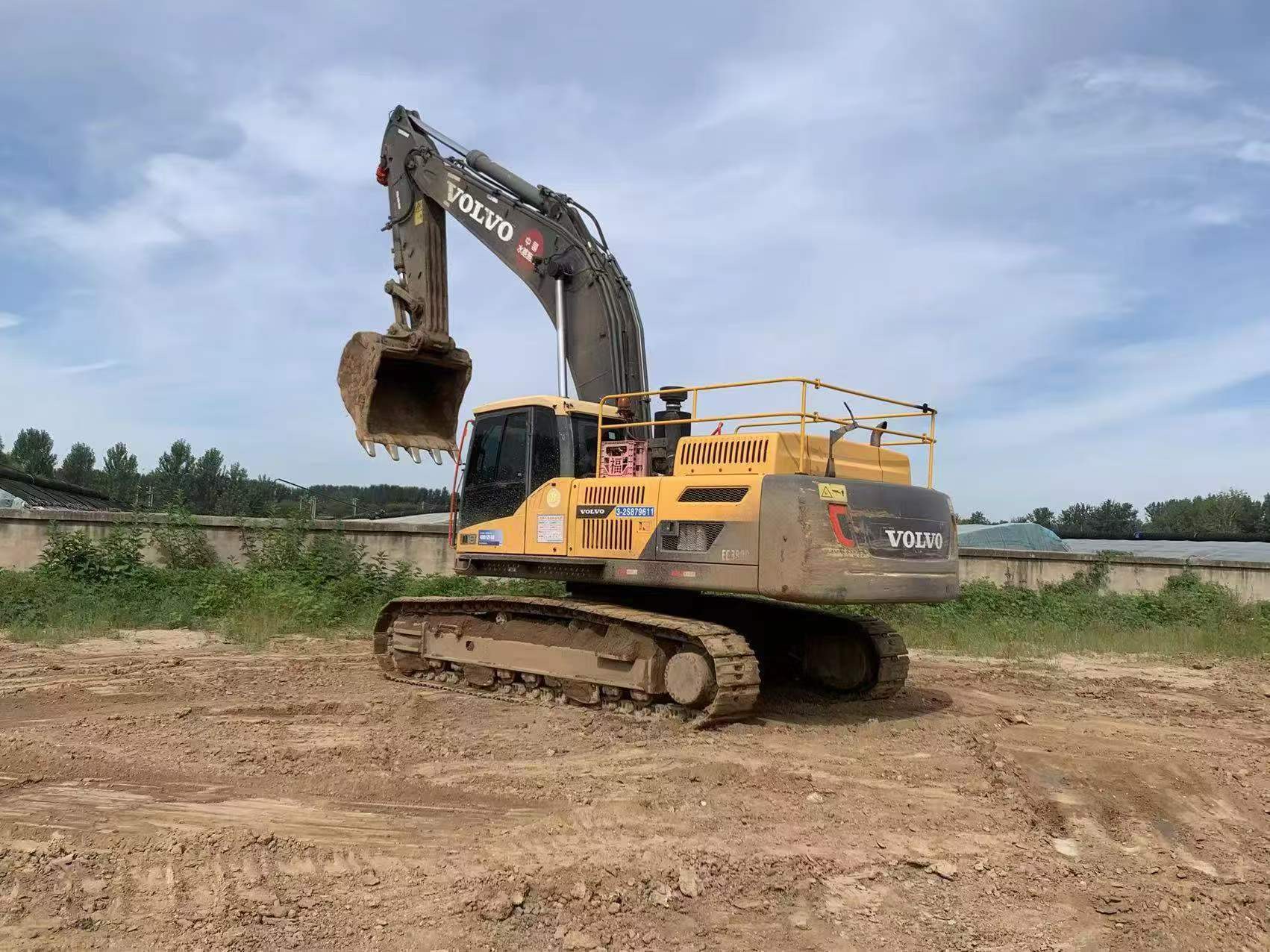

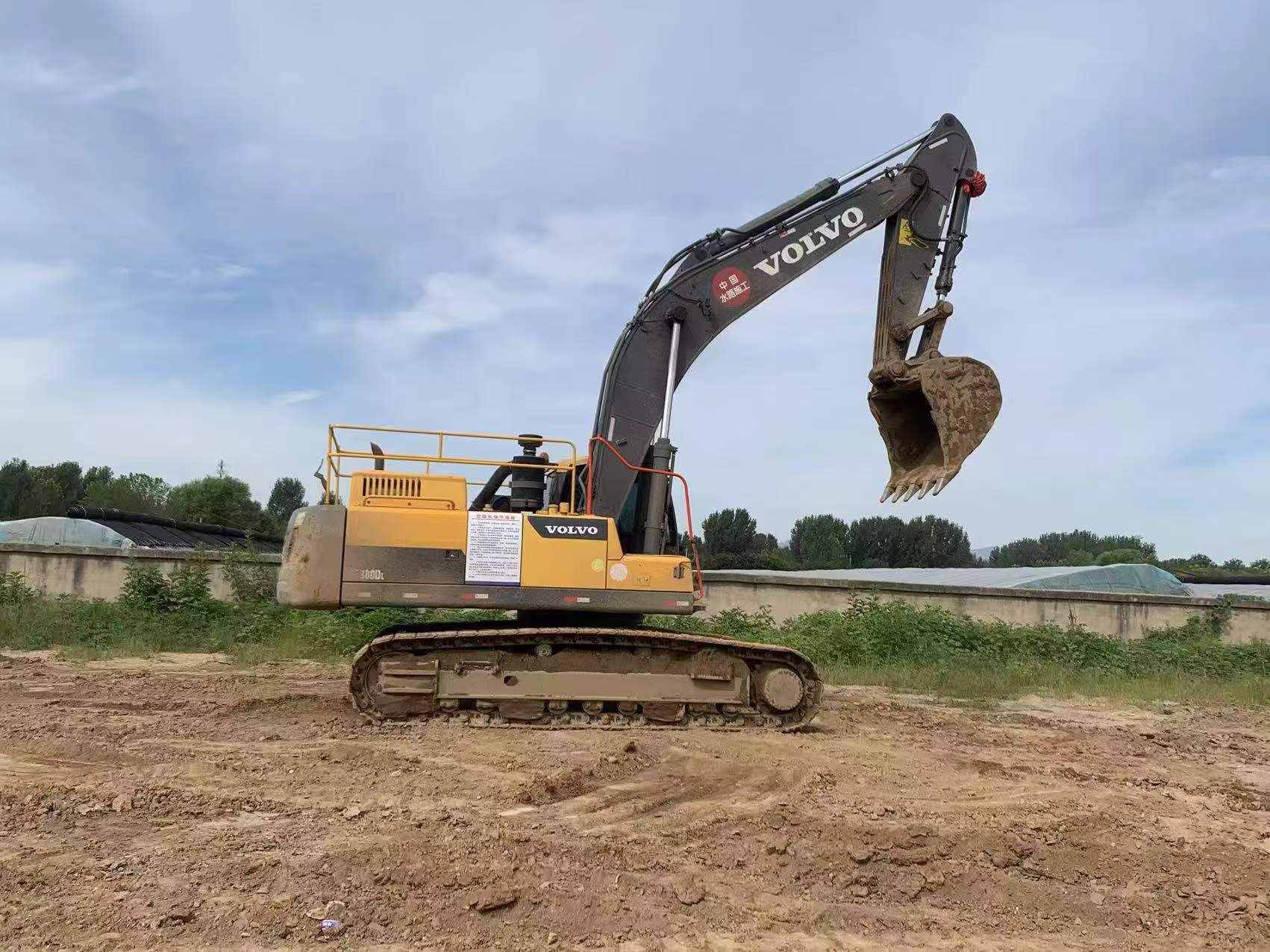

This 2020 Volvo EC380D excavator represents a solid mid-size solution for contractors seeking reliable performance in demanding applications. Currently located in Hebei, China, this machine demonstrates well-maintained condition with responsive hydraulics and strong digging force across its operating range.

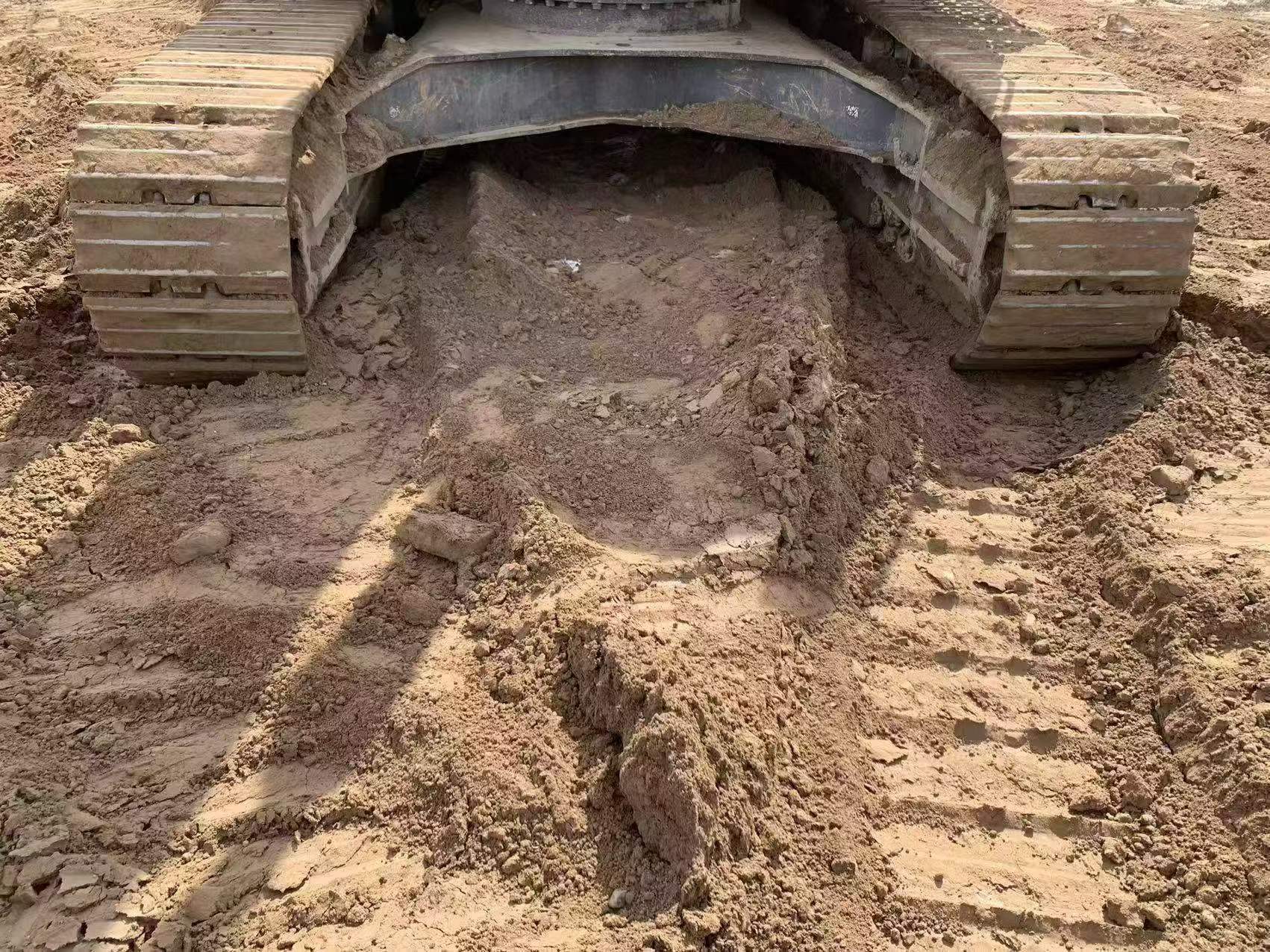

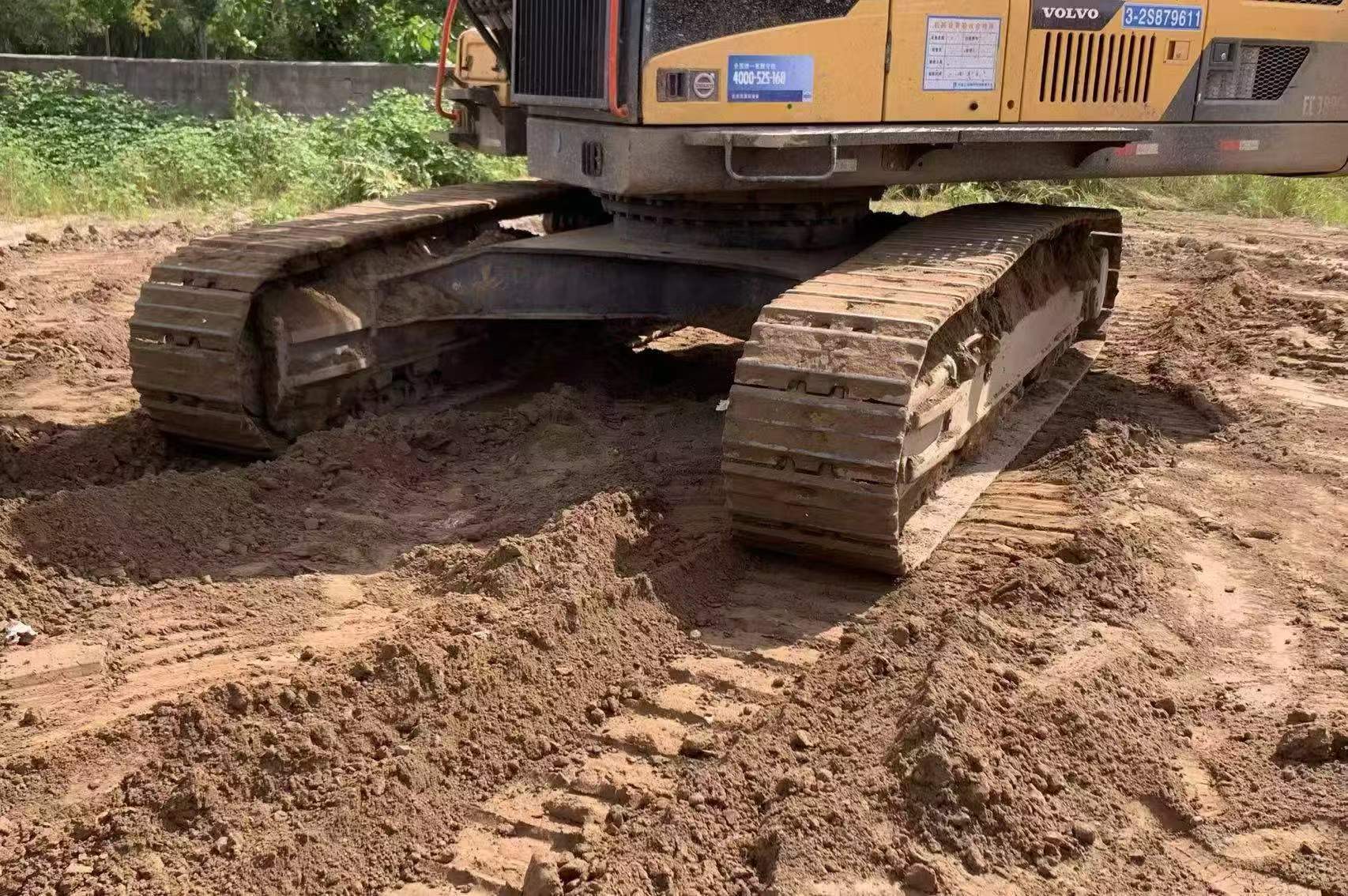

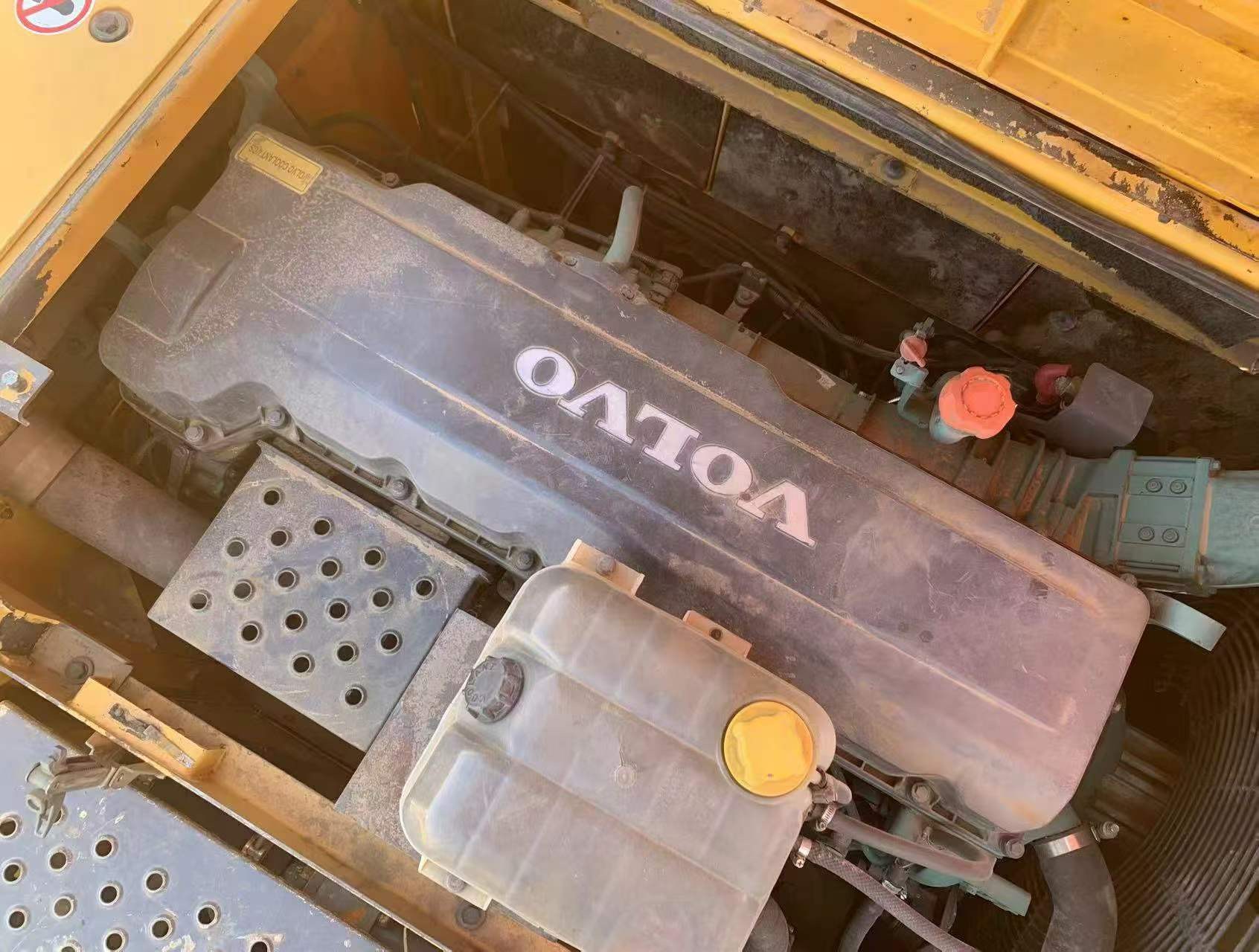

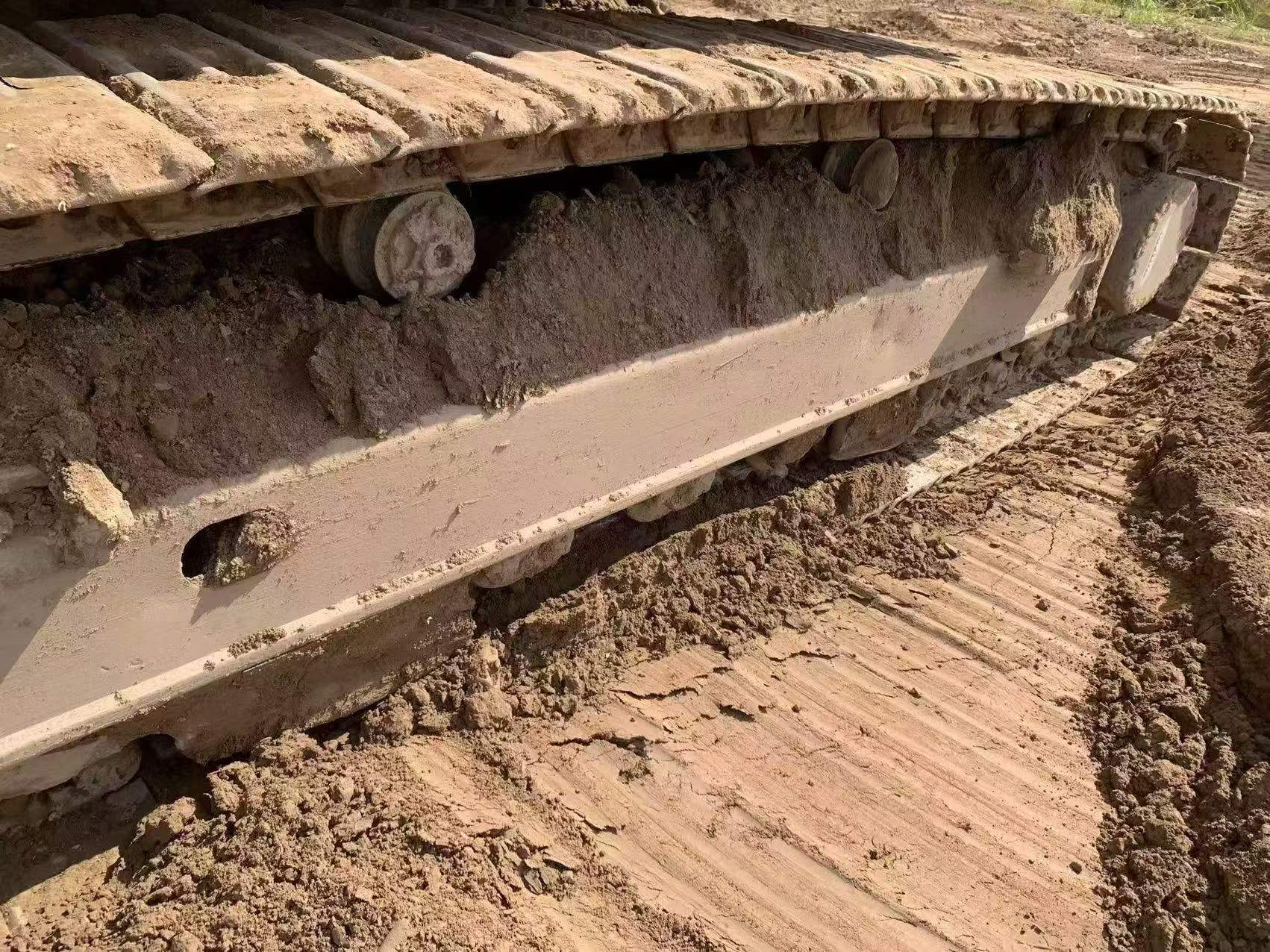

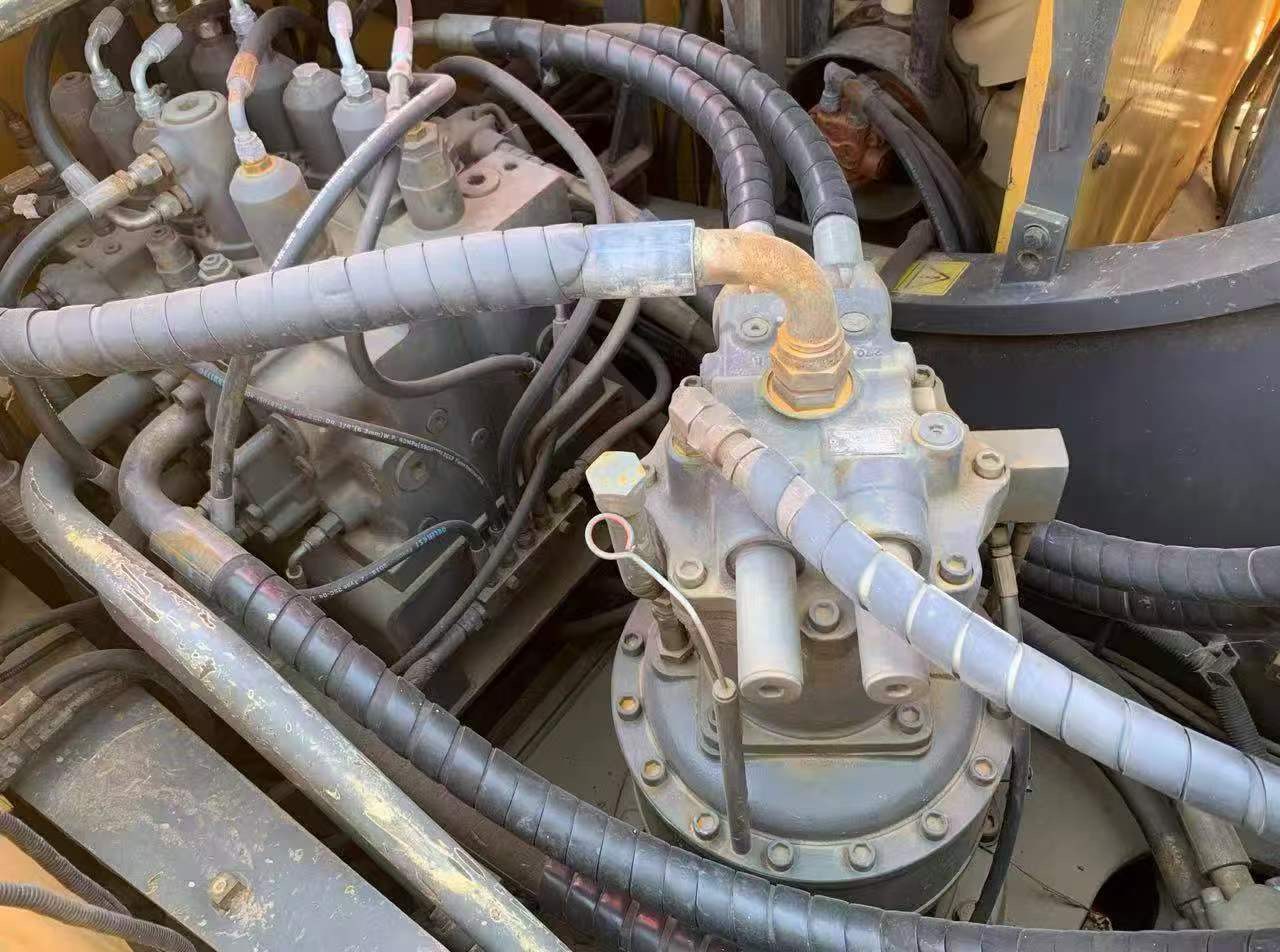

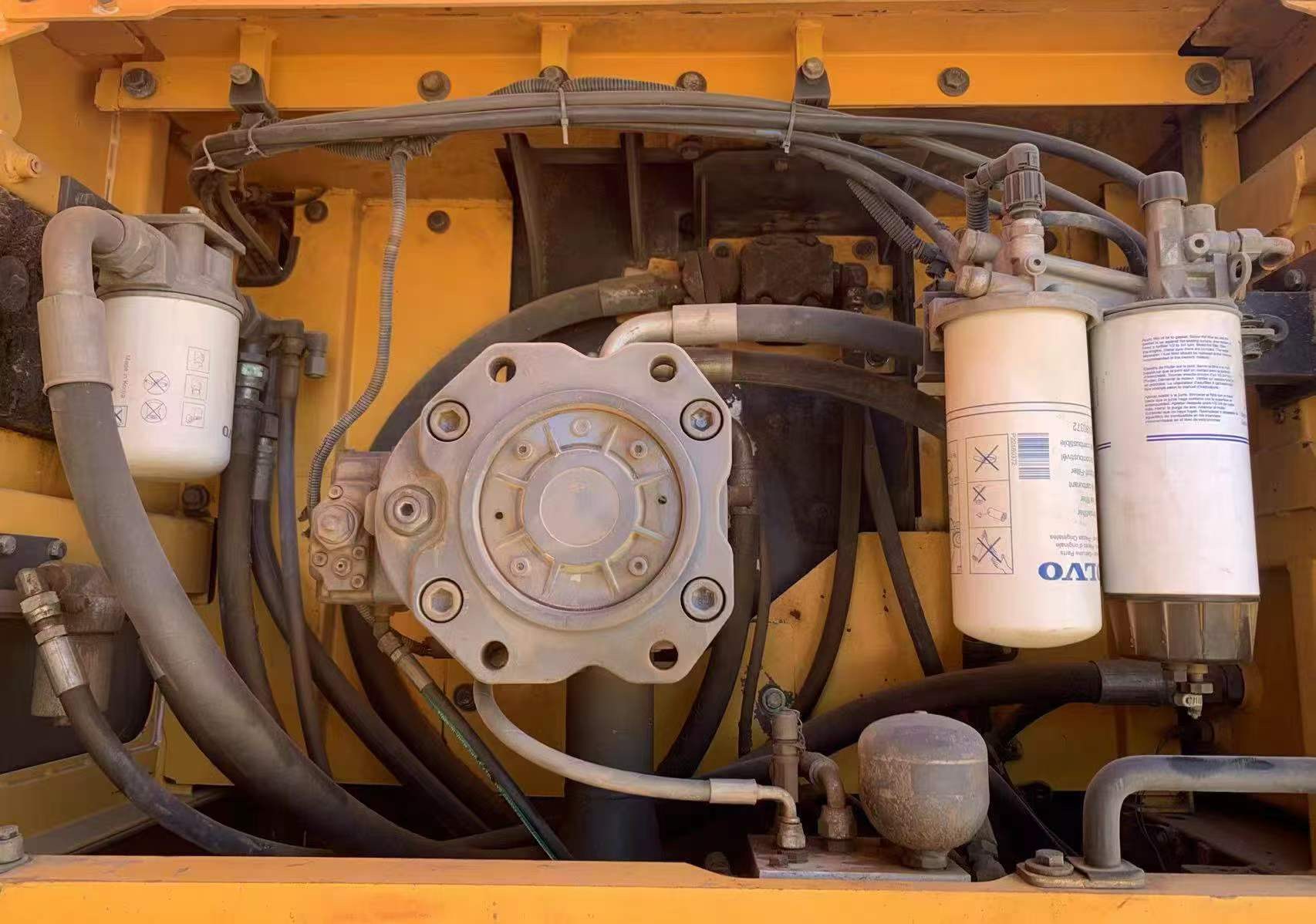

The unit exhibits proper structural integrity throughout the chassis and superstructure. Hydraulic systems operate smoothly with no reported leaks from the engine, pump, or hydraulic motor assemblies. The machine delivers consistent bucket breakout force and maintains stable operation during extended duty cycles.
- Year: 2020
- Make: Volvo
- Model: EC380D
- Location: Hebei, China
- Condition: Well-maintained with no major component leaks
- Hydraulics: Smooth operation with strong digging performance
Suitable for earthmoving, site development, and general excavation work. Available for inspection by qualified buyers.
| Specifications | Value |
|---|---|
| No. | 1139618 |
| Tonnage (tons) | 38 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.53 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
