Product Description

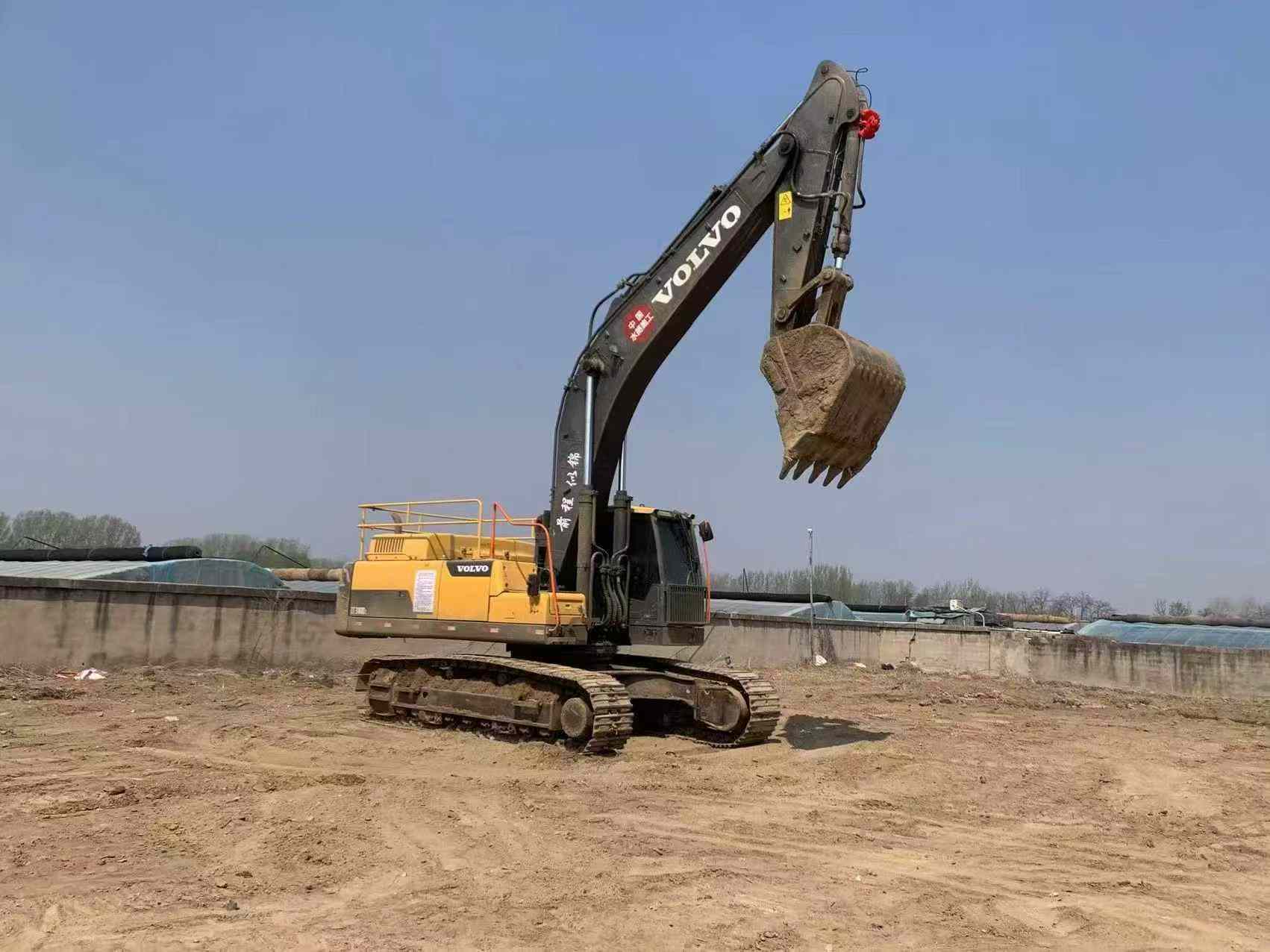

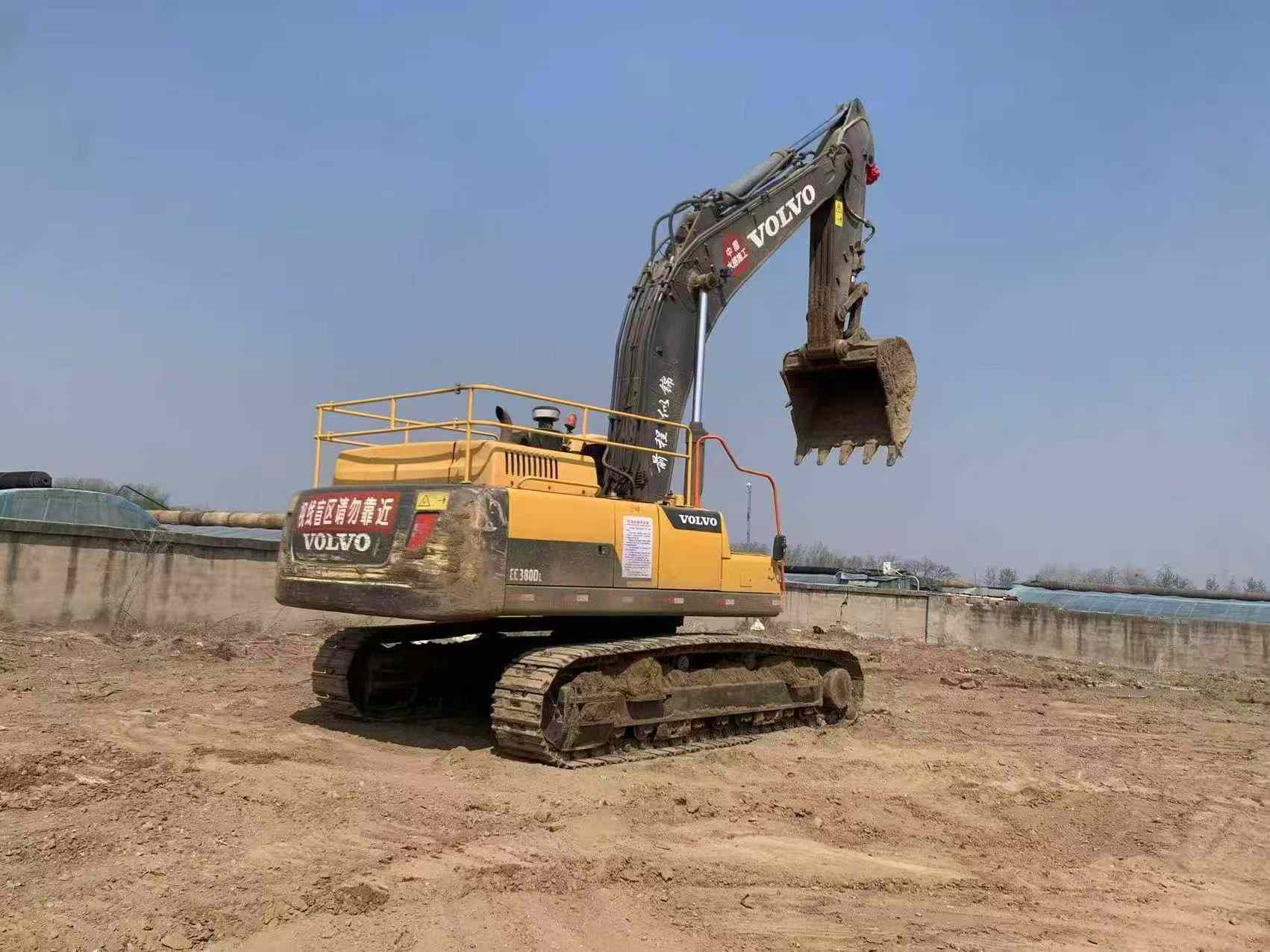

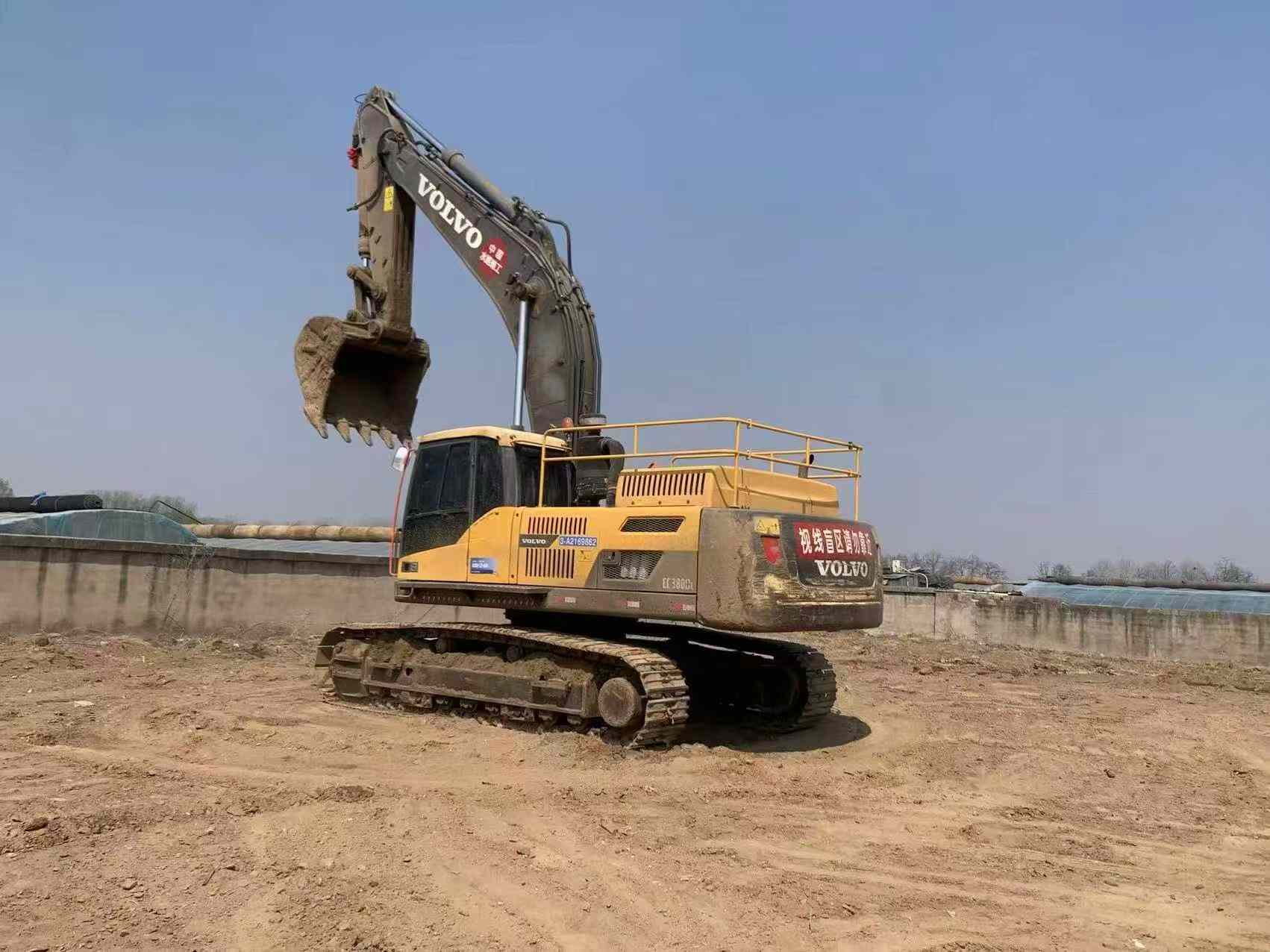

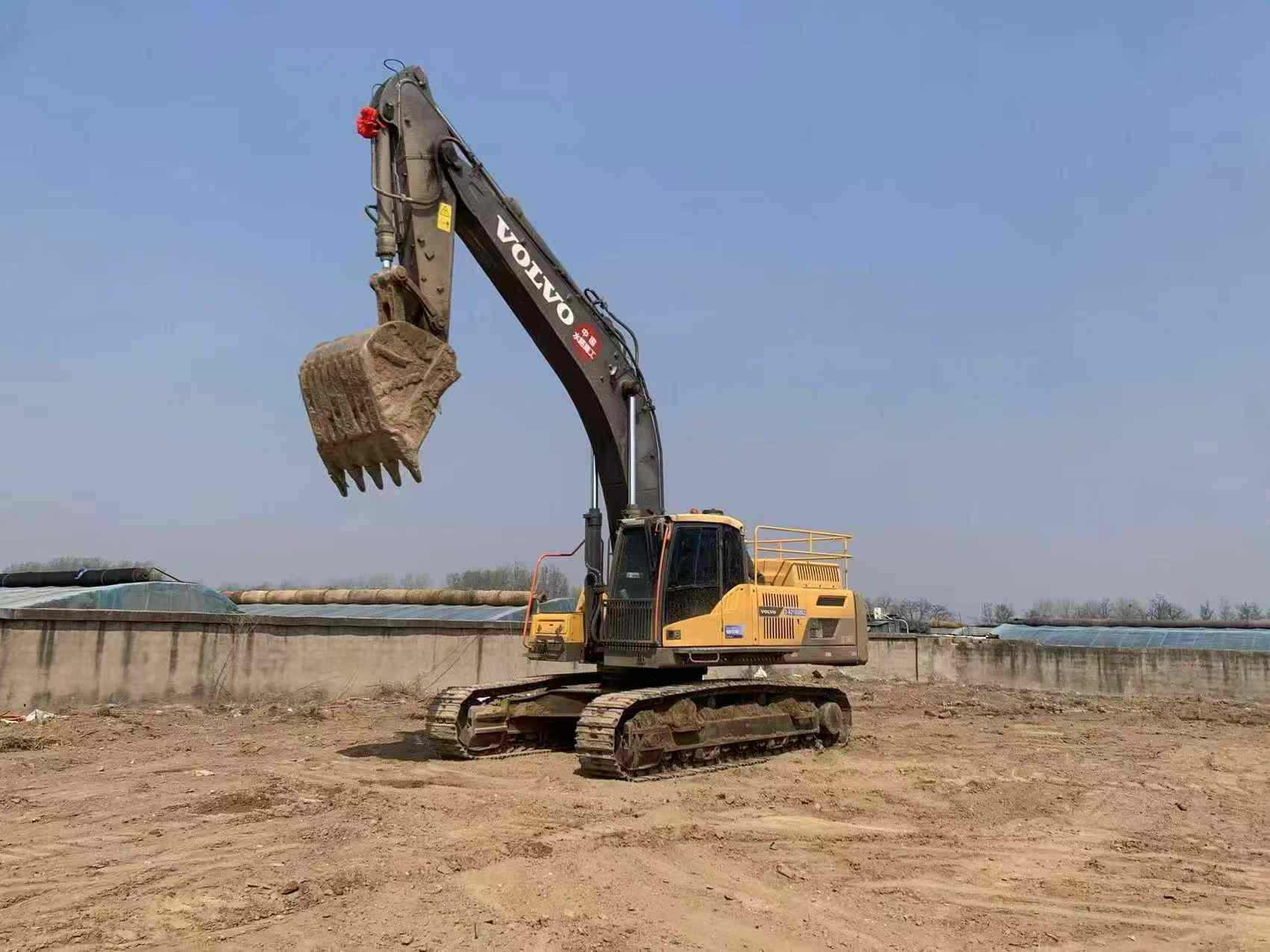

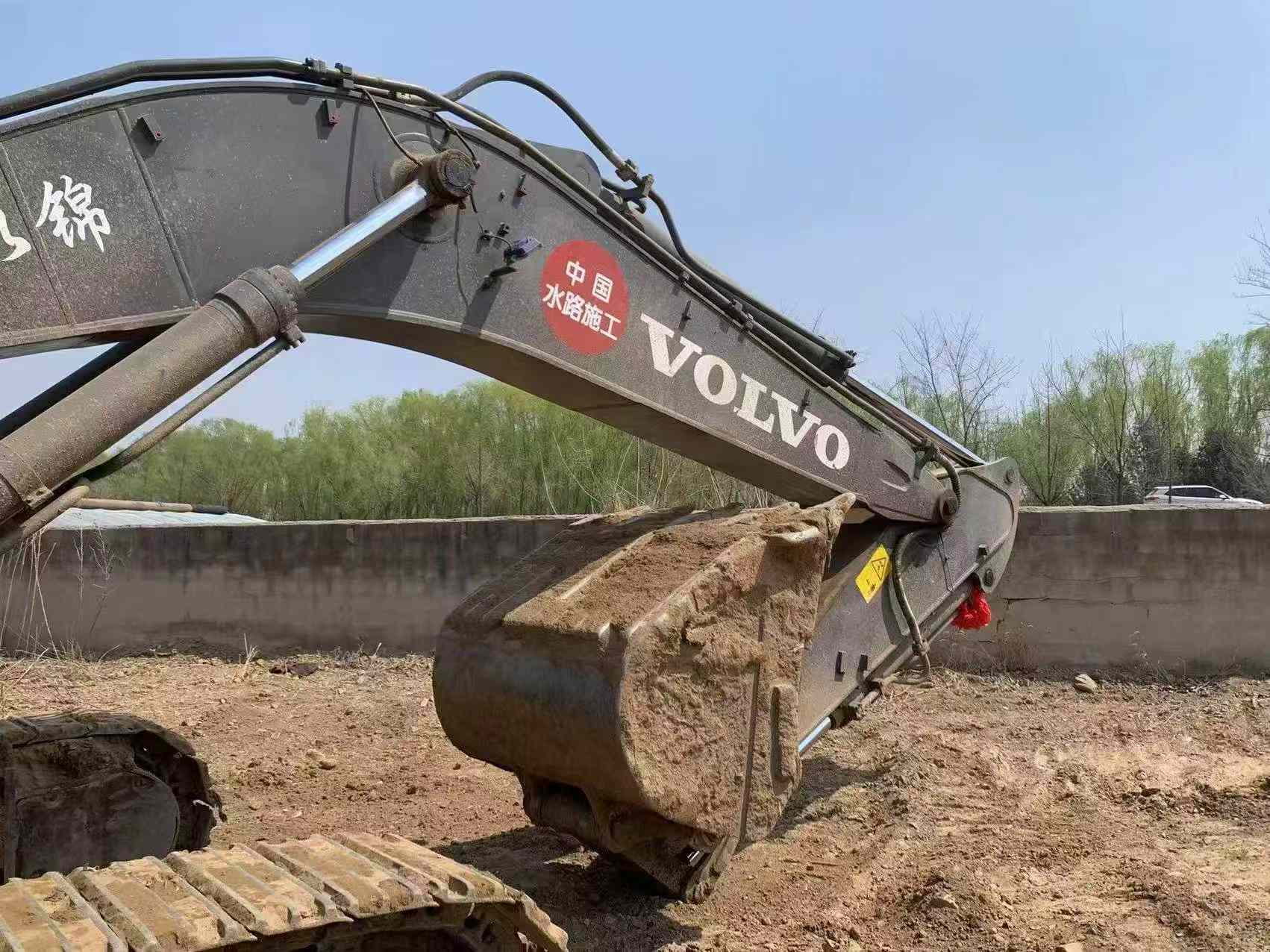

Built for high-output excavation, this 2016 Volvo EC380DL delivers 38 tons of working weight and 215 kW of Volvo D13H power to tackle demanding jobsite conditions. Currently located in Beijing, this crawler excavator features a 1.35-3 m³ bucket capacity with exceptional digging force—221.7 kN bucket force and 144.4 kN arm force—making it capable of handling deep foundation work, mass excavation, and heavy material loading operations.
- Maximum digging depth: 6,850 mm; reach extends to 10,550 mm
- Volvo D13H engine (12.8L, 6-cylinder) meets Tier 4i/EU IIIB emissions
- Dual variable axial piston pumps (300 L/min each) for responsive hydraulic performance
- 600-800 mm track options with 68.1 kPa ground pressure for stable operation
- 10.3 rpm slew speed and 35° climbing ability for versatile positioning

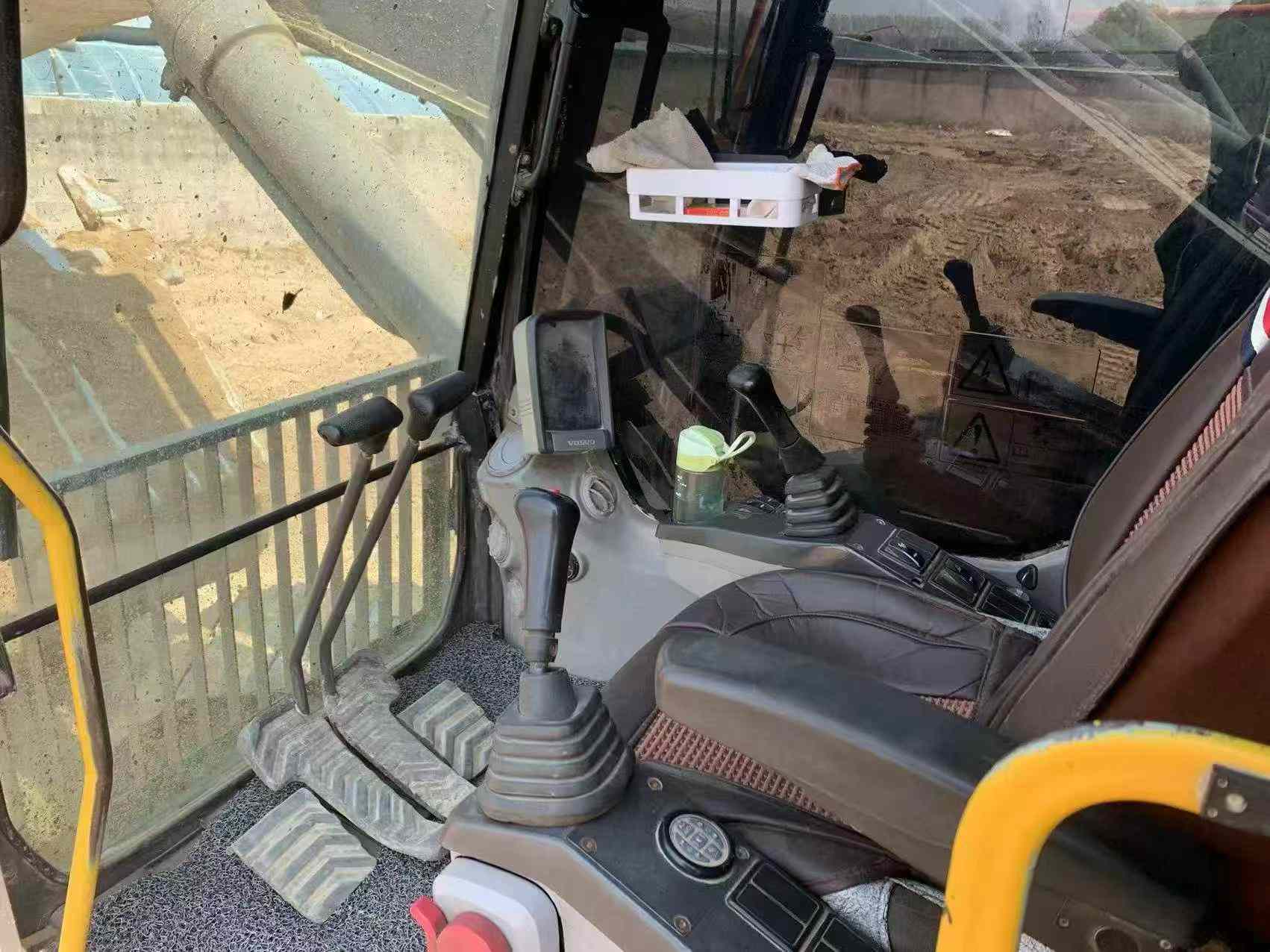

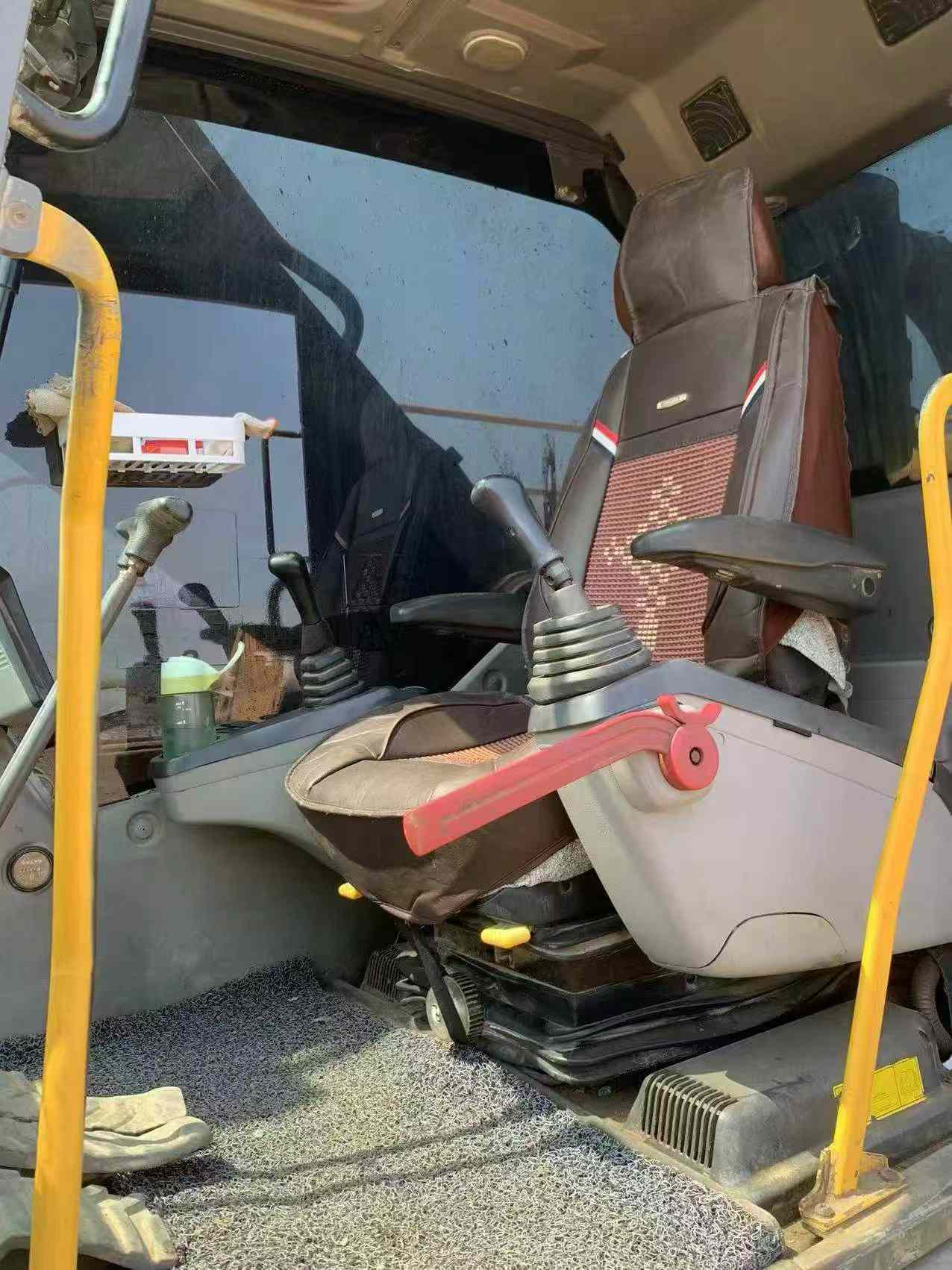

Designed for contractors requiring proven reliability and fuel efficiency, this machine arrives site-ready with comprehensive hydraulic systems and operator comfort features. Ideal for earthmoving, trenching, and demolition projects requiring precision and power.
| Specifications | Value |
|---|---|
| No. | 1049557 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 37800-41100 |
| Bucket capacity (m³) | 1.35-3 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2600 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo Volvo D13H-D |
| Rated power (kw/rpm) | 215/1700 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 131 x 158 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Ground specific pressure (Kpa) | 68.1 (with 600mm track plate) |
| Rotation speed (rpm) | 10.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 221.7 (Standard) /242.7 (Extra) |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.3 |
| Rotary hydraulic motor type | Fixed displacement axial piston motor (with mechanical brake) |
| Type of walking hydraulic motor | Variable axial piston motor (with mechanical brake) |
| Maximum flow of main pump (l/min) | 300 * 2 + 25.5 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Variable axial piston pump ×2+ pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 32.4/35.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 227 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 485 |
| Total transport length (mm) | 11330 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3590 (total height of big arm) |
| Full cab height (mm) | 3197 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4300 |
| Back end turning radius (mm) | 3560 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Maximum digging radius (mm) | 10550 |
| Maximum digging depth (mm) | 6850 |
| Maximum excavation height (mm) | 10170 |
| Maximum unloading height (mm) | 7 090 |
| Maximum vertical digging depth (mm) | 5350 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |
