Product Description

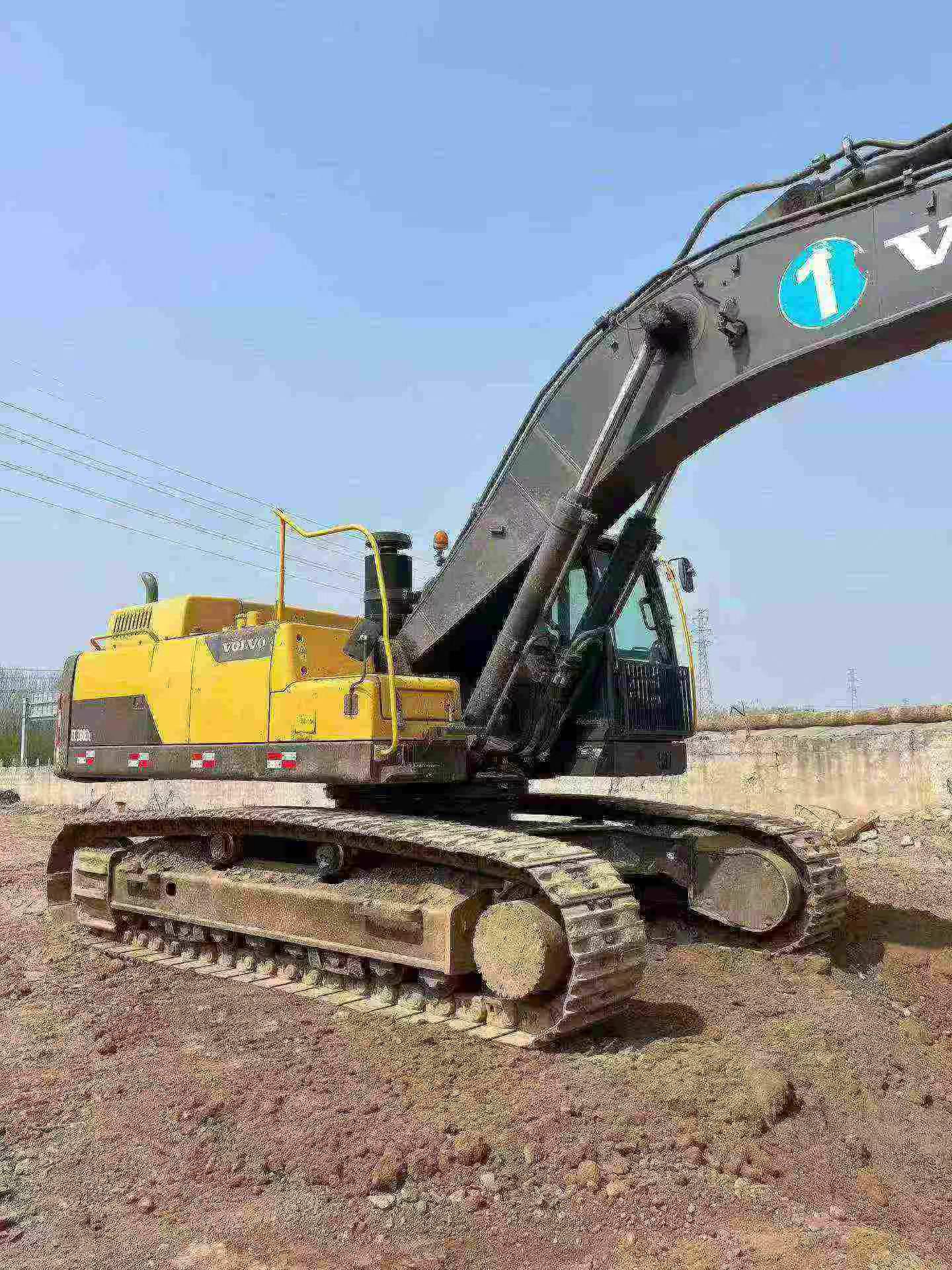

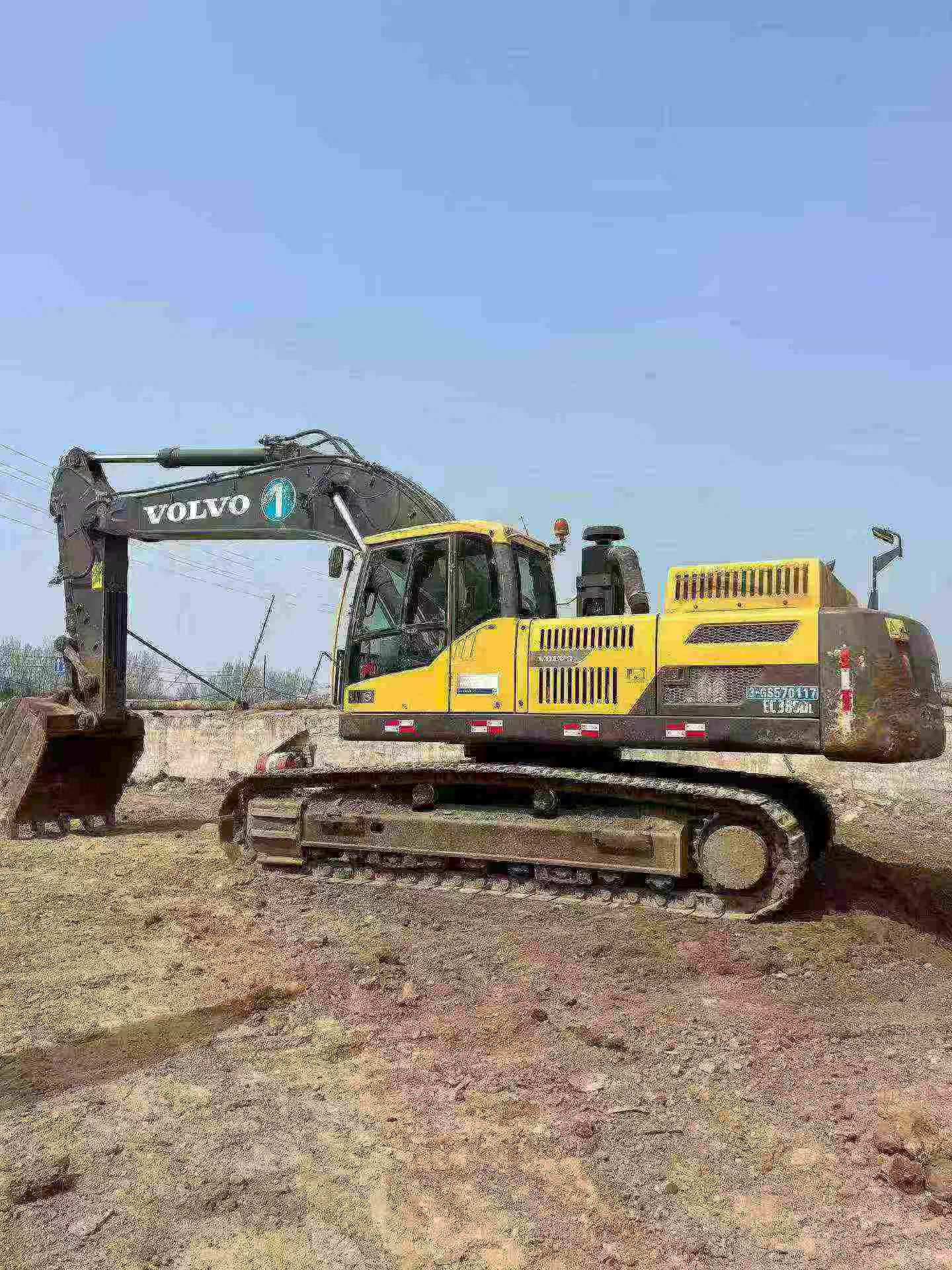

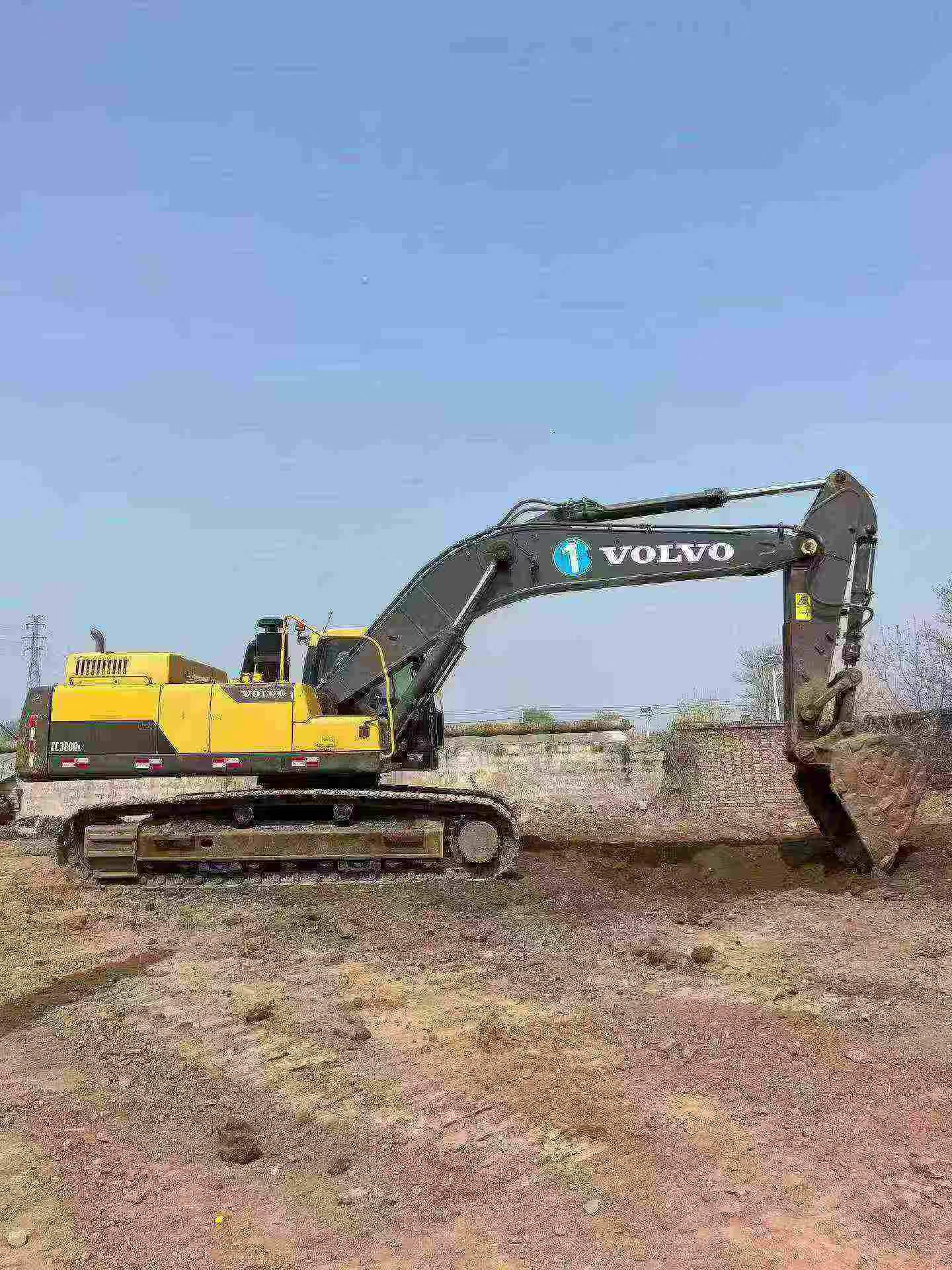

2019 Volvo EC380DL hydraulic excavator available from Hebei, China. This machine features China Stage III emissions compliance and comes with original undercarriage components including track chains and sprockets that have not been replaced, indicating well-maintained operation throughout its service life.
- Year: 2019
- Model: Volvo EC380DL
- Location: Hebei Province, China
- Emissions: China Stage III
- Undercarriage: Original chains and sprockets

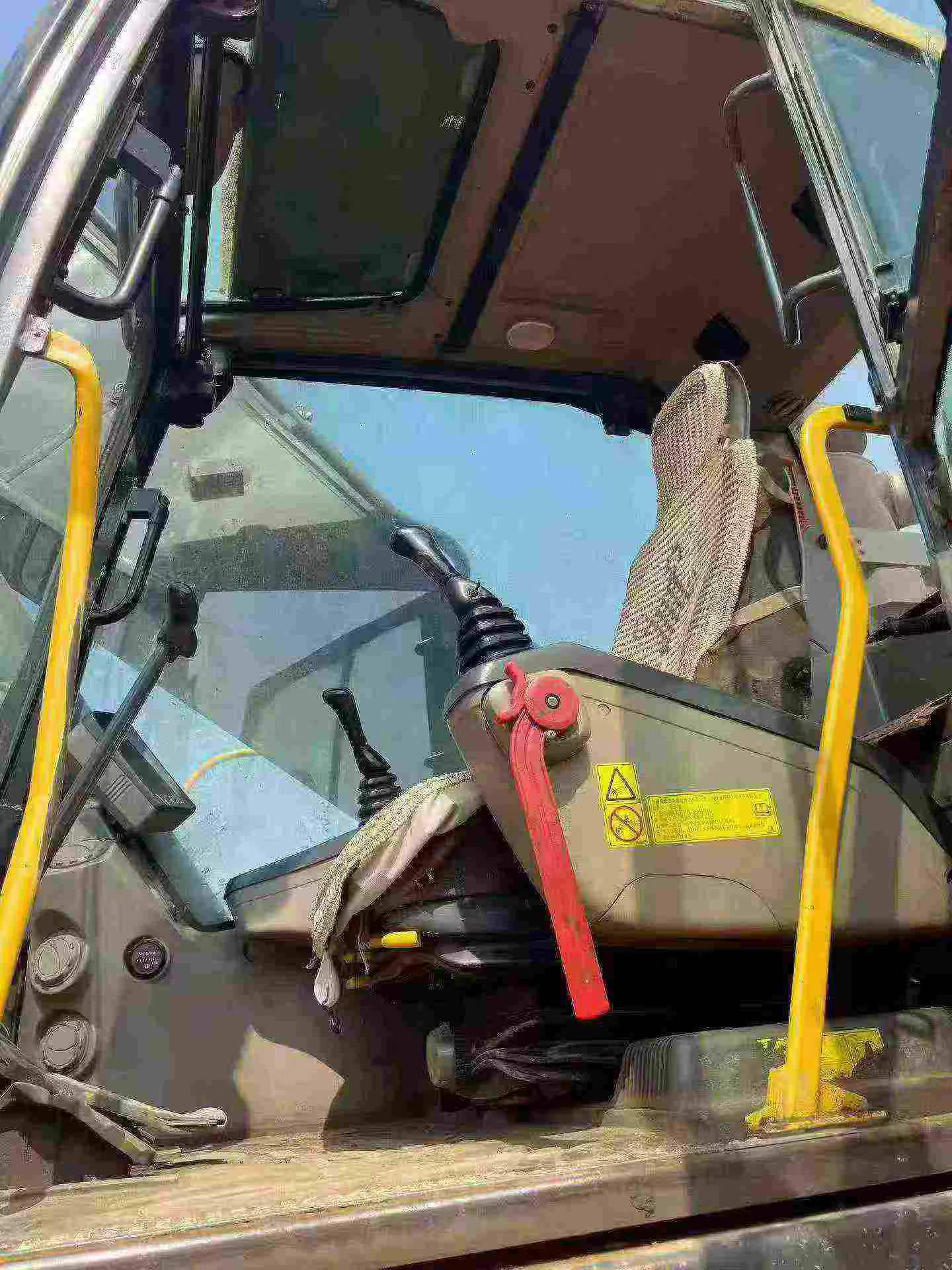

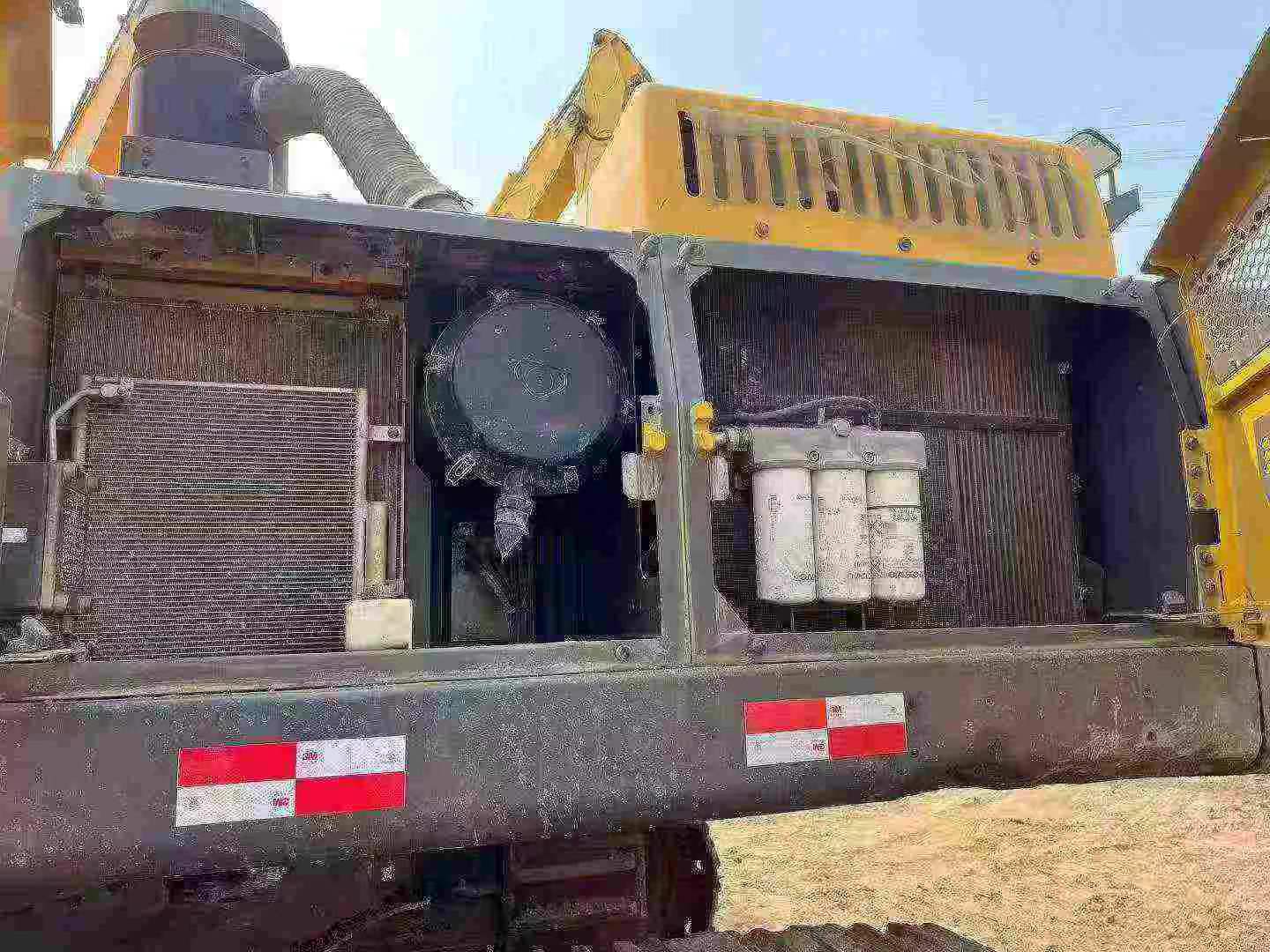

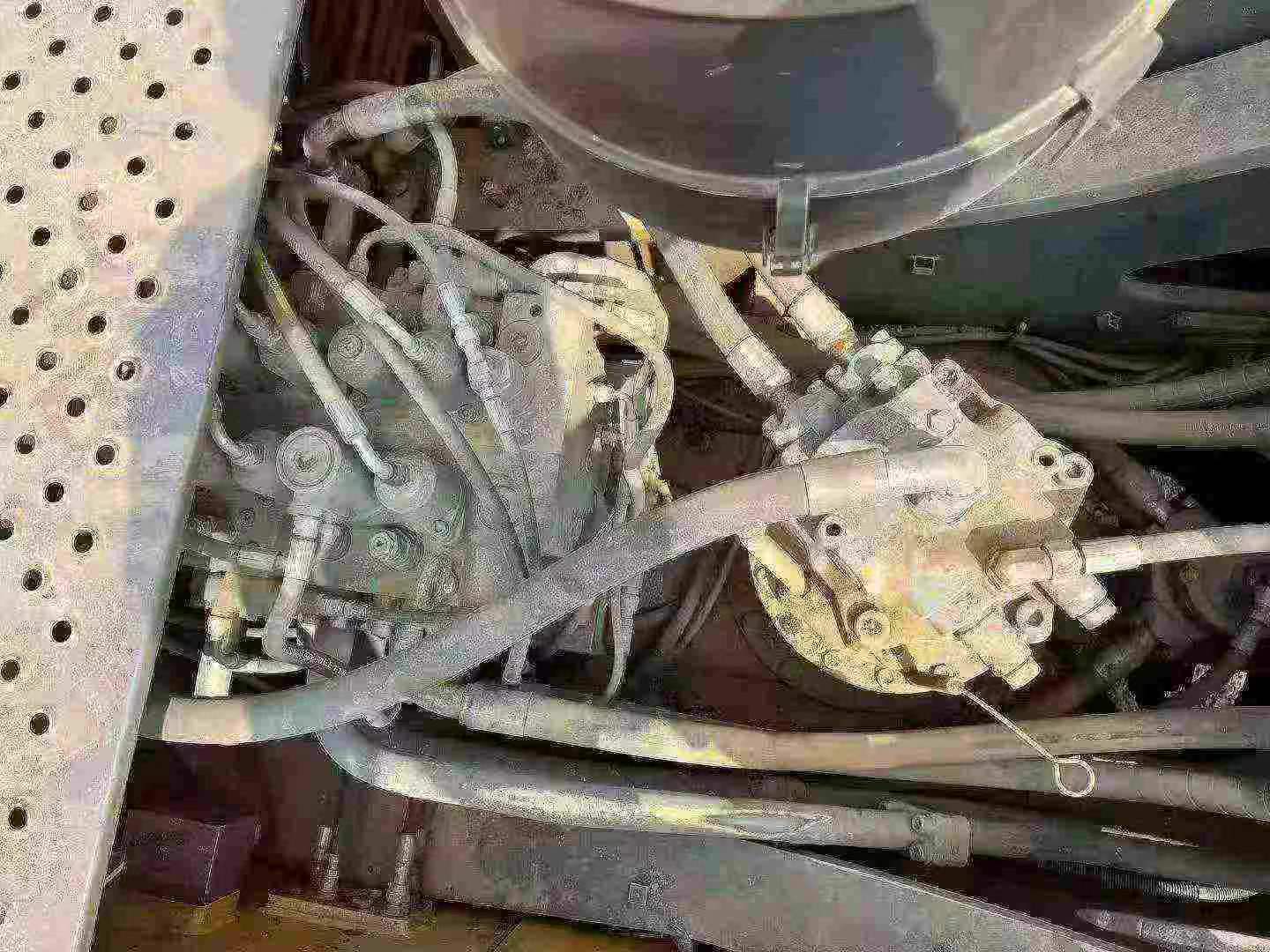

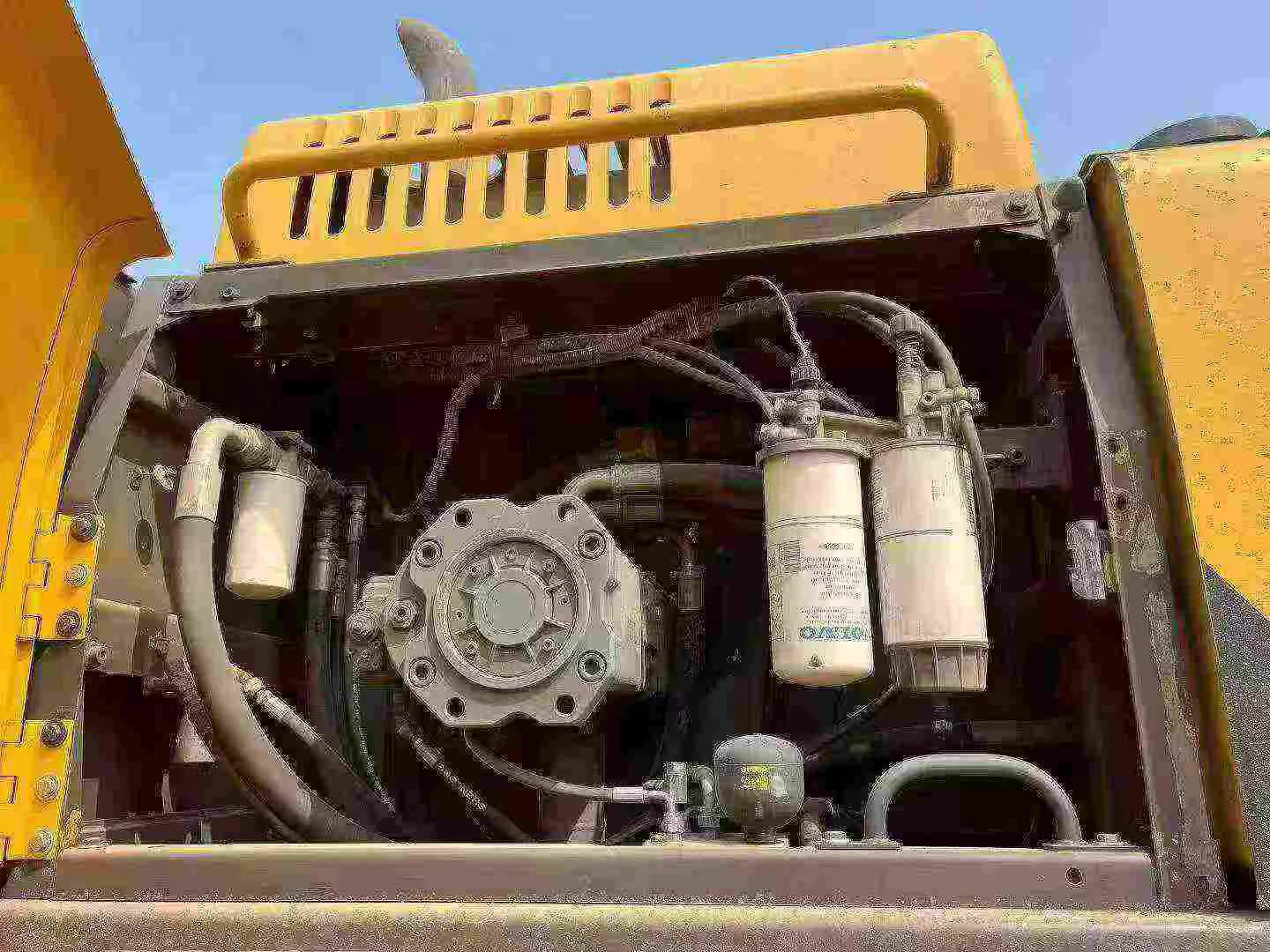

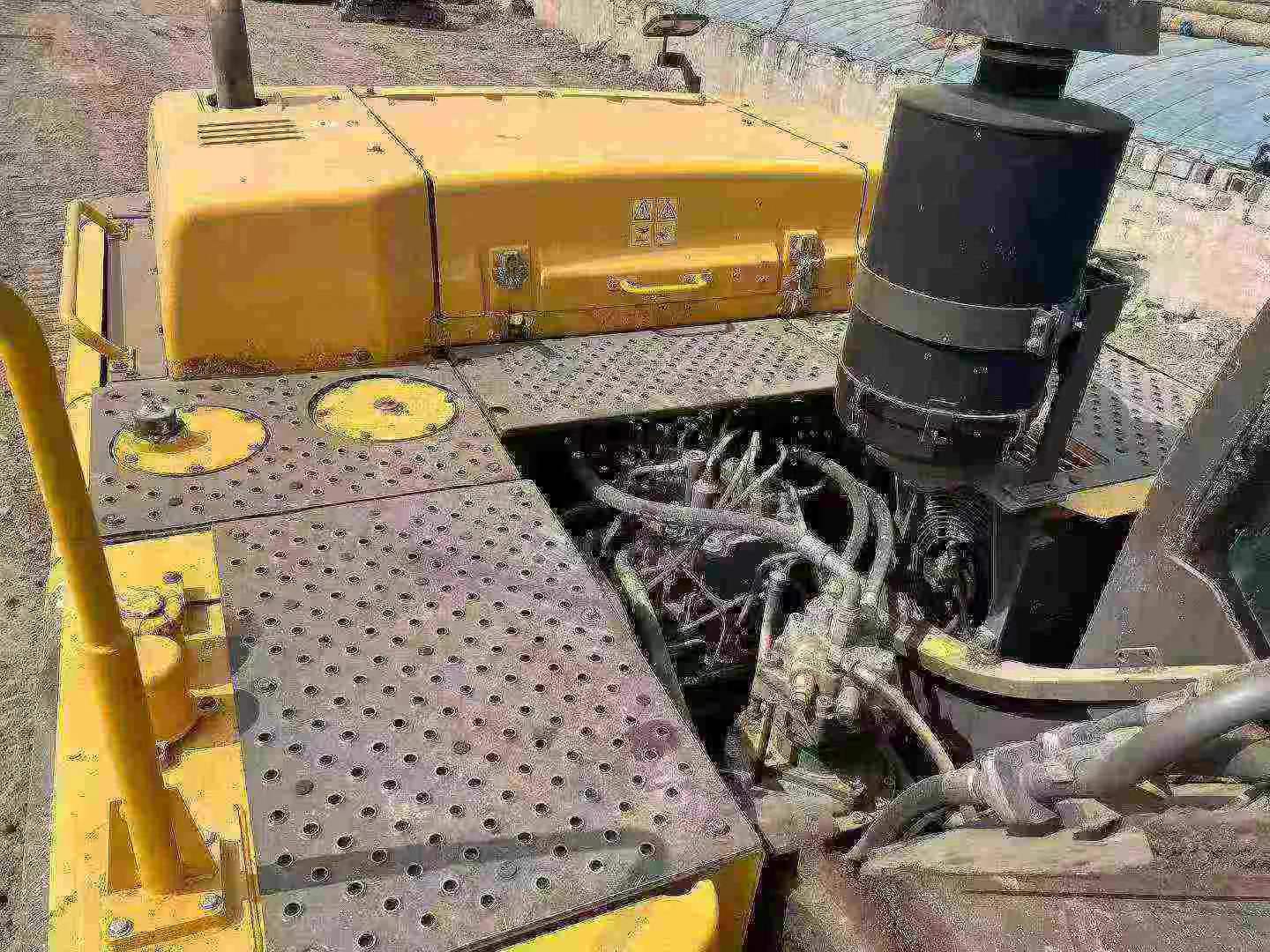

The excavator's major components show no oil leakage, and both heating and air conditioning systems are fully operational. This unit represents a cost-effective opportunity for buyers seeking reliable heavy equipment with verified operational history. Suitable for construction, mining, and earthmoving applications requiring a 38-ton class excavator.
| Specifications | Value |
|---|---|
| No. | 1093700 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 37800-41100 |
| Bucket capacity (m³) | 1.35-3 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2600 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

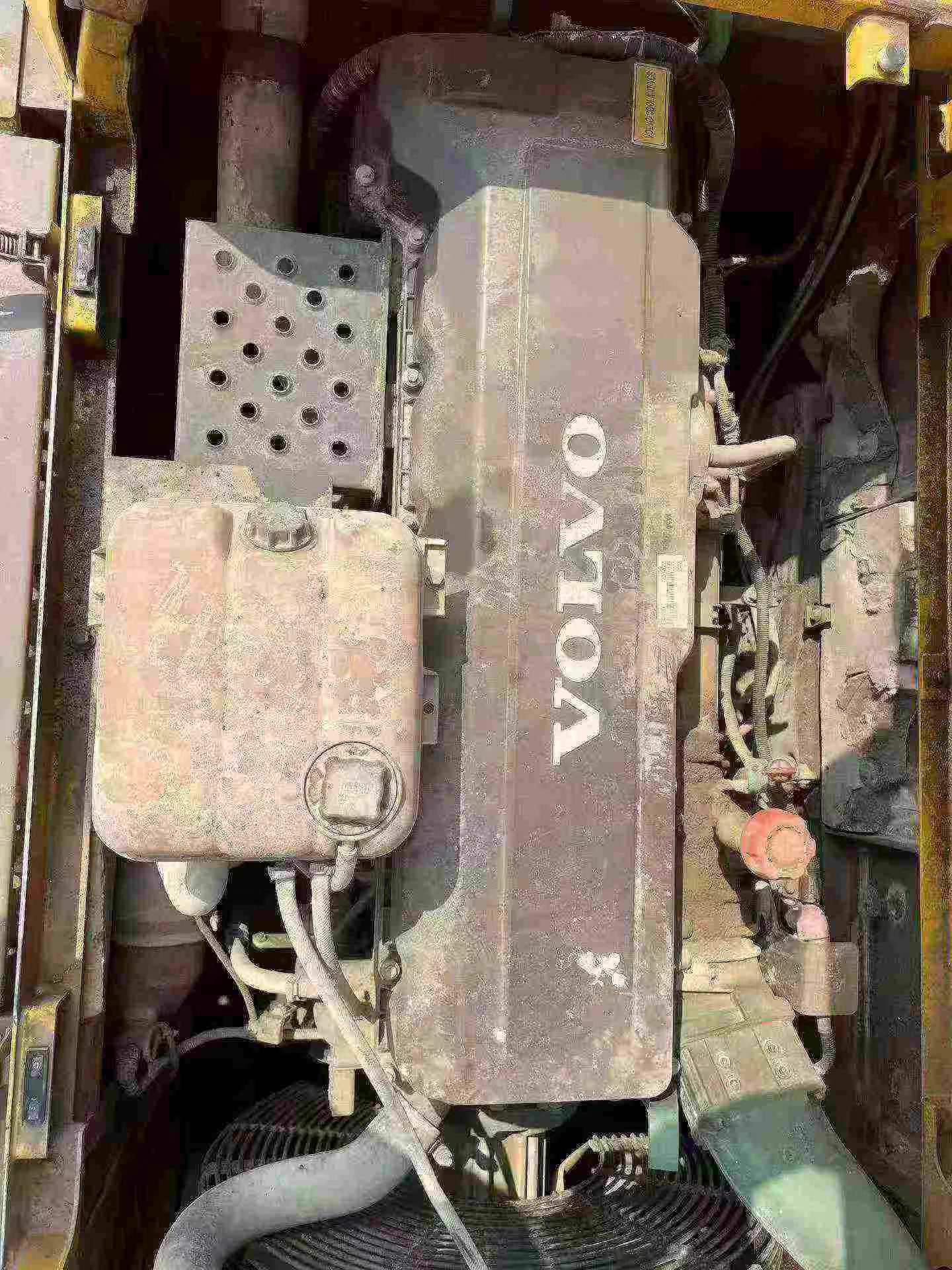

| Engine type | Volvo Volvo D13H-D |
| Rated power (kw/rpm) | 215/1700 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 131 x 158 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Ground specific pressure (Kpa) | 68.1 (with 600mm track plate) |
| Rotation speed (rpm) | 10.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 221.7 (Standard) /242.7 (Extra) |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.3 |
| Rotary hydraulic motor type | Fixed displacement axial piston motor (with mechanical brake) |
| Type of walking hydraulic motor | Variable axial piston motor (with mechanical brake) |
| Maximum flow of main pump (l/min) | 300 * 2 + 25.5 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Variable axial piston pump ×2+ pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 32.4/35.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 227 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 485 |
| Total transport length (mm) | 11330 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3590 (total height of big arm) |
| Full cab height (mm) | 3197 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4300 |
| Back end turning radius (mm) | 3560 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Maximum digging radius (mm) | 10550 |
| Maximum digging depth (mm) | 6850 |
| Maximum excavation height (mm) | 10170 |
| Maximum unloading height (mm) | 7 090 |
| Maximum vertical digging depth (mm) | 5350 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |
