Product Description
With a working weight ranging from 36,000 to 43,000 kg and a bucket capacity of 0.83 to 2.53 m³, the Volvo EC380E stands as a robust and reliable excavator. Located in 山东省菏泽市, this 2021 model is powered by a Volvo D13J engine, delivering 306 kW at 1700 rpm and a maximum torque of 1692 N.m. Designed for durability, it boasts a maximum tractive force of 276.5 kN and can climb up to 35°. The machine features a travel speed of 3.4/5.3 km/h and a turning torque of 130.5 Nm, ensuring efficient operation on various terrains. Built to last, the EC380E has proven its worth with a strong track record in demanding environments. Its hydraulic system, with a total capacity of 500 L, supports consistent performance, while the fuel tank holds 620 L for extended operational hours.
| Specifications | Value |
|---|---|
| No. | 993026 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36000-43000 |
| Bucket capacity (m³) | 0.83-2.53 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

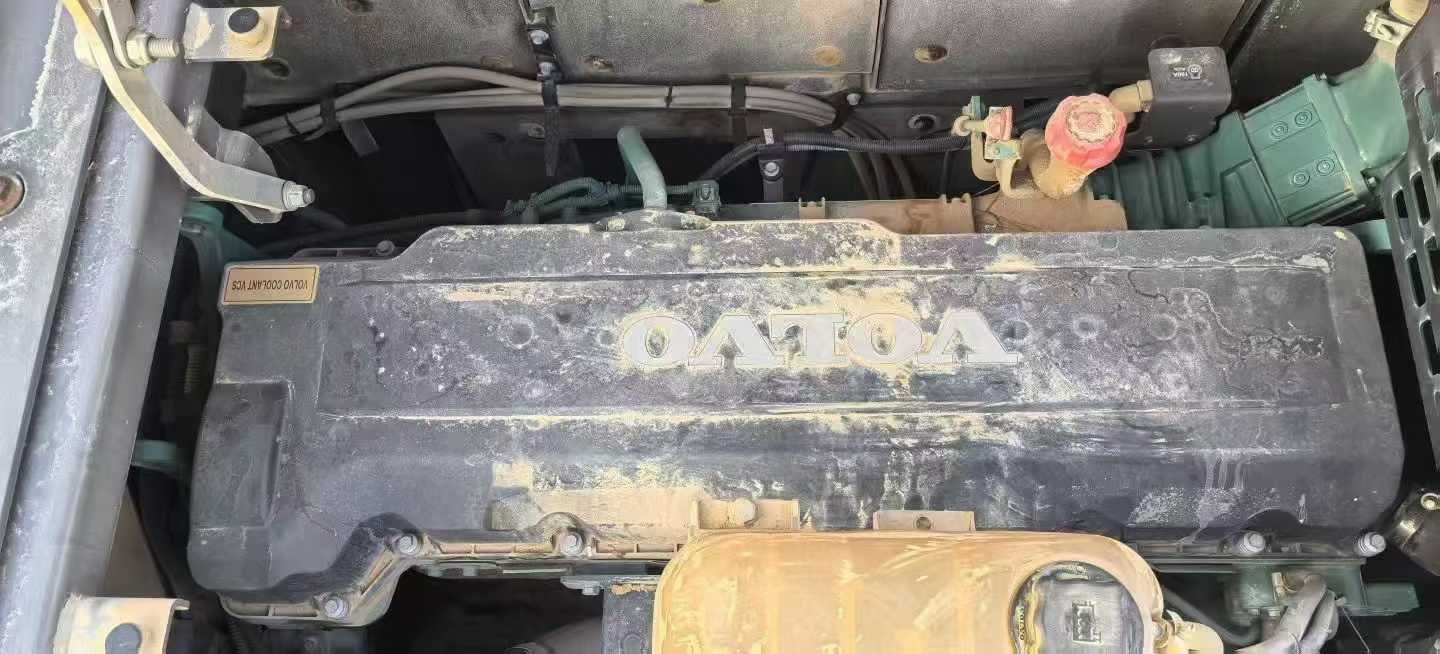

| Engine type | Volvo D13J |
| Rated power (kw/rpm) | 306/1700 |
| Maximum torque (N.m) | 1692/1275 |
| Displacement (L) | 12.8 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 35° (70%) |
| Maximum tractive force (kN) | 276.5 |
| Travel speed (km/h) | 3.4/5.3 |
| Turning torque (Nm) | 130.5 |
| Maximum flow of main pump (l/min) | 32.6 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Working Hydraulic Circuit (Mpa) | 32.4/35.3 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 225 |
| Engine Oil changes (L) | 42 |
| Hydraulic System (L) | 500 |
| Total transport length (mm) | 11060 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3510 |
| Full cab height (mm) | 3220 |
| Counterweight ground clearance (mm) | 1155 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4115 |
| Back end turning radius (mm) | 3600 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4240 |
| Maximum digging radius (mm) | 10540 |
| Maximum digging depth (mm) | 7390 |
| Maximum excavation height (mm) | 10035 |
| Maximum unloading height (mm) | 6945 |
| Maximum vertical digging depth (mm) | 5275 |
| Maximum excavation radius of stop surface (mm) | 10075 |
| Maximum effective digging depth (mm) | 6180 |
