Product Description

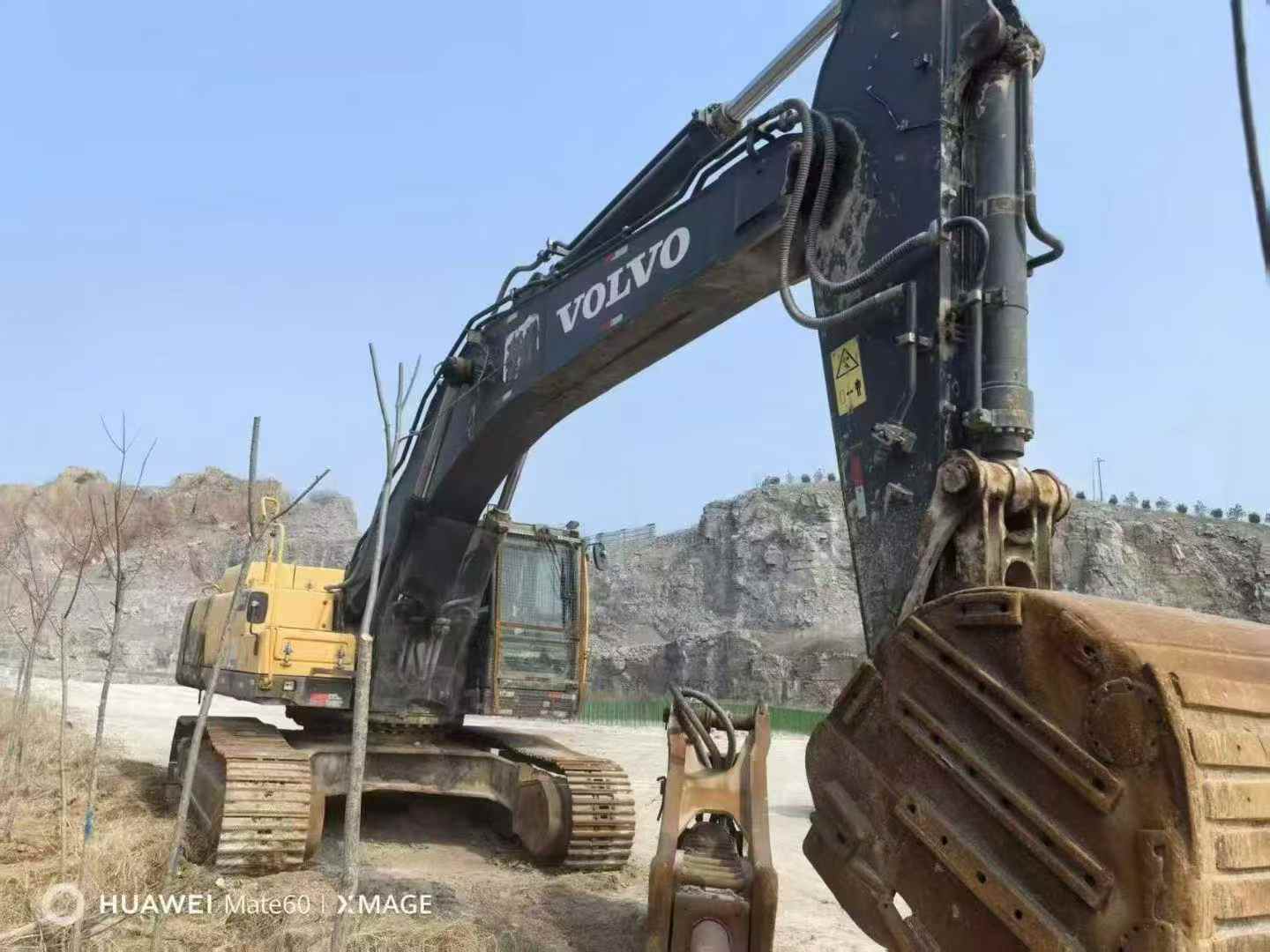

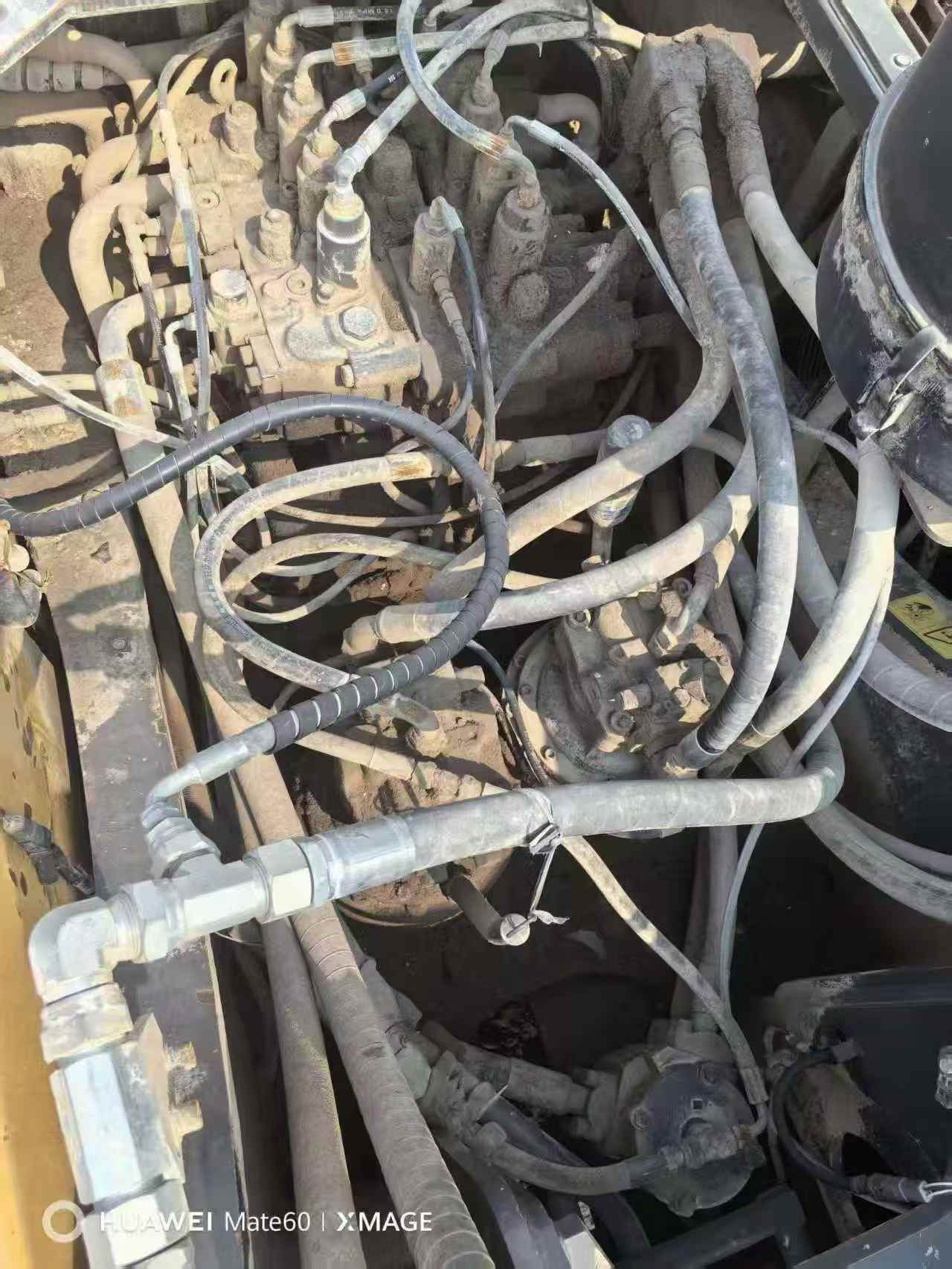

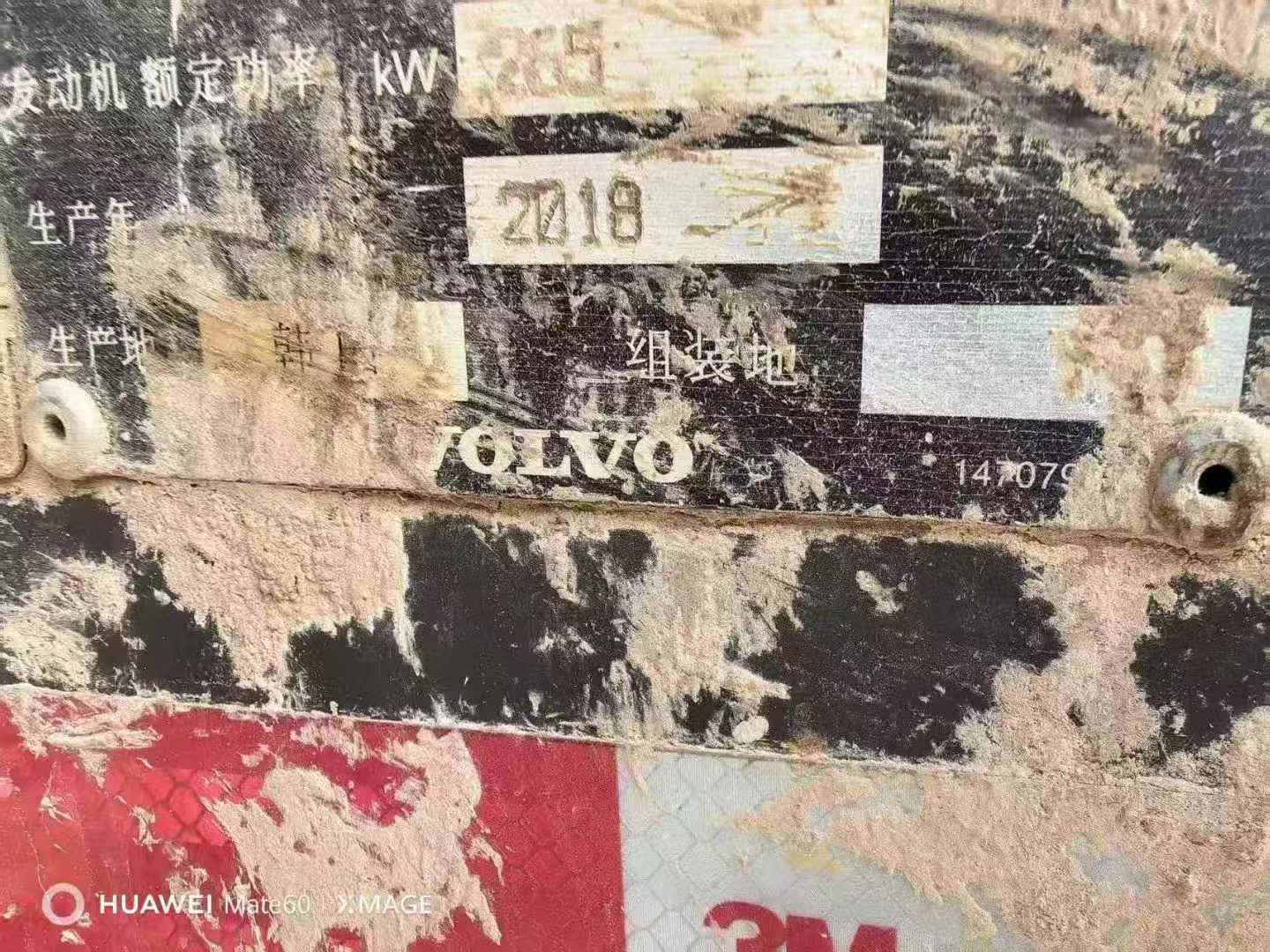

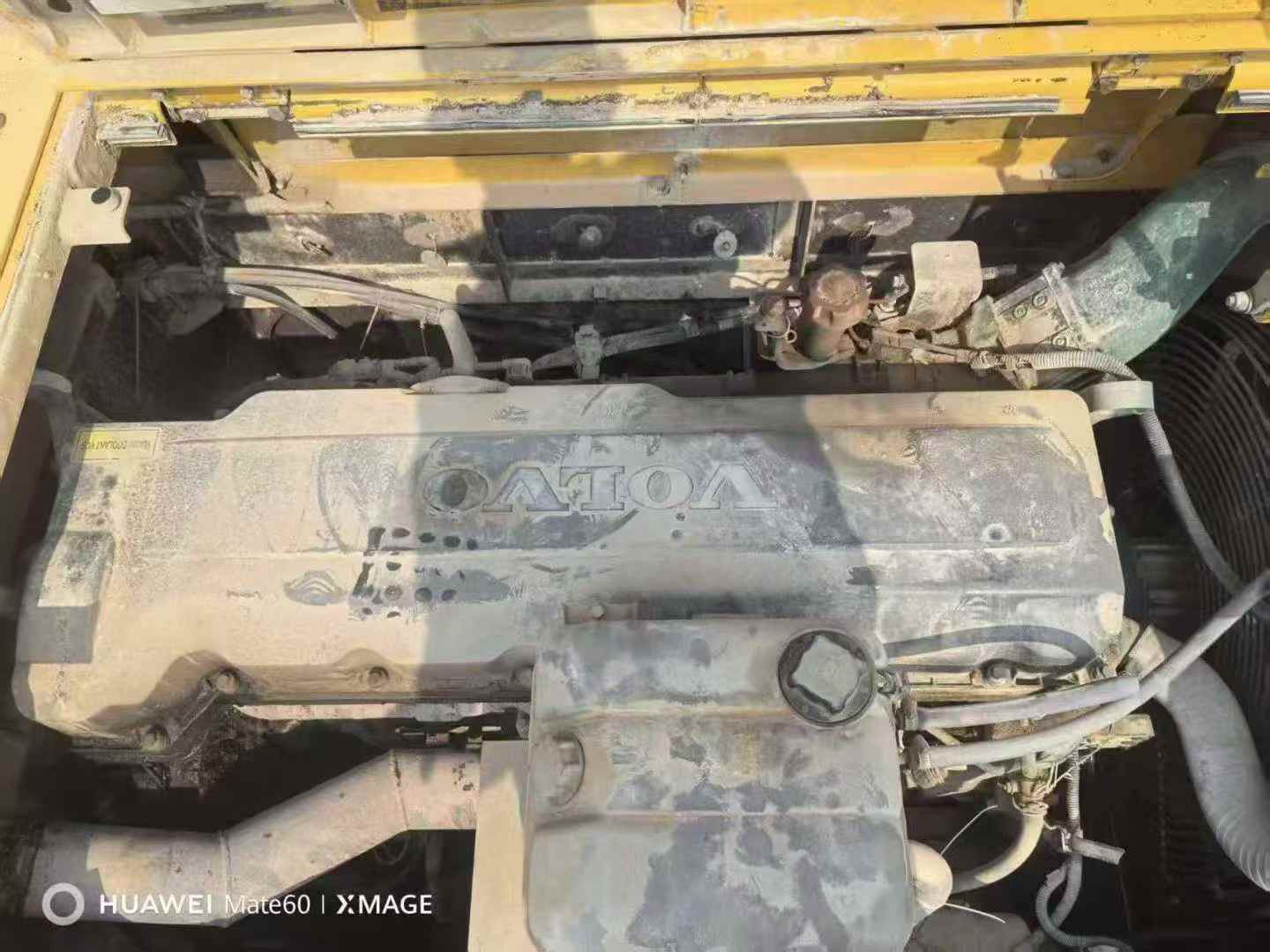

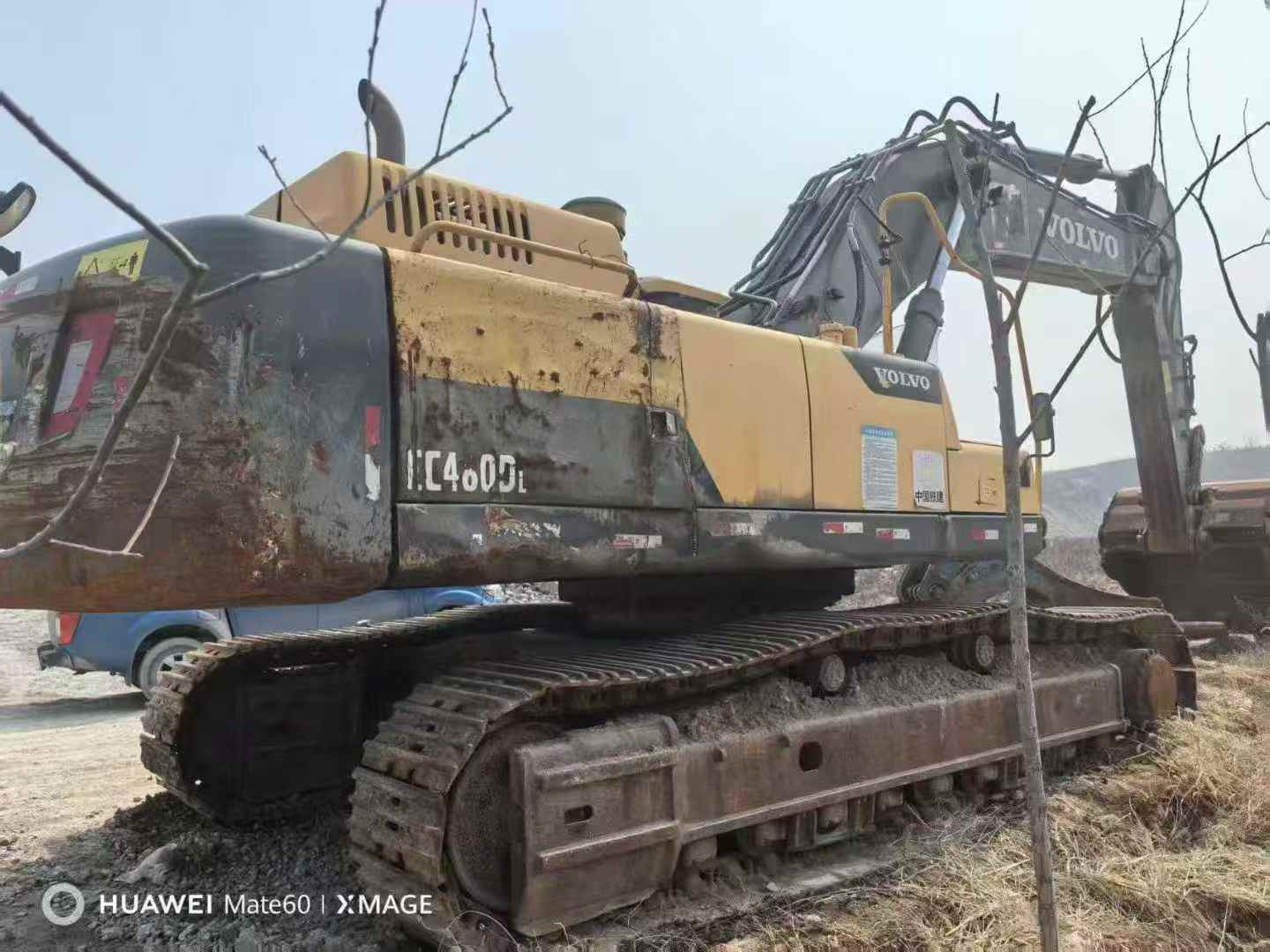

Built for operators who demand precision and endurance, the Volvo EC480D stands as a 48-ton excavator engineered to perform in the most demanding site conditions. Sourced from Shandong and manufactured to meet European Stage IIIB emission standards, this 2018 machine pairs a 245 kW Volvo D13-T4(A) water-cooled 6-cylinder engine with a dual-piston hydraulic pump system delivering 2×358 L/min — giving operators responsive, consistent power through every cycle.
Inside the cab, visibility and control are central to the EC480D's design philosophy. The operator benefits from a commanding sightline over a 12,040 mm maximum digging radius, while intuitive hydraulic controls manage a bucket digging force of up to 310.6 kN with minimal fatigue. A 35% climbing capability and 73.7 kPa ground pressure ensure stable footing across varied terrain.
- Working weight: 47,900–50,500 kg | Bucket capacity: 1.77–3.80 m³
- Maximum digging depth: 7,720 mm | Maximum digging height: 11,010 mm
- Travel speed: 3.1–5.2 km/h | Rotation speed: 8.8 rpm
- Fuel tank: 685 L | Hydraulic system capacity: 525 L
- Transport dimensions: 12,140 mm (L) × 3,367 mm (W) × 3,790 mm (H)
| Specifications | Value |
|---|---|
| No. | 1035503 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 47,900-50,500 |
| Bucket capacity (m³) | 1.77-3.80 |
| Boom length (mm) | 7 |
| Rod length (mm) | 4.8 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo VOLVO_D13-T4(A) |
| Rated power (kw/rpm) | 245 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 131*158 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.8 |
| Working form | Meets European Stage IIIB emission requirements |
| Ground specific pressure (Kpa) | 73.7(700mm) |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 285/310.6 |
| Rod digging force (kN) | 251 |
| Travel speed (km/h) | 3.1-5.2 |
| Rotary hydraulic motor type | Piston type |
| Type of walking hydraulic motor | Piston type |
| Maximum flow of main pump (l/min) | 2*358 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.8 |
| Main pump type | Piston type |
| Working Hydraulic Circuit (Mpa) | 32.4/35.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*165*1330 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*190*1850 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*165*1590 |
| Fuel Tank (L) | 685 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 525 |
| Total transport length (mm) | 12140 |
| Total transport width (mm) | 3367 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1385 |
| Minimum ground clearance (mm) | 746 |
| Back end turning radius (mm) | 3800 |
| Total track length (mm) | 5370 |
| Track gauge (mm) | 2890(Extended) |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3590(Extended) |
| Track ground length (mm) | 4370 |
| Maximum digging radius (mm) | 12040 |
| Maximum digging depth (mm) | 7720 |
| Maximum excavation height (mm) | 11010 |
| Maximum unloading height (mm) | 7640 |
| Maximum vertical digging depth (mm) | 7110 |
| Maximum excavation radius of stop surface (mm) | 11810 |
| Boom turning Angle (left/right °) | 183 |
| Maximum effective digging depth (mm) | 7570 |
