Product Description

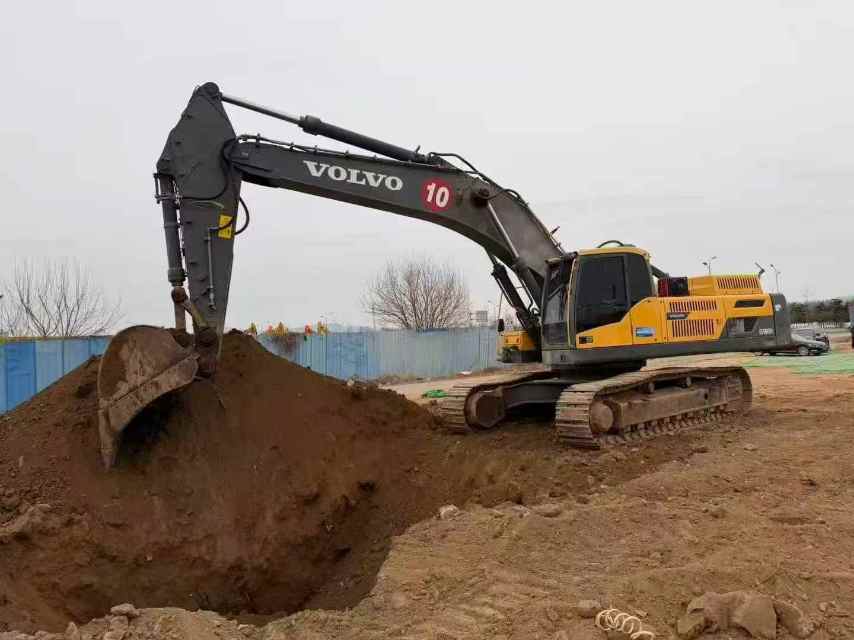

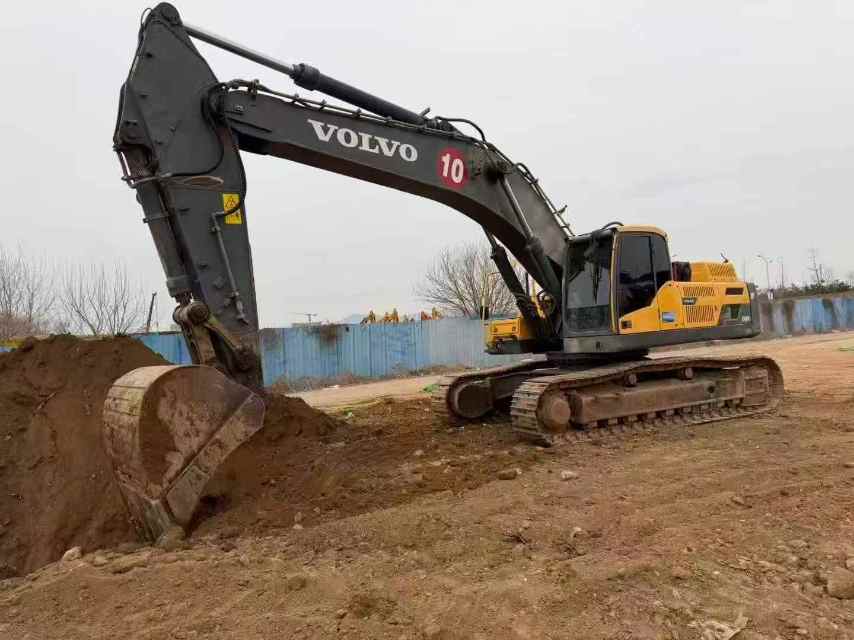

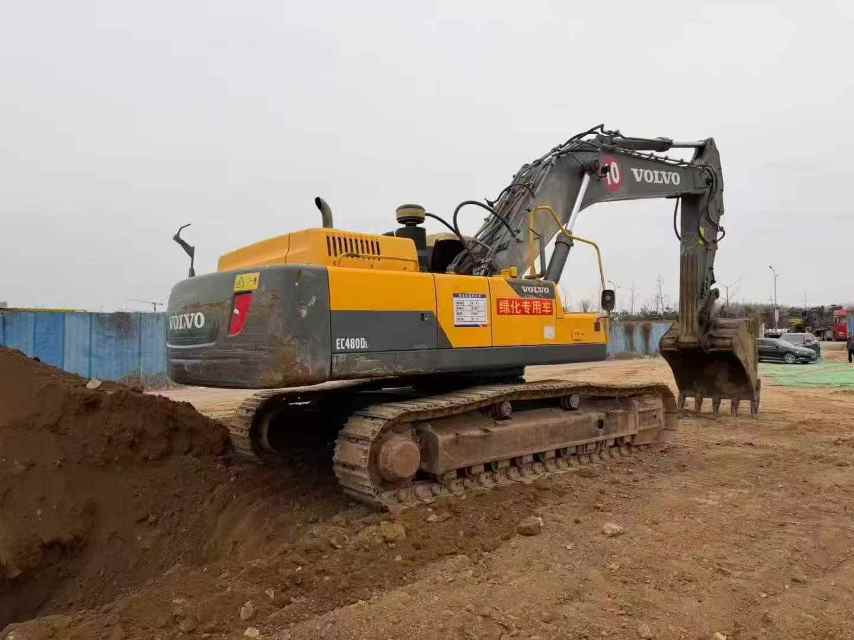

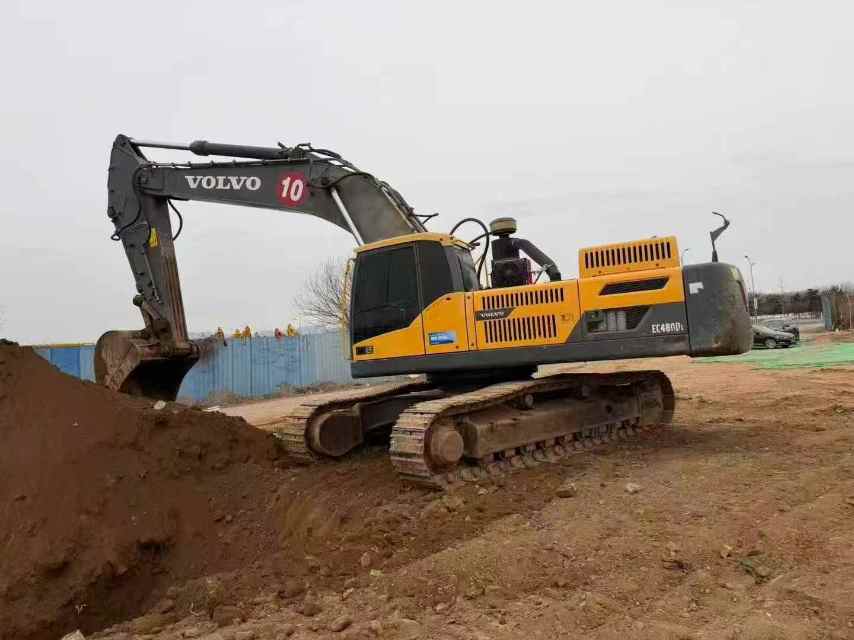

Discover the robust performance and reliability of the 2020 Volvo EC480D excavator, available for purchase from Hebei, China. This used heavy machine is designed to handle demanding earthmoving tasks with ease, featuring a powerful engine and advanced hydraulics that ensure high productivity and efficiency on your job site. The EC480D is known for its durability and operator comfort, making it an excellent choice for construction and mining projects. Contact us today to inquire about this versatile and efficient excavator.
- Year: 2020
- Brand: Volvo
- Model: EC480D
- Location: Hebei, China
| Specifications | Value |
|---|---|
| No. | 1058314 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 47,900-50,500 |
| Bucket capacity (m³) | 1.77-3.80 |
| Boom length (mm) | 7 |
| Rod length (mm) | 4.8 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

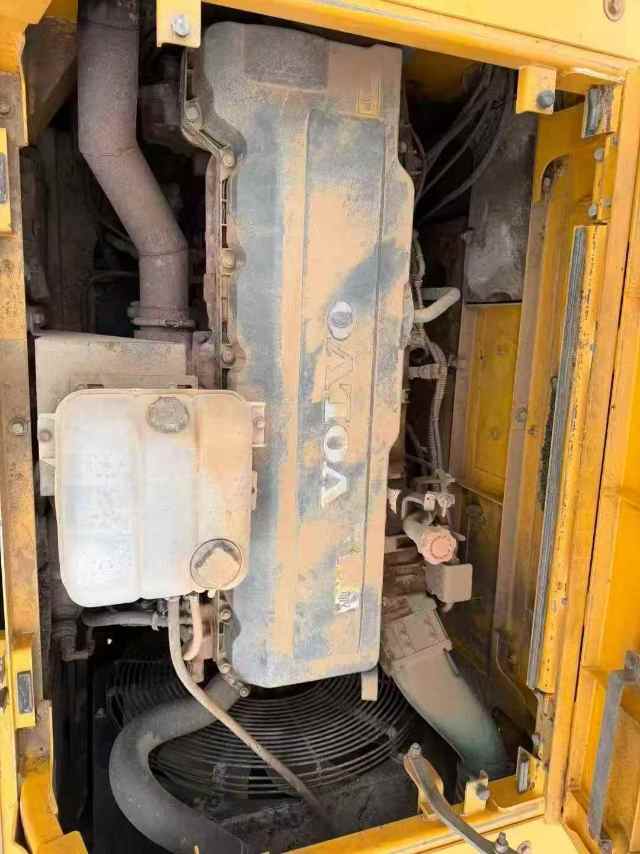

| Engine type | Volvo VOLVO_D13-T4(A) |
| Rated power (kw/rpm) | 245 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 131*158 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.8 |
| Working form | Meets European Stage IIIB emission requirements |
| Ground specific pressure (Kpa) | 73.7(700mm) |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 285/310.6 |
| Rod digging force (kN) | 251 |
| Travel speed (km/h) | 3.1-5.2 |
| Rotary hydraulic motor type | Piston type |
| Type of walking hydraulic motor | Piston type |
| Maximum flow of main pump (l/min) | 2*358 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.8 |

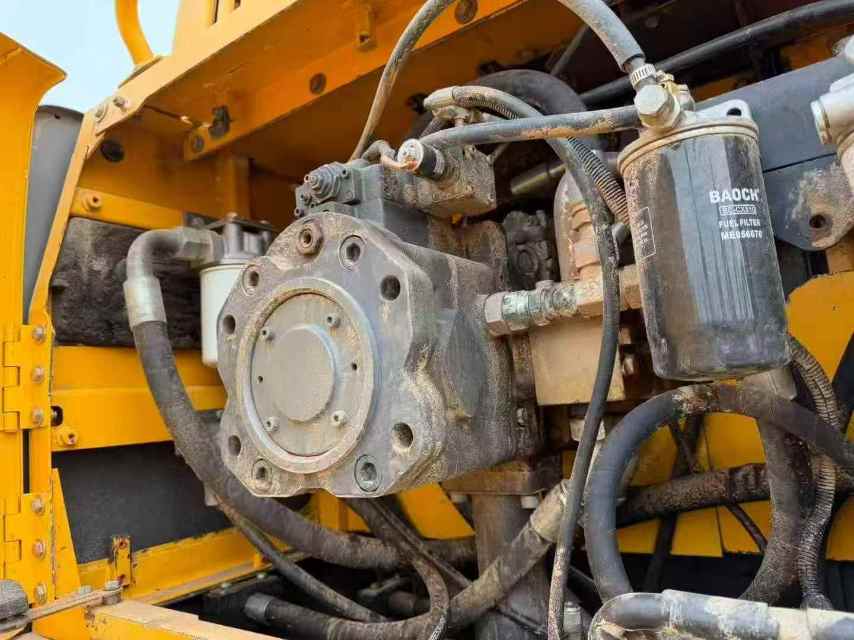

| Main pump type | Piston type |
| Working Hydraulic Circuit (Mpa) | 32.4/35.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*165*1330 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*190*1850 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*165*1590 |
| Fuel Tank (L) | 685 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 525 |
| Total transport length (mm) | 12140 |
| Total transport width (mm) | 3367 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1385 |
| Minimum ground clearance (mm) | 746 |
| Back end turning radius (mm) | 3800 |
| Total track length (mm) | 5370 |
| Track gauge (mm) | 2890(Extended) |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3590(Extended) |
| Track ground length (mm) | 4370 |
| Maximum digging radius (mm) | 12040 |
| Maximum digging depth (mm) | 7720 |
| Maximum excavation height (mm) | 11010 |
| Maximum unloading height (mm) | 7640 |
| Maximum vertical digging depth (mm) | 7110 |
| Maximum excavation radius of stop surface (mm) | 11810 |
| Boom turning Angle (left/right °) | 183 |
| Maximum effective digging depth (mm) | 7570 |
