Product Description
Discover the 2020 Volvo EC480D, a robust and reliable excavator currently available in Shanghai, China. This machine, offered at a competitive price of 230,000 CNY, is designed to handle tough jobs with efficiency and precision. Ideal for construction, demolition, and mining operations, the EC480D boasts high performance and durability, ensuring it meets the rigorous demands of any industrial project. Its strong engine and advanced hydraulic system provide the power needed for demanding tasks, while its comfortable and ergonomic design enhances operator productivity.
- Year: 2020
- Brand: Volvo
- Model: EC480D
- Location: Shanghai, China
- Price: 230,000 CNY
| Specifications | Value |
|---|---|
| No. | 1114267 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 47,900-50,500 |
| Bucket capacity (m³) | 1.77-3.80 |
| Boom length (mm) | 7 |
| Rod length (mm) | 4.8 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

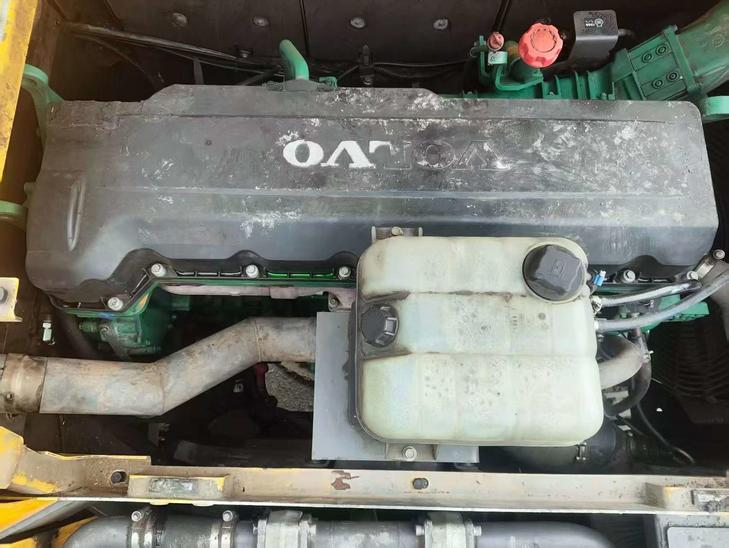

| Engine type | Volvo VOLVO_D13-T4(A) |
| Rated power (kw/rpm) | 245 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 131*158 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.8 |
| Working form | Meets European Stage IIIB emission requirements |
| Ground specific pressure (Kpa) | 73.7(700mm) |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 285/310.6 |
| Rod digging force (kN) | 251 |
| Travel speed (km/h) | 3.1-5.2 |
| Rotary hydraulic motor type | Piston type |
| Type of walking hydraulic motor | Piston type |
| Maximum flow of main pump (l/min) | 2*358 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.8 |
| Main pump type | Piston type |
| Working Hydraulic Circuit (Mpa) | 32.4/35.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*165*1330 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*190*1850 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*165*1590 |
| Fuel Tank (L) | 685 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 525 |
| Total transport length (mm) | 12140 |
| Total transport width (mm) | 3367 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1385 |
| Minimum ground clearance (mm) | 746 |
| Back end turning radius (mm) | 3800 |
| Total track length (mm) | 5370 |
| Track gauge (mm) | 2890(Extended) |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3590(Extended) |
| Track ground length (mm) | 4370 |
| Maximum digging radius (mm) | 12040 |
| Maximum digging depth (mm) | 7720 |
| Maximum excavation height (mm) | 11010 |
| Maximum unloading height (mm) | 7640 |
| Maximum vertical digging depth (mm) | 7110 |
| Maximum excavation radius of stop surface (mm) | 11810 |
| Boom turning Angle (left/right °) | 183 |
| Maximum effective digging depth (mm) | 7570 |
