Product Description

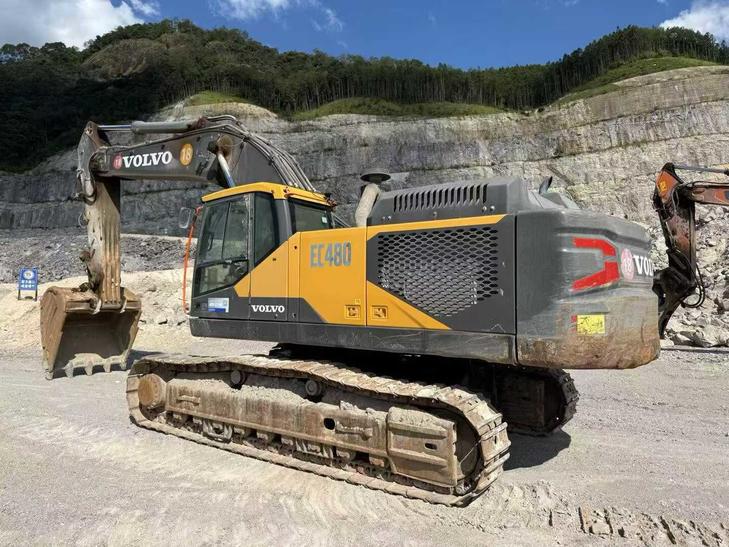

Discover the reliability and performance of the 2021 Volvo EC480D, available in Zhejiang, China. This excavator has been meticulously maintained by its single owner, ensuring it remains in top condition. Ideal for demanding construction and excavation projects, the EC480D is known for its robust design and efficient operation. With over 40,000 hours of operational experience, this machine has proven its durability and productivity on various job sites. For detailed information or to discuss purchasing options, please contact us directly.
- Year: 2021
- Brand: Volvo
- Model: EC480D
- Location: Zhejiang, China
- Operational Hours: Over 40,000
- Single Owner, Excellent Condition
| Specifications | Value |
|---|---|
| No. | 1107242 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 47,900-50,500 |
| Bucket capacity (m³) | 1.77-3.80 |
| Boom length (mm) | 7 |
| Rod length (mm) | 4.8 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo VOLVO_D13-T4(A) |
| Rated power (kw/rpm) | 245 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 131*158 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.8 |
| Working form | Meets European Stage IIIB emission requirements |
| Ground specific pressure (Kpa) | 73.7(700mm) |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 285/310.6 |
| Rod digging force (kN) | 251 |
| Travel speed (km/h) | 3.1-5.2 |
| Rotary hydraulic motor type | Piston type |
| Type of walking hydraulic motor | Piston type |
| Maximum flow of main pump (l/min) | 2*358 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.8 |
| Main pump type | Piston type |
| Working Hydraulic Circuit (Mpa) | 32.4/35.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*165*1330 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*190*1850 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*165*1590 |
| Fuel Tank (L) | 685 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 525 |
| Total transport length (mm) | 12140 |
| Total transport width (mm) | 3367 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1385 |
| Minimum ground clearance (mm) | 746 |
| Back end turning radius (mm) | 3800 |
| Total track length (mm) | 5370 |
| Track gauge (mm) | 2890(Extended) |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3590(Extended) |
| Track ground length (mm) | 4370 |
| Maximum digging radius (mm) | 12040 |
| Maximum digging depth (mm) | 7720 |
| Maximum excavation height (mm) | 11010 |
| Maximum unloading height (mm) | 7640 |
| Maximum vertical digging depth (mm) | 7110 |
| Maximum excavation radius of stop surface (mm) | 11810 |
| Boom turning Angle (left/right °) | 183 |
| Maximum effective digging depth (mm) | 7570 |
