Product Description

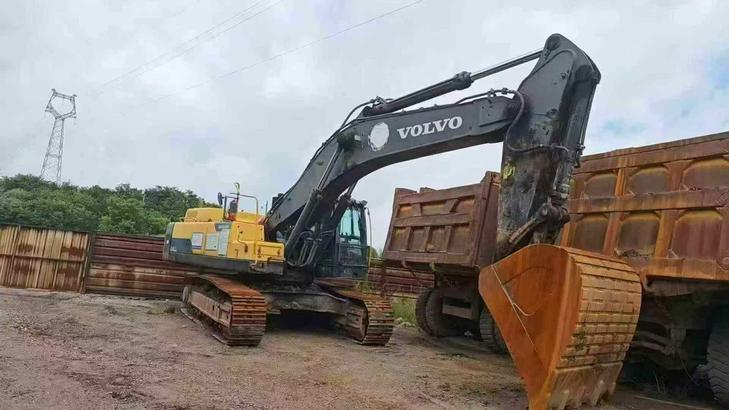

Available for immediate sale: 2018 Volvo EC480DL hydraulic excavator currently located in Zhejiang, China. This 48-ton class machine shows approximately 10,000 operating hours on the original meter. Factory-installed track pads remain in serviceable condition. Configured with short-arm boom geometry and high-capacity bucket for material handling applications.
- Year: 2018
- Model: Volvo EC480DL
- Hours: ~10,000
- Tracks: Original equipment
- Boom: Short-arm configuration
- Bucket: Large capacity
- Location: Zhejiang, China
Volvo's D-series excavators feature fuel-efficient engines and robust hydraulic systems suited for quarry, mining, and heavy construction work. Machine is being offered by motivated seller. Inspection and international shipping coordination available upon request. Serious buyers contact for detailed specifications and pricing.
| Specifications | Value |
|---|---|
| No. | 1111050 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 47,300~53,100 |
| Bucket capacity (m³) | 1.77 - 3.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D13F |
| Rated power (kw/rpm) | 270/1800 |
| Cylinder diameter × stroke (mm) | 131 x 158 |
| Maximum torque (N.m) | 1800 / 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.8 |
| Rotation speed (rpm) | 8.8 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 3.1 / 5.1 |
| Turning torque (Nm) | 166.3 |
| Maximum flow of main pump (l/min) | 2 x 358 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.8 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 1 x 32 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*165 x 1,330 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*190 x 1,850 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*165 X 1,590 |
| Fuel Tank (L) | 685 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 520 |
| Total transport length (mm) | 11630 |
| Total transport width (mm) | 3340 |
| Full cab height (mm) | 3257 |
| Counterweight ground clearance (mm) | 1275 |
| Minimum ground clearance (mm) | 550 |
| Back end turning radius (mm) | 3880 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5370 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4370 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 52 |
| Maximum digging radius (mm) | 10930 |
| Maximum digging depth (mm) | 6580 |
| Maximum excavation height (mm) | 10600 |
| Maximum unloading height (mm) | 6970 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 10680 |
