Product Description

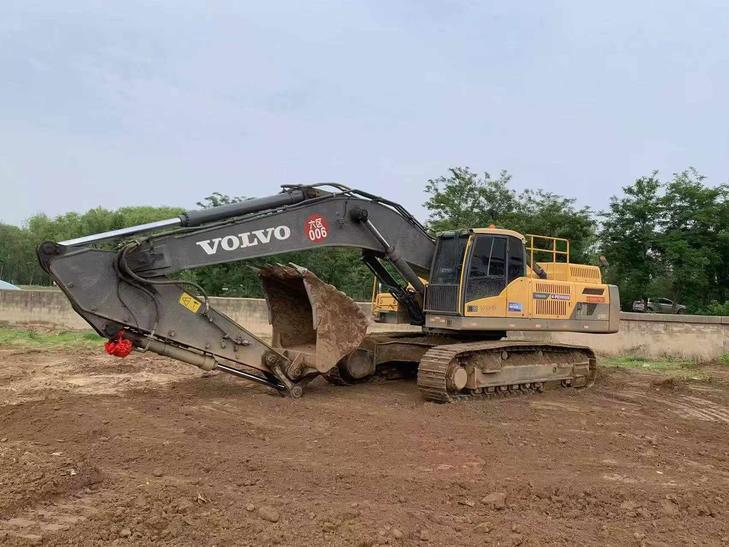

This 2020 Volvo EC480DL excavator is ready for immediate deployment. Recently removed from an active worksite in Beijing, China, this machine demonstrates reliable performance with coordinated hydraulic movements and no major component leaks. The unit retains its original earthmoving bucket and features a fully functional air conditioning system.
Key highlights:
- 2020 model year with verifiable service history
- Hydraulic systems operating smoothly with no oil leaks from major components
- Original equipment earthmoving bucket included
- Operational HVAC system
- Available for on-site demonstration and testing
- Located in Beijing, China
This Volvo EC480DL is suitable for contractors seeking a proven excavator for earthmoving and general construction applications. The machine is work-ready and available for inspection at the current location.
| Specifications | Value |
|---|---|
| No. | 1081316 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 47,300~53,100 |
| Bucket capacity (m³) | 1.77 - 3.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D13F |
| Rated power (kw/rpm) | 270/1800 |
| Cylinder diameter × stroke (mm) | 131 x 158 |
| Maximum torque (N.m) | 1800 / 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.8 |
| Rotation speed (rpm) | 8.8 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 3.1 / 5.1 |
| Turning torque (Nm) | 166.3 |
| Maximum flow of main pump (l/min) | 2 x 358 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.8 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 1 x 32 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*165 x 1,330 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*190 x 1,850 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*165 X 1,590 |
| Fuel Tank (L) | 685 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 520 |
| Total transport length (mm) | 11630 |
| Total transport width (mm) | 3340 |
| Full cab height (mm) | 3257 |
| Counterweight ground clearance (mm) | 1275 |
| Minimum ground clearance (mm) | 550 |
| Back end turning radius (mm) | 3880 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5370 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4370 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 52 |
| Maximum digging radius (mm) | 10930 |
| Maximum digging depth (mm) | 6580 |
| Maximum excavation height (mm) | 10600 |
| Maximum unloading height (mm) | 6970 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 10680 |
