Product Description

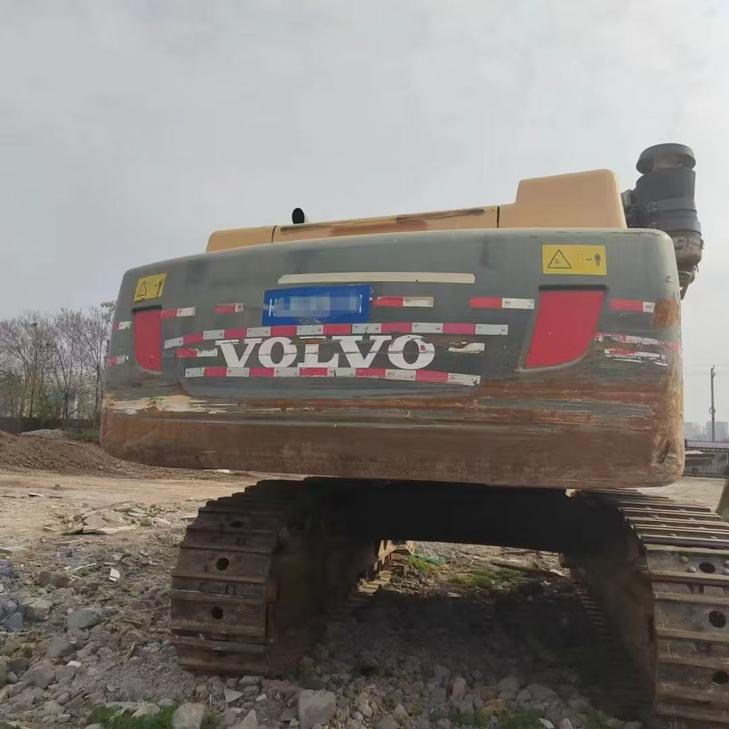

Discover the reliability and performance of the 2012 Volvo EC700C, available for purchase from Shandong, China. This robust excavator is equipped with a hammer, making it ideal for demanding demolition and construction projects. The EC700C is known for its durability and efficiency, providing operators with a powerful tool to tackle heavy-duty tasks. With Volvo's reputation for engineering excellence, this machine ensures long-term productivity and minimal downtime. Ideal for businesses looking to enhance their fleet with a high-quality, used excavator that can handle tough jobs with ease.
- Year: 2012
- Brand: Volvo
- Model: EC700C
- Location: Shandong, China
- Equipped with a hammer; bucket not included
| Specifications | Value |
|---|---|
| No. | 1134861 |
| Tonnage (tons) | 70 |
| Working weight (kg) | 698000-717000 |
| Bucket capacity (m³) | 2.48-6.6 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D16E EAE3 |
| Rated power (kw/rpm) | 336.5/1800 |
| Cylinder diameter × stroke (mm) | 114 x 165 |
| Maximum torque (N.m) | 2250/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 16.1 |
| Ground specific pressure (Kpa) | 75.5-102 |
| Rotation speed (rpm) | 6.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 356 |
| Rod digging force (kN) | 332 |
| Maximum tractive force (kN) | 453 |
| Travel speed (km/h) | 4.6/3 |
| Turning torque (Nm) | 225.6 |
| Rotary hydraulic motor type | Fixed displacement plunger hydraulic motor with mechanical brake |
| Type of walking hydraulic motor | Variable displacement axial piston hydraulic motor with mechanical brake |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Two variable displacement axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Pilot pump flow (L/min) | 2 x 436 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 190 x 1.450 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 215 x 2.070 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 190 x 1.790 |
| Fuel Tank (L) | 840 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 52 |
| Coolant (L) | 65 |
| Hydraulic System (L) | 655 |
| Total transport length (mm) | 12200 |
| Total transport width (mm) | 4286 |
| Total transport height (mm) | 4660-4855 |
| Full cab height (mm) | 3520 |
| Minimum turning radius of front working device (mm) | 5160-5480 |
| Back end turning radius (mm) | 4140 |
| Total track length (mm) | 5990 |
| Track plate width (mm) | 650/750/900 |
| Maximum digging radius (mm) | 11500-12600 |
| Maximum digging depth (mm) | 7100-7605 |
| Maximum excavation height (mm) | 10980-12490 |
| Maximum unloading height (mm) | 6960-8410 |
| Maximum vertical digging depth (mm) | 5065-6780 |
| Maximum excavation radius of stop surface (mm) | 11200-12335 |
