Product Description

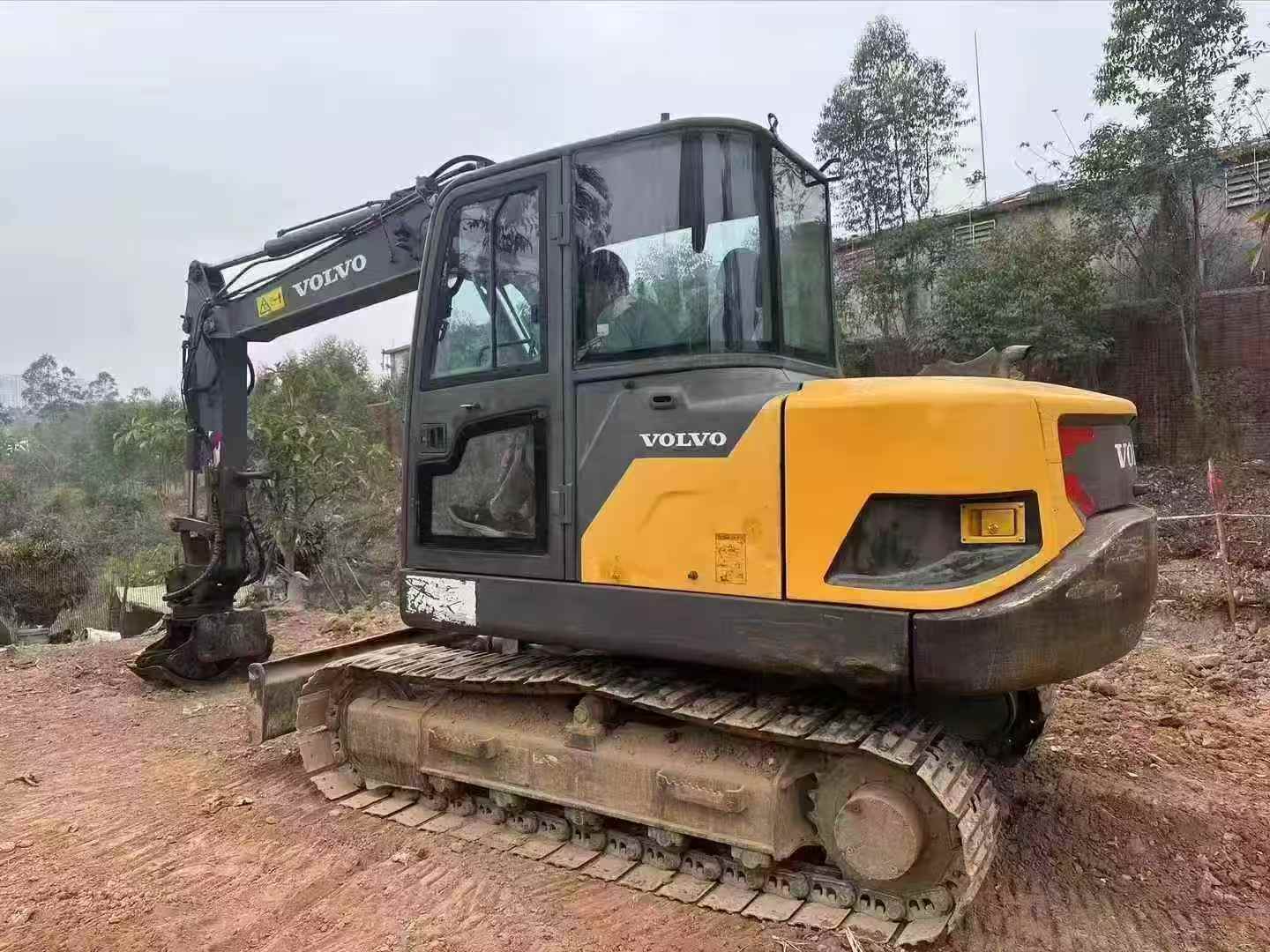

Featuring a Volvo D2.6D engine, the 2019 Volvo EC75D delivers 43 kW of power at 2000 rpm, ensuring robust performance and reliability. With a maximum torque of 225.8 Nm at 1600 rpm, this excavator is designed for demanding tasks. The hydraulic system, with a main pump flow of 160 l/min, provides efficient and precise control, enhancing productivity on any job site.
- Working weight: 7400 - 7800 kg
- Bucket capacity: 0.34 m³
- Maximum digging depth: 4150 mm
- Travel speed: 2.86/5 km/h
- Fuel tank: 145 L
Engineered with a focus on durability and efficiency, the EC75D boasts a ground specific pressure of 30.4 Kpa, making it suitable for a variety of terrains. Its backhoe bucket, with a width of 860 mm, offers a digging force of 56 kN, while the rod digging force reaches 38 kN. This model, available in 贵州, is a testament to Volvo's commitment to superior engineering and performance.
| Specifications | Value |
|---|---|
| No. | 1020725 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7400 - 7800 |
| Bucket capacity (m³) | 0.34 |
| Bucket width (mm) | 860 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

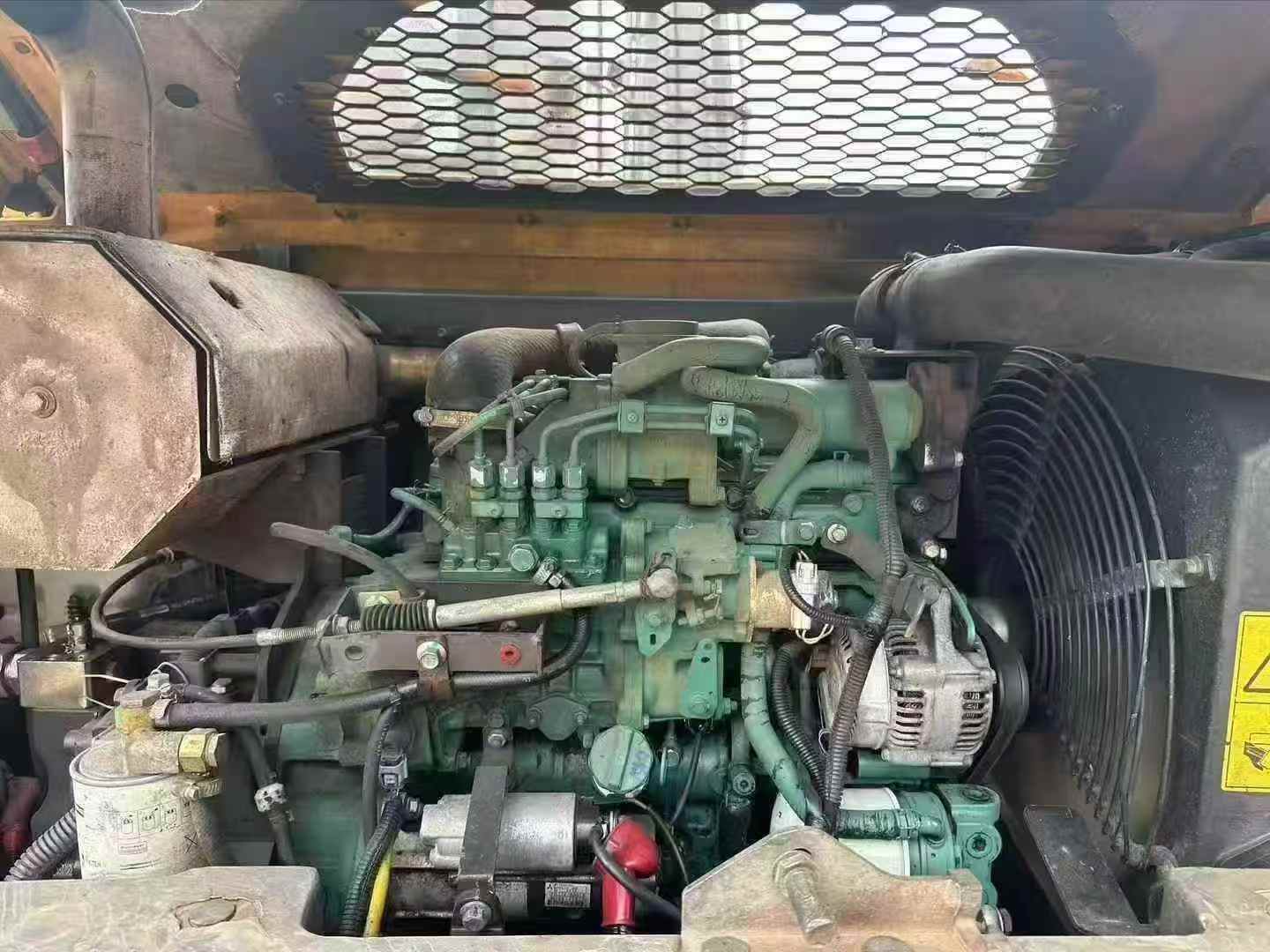

| Engine type | Volvo D2.6D |
| Rated power (kw/rpm) | 43/2000 |
| Cylinder diameter × stroke (mm) | 87*110 |
| Maximum torque (N.m) | 225.8/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.62 |
| Ground specific pressure (Kpa) | 30.4 |
| Rotation speed (rpm) | 10.5 |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.86/5 |
| Turning torque (Nm) | 22.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 10.4 |
| Hydraulic System (L) | 140 |
| Total transport length (mm) | 6290 |
| Total transport width (mm) | 2230 |
| Track plate width (mm) | 450 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7200 |
| Maximum unloading height (mm) | 5070 |
| Maximum vertical digging depth (mm) | 3750 |
| Maximum excavation radius of stop surface (mm) | 6190 |
