Product Description

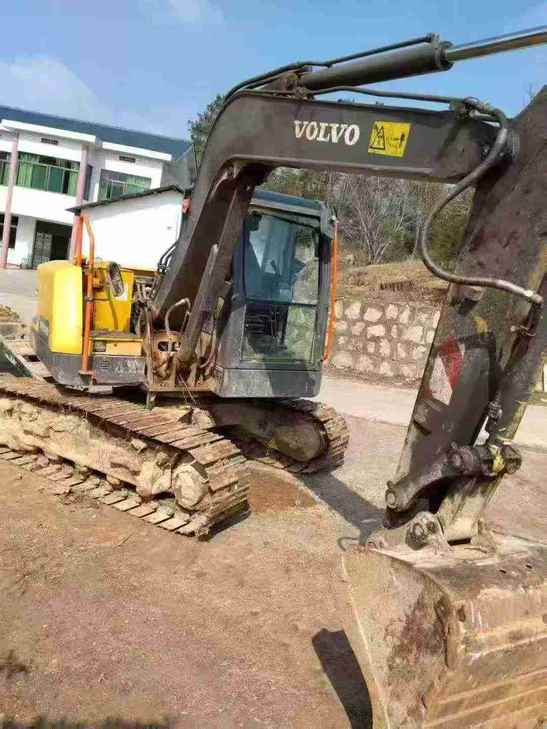

Built for precision work in tight urban sites and demanding rural projects, this 2020 Volvo EC75D compact excavator delivers 43kW of Volvo D2.6D power across foundation trenching, utility installation, and controlled demolition tasks. Operating at 7.4-7.8 tonnes with a 0.34m³ bucket, the machine combines 56kN bucket digging force and 4,150mm maximum depth to tackle drainage systems, basement excavations, and landscape grading without hesitation.
- Maximum dig radius: 6,340mm for wide work envelopes
- Hydraulic flow: 160L/min supporting rapid cycle times
- Transport dimensions: 6,290mm length × 2,230mm width for trailer mobility
- Ground pressure: 30.4kPa minimizing surface disturbance on finished grades
- Fuel capacity: 145L extending operational shifts
Currently stationed in Luzhou, Sichuan, this joint-venture manufactured excavator arrives jobsite-ready with proven Volvo engineering. Swing speed reaches 10.5rpm for efficient load positioning, while 450mm track plates distribute weight evenly across unstable terrain. Ideal for contractors requiring immediate deployment on residential developments, municipal infrastructure, or agricultural drainage projects throughout Western Ch
| Specifications | Value |
|---|---|
| No. | 1019442 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7400 - 7800 |
| Bucket capacity (m³) | 0.34 |
| Bucket width (mm) | 860 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D2.6D |
| Rated power (kw/rpm) | 43/2000 |
| Cylinder diameter × stroke (mm) | 87*110 |
| Maximum torque (N.m) | 225.8/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.62 |
| Ground specific pressure (Kpa) | 30.4 |
| Rotation speed (rpm) | 10.5 |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.86/5 |
| Turning torque (Nm) | 22.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 10.4 |
| Hydraulic System (L) | 140 |
| Total transport length (mm) | 6290 |
| Total transport width (mm) | 2230 |
| Track plate width (mm) | 450 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7200 |
| Maximum unloading height (mm) | 5070 |
| Maximum vertical digging depth (mm) | 3750 |
| Maximum excavation radius of stop surface (mm) | 6190 |
