Product Description

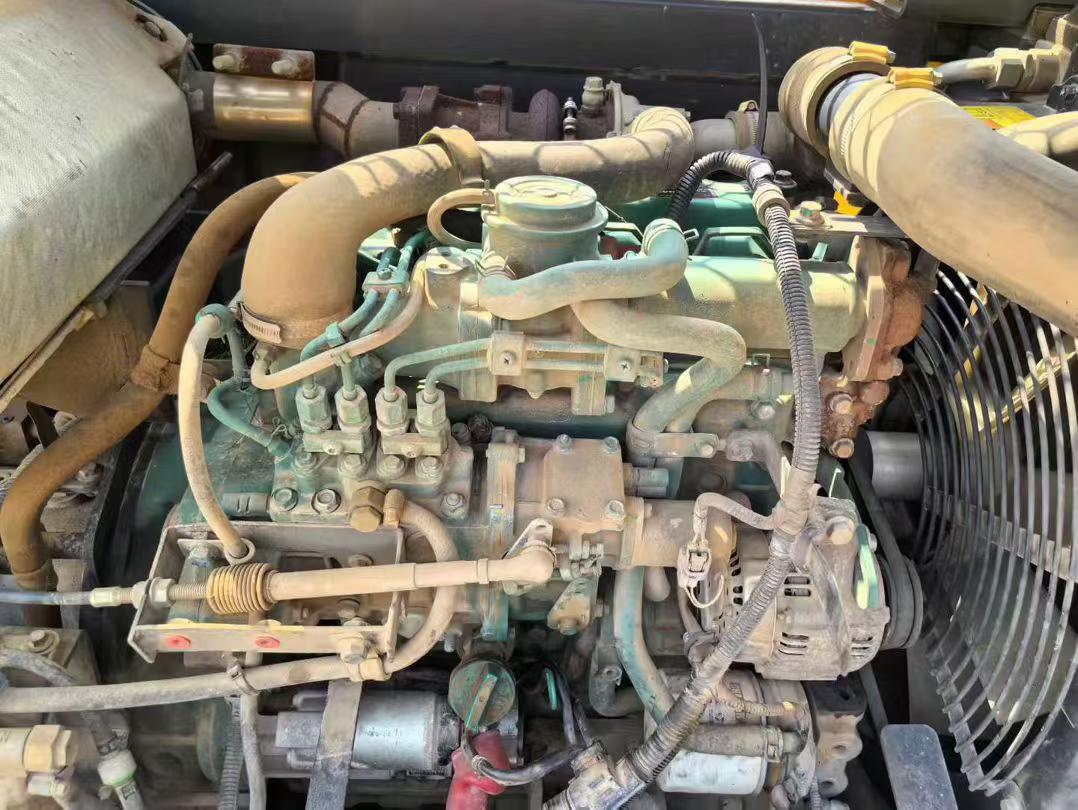

Engineered with precision, this 2020 Volvo EC75D compact excavator delivers exceptional performance through its robust Volvo D2.6D engine, producing 43kW at 2000 rpm with 225.8 N·m maximum torque. Hydraulic superiority defines this 7-ton machine, featuring a 160 l/min main pump flow rate and impressive digging forces—56 kN bucket force and 38 kN arm force—ensuring consistent productivity across demanding job sites.
- Operating weight: 7,400-7,800 kg with 0.34 m³ bucket capacity
- Maximum digging reach: 6,340 mm / Maximum digging depth: 4,150 mm
- Advanced hydraulic system: 140L total capacity for smooth, responsive control
- Compact dimensions: 6,290 mm length × 2,230 mm width for confined-space maneuverability
- Fuel-efficient design: 145L tank supporting extended operation cycles
- Low ground pressure: 30.4 kPa minimizes surface disturbance
Currently located in Hunan, China, this joint-venture manufactured unit represents Volvo's commitment to reliability and engineering excellence in the compact excavator segment. Proven durability meets operational efficiency in every component.
| Specifications | Value |
|---|---|
| No. | 1029861 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7400 - 7800 |
| Bucket capacity (m³) | 0.34 |
| Bucket width (mm) | 860 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D2.6D |
| Rated power (kw/rpm) | 43/2000 |
| Cylinder diameter × stroke (mm) | 87*110 |
| Maximum torque (N.m) | 225.8/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.62 |
| Ground specific pressure (Kpa) | 30.4 |
| Rotation speed (rpm) | 10.5 |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.86/5 |
| Turning torque (Nm) | 22.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 10.4 |
| Hydraulic System (L) | 140 |
| Total transport length (mm) | 6290 |
| Total transport width (mm) | 2230 |
| Track plate width (mm) | 450 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7200 |
| Maximum unloading height (mm) | 5070 |
| Maximum vertical digging depth (mm) | 3750 |
| Maximum excavation radius of stop surface (mm) | 6190 |
