Product Description
Available now in Hangzhou, Zhejiang, this 2020 Volvo EC75D compact excavator eliminates factory wait times and delivers immediate deployment to your jobsite. Powered by a reliable Volvo D2.6D engine producing 43kW at 2000rpm, this 7.4-7.8 ton machine combines proven hydraulic performance with operational efficiency. Skip months of lead time—this unit is inspection-ready and can be shipped directly to your project location.
- Maximum digging depth: 4150mm with 6340mm reach radius
- Bucket capacity: 0.34m³ with 56kN digging force
- Compact footprint: 6290mm length, 2230mm width for confined sites

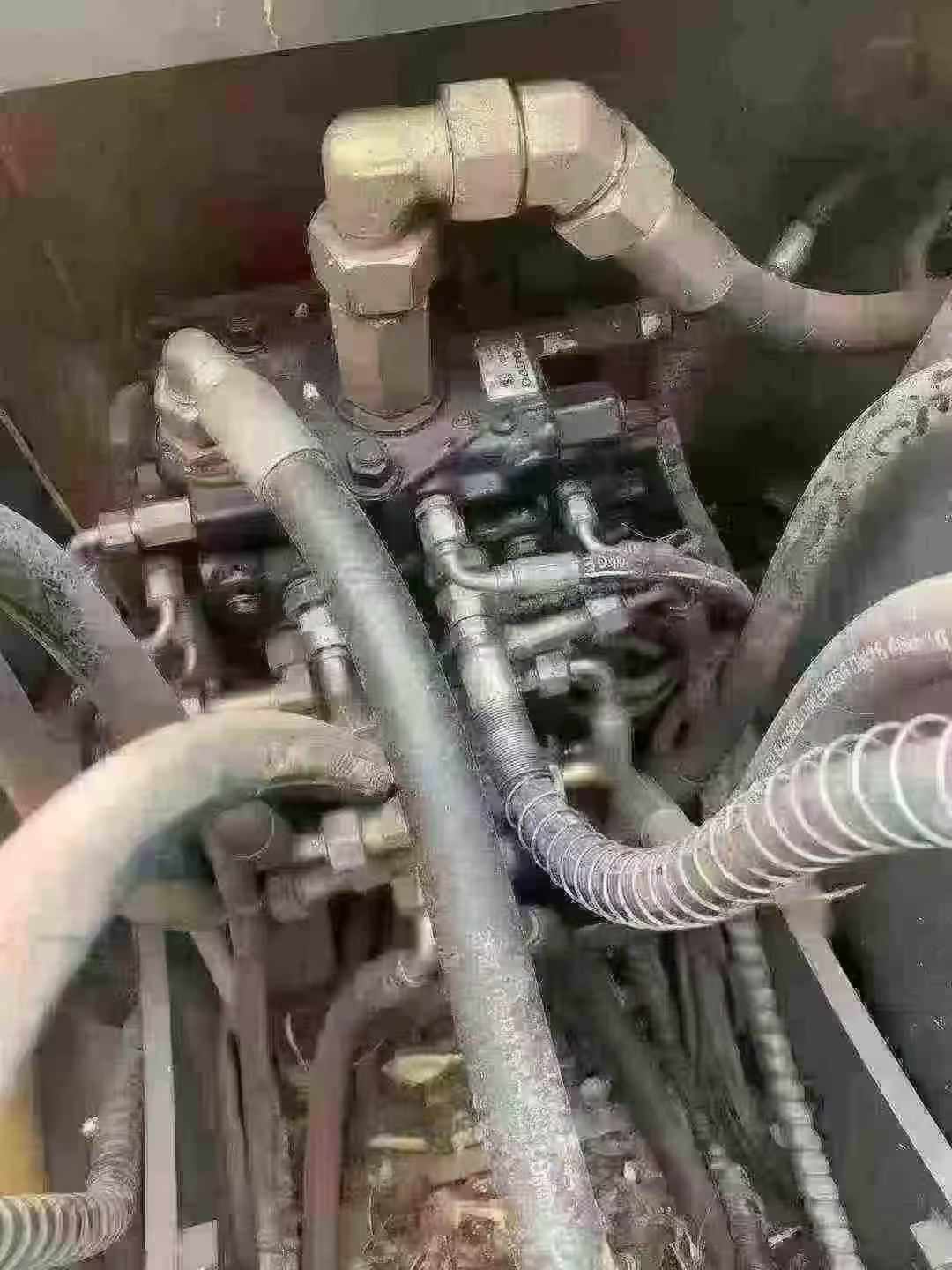

- Hydraulic system: 160L/min main pump flow, 140L total capacity
- Travel speed: 2.86/5 km/h for efficient site mobility
- Fuel capacity: 145L tank for extended operation
Positioned in Hangzhou's logistics hub, fast container loading and export documentation are standard. No production delays, no uncertain delivery schedules—secure this turnkey Volvo EC75D and begin work within days, not quarters. Contact our team for current inspection reports and shipping timelines to your region.
| Specifications | Value |
|---|---|
| No. | 1030304 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7400 - 7800 |
| Bucket capacity (m³) | 0.34 |
| Bucket width (mm) | 860 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D2.6D |
| Rated power (kw/rpm) | 43/2000 |
| Cylinder diameter × stroke (mm) | 87*110 |
| Maximum torque (N.m) | 225.8/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.62 |
| Ground specific pressure (Kpa) | 30.4 |
| Rotation speed (rpm) | 10.5 |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.86/5 |
| Turning torque (Nm) | 22.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 10.4 |
| Hydraulic System (L) | 140 |
| Total transport length (mm) | 6290 |
| Total transport width (mm) | 2230 |
| Track plate width (mm) | 450 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7200 |
| Maximum unloading height (mm) | 5070 |
| Maximum vertical digging depth (mm) | 3750 |
| Maximum excavation radius of stop surface (mm) | 6190 |
