Product Description

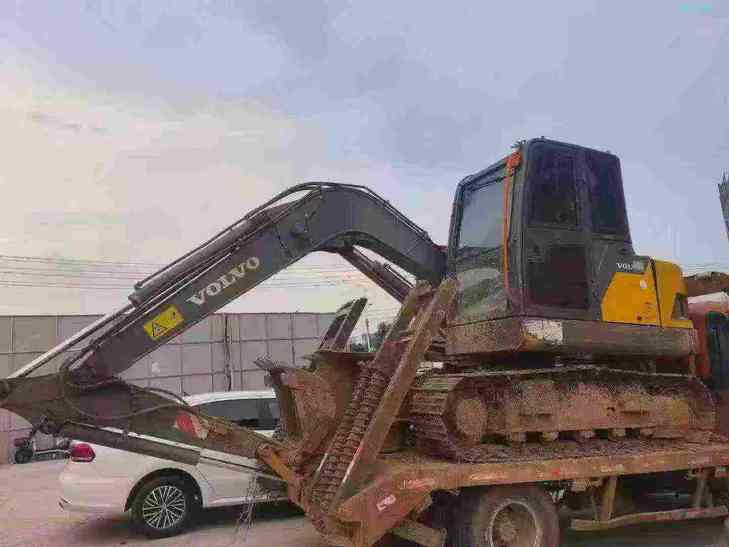

This 2020 Volvo EC75D compact excavator offers reliable performance for contractors and rental fleets. As a first-owner machine with low operational hours, it represents an excellent opportunity for businesses seeking proven Volvo engineering at competitive value. Currently located in Hunan, China, this unit is available for immediate inspection and delivery.
The EC75D combines a 7.5-ton operating weight with Volvo's fuel-efficient engine technology, making it suitable for urban construction, utility work, and site development. The machine features Volvo's characteristic operator comfort and maintenance accessibility that reduce long-term ownership costs.
- Year: 2020
- Model: Volvo EC75D
- Condition: Used, first-owner
- Location: Hunan Province, China
- Availability: In stock, ready for inspection
Contact us for detailed specifications, service records, and export assistance.
| Specifications | Value |
|---|---|
| No. | 1082553 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7400 - 7800 |
| Bucket capacity (m³) | 0.34 |
| Bucket width (mm) | 860 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D2.6D |
| Rated power (kw/rpm) | 43/2000 |
| Cylinder diameter × stroke (mm) | 87*110 |
| Maximum torque (N.m) | 225.8/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.62 |
| Ground specific pressure (Kpa) | 30.4 |
| Rotation speed (rpm) | 10.5 |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.86/5 |
| Turning torque (Nm) | 22.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 10.4 |
| Hydraulic System (L) | 140 |
| Total transport length (mm) | 6290 |
| Total transport width (mm) | 2230 |
| Track plate width (mm) | 450 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7200 |
| Maximum unloading height (mm) | 5070 |
| Maximum vertical digging depth (mm) | 3750 |
| Maximum excavation radius of stop surface (mm) | 6190 |
