Product Description

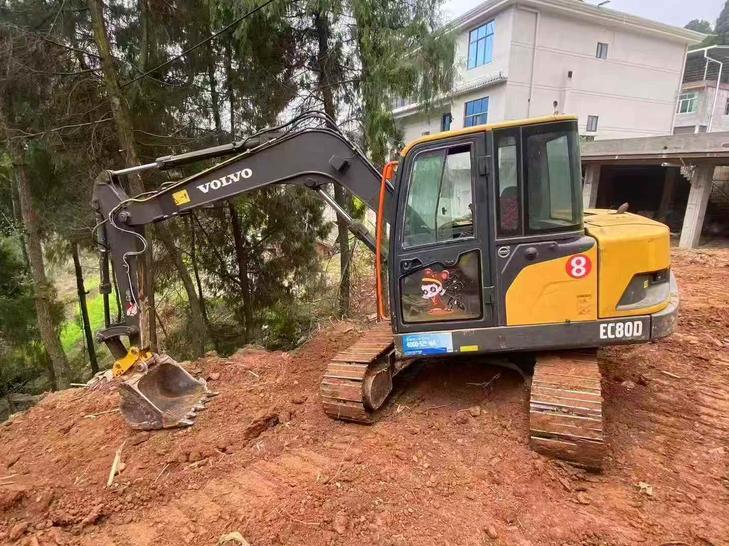

Built for precision and power, this 2016 Volvo EC80D mini excavator delivers reliable performance across digging, grading, and demolition tasks. Operating at 8 tons with a 7,450 kg working weight, this Korea-manufactured machine combines compact dimensions with serious capability—perfect for confined job sites demanding maneuverability without sacrificing strength.
Powered by a Volvo D3.4A engine producing 42 kW at 2100 rpm, this excavator generates 243 N·m of torque to drive through demanding applications. The 0.34 m³ backhoe bucket delivers 49 kN digging force, while the arm provides 39 kN for precise material handling. Reach extends to 6,420 mm maximum digging radius and 4,100 mm depth, with a vertical dig depth of 3,530 mm for versatile positioning.
Key specifications include:
- Transport dimensions: 6,165 mm (L) × 2,300 mm (W) × 2,655 mm (H)
- Travel speeds: 2.6/5.1 km/h for efficient site mobility
- 450 mm track plates on 1,850 mm gauge for superior stability
- Maximum unloading height: 5,150 mm
- 400 mm minimum ground clearance for rough terrain navigation
Currently located in Guizhou, this site-ready EC80D is equipped to start work immediately on your next
| Specifications | Value |
|---|---|
| No. | 1027272 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.34 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D3.4A |
| Rated power (kw/rpm) | 42/2100 |
| Maximum torque (N.m) | 243 |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 39 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.6/5.1 |
| Total transport length (mm) | 6165 |
| Total transport width (mm) | 2300 |
| Total transport height (mm) | 2655 |
| Full cab height (mm) | 2655 |
| Counterweight ground clearance (mm) | 755 |
| Minimum ground clearance (mm) | 400 |
| Minimum turning radius of front working device (mm) | 1690 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2280 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1850 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2300 |
| Track ground length (mm) | 2200 |
| Maximum digging radius (mm) | 6420 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7130 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3530 |
| Maximum excavation radius of stop surface (mm) | 6270 |
| Maximum effective digging depth (mm) | 3740 |
