Product Description

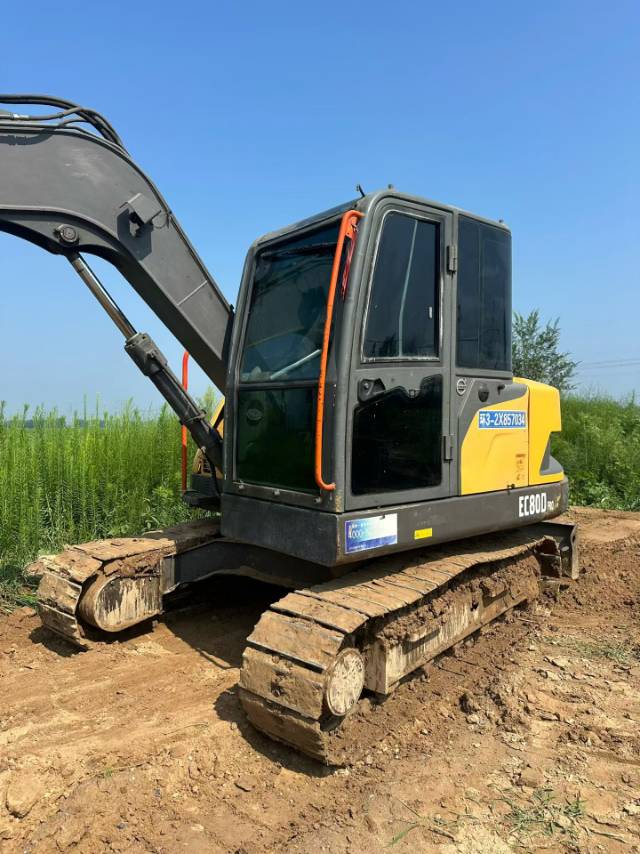

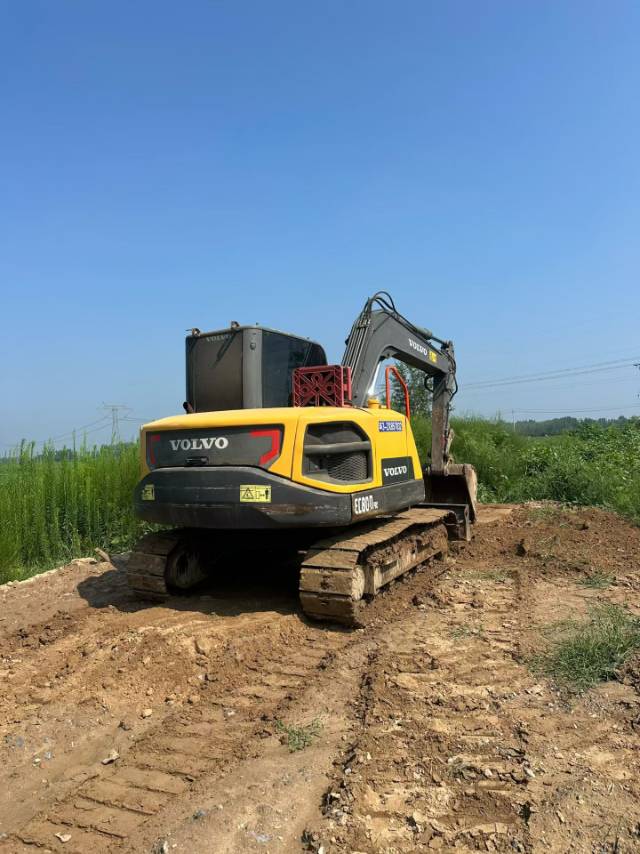

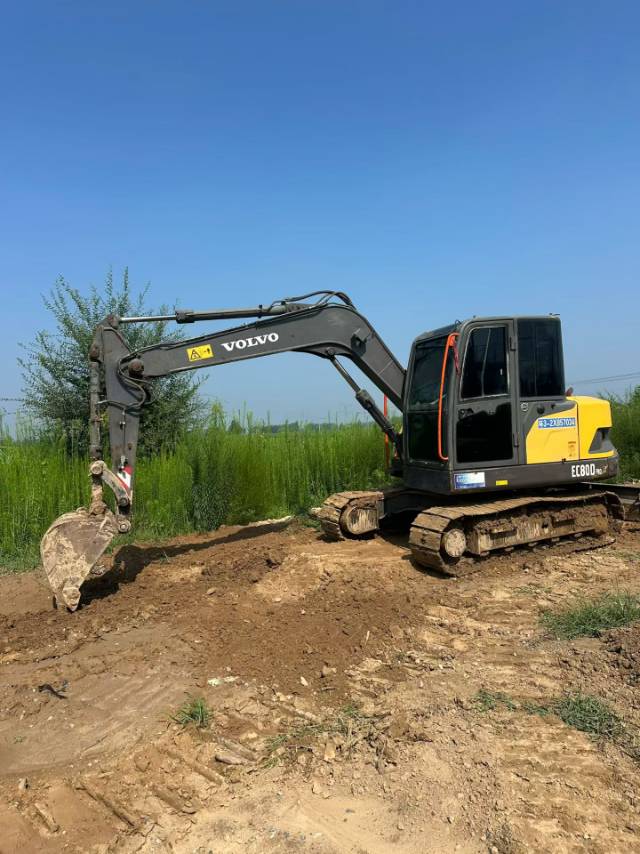

This 2020 Volvo EC80D compact excavator represents a well-maintained example of Volvo's reliable 8-ton class machinery, currently located in Beijing, China. Factory-equipped with a dozer blade for enhanced versatility, this machine delivers strong hydraulic performance and smooth operational control across a range of applications.
The operator station features a fully functional air conditioning system, ensuring comfortable operation in demanding conditions. Both exterior and interior show careful maintenance, with the machine ready for immediate deployment. As a first-owner unit with comprehensive performance capabilities, this EC80D offers the build quality and durability expected from Volvo Construction Equipment.
- Year: 2020
- Model: Volvo EC80D

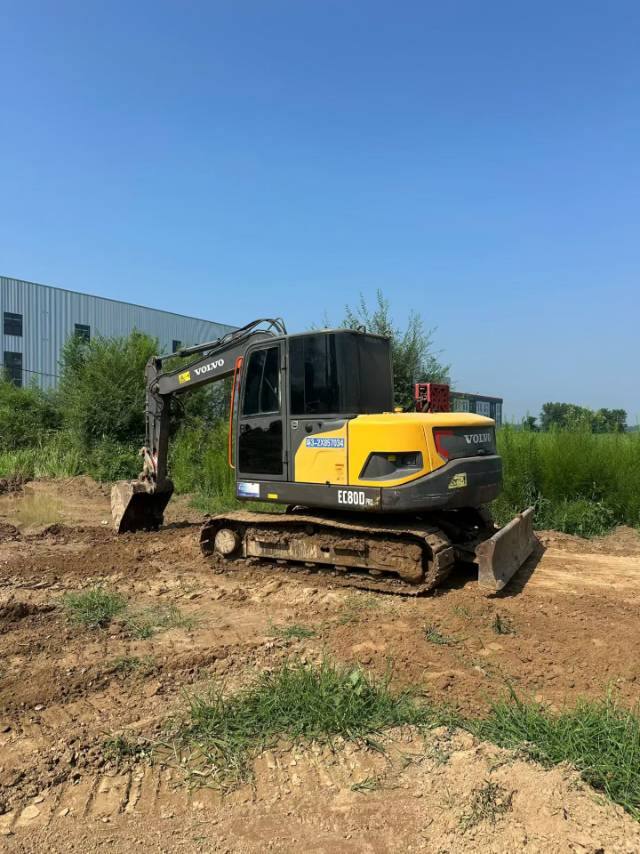

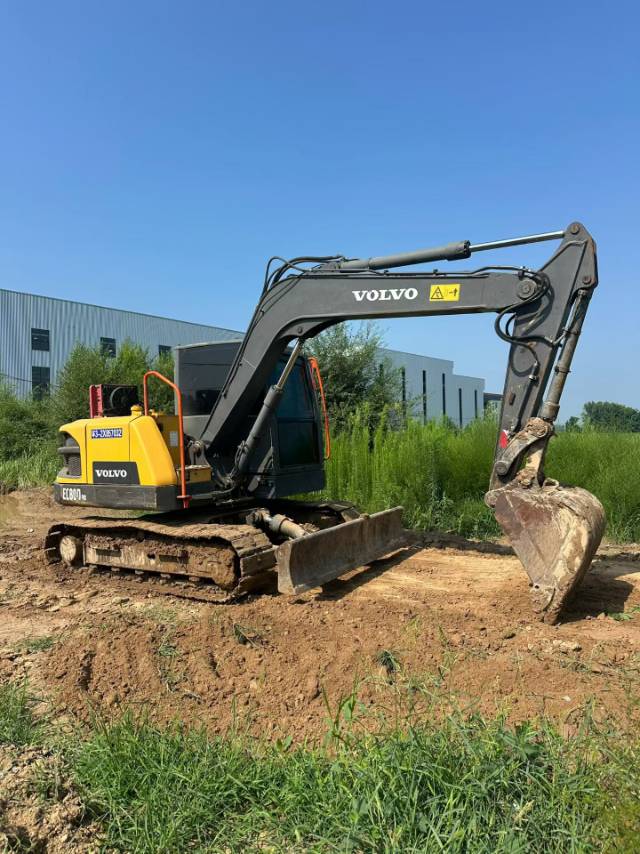

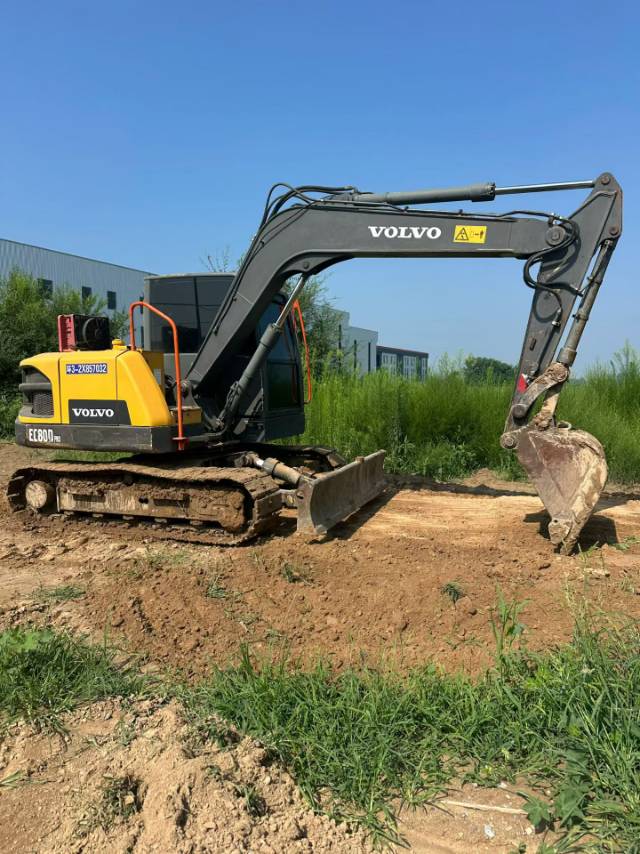

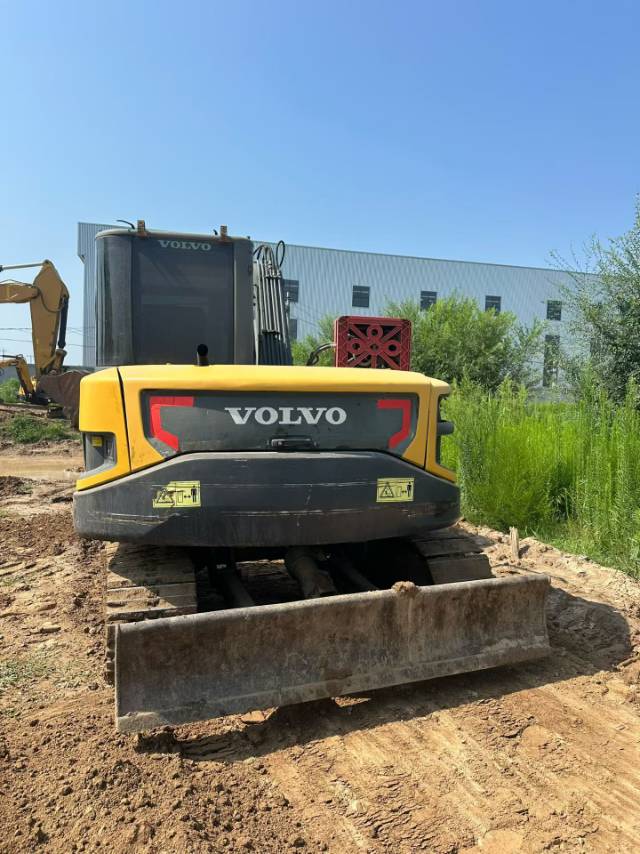

- Equipped with dozer blade
- Operational air conditioning
- First-owner machine
- Location: Beijing, China
| Specifications | Value |
|---|---|
| No. | 1115771 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.34 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

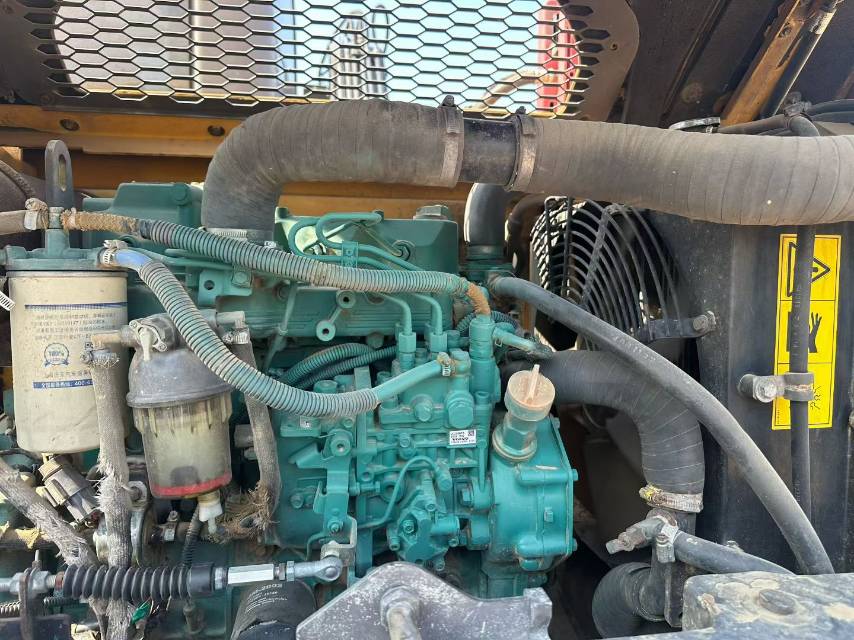

| Engine type | Volvo D3.4A |
| Rated power (kw/rpm) | 42/2100 |
| Maximum torque (N.m) | 243 |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 39 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.6/5.1 |
| Total transport length (mm) | 6165 |
| Total transport width (mm) | 2300 |
| Total transport height (mm) | 2655 |
| Full cab height (mm) | 2655 |
| Counterweight ground clearance (mm) | 755 |
| Minimum ground clearance (mm) | 400 |
| Minimum turning radius of front working device (mm) | 1690 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2280 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1850 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2300 |
| Track ground length (mm) | 2200 |
| Maximum digging radius (mm) | 6420 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7130 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3530 |
| Maximum excavation radius of stop surface (mm) | 6270 |
| Maximum effective digging depth (mm) | 3740 |
