Product Description

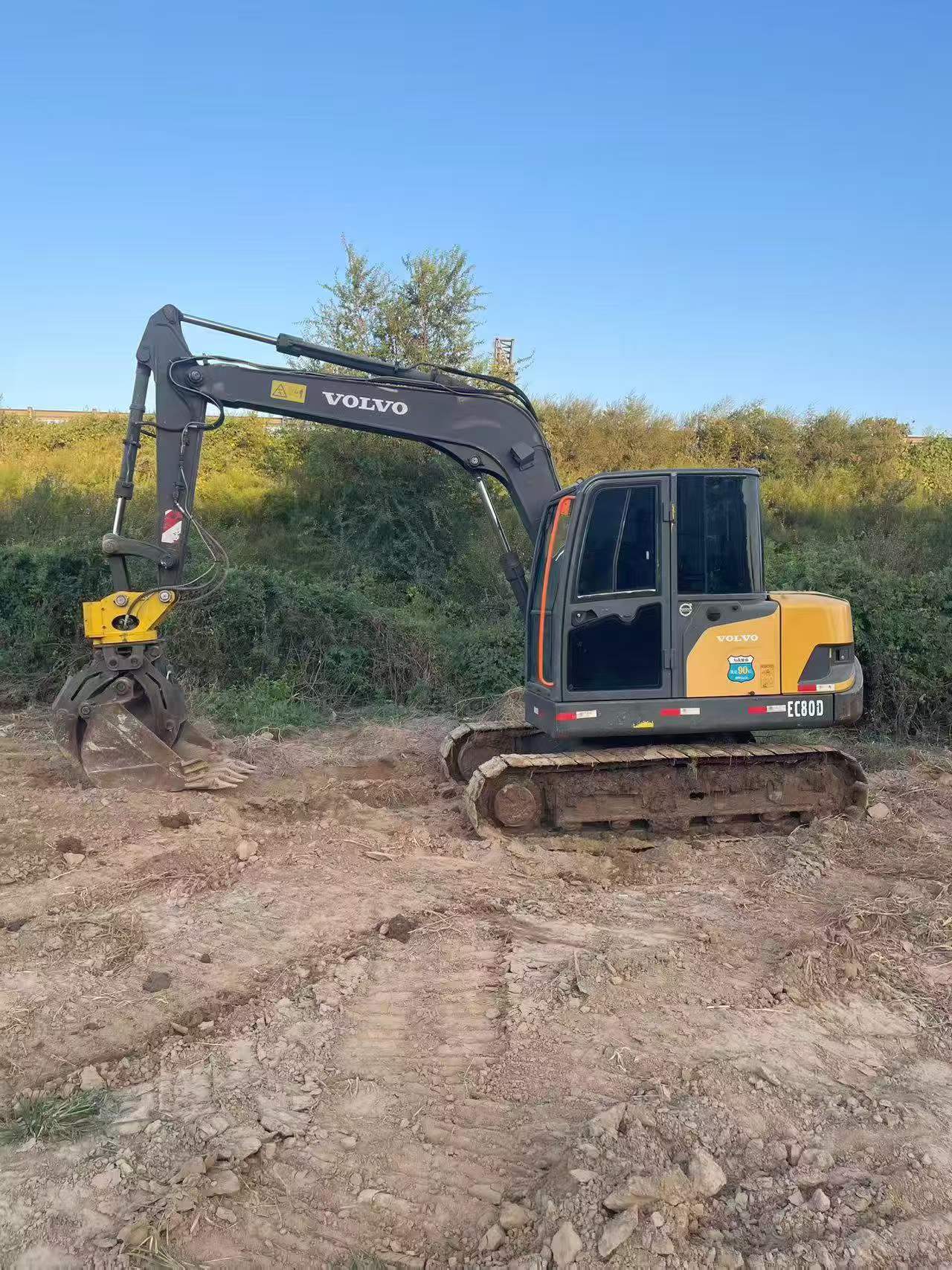

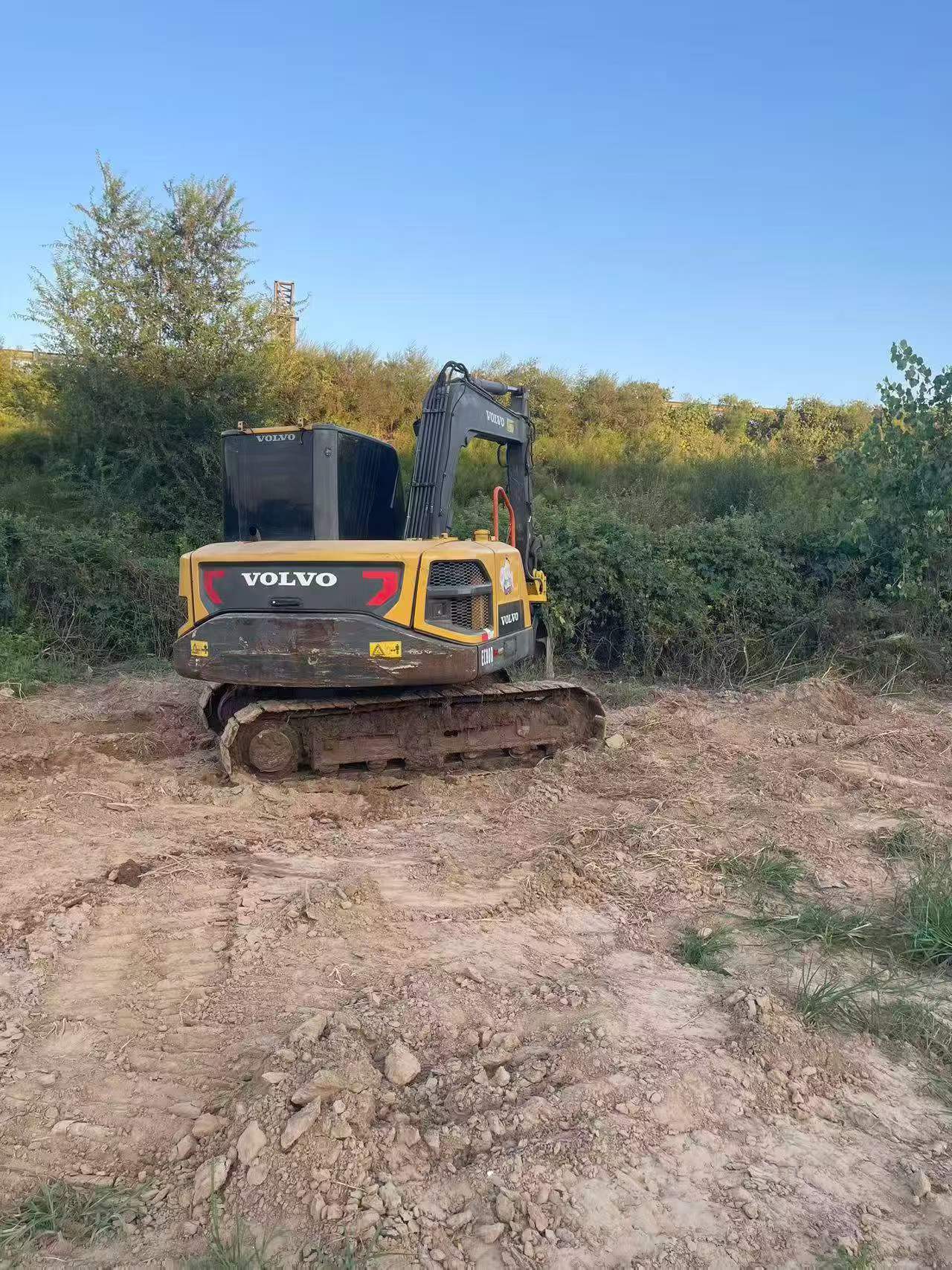

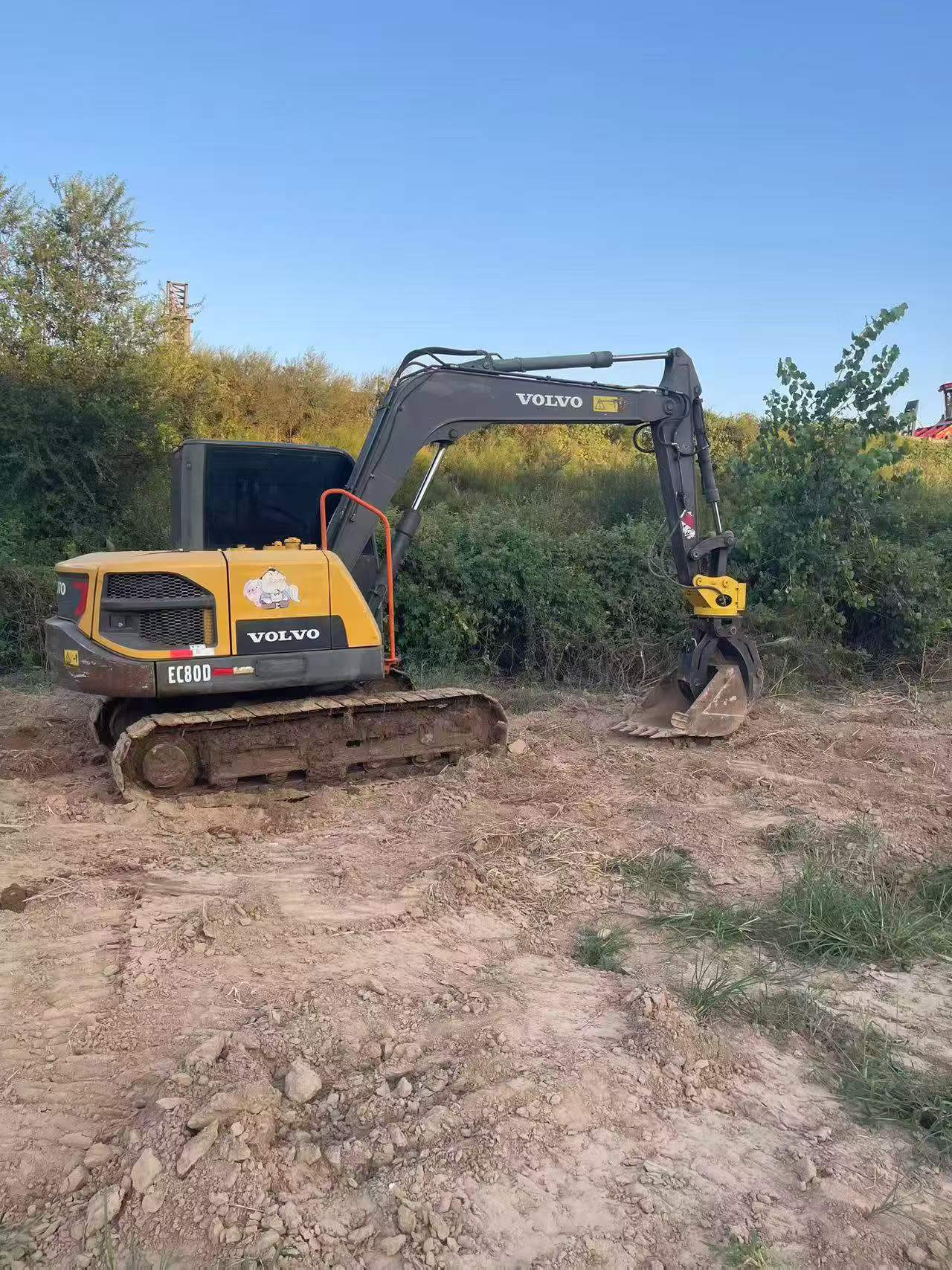

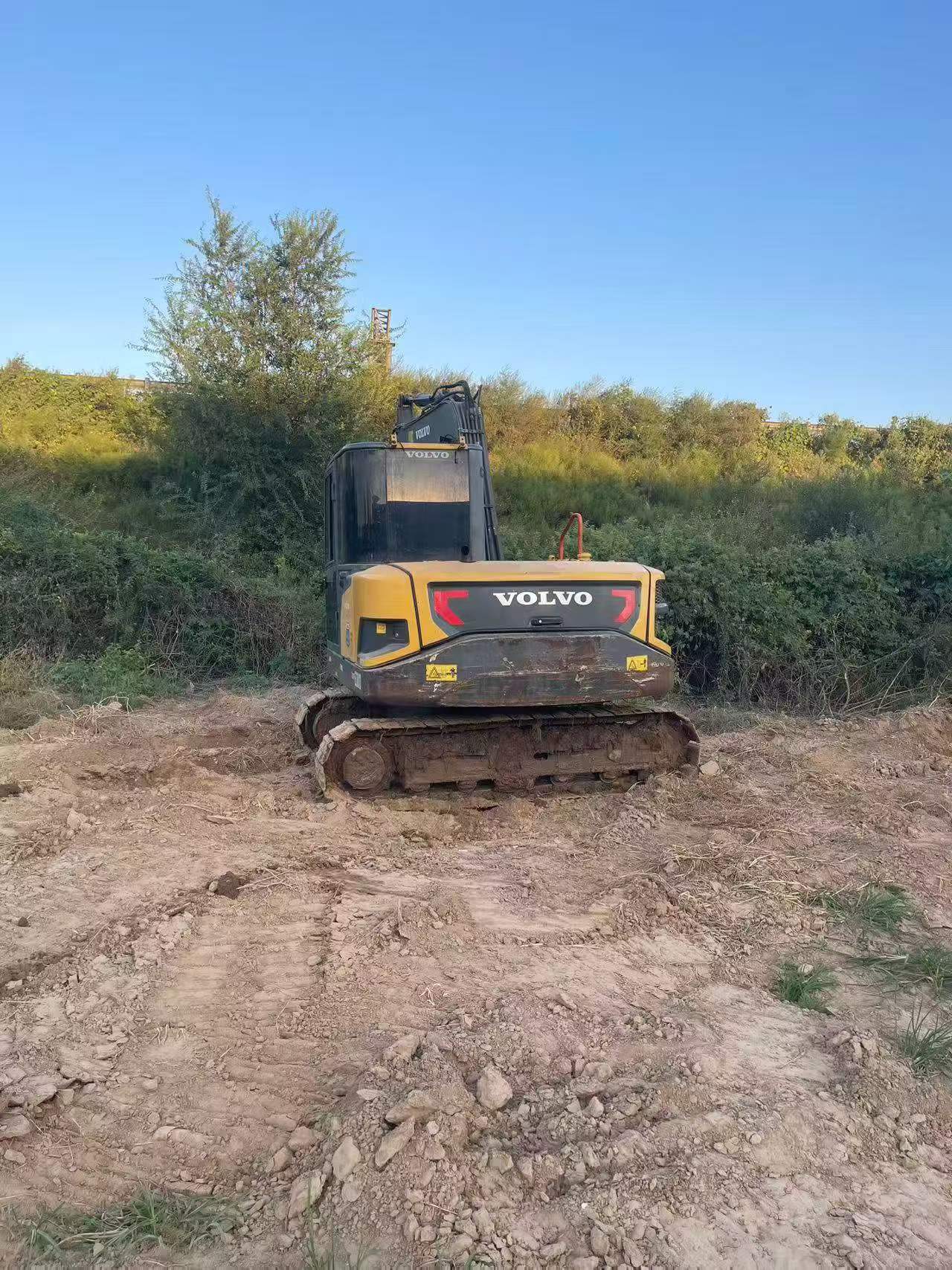

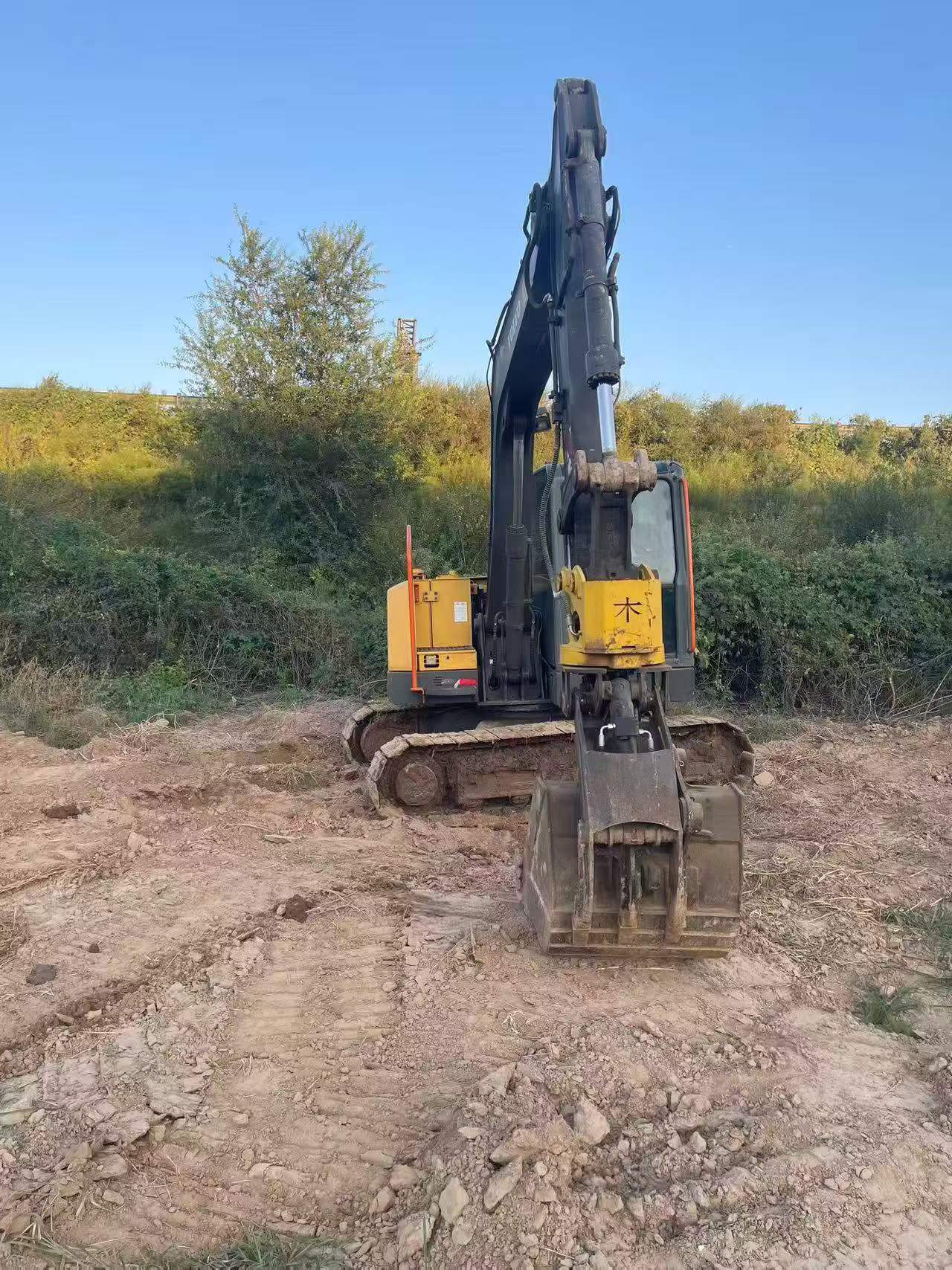

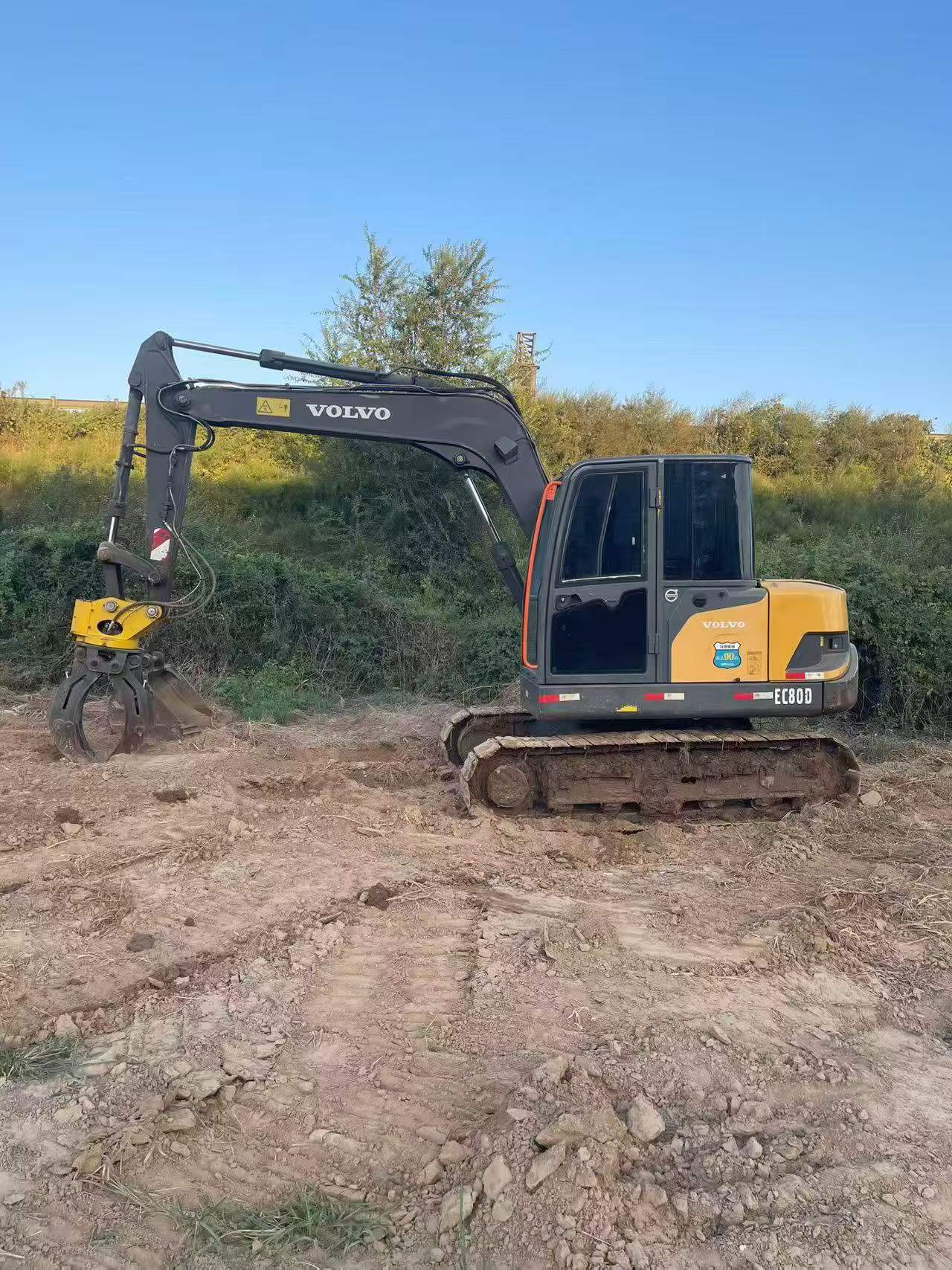

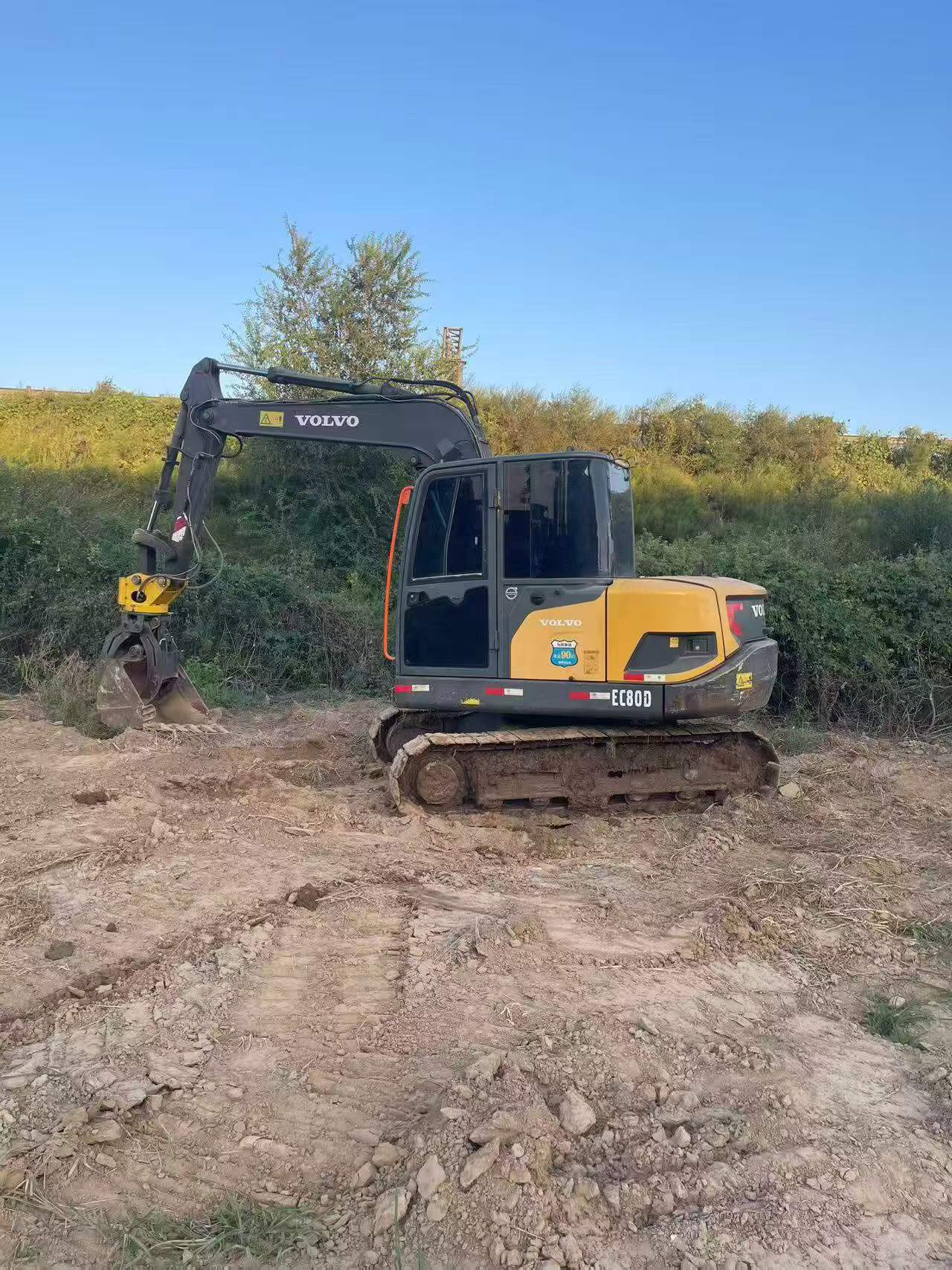

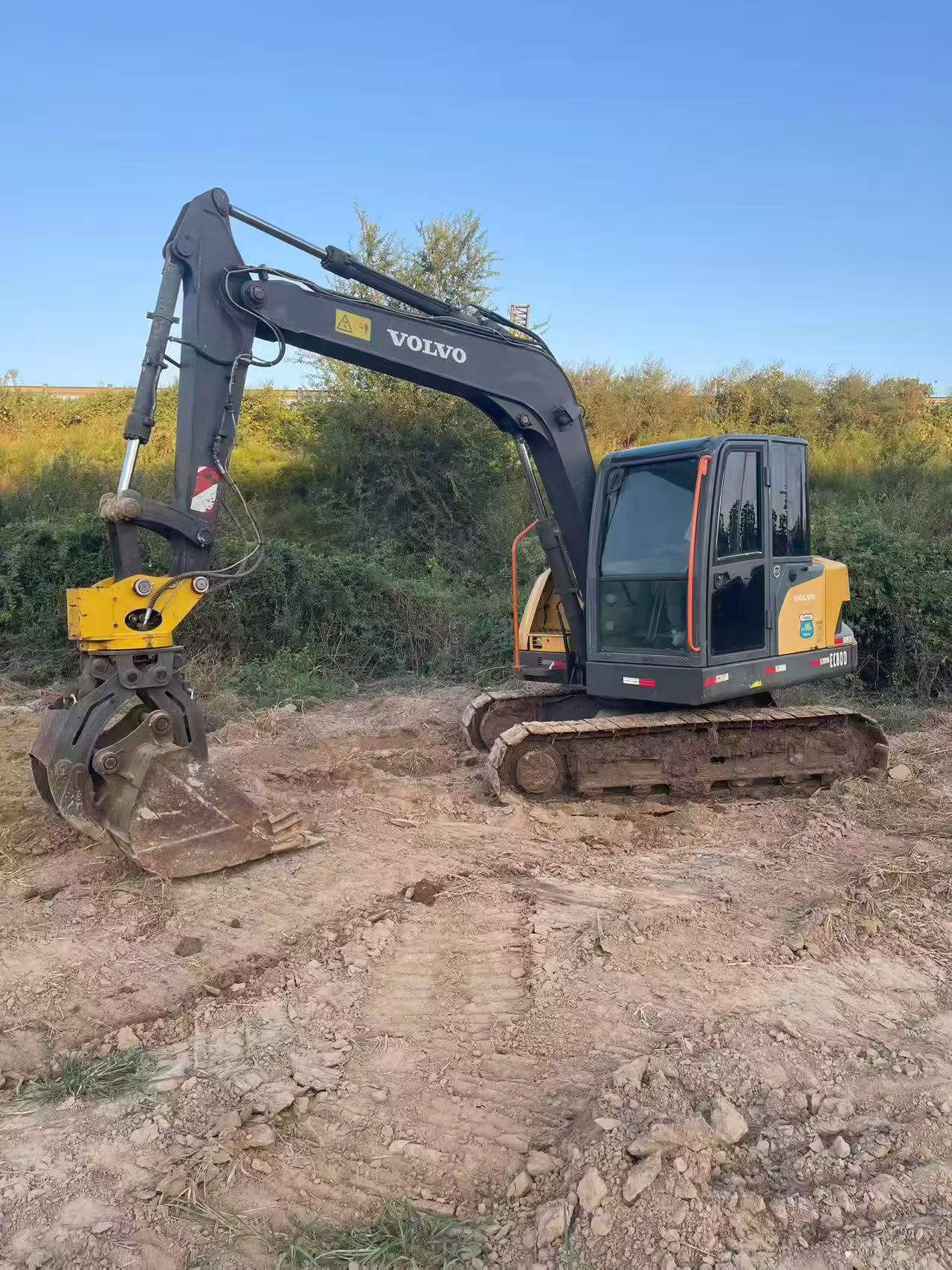

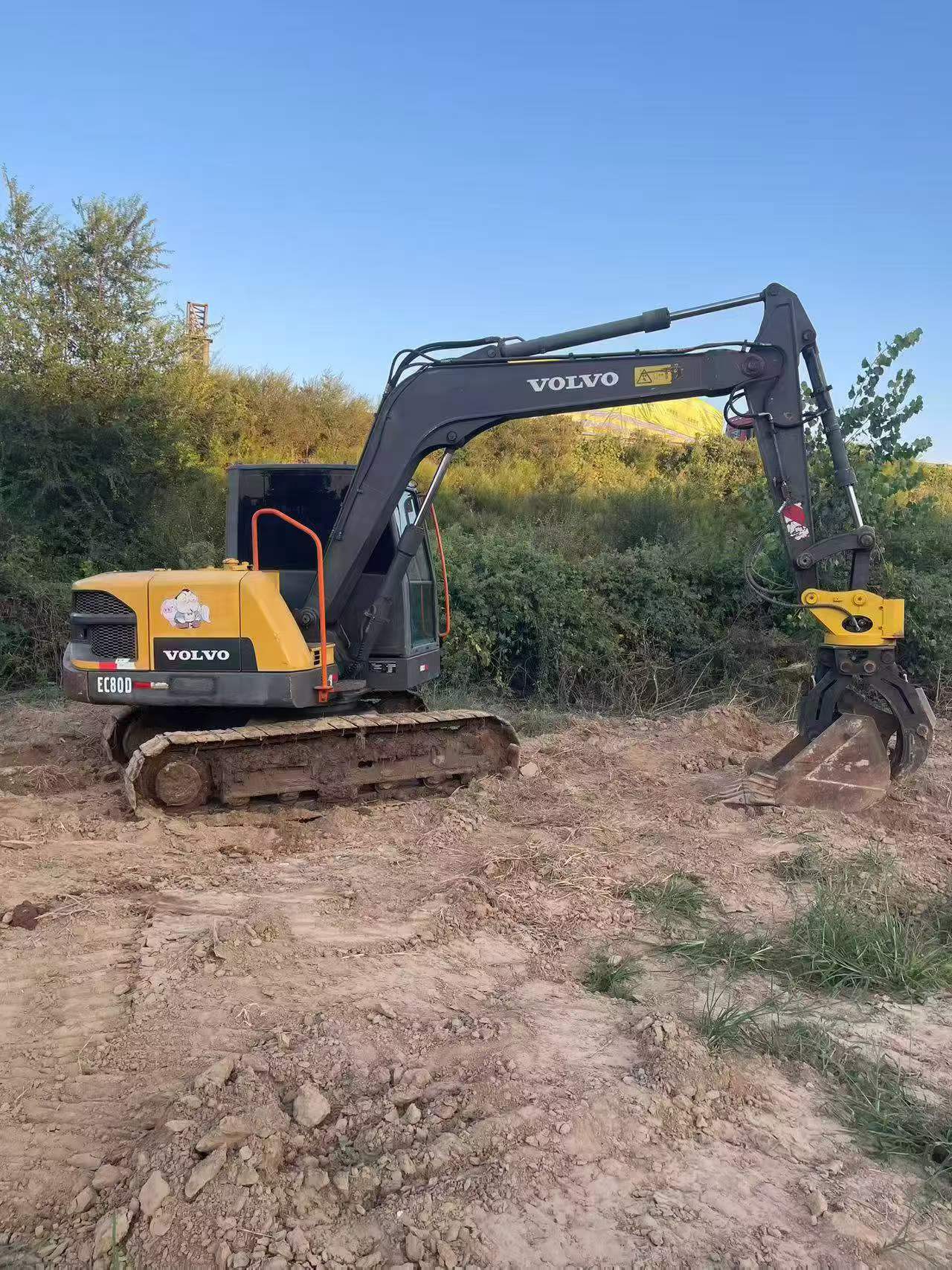

2020 Volvo EC80D excavator with grapple attachment, currently located in Beijing, China. This compact 8-ton class machine represents excellent value in the used equipment market.
Originally owned and operated by a private contractor in rural applications, this EC80D demonstrates solid operational performance. The machine features Volvo's reliable diesel engine and hydraulic systems characteristic of the D-series platform. Major components show no evidence of leakage, indicating proper maintenance throughout its service life.
Key features include:
- Factory-installed timber grapple for material handling applications
- Single-owner operational history
- Well-maintained major components and hydraulic systems
- Suitable for forestry, construction, and general excavation work
This unit offers reliable performance for contractors seeking a versatile compact excavator with material handling capability. Contact us for current pricing and shipping options.
| Specifications | Value |
|---|---|
| No. | 1138504 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.34 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D3.4A |
| Rated power (kw/rpm) | 42/2100 |
| Maximum torque (N.m) | 243 |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 39 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.6/5.1 |
| Total transport length (mm) | 6165 |
| Total transport width (mm) | 2300 |
| Total transport height (mm) | 2655 |
| Full cab height (mm) | 2655 |
| Counterweight ground clearance (mm) | 755 |
| Minimum ground clearance (mm) | 400 |
| Minimum turning radius of front working device (mm) | 1690 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2280 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1850 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2300 |
| Track ground length (mm) | 2200 |
| Maximum digging radius (mm) | 6420 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7130 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3530 |
| Maximum excavation radius of stop surface (mm) | 6270 |
| Maximum effective digging depth (mm) | 3740 |
